Product Information
2025 New FCOB LED Strip RGB 576chips/m 5m reel.This strip achieves a remarkable breakthrough in the design of on-board chip LED flex circuit boards by breaking through the width limitations of conventional 8mm, 10mm or 12mm RGB fcob led strips and narrowing the width to just 5mm.
This innovative design not only makes the RGB cob strips slimmer, but also greatly enhances their flexibility and concealability, allowing them to easily fit into a variety of narrow and hidden spaces, such as cabinet interiors, skirting, staircase edges, etc., providing an ideal solution for concealed lighting projects.
Compatible with both 12 volt and 24 volt versions, this 5mm rgb led strip small cob adapts to different power systems, ensuring the stability and reliability of colorful lighting in a variety of application scenarios.

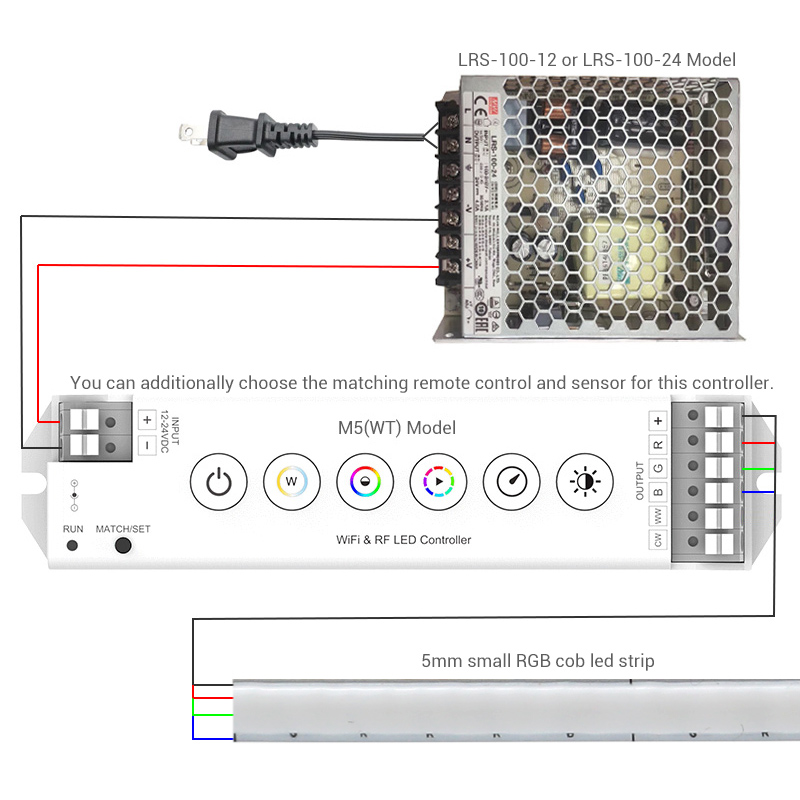

Build color changing LED strip lighting with this 5mm RGB COB can not be separated from the RGB controller, in the kit we offer push button control M5(WT) smart model with LRS-100-12 / LRS-100-24 led power supply..... Color changing COB lighting applications in cabinets can even use various types of sensor heads to trigger the cabinet lights.
• 576 chips (192 groups of RGB chips) per meter, 175 per foot, 70 watts maximum power per roll

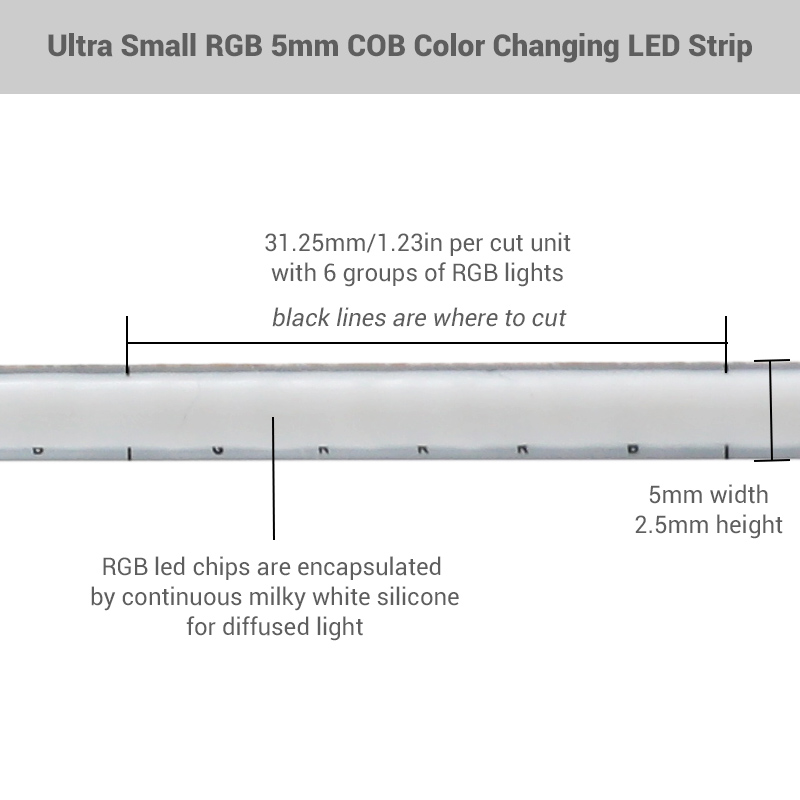

• 6 sets of RGB chips per 31.25mm/1.23in cut

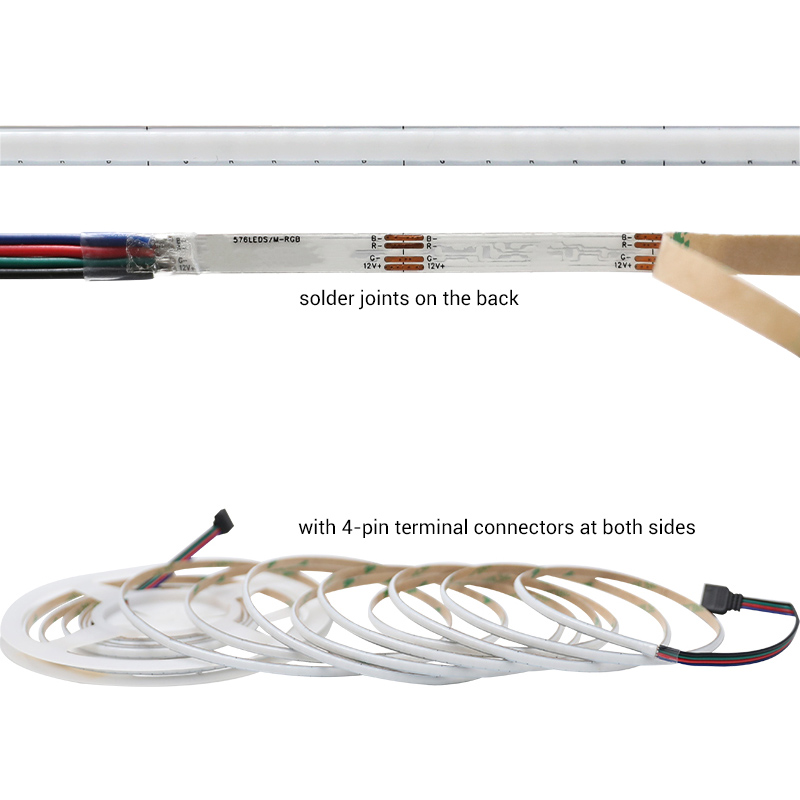

• 4 soldering points on the back of the strip with 4-pin plug-in quick connectors on both sides for easy connection
• PCB with black marking lines indicating where the strip can be cut for easy customization to meet actual requirements
Product Specification
|
LED Strip Type:
|
Ultra Small RGB LED Light Strips - COB Type |
| Input Voltage: | DC 12V, 24V |
| PCB Width: | 5mm |
| PCB Height: | 2.5mm |
| Length: | 5m/16.4ft |
| LED Quantity: | 192 R + 192 B + 192 G chips/m |
|
Power:
|
14W/m, 4.27 W/ft, 70 W/roll
|
| Lumen: | 5500-6700lm |
| Cut Length: | 31.25mm/1.23" |
| Beam Angle: | 180° |
| Connector: | 4-pin connectors at both ends |
| Waterproof Rating: | Indoor IP20 & outdoor IP67 IP68 |
| Working Temperature: | -20℃ ~ +45℃ |
