Black PCB 96LEDs/m 5-In-1 RGB CCT Color Changing LED Strip DC24V 12mm 16.4ft
This is a new type of 96LEDs/m 5-in-1 RGB CCT led strip, with a black circuit board as the base. The black PCB gives the RGB CCT strip a more invisible appearance, reduces light reflection and glare problems.
The special features of the black PCB RGBCCT led strip are mainly in the appearance and visual effect, it doesn't affect the basic functions and parameters of the light tape.
Black PCB 96LEDs/m 5-In-1 RGB CCT color changing led strip
DC24V led strip power supply, less voltage drop
Controlled by an RGB CCT led controller, you can freely choose the control method, remote control, WiFi, or Alexa control

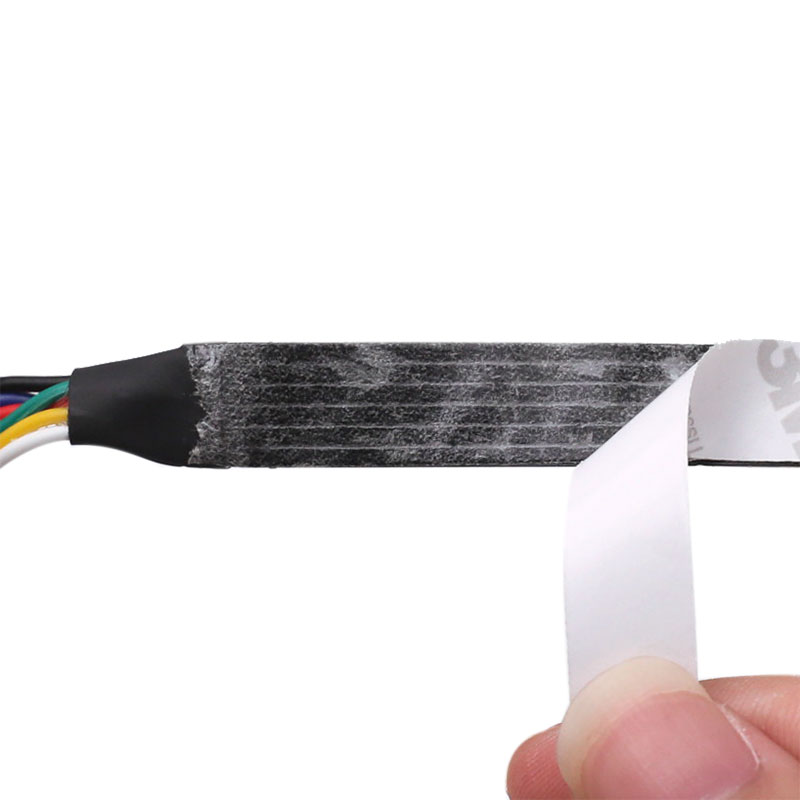

Adhesive tape on the backing, simple installation
Standards and Certifications
|LED Strip Type:||RGB CCT 480LEDs/16.4ft LED Strip|
|LED Chip:||Sanan Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

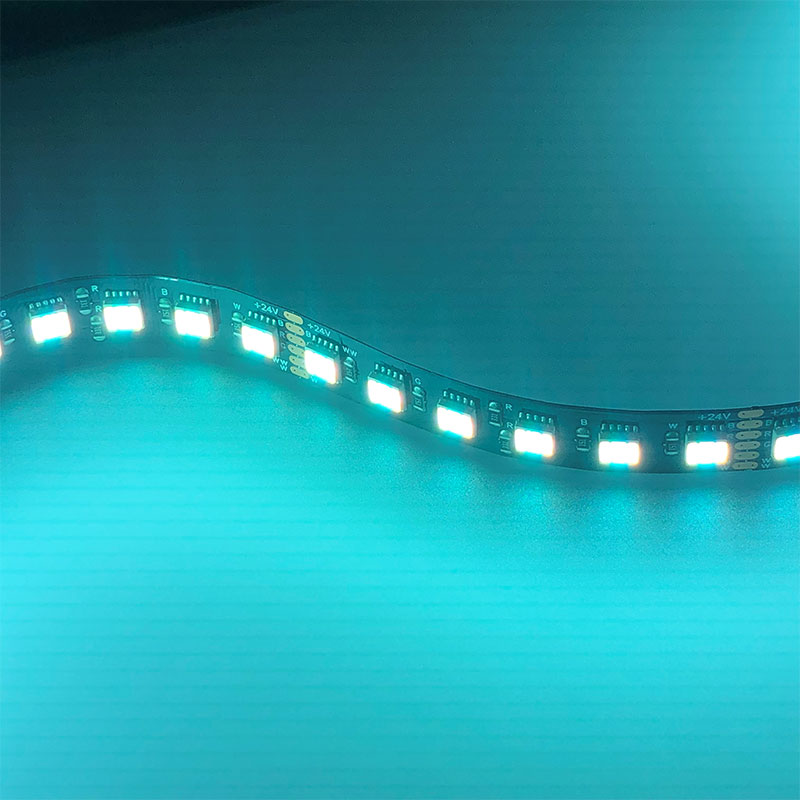

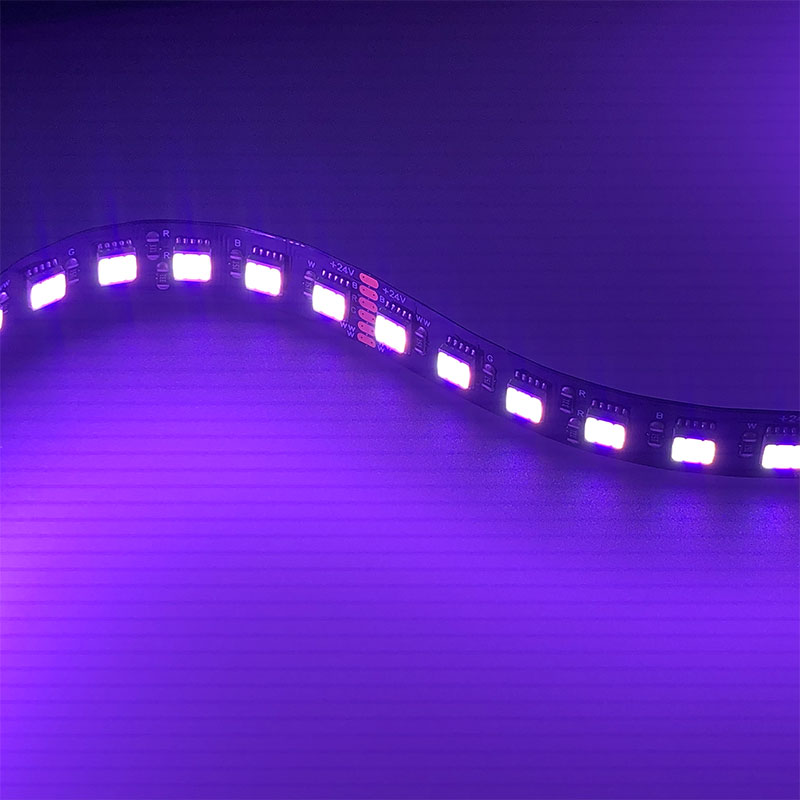

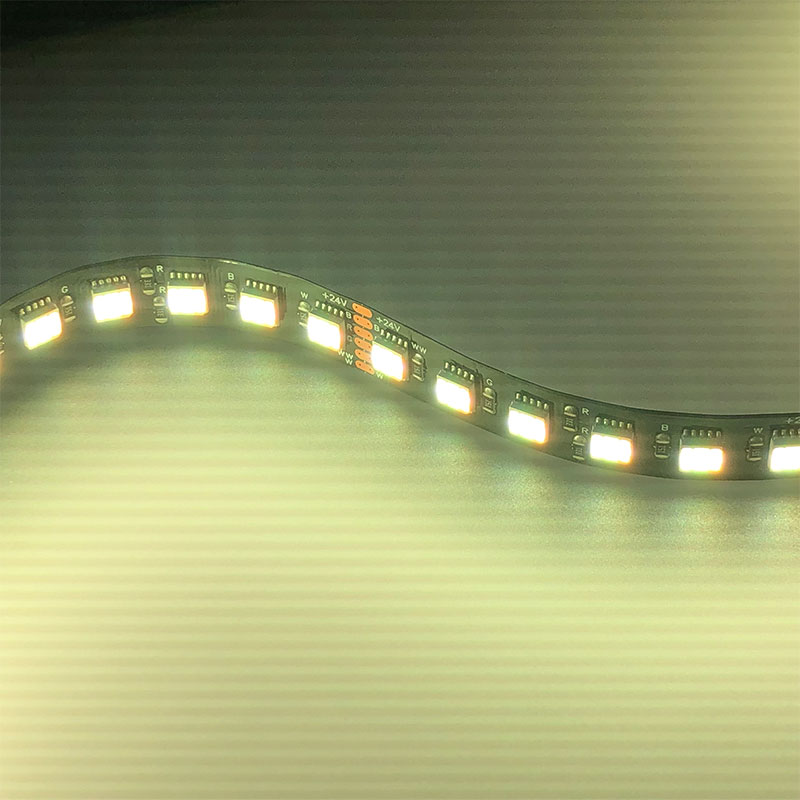

|Light Color:||RGBCCT (RGB multi color + 2700K-6500K CCT white light color)|

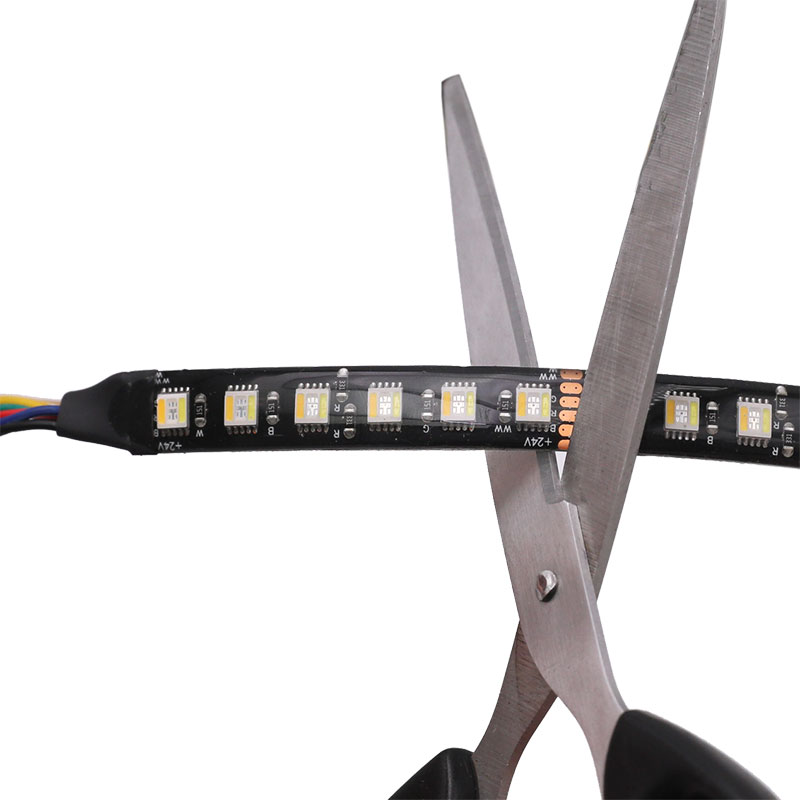

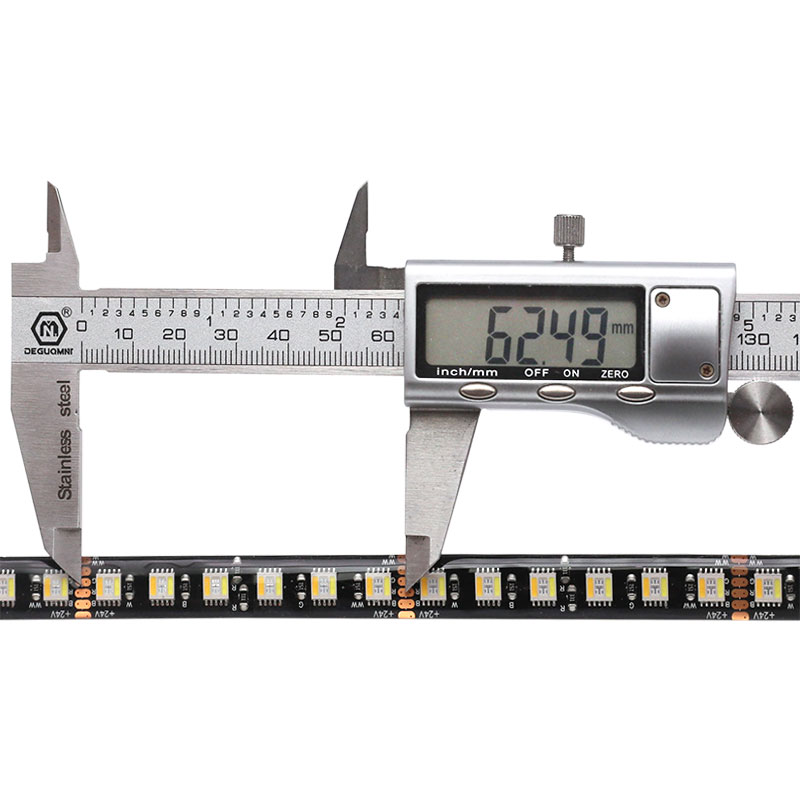

|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||96 LEDs per meter (3.28 ft)|

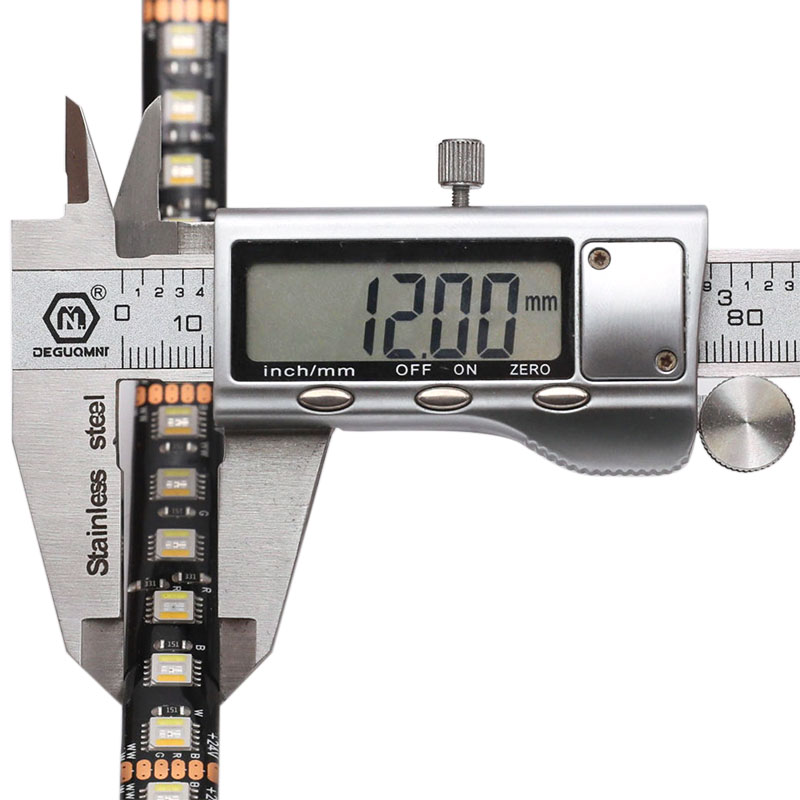

|Strip Width:||12mm (0.47in)|
|Working Power:||5.5A 132W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBCCT led strip wiring diagram:
