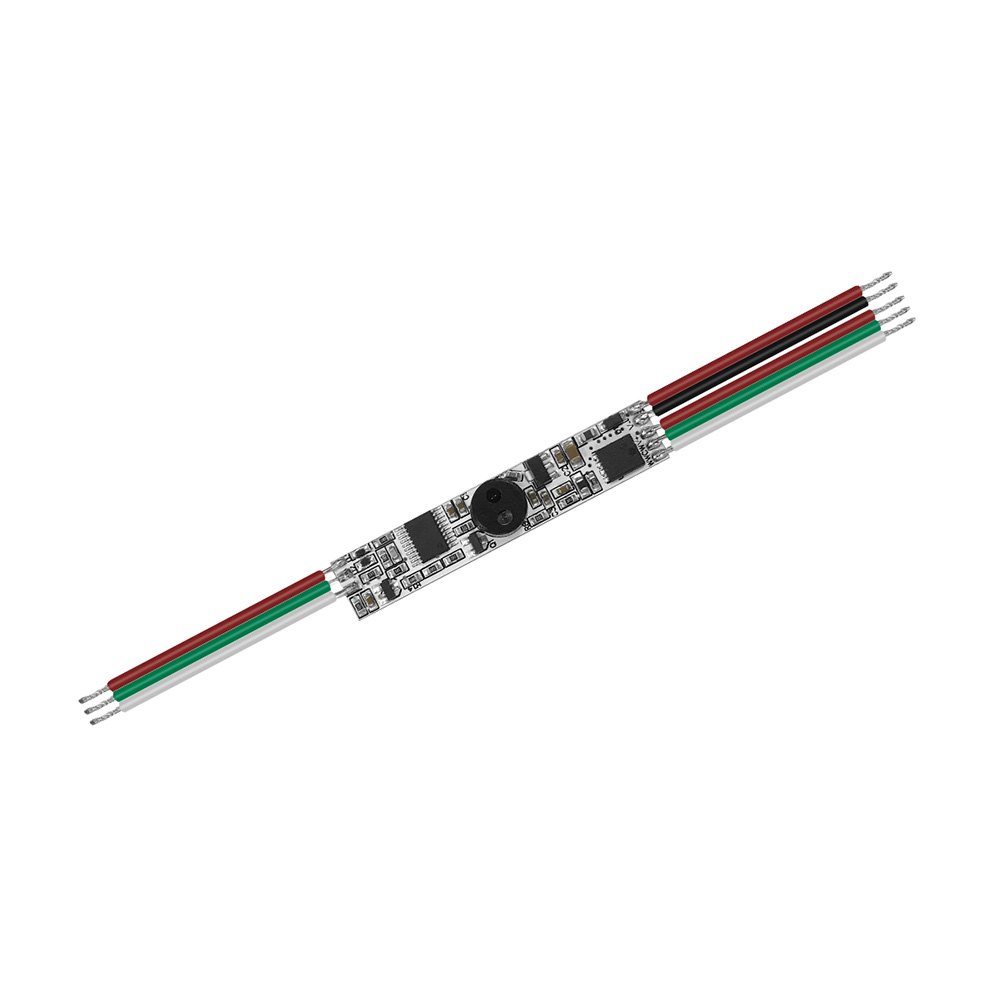

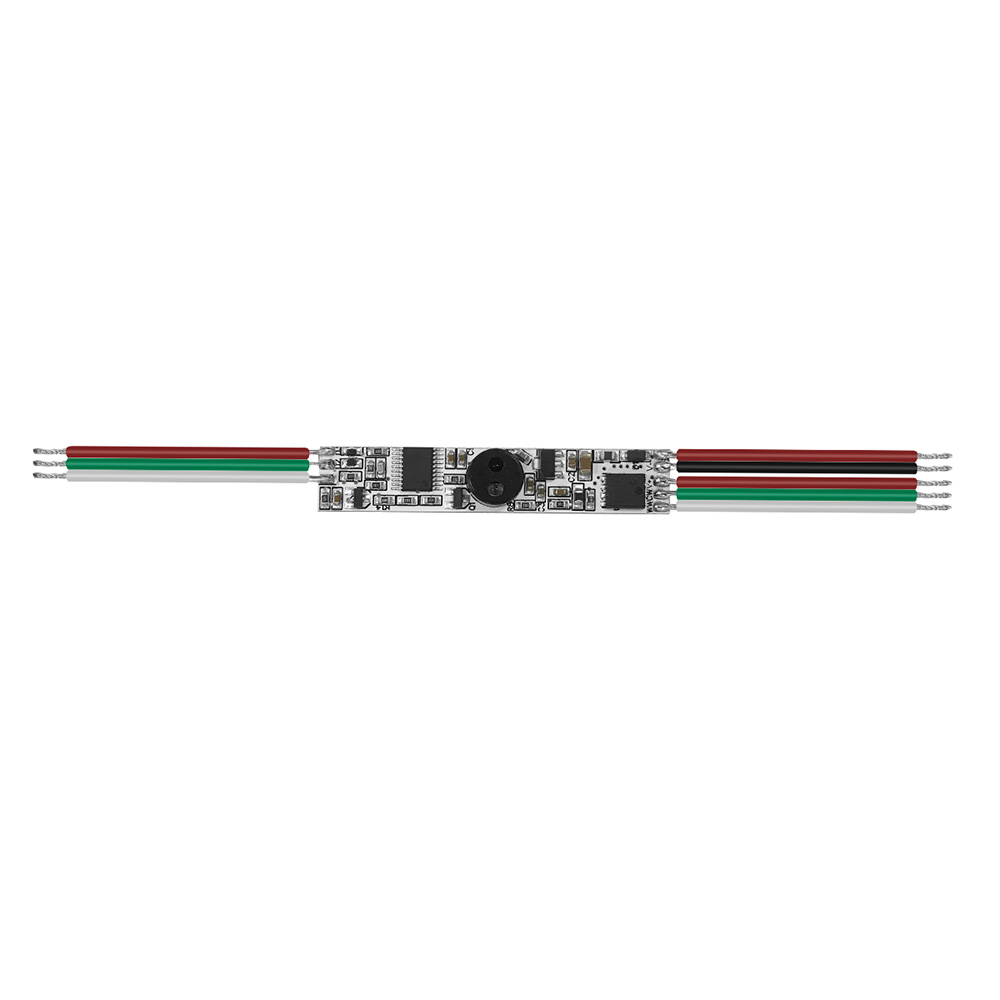

E2-B Hand Swipe Induction CCT Dimmer - Push Dim - 12-24VDC
Hand swipe induction CCT dimmer, connected directly to the color temperature low-voltage LED strip.
When hand swipe, switch between brightness and color temperature adjustment.
When hold hand short for on/off and long for adjust brightness / color temperature continuously.

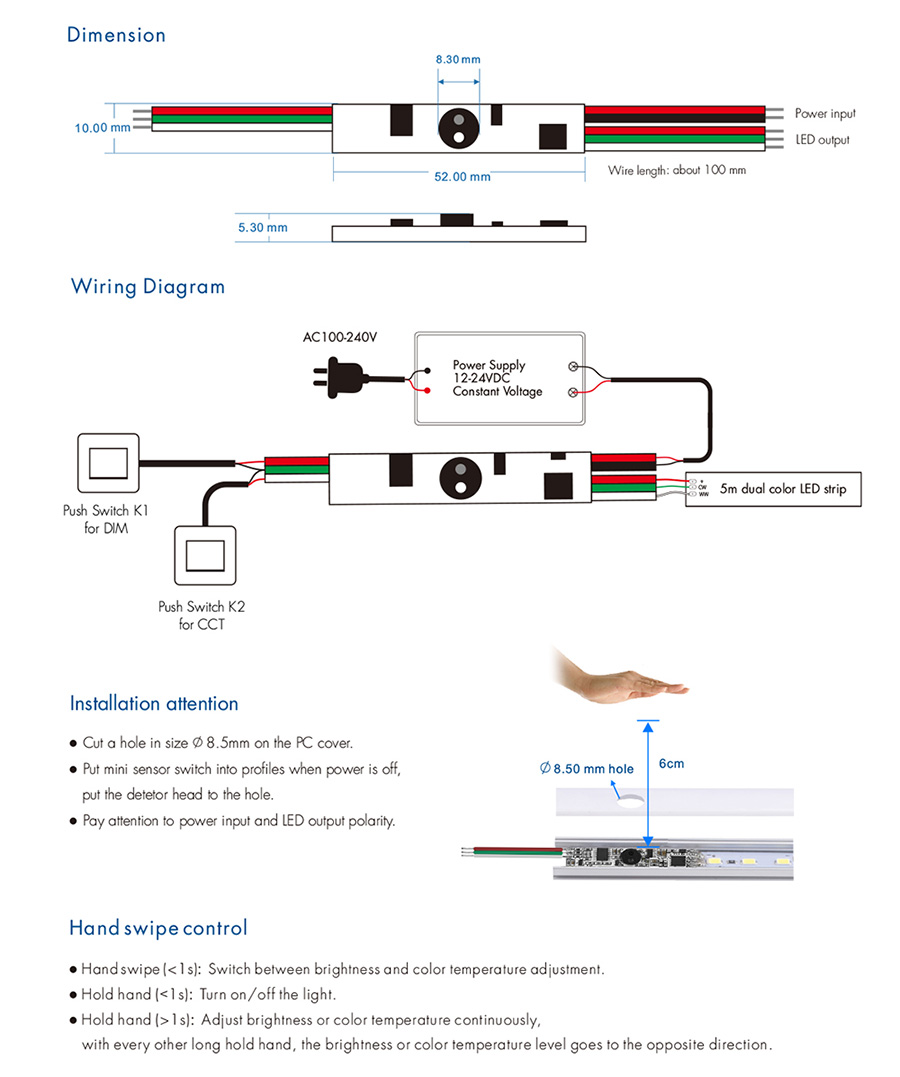

Connect with external two push switches, one is used for on/off and adjusting brightness, the other is used for adjusting color temperature.
Max 3A output current, max output power 72W@24V.
Generally installed in the aluminum lamp strip housing.
3M paste in the bottom of the PCBA make easy installation and security.
Low cost and high stability.
Widely used in table lamps, bedroom lamps, wardrobe lights, etc.

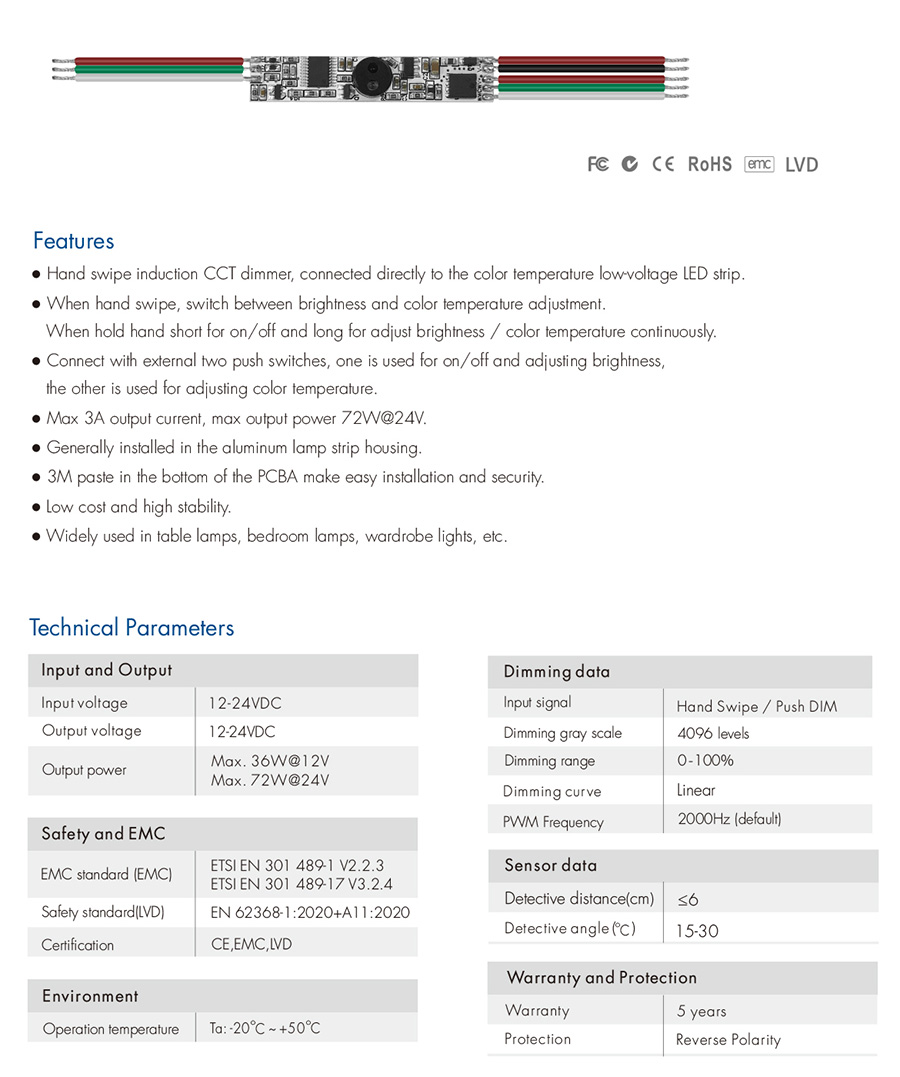

Input and Output
Input voltage: 12-24VDC
Output voltage: 12-24VDC
Output power: Max. 36W@12V; Max. 72W@24V
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Dimming range: 0 -100%
Input signal: Hand Swipe / Push DIM
Dimming gray scale: 4096 levels
PWM Frequency: 2000Hz (default)
Dimming curve: Linear
Detective distance(cm): ≤6
Detective angle: 15-30℃
Operation temperature: 20-50℃
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Standards and Certifications
