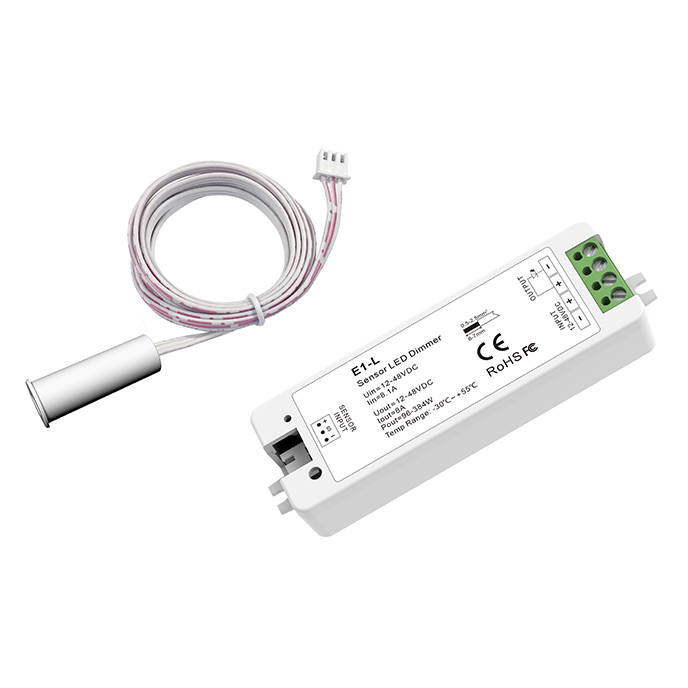

E1-L+EB/EB(C) 12-48VDC 8A Hand Sweep Sensor LED Dimmer
● Input connects with 9 kinds of sensor detector optional, output connected directly to the low voltage LED strip.
● Max 8A output current, max output power 384W@48V.
● PIR motion sensor: when people or objects enter the sensitive field, the light turns on; when this exit the sensitive field, the light turns off after 30 seconds.
● Touch sensor: short touch to turn on or turn off light; long touch to dim up or down.
● Door sensor: when the door opens, or no obstacle ahead, the light turns on gradually; when the door close, or an obstacle ahead, the light turns off gradually.
● Hand sweep sensor: when hand sweep, the light turns on gradually; when hand sweep again, the light turns off gradually.
● 3 kinds of microwave motion detectors: turn on the light upon detection of motion, and turn it off after a pre-selected hold time when there is no movement, without dimming, with dimming, and two-step dimming function respectively.
● All microwave motion detectors, built-in daylight sensors, detection area, time delay, and daylight threshold can be set via a knob potentiometer for each specific application.

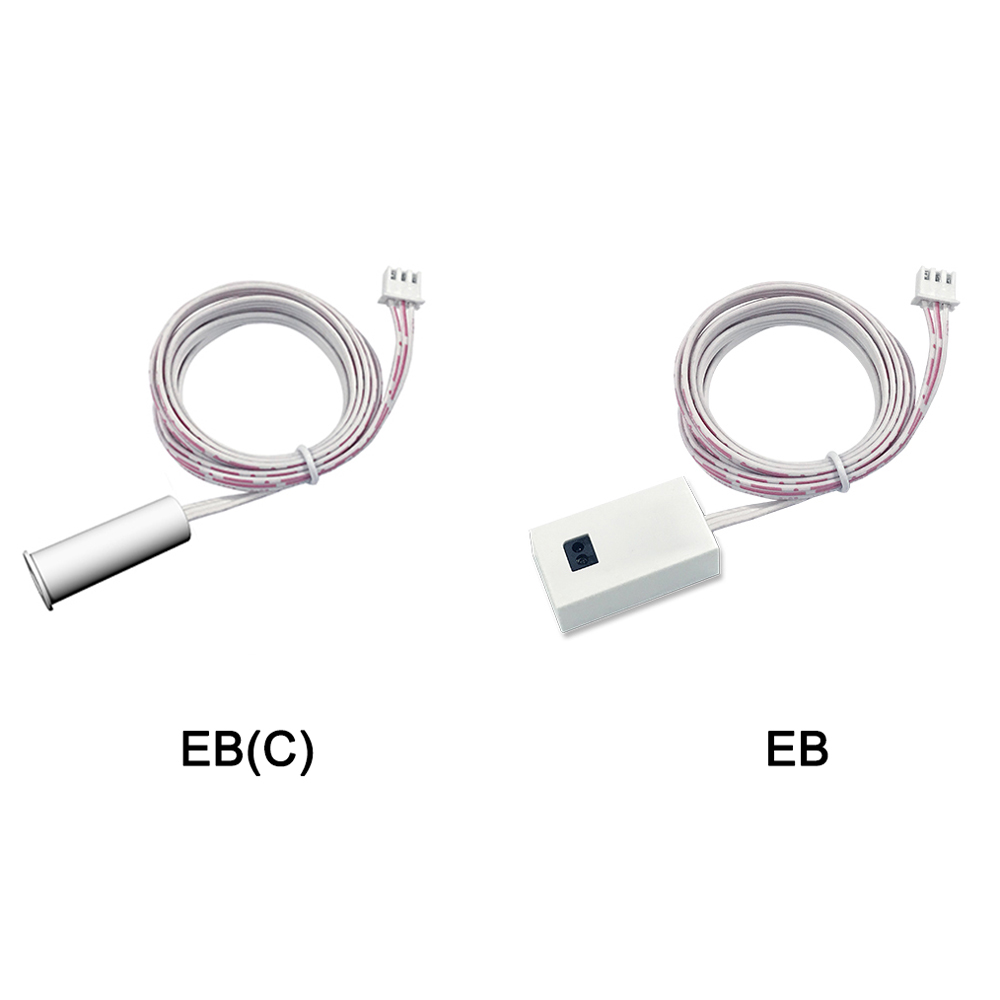

Please note: We will send you the EB sensor by default, if you EB(C) sensor, you can write in the special instuction area.
Input and Output
Input Voltage: DC12-48V
Output Voltage: DC12-48V
Output Power: 96W/192W/288W/384W (12V/24V/36V/48V)
Output Type: Constant voltage
Input Current: 8.1A
Output current: 8A
Warranty and Protection
Warranty: 5 years
Operation Temperature Ta: -30℃~+55℃
Case temperature (Max.): Tc: +85℃
IP Rating: IP20
Safety and EMC
EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety Standard(LVD): EN 62368-1:2020+A11:2020
