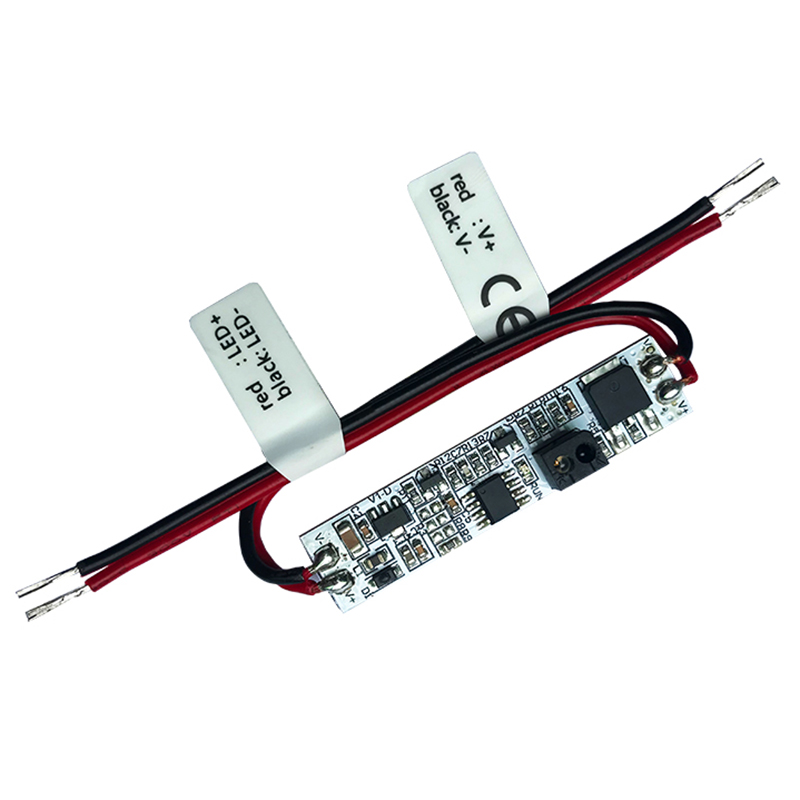

E1-B DC12-24V Hand Sweep Sensor Switch For Low Voltage LED Strip
● Hand sweep sensor switch, connected directly to the low voltage LED strip.
● When hand sweep, the strip turn on gradually.
When hand sweep again, the strip turn off gradually.
● Max 4A output current, max output power 96W@24V.
● Generally installed in the aluminum lamp strip housing.
● 3M paste in the bottom of the PCBA make easy installation and security.
● Low cost and high stability.
● Widely used in table lamps, bedroom lamps, wardrobe lights, etc.
Input and Output
Input Voltage: DC12-24V
Output Voltage: DC12-24V
Output Power: Max. 48W@12V, Max. 96W@24V
Detective Distant: ≤8cm
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
