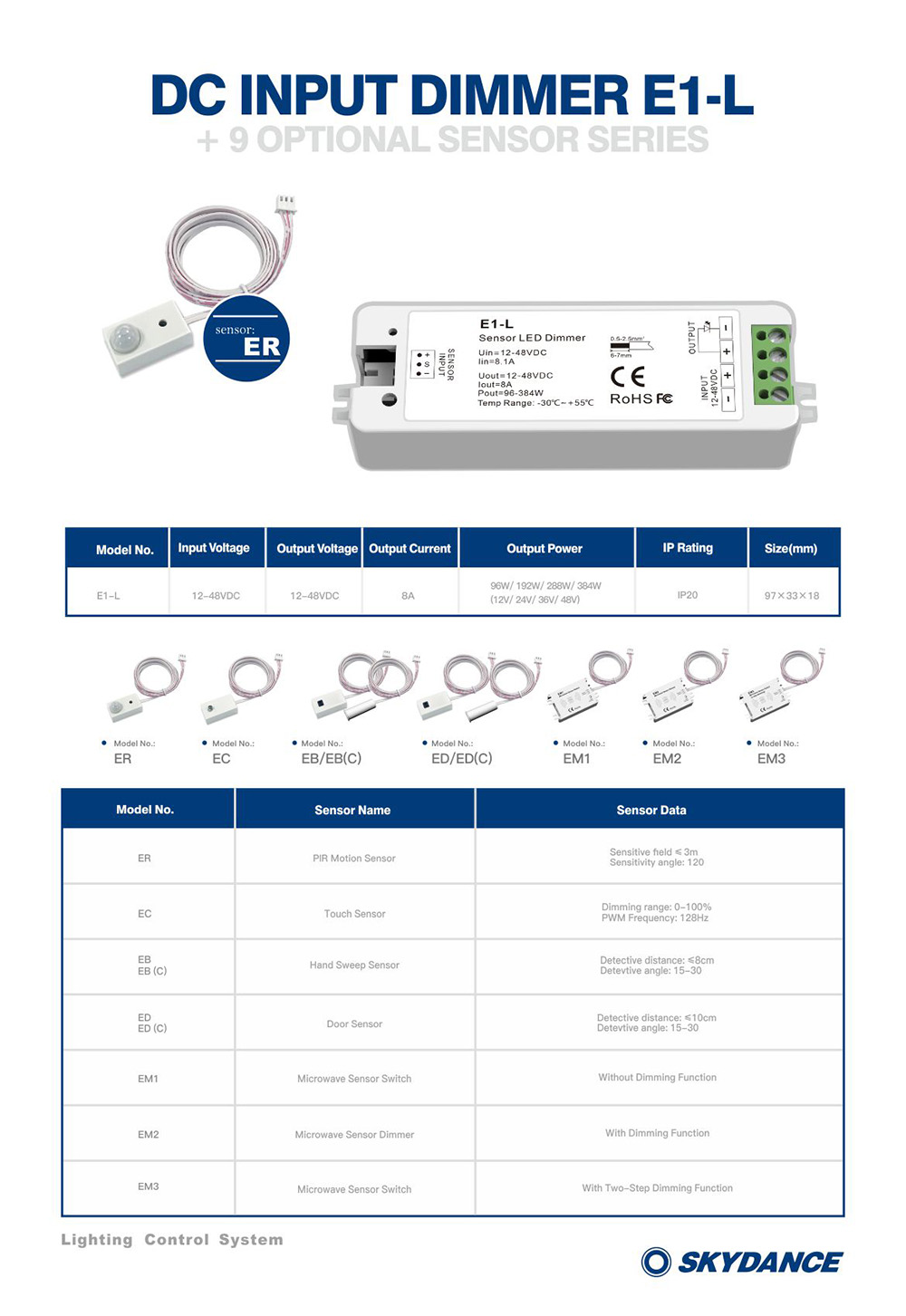

12-48VDC 8A Door Sensor + LED Controller E1-L+ED(C) For Single Color LED Strip Lights
- $40.00 $23.9840% off
- $42.98 $32.9823% off
- $60.00 $42.9828% off
- $12.98 $11.988% off
Special Price: $12.98
This door sensor is used to automatically turn white LED strip lights or other single color led strips on or off based on the opening or closing of a door. The door sensor typically consists of two parts: a sensor that is mounted on the doorframe and a switch that is installed near the light fixture.
When the door opens, the sensor sends a signal to the controller, which turns the strip lights on. When the door closes, the sensor sends another signal, and the strip lights turn off. This achieves a convenient and automatic lighting control, eliminating the need for manual switches.
Door sensors are commonly used in homes, offices, and commercial buildings, particularly in areas where lights may be frequently turned on and off, such as kitchens, bathrooms, hallways, and garages. They are also useful for security purposes.
By turning LED strip lighting on and off based on the opening and closing of a door, this technology can save energy, enhance safety, and provide added convenience for modern homes and buildings.

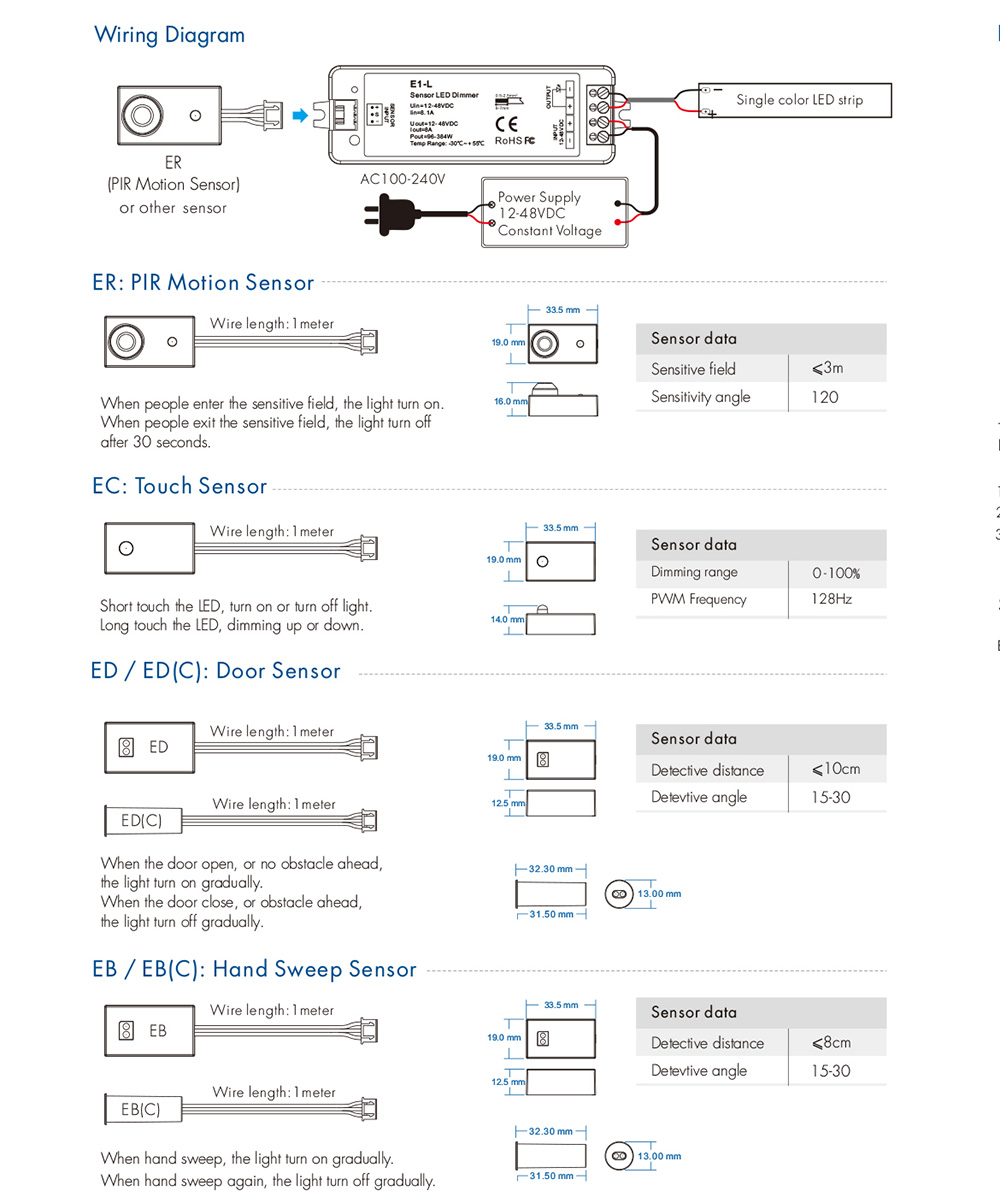

● Input connect with door sensor, output connected directly to the low voltage LED strip lights.
● Max 8A output current, max output power 384W@48V.
● Door sensor: when the door opens, or no obstacle ahead, the LED light turns on gradually; when the door closes, or obstacle ahead, the light turns off gradually.
Standards and Certifications
|Output power:||96W/192W/288W/384W (12V/24V/36V/48V)|
|Output type:||Constant voltage|
|Operation temperature:||Ta: -30℃ ~ +55℃|
|Case temperature (Max.):||Tc: +85℃|
