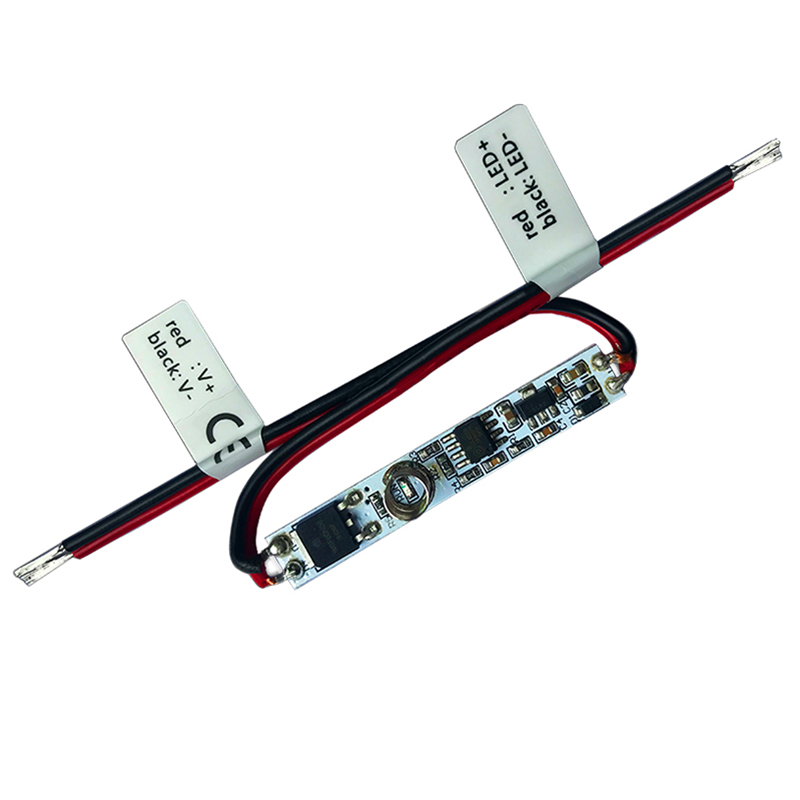

E1-C 1CH*3A 12-24VDC Constant Voltage LED Mini Touch Dimmer
● 1 channel constant voltage single color LED mini sensor dimmer & switch for aluminum profiles.
● High sensitivity touch operation with LED indicator.
● 3A per channel, output connect with 5 meters single color LED strip, max output power 72W@24V.
● 0-100% dimming smoothly without any flash.

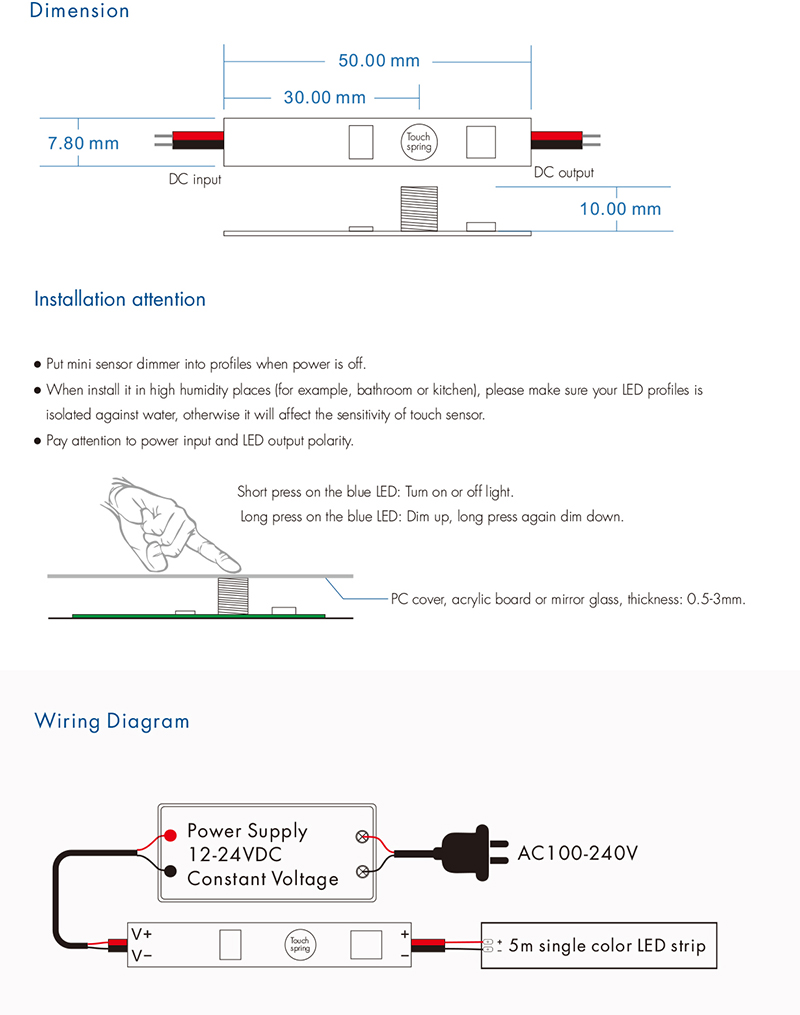

● The media on the touch spring can be PC cover, acrylic board or mirror glass.
● 3M paste in the bottom of the PCBA make easy installation and security.
● Low cost and high stability.
● Widely used in table lamps, bedroom lamps, wardrobe lights, etc.
Input and Output
Input Voltage: DC12-24V
Output Voltage: DC12-24V
Output Power: Max. 36W@12V, Max. 72W@24V
Output Type: Constant voltage
Input Signal: Touch key
Dimming range: 0 -100%
PWM Frequency: 128Hz
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
