Product Information
SK6812 12V Addressable RGB LED Strip
30 LEDs/m | Individual IC Control | Low Power Ambient Series
Individually Addressable Power at 12V Stability
Experience precision digital control with the SK6812 RGB 12V Individual IC LED Strip. Unlike other 12V addressable light strips that control LEDs in groups of three, this 12V SK6812 version allows for individual pixel control (1 LED = 1 Pixel). This ensures smoother color transitions and more complex lighting patterns while maintaining the voltage stability required for longer runs.
With a density of 30 LEDs per meter, this IC RGB LED strip is the ultimate choice for high-efficiency decorative lighting. Consuming only 7.2W per meter, it is designed for applications where energy conservation and low heat dissipation are priorities.

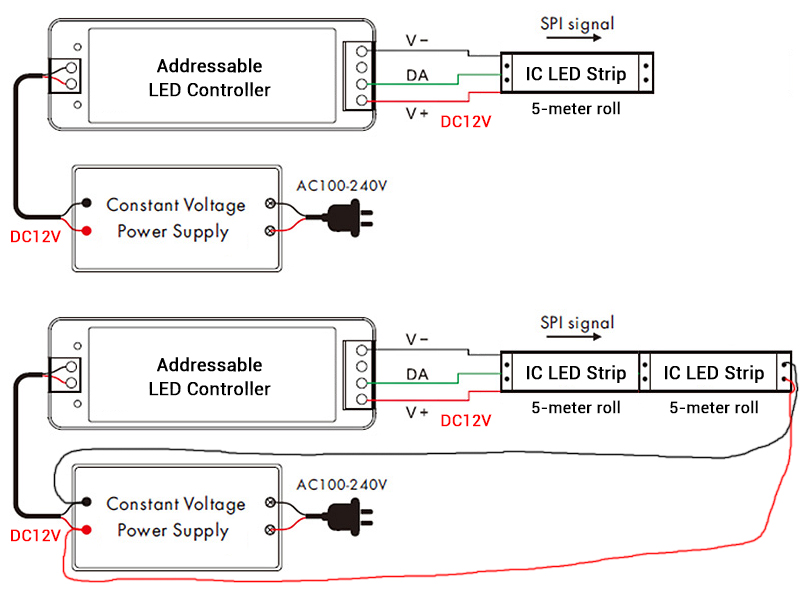

Wiring & Power Injection Guide
To ensure consistent brightness and prevent voltage drop across the 150-pixel runs:
5 Meter Setup:
Single-side power injection is sufficient for a standard 5m reel. This 150-pixel addressable lighting system can be plugged directly into your home outlet using the kit included SP638E controller and 12V 5A adapter, allowing you to control colors and modes via a Bluetooth app.
10 Meter Setup:
Dual-side power injection (connecting power to both ends) is required to maintain uniform color if you connect 2 pieces of 5m reels in series. The SP638E features two data output channels, also enabling you to connect two 150-pixel light strips in parallel, powered by a Mean Well LRS-100-12 power supply.
Technical Specifications
| Model Number | SK6812-5050RGB-30W10-12V |
| Brand | SuperLightingLED™ |
| Input Voltage | DC12V |
| LED / IC Type | SK6812 RGB (Built-in IC) |
| LED / Pixel Count | 30 LEDs/m | 30 Pixels/m (Individually Addressable) |
| Power Consumption | 7.2 Watts/meter (36W per 5m Reel) |
| PCB Width | 10mm |

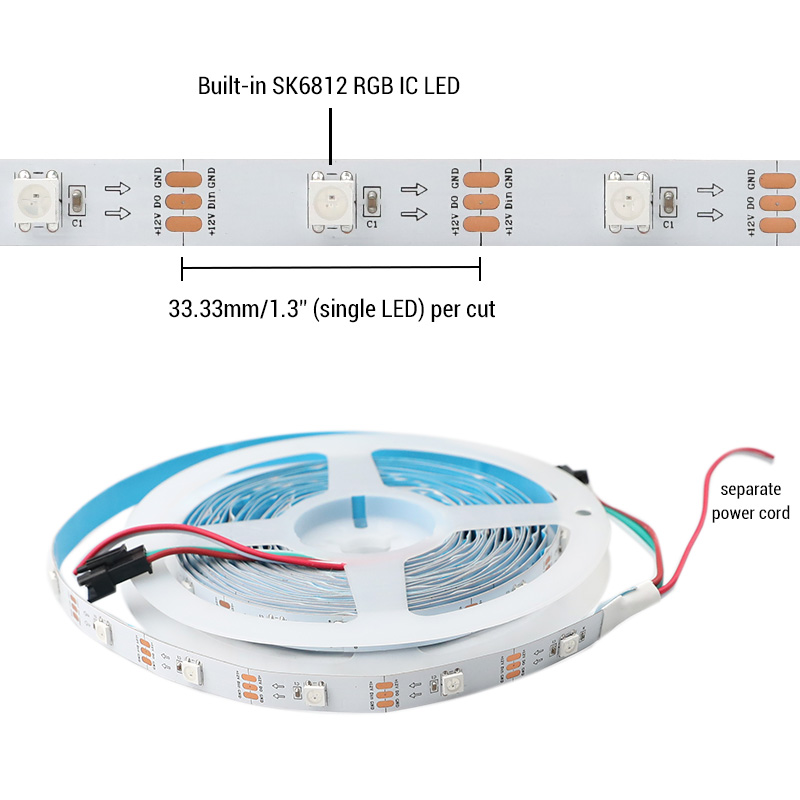

| Cutting Interval | Every 33.3mm (1 LED per cut) |
| Solder Pad Function | +12V (Red wire), Data (Green wire), GND (White wire) |
| Connector Type | 3-Pin JST-SM Connectors, 2-Pin Power Wires |
| Waterproof Rating | IP20 / IP65 / IP67 / IP68 Options |
