Neopixel Diffused 5mm/8mm Ultra Bright RGB LED Light Emitting Diodes - 5 PCS

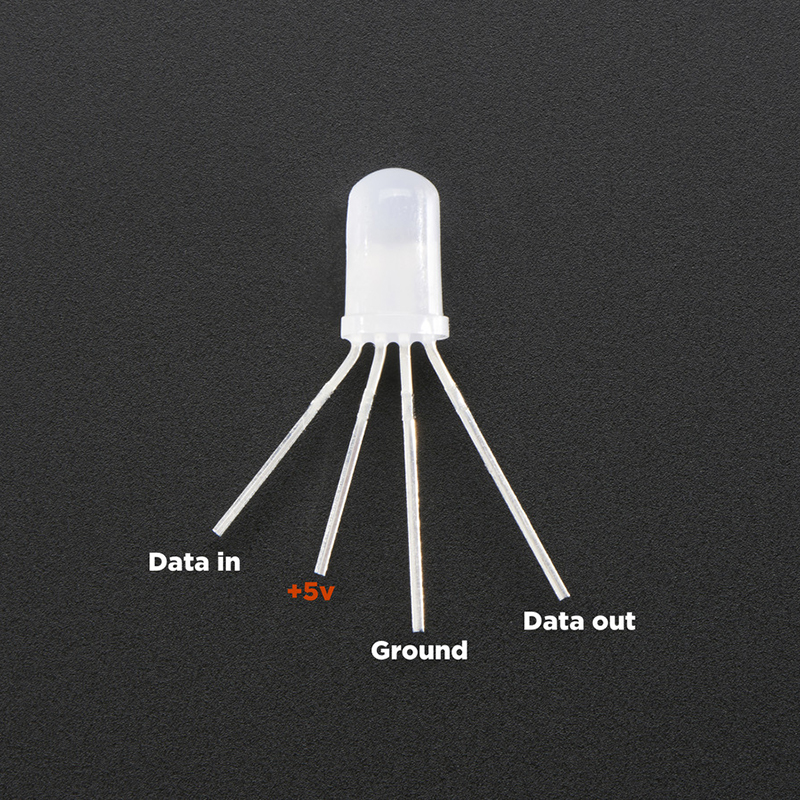

Neopixels LED has 0.5-inch lead pitch and water transparent lens. RGB LED light supports through-hole installation and common anode connection. Adafruit neopixel supports wavelengths of 630nm (red), 515nm (green) and 465nm (blue). LED Light Emitting Diodes are bright, easy to use, small in size and versatile, suitable for most spaces. Each LED looks like a shorter version of the classic through-hole 5mm RGB LED with 4 pins, but there are not only small red/green/blue chips inside, but also the LED can be controlled to 24-bit through high-speed PWM colour. Power them with a 5V power supply, link them together, and bind the Data-Out pin of one to the Data-in pin of the previous one in the chain. Mini LED diodes have bright lights, bright colours make them look beautiful at night, you can use them to make glow sticks;
The cool transparent white 5mm neopixel duffused high-brightness LED with a round top is usually used in many custom projects, car lighting, models and almost all other projects you can think of. They can be used not only in industrial fields but also in some student experiments and school science.
Standards and Certifications
Shell Color: transparent
R Wavelength: 630-640nm
G Wavelength: 515-525nm
B Wavelength: 465-475nm
8MM LED Light Emitting Diodes
4MM LED Light Emitting Diodes
