12V Individually Addressable SK6812 1800K to 6500K WWA LED Strip

Name: 12V Individually Addressable SK6812 1800K to 6500K WWA LED Strip
Brand: SuperLightingLED
SKU: DCFLS12V-SK6812-WWA-IA
Price: 32.98 USD
Availability: InStock

Model: DCFLS12V-SK6812-WWA-IA Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $32.98

Qty Discounts Off Price
1-19 $32.98	20-49 $32.32	50-99 $31.66	100+ $31.00
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Select LED Quantity:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

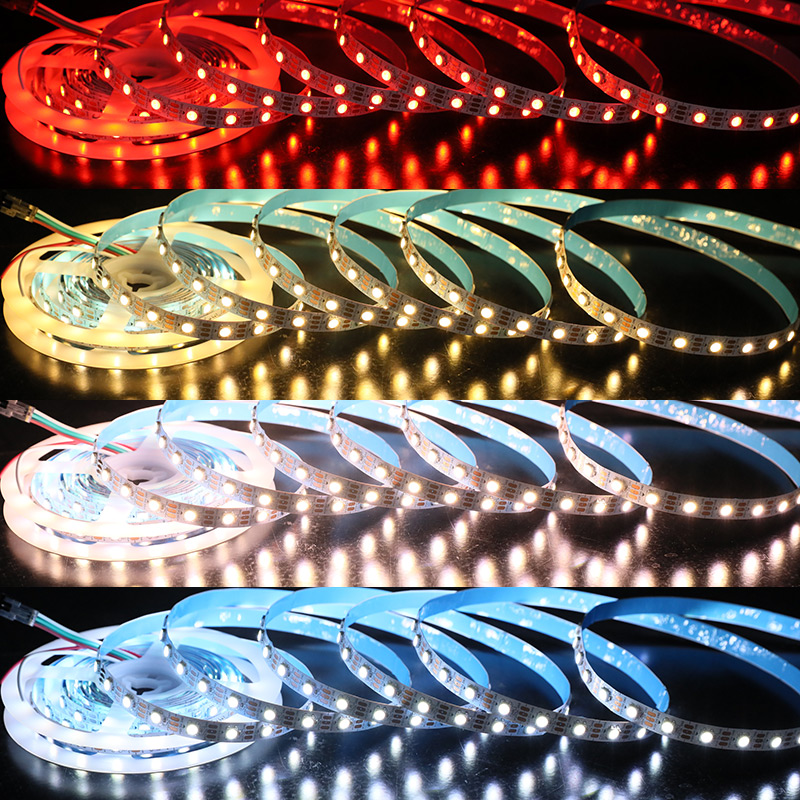

A special DC 12V individually addressable SK6812 WWA led strip with 30LEDs/m or 60LEDs/m, display color temperatures from 1800K very dim amber light to warm light to 6500K cool daylight light. Each 5050 WWA (Warm white+White+Amber) LED is controlled independently, so it can be its own color temperature and brightness.

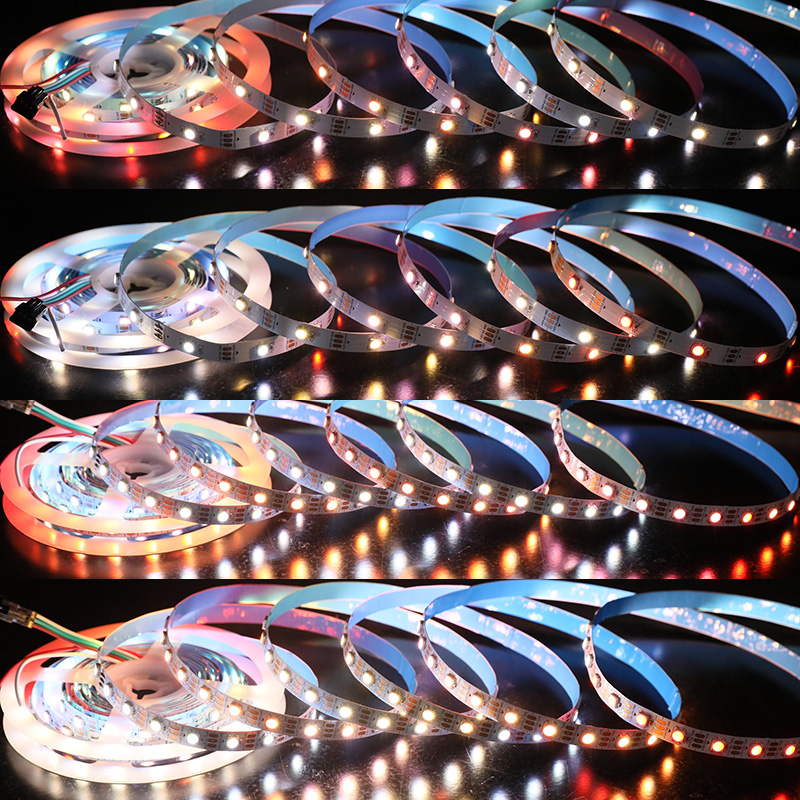

The independently addressable WWA led strip comes with a wide range of static color temperature displays and allows you to create more detailed color temperature running effects. Using the SK6812 control IC, this 3-wire design pixel light strip is easy to use, control can be accomplished with three wires (power, ground, and data). Widely compatible with most SPI controllers on the market.

30LEDs/m individually addressable SK6812 WWA led strip with 150 pixels per roll, and 60LEDs/m individually addressable SK6812 WWA led strip with 300 pixels per roll.

SK6812 WWA Datasheet Download

Product Specifications

Item Type:	12V Individually Addressable SK6812 WWA LED Strip
LED Chip:	SK6812 + SMD5050
Input Voltage:	DC12V
PCB Width:	10mm/0.3in
LED Density:	30LEDs/m, 60LEDs/m

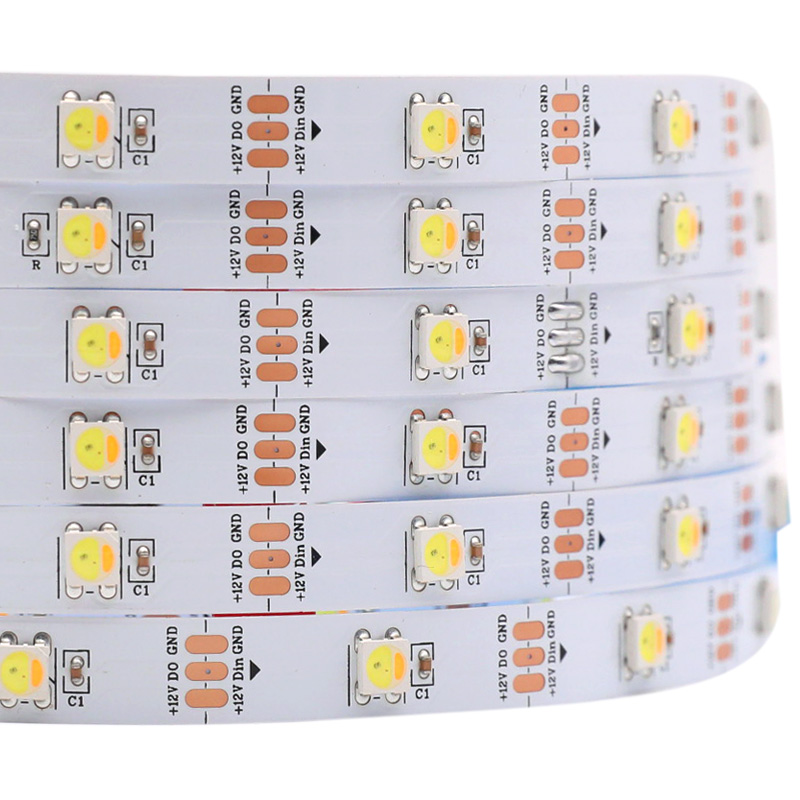

Cut Unit:	1-LED, 30LEDs/m-33.33mm, 60LEDs/m-16.66mm
IC Pixel:	30ICs/m, 60ICs/m
Power:	30LEDs/m - 7.2W/m, 36W/roll 60LEDs/m - 14.4W/m, 72W/roll
LED Color:	1800K-6500K WWA
Waterproof Rating:	Non-waterproof IP20 / Indoor Waterproof IP65 / Outdoor Waterproof IP67 IP68
Working Temperature:	-20℃~+45℃
Beam Angle:	120°
Length:	5m/16.4ft

3-Pin Sk6812 WWA LED Strip Wiring Diagram:

SK6812 WWA led strip needs a WWA led controller (SPI signal) and a 12VDC power supply to work. If you choose the KIT option, we will send you SP637E mini Bluetooth WWA controller and LRS-100-12 Meanwell power supply.

addressable led strip wiring diagram

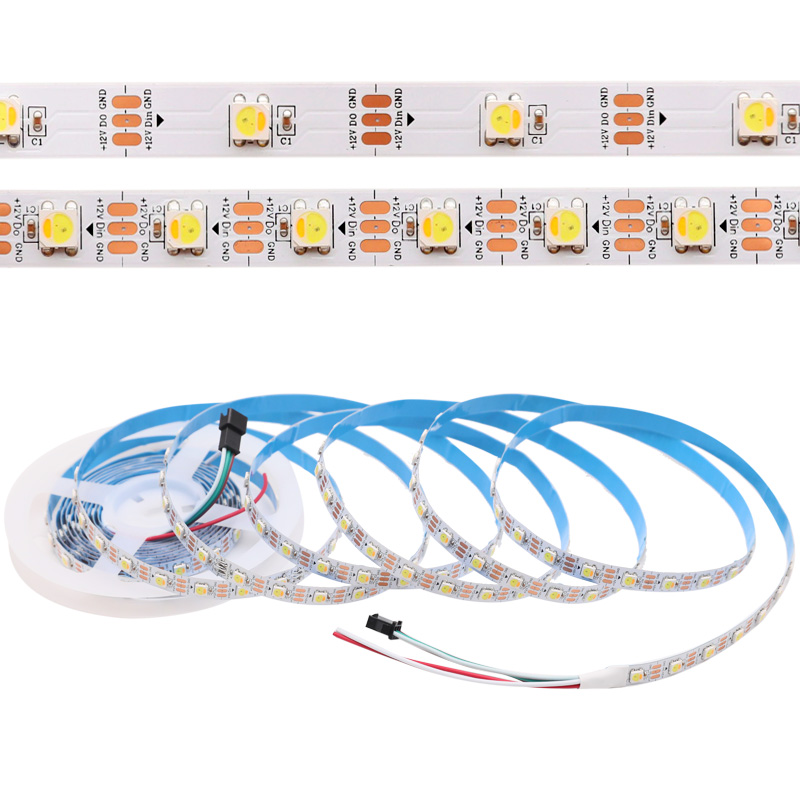

12V Individually Addressable SK6812 WWA LED Strip 30LEDs/m

12V Individually Addressable SK6812 1800K to 6500K WWA LED Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS12V-SK6812-WWA-IA

PDFDCFLS12V-SK6812-WWA-IA product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in) · LED density 60 LEDs/m · 30 LEDs/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
