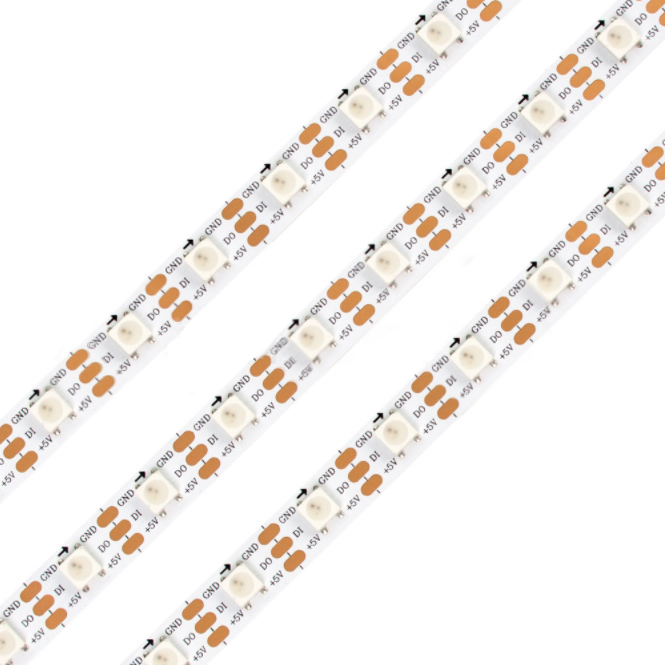

DC5V LC8812 SK6812 upgraded Built-in IC 60 LEDs 10MM Addressable RGB LED Strip Light, 5 meters/Roll
One data line, two power lines, built-in IC (4 feet), 256 levels of gray, realized by the controller, gradient, water flow, horse racing, text, numbers, English, pictures, animation, etc. any effect.
1. Control principle: One IC controls one LED to form a loop (a group), and the controller controls the circuit in the FPCB through the control IC to control the different effects of the LED light bar changes; such as flicker, chase, jump, Clockwise horse racing, counterclockwise horse racing, monochrome horse racing, color-changing horse racing, single chase from beginning to end, running water, simulated lightning, etc.; the change effect of this light bar is not limited to the multiple effects built in the current controller, and can be based on customer needs, Write by yourself; it can be displayed in the form of a screen, text, letters, pictures, animation, etc.
2. Environmental protection and safety: It has the characteristics of low power consumption, low heat generation, no glare, and impact resistance. Low voltage DC 5V, high safety, and reliability.

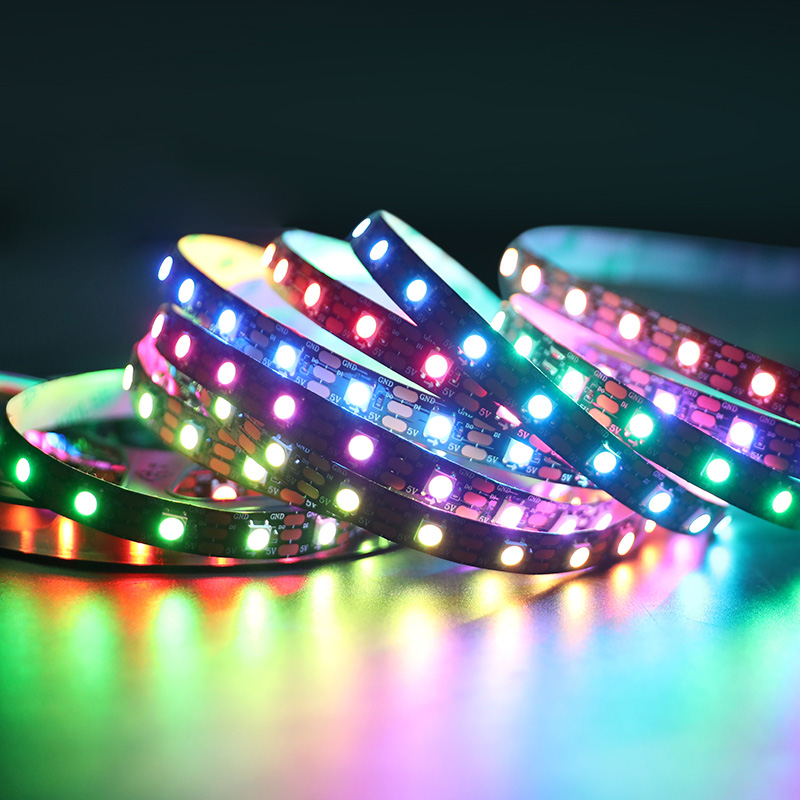

3. Rich and diverse colors can be adjusted arbitrarily through the controller according to customer needs.
4. Long life span: the average life span is up to 50,000 hours.

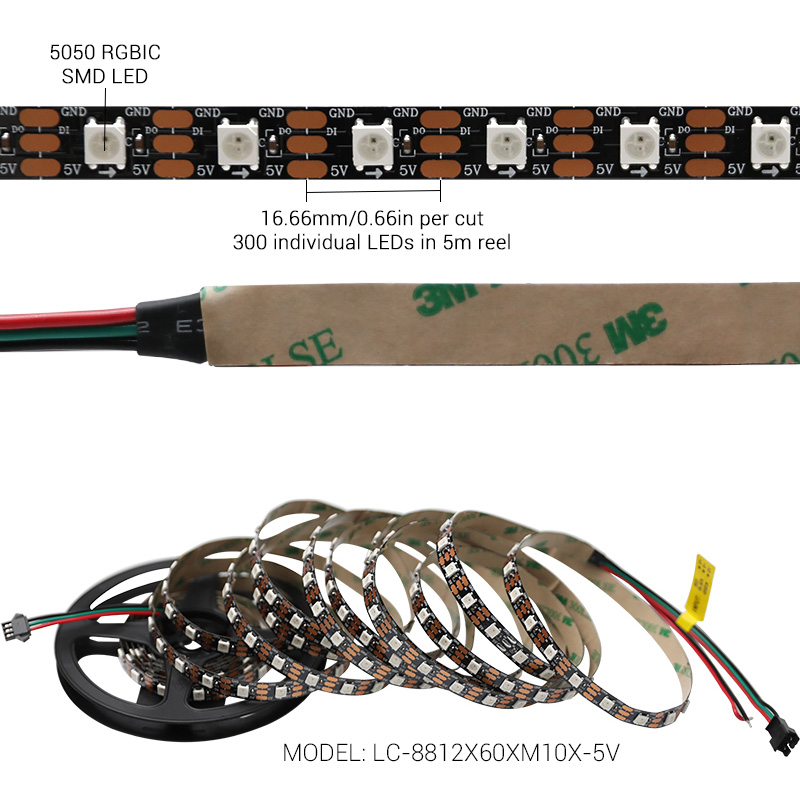

5. Cutting and welding are convenient and free: each group of LEDs can form a loop, which can be arbitrarily cut along the upper tangent and welded to meet the needs of various light strip lengths required by customers.
6. Soft: The soft FPCB board is used as the base plate, which can be docked, bent, cut, and fixed on the uneven surface at will.
Standards and Certifications
Input voltage: DC5 V
LEDs model: SMD5050
LED quantity: 60 LEDs
Beam angle: 120 degrees

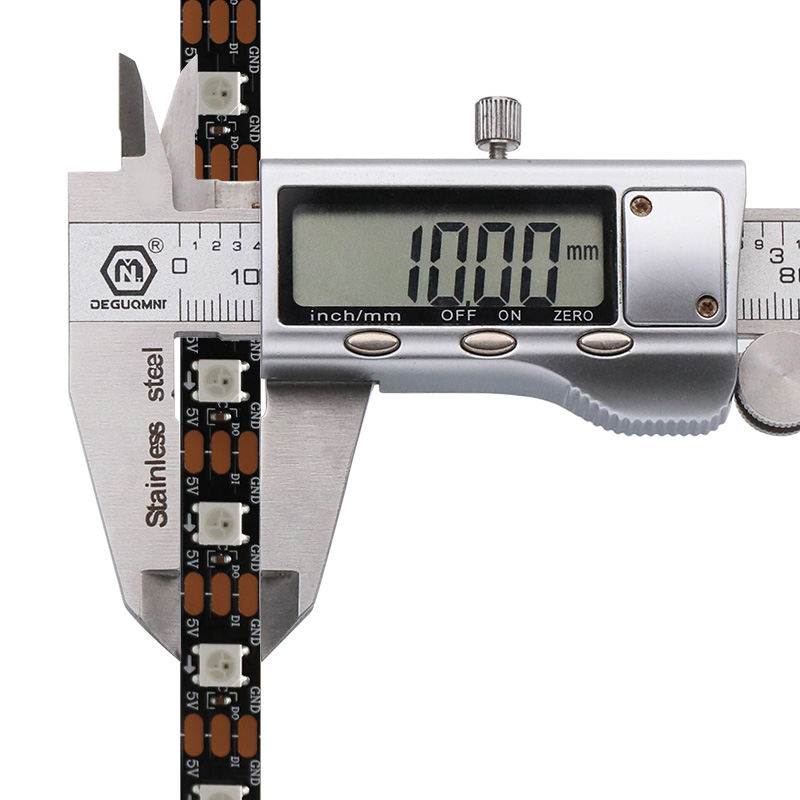

Board width: 10 mm/0.39in
IP rating: ip20
Certification: CE, ROHS
Color temperature: RGB
How to connect and control
Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

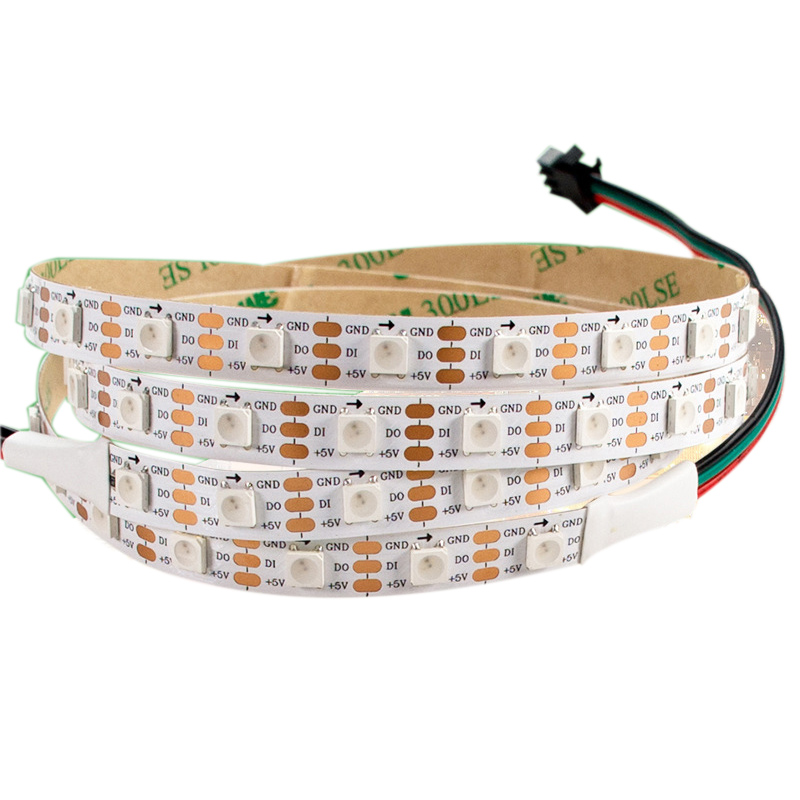

This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
