5V SK6812 Individual Control 370 Pixels Programmable White LED Strip

Name: 5V SK6812 Individual Control 370 Pixels Programmable White LED Strip
Brand: SuperLightingLED
SKU: SK6812-74-5050SMD-W
Price: 70.98 EUR
Availability: InStock

Model: SK6812-74-5050SMD-W Review stars

0.0 (0 Reviews) Various options in stock

Starting at: €62.68

Qty Discounts Off Price
1-19 €62.68	20-49 €61.42	50-99 €60.17	100+ €58.91
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Light Color :

Select PCB Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

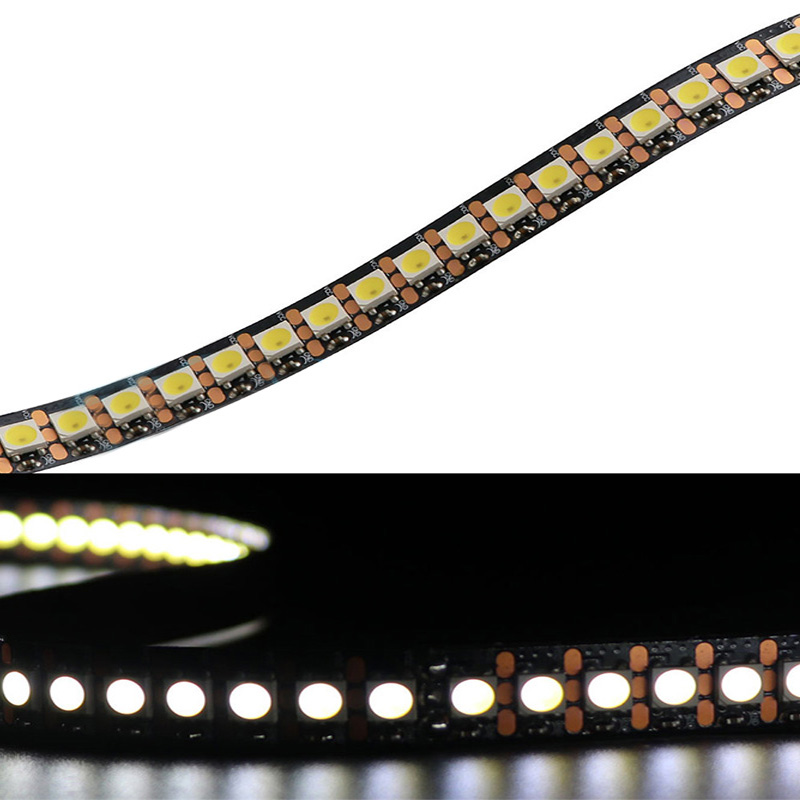

Individual control 5V SK6812 74-lights-per-meter high-density programmable warm white or cool white LED strip, Each 5050 LED is built-in with SK6812 chip, which is a universally programmable, individually addressable LED chip that supports precise control of the color and brightness of each LED through an addressable white LED controller. Also every LED is a pixel point, specialized in providing static and dynamic white lighting. High-density LED design 74LEDs/m provides higher brightness and more uniform lighting effect over the same length of strip. Adopting 5V low voltage design, it is suitable for different types of power supplies and easy to access to various devices.

SK6812 White LED IC Datasheet

Product Specifications

Item Type:	Individual Control Programmable White LED Strip
LED Chip:	SK6812 + SMD5050
Input Voltage:	DC5V
PCB Width:	10mm
LED Density:	74LEDs/m
Cut Unit:	1-LED, 13.5mm/0.53"
IC Pixel:	74 ICs/m
Power:	18W/m max
LED Color:	3000K Warm White, 6500K Cool White
Waterproof Rating:	Non-waterproof IP20 / Indoor Waterproof IP65 / Outdoor Waterproof IP67
Working Temperature:	-20℃~+45℃
Beam Angle:	120°
Length:	5m/16.4ft

3-Pin SK6812 Programmable White LED Strip Wiring Diagram:

SK6812 white led strip needs a addressable white led controller (SPI signal) and a 5VDC power supply to work. If you choose the KIT option, we will send you SP636E RF+Bluetooth water flow led controller and LRS-100-5 Meanwell power supply.

addressable led strip wiring diagram

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for SK6812-74-5050SMD-W

PDFSK6812-74-5050SMD-W product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
