DC5-24V SP636E Bluetooth & RF & Music Running Water LED Strip Light Controller
Check this Addressable Single White Light Controller for your running water led strip lights, compatible with WS2811, SK6812, SM16703, FW1934A IC chips. Support smartphone Bluetooth APP control, RB1/RC1 RF 2.4GHz remote control, and music control. There is a button on the controller, you can also press it to change the lighting mode.

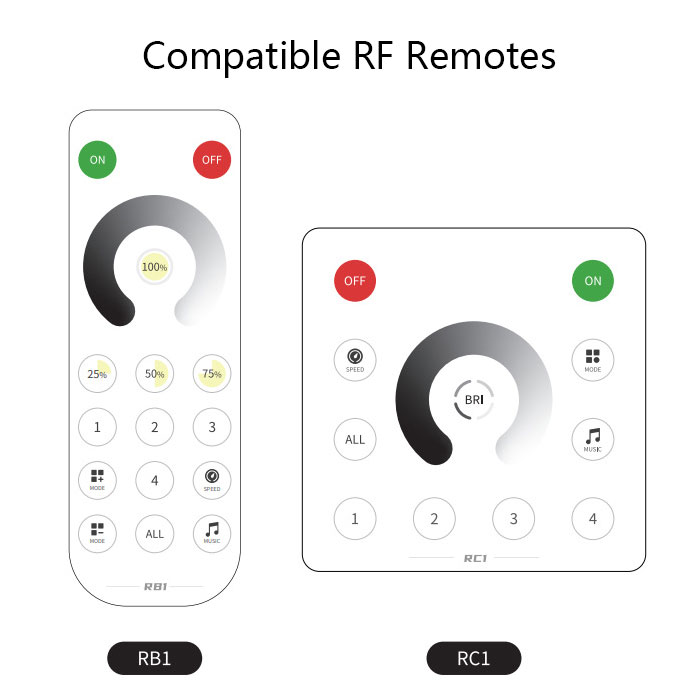

Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install. The compatible RF remotes support one-to-many control and many-to-one control, one RF remote can control multiple controllers, and each controller can bind up to 5 remotes. Available with unified control and 4-zone control.
● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.
● Support cell phone microphone, player streaming, and on-board microphone for music capture.
● Support dynamic effect collection and collection list loop.
● Support custom effects.
● Support multiple on/off animation effects.
● Support calibration channel sequence and timing switch.
● Support OTA firmware upgrade.
Standards and Certifications
|Product Name:||Running Water LED Strip Light Controller|
|Max Control Pixels:||1800pcs|
|Control Method:||Mobile APP "BanlanX" + RF Remote (only support RB1 and RC1)|
|Remote Voltage:||3V (CR2032)|
|Remote Standby Power:||26uA|
|Remote Size:||RB1 135*48*10mm, RC1 86*86*12mm|
|Mobile System:||Andriod 4.4/ iOS 10.0 or higher|
|Working Temperature:||-20℃ ~ 60℃|
