3Pin/4Pin 10mm Wide Dual End with 15cm Long Cable LED Strip Solderless DIY Connector Adapter Conductor for WS2811 WS2812B SK6812 WS2813 WS2815 Addressable LED Flexible Strip Light

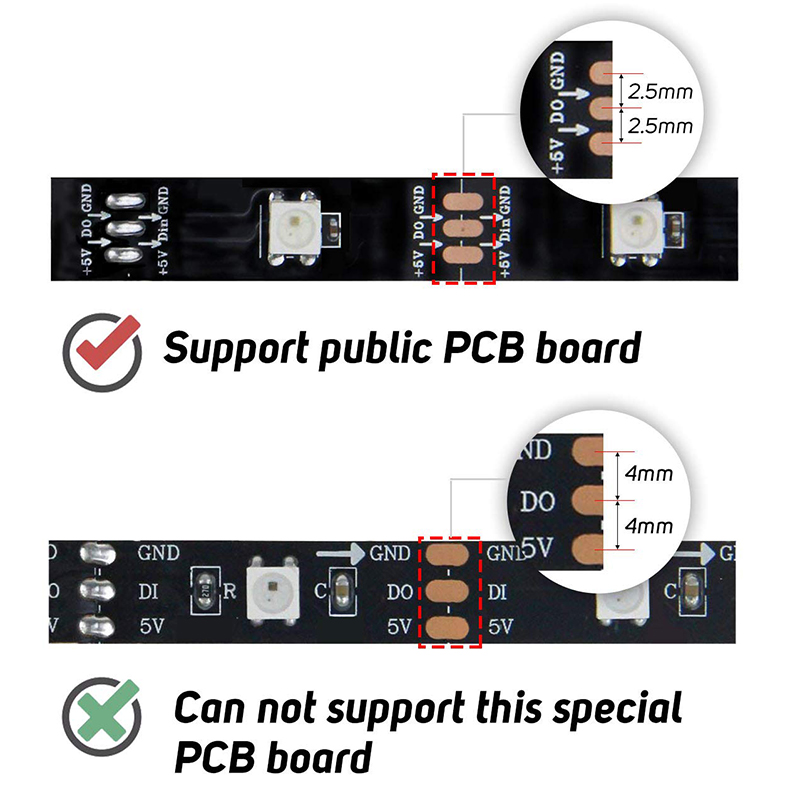

Widely used for WS2811 WS2812B SK6812 WS2813 WS2815led flexible strip （Can not support 144LED/m led strip）

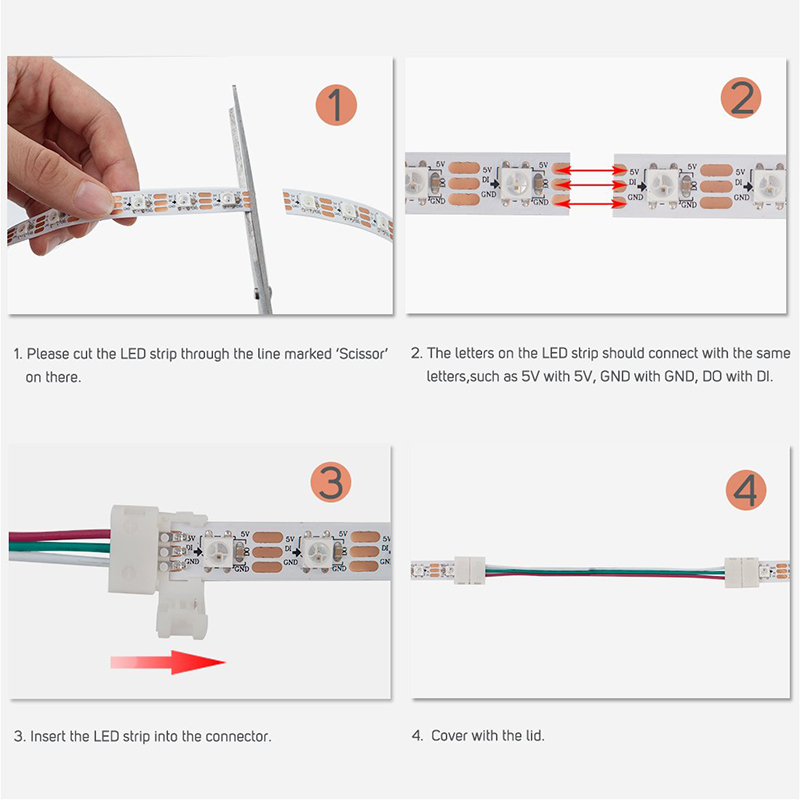

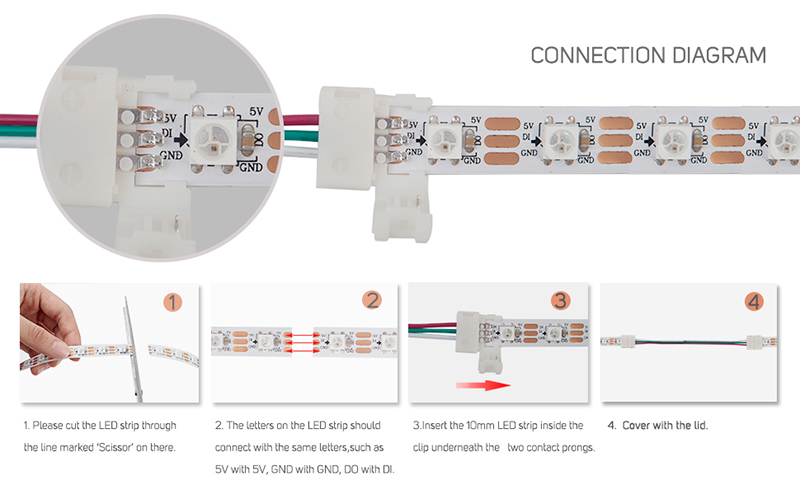

Solderless design connects two ends of strips

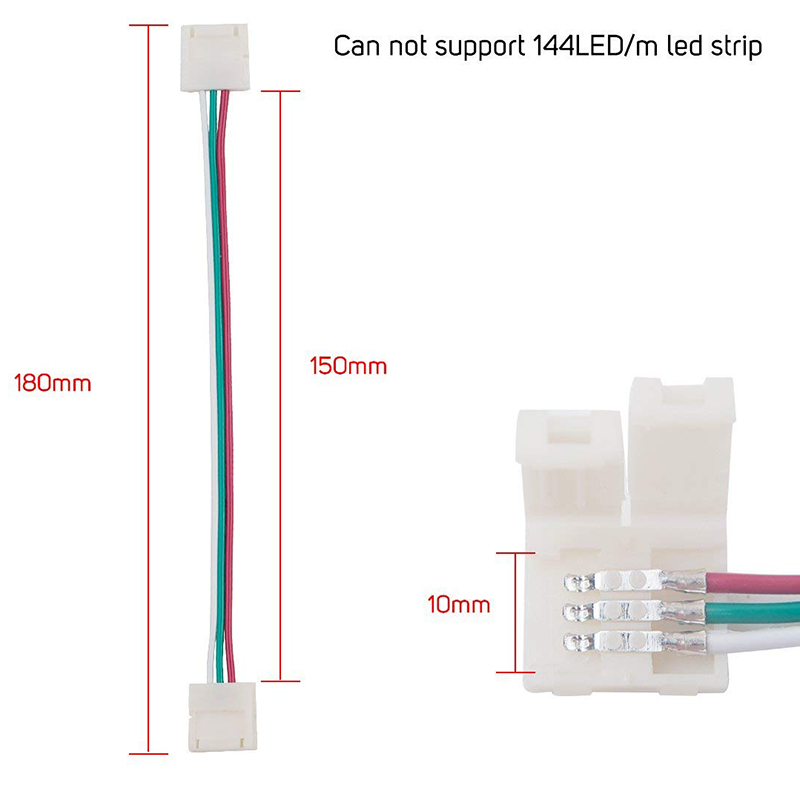

Led strip width: 10mm. Wire length: 15cm
Compact and lightweight, but very practical.
Package includud:1pcs 3pin dual end connector/ 1pcs 4pin connector
Length: 15cm/6 inches

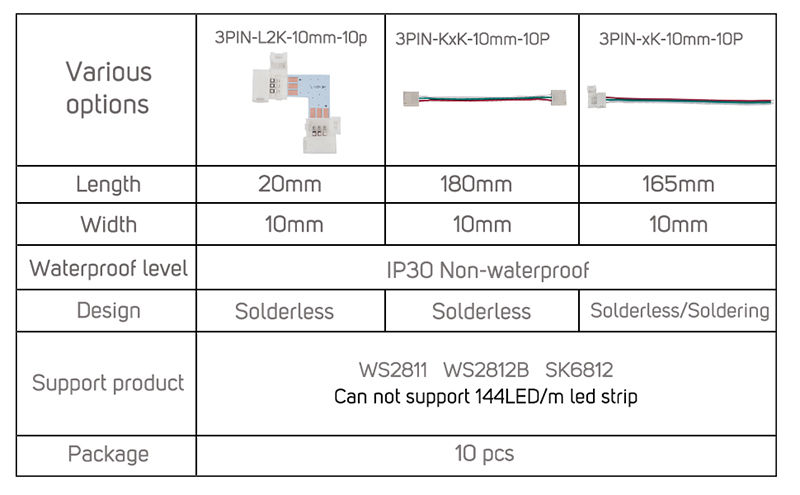

Connector Type: 10mm 3pin/4pin connector
Suitable for WS2811 WS2812B WS2813 WS2815 LED strip connecting
100% brand new and high quality
No need soldering, easy to use
Material: Pins are copper plated
Working temperature: 0~40 centigrade
Storage temperature: -20~60 ℃
Type: PCB TO PCB solderless type
Compact and lightweight, but very practical
LED strip connectors for a variety of conventional indoor LED Strip, WS2811 WS2812B SK6812 WS2813 WS2815LED Strip.
LED flexible light strip, light strip connectors solderless installation quick and safe.
There is a special anti-anti-plug design; Suitable voltage DC 5V for WS2812B, DC12V for WS2811. User-friendly, no welding can be achieved with the lights of the strip between the connection.
The company has just developed the LED flex strips with quick connectors, no soldering, easy to use, beautiful shape.
1.can not pull hard
2.this connector is non-waterproof
3. If it fails, check if the led strip is good and positive and negative are not reversed. Positive and negative backward will not burn out the lights, do not worry!
