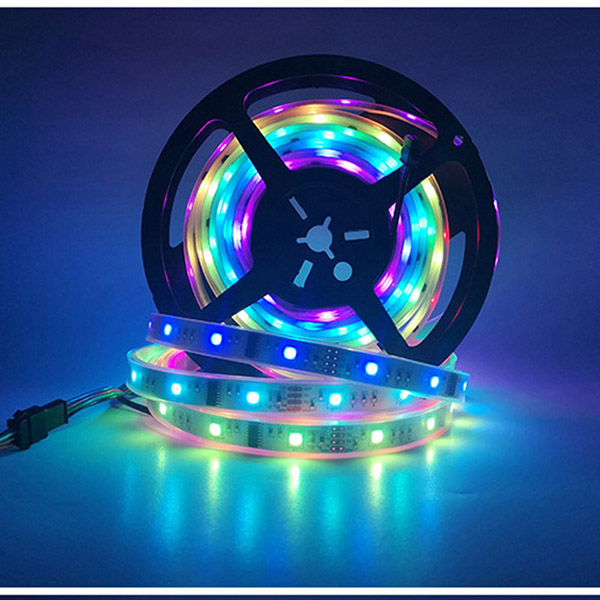

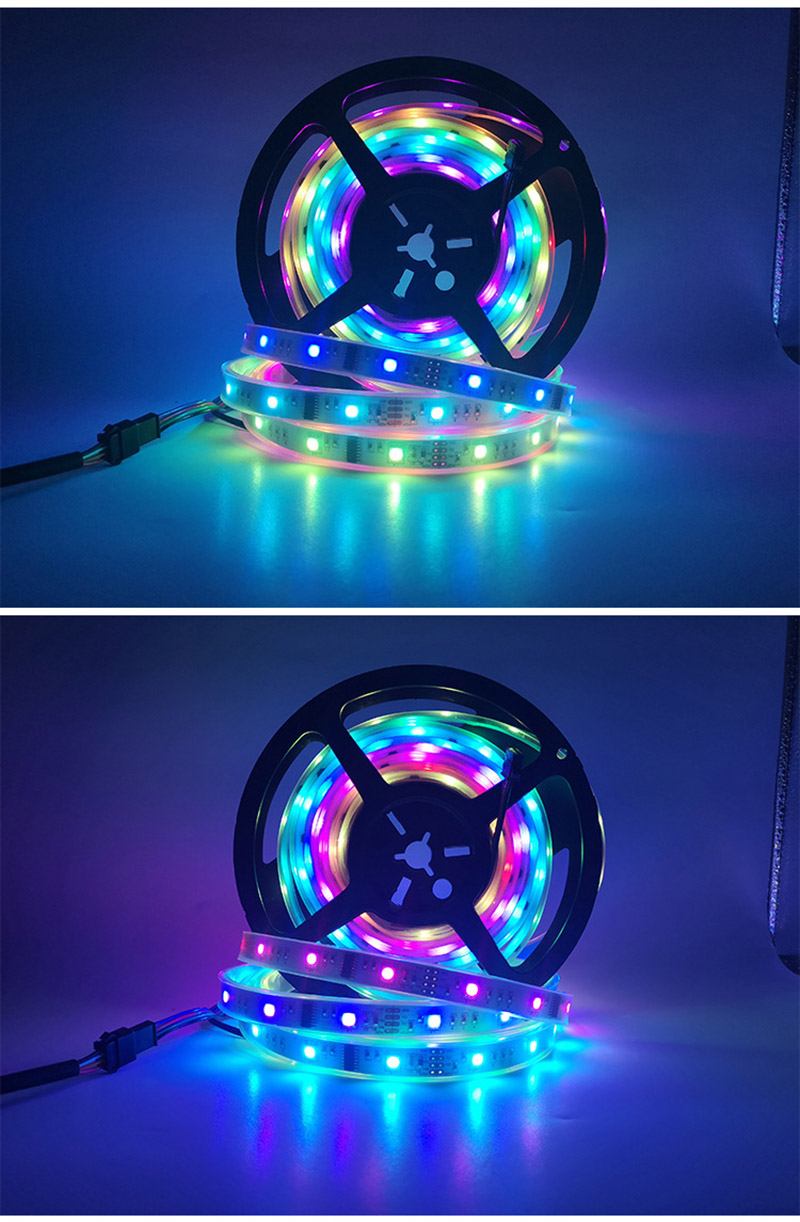

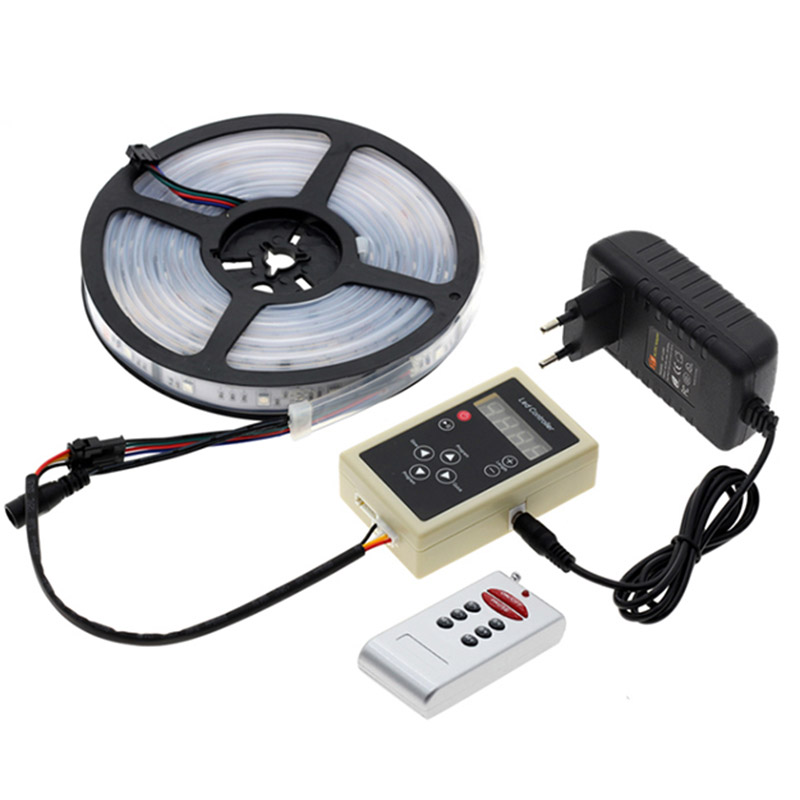

DC12V 16.4ft/5m 6803 SMD 5050 133 Mode Symphony Full-Color LED Light Strip Kit

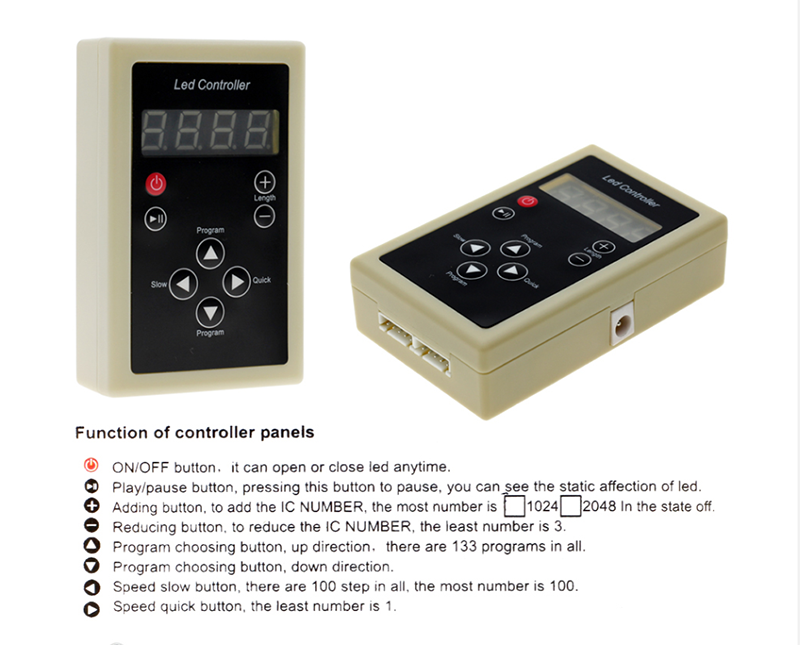

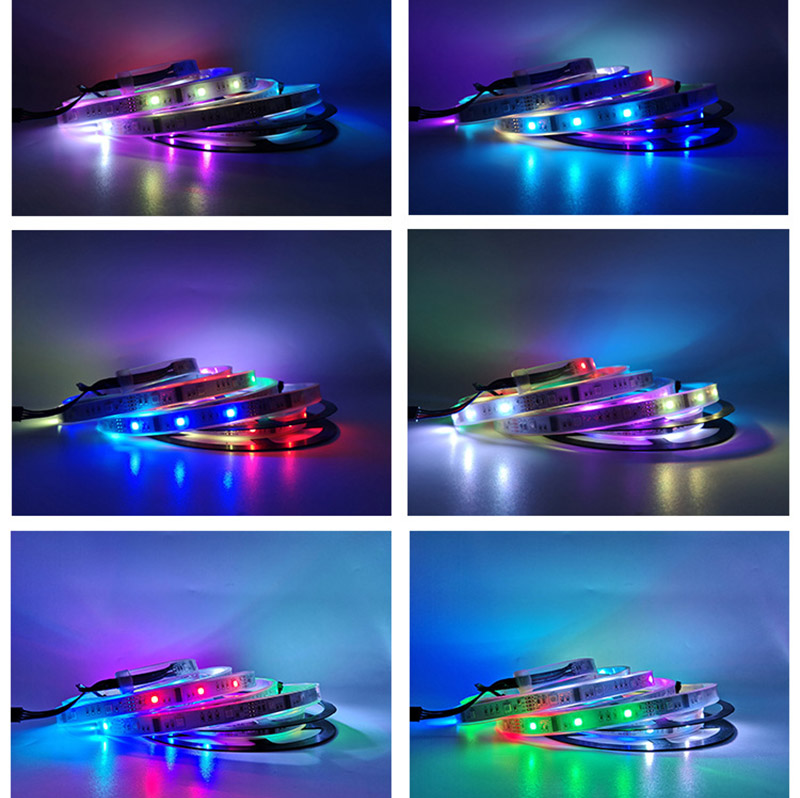

DC12V SMD 5050 133 Mode Symphony Full-Color LED Light Strip Kit has many changes, probably there are 94 different changes in the built-in controller, flashing, chasing, jumping, clockwise running, counterclockwise running, monochrome running, color-changing running, single chase from scratch to Tail, running water, simulated lightning, etc. The control principle of this flexible light bar is: a circuit (3 LEDs) has an IC, which can control the circuit in the FPCB through the controller to control the IC, thereby controlling the LED light bar, The change effect of this light bar is not limited to the current built-in effect of the controller, you can write your own program with SD card writing function according to customer needs!
Light source: SMD 5050 LED
Chip: Taiwan Chip IC Model: 6803 (10 ICs per meter, 3 LED lights for one IC controller)
LED quantity: 30 lights/meter, every 3 lights can be cut as a unit
Beam angle: 120 °
Luminous color: can be adjusted to white, red, yellow, blue, green, etc. by the controller.
Standard working voltage: DC 12V
Power: 7.2W ± 10% / meter
Waterproof method and waterproof grade: not waterproof (IP44) / waterproof (IP65)
FPCB board size: width: 12 mm, thickness: 3mm
FPCB color: white, yellow, black (other than the white need to be customized)
Packing: 5 m / roll, 3M glue on the back of the light bar, electrostatic bag packaging
1*16.4ft/5m led strip
