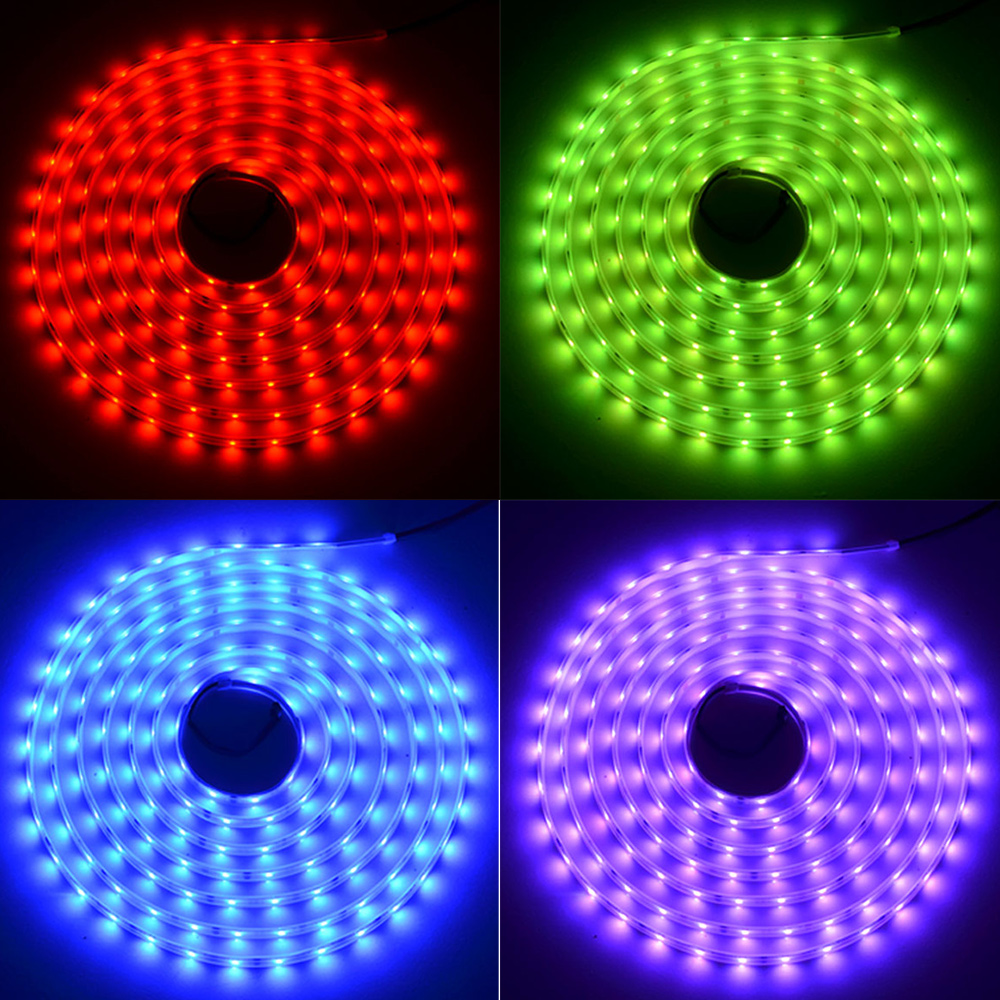

LPD6803 DC12V 150LEDs RGB Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Indoor Use, 16.4ft Per Reel By Sale
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: LPD6803 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

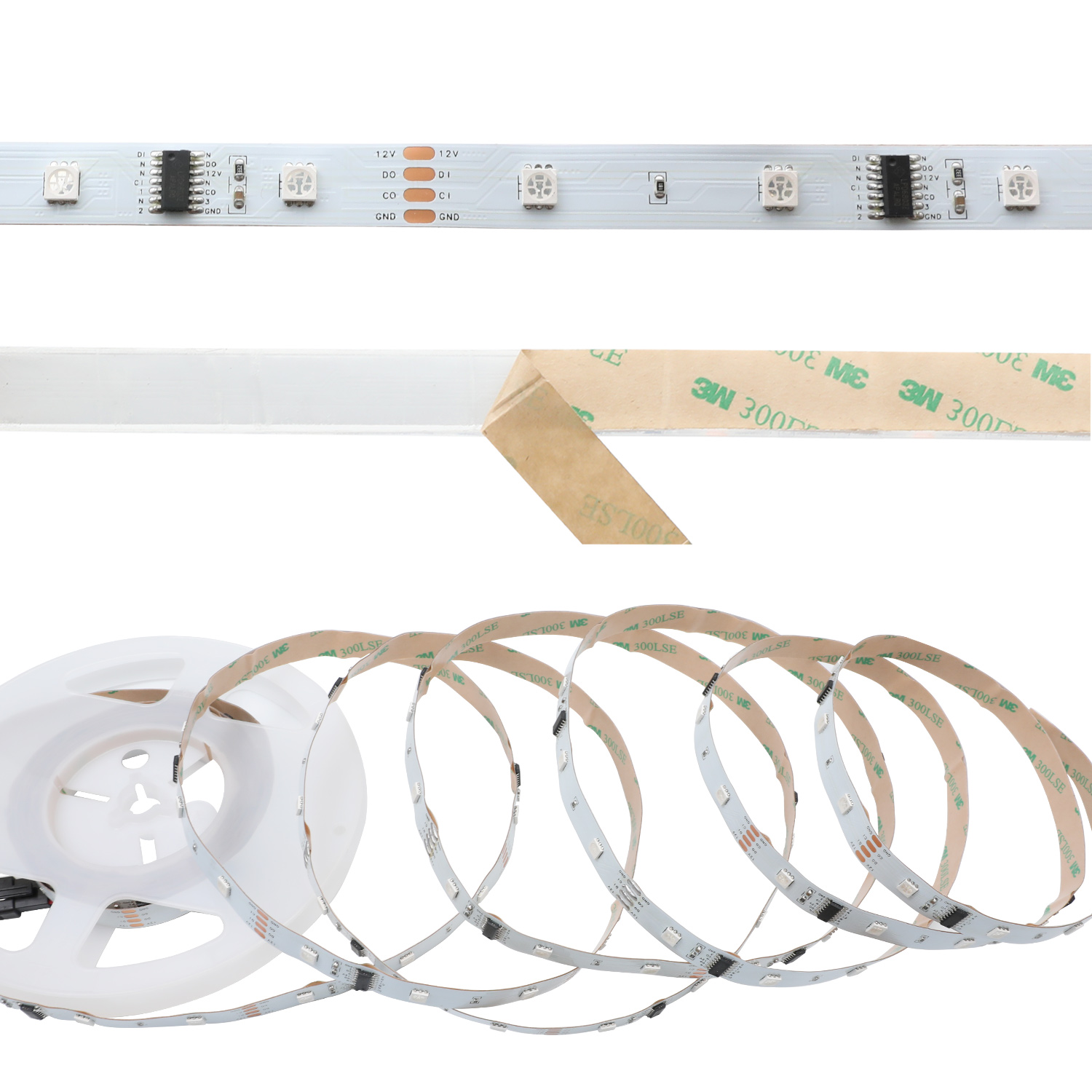

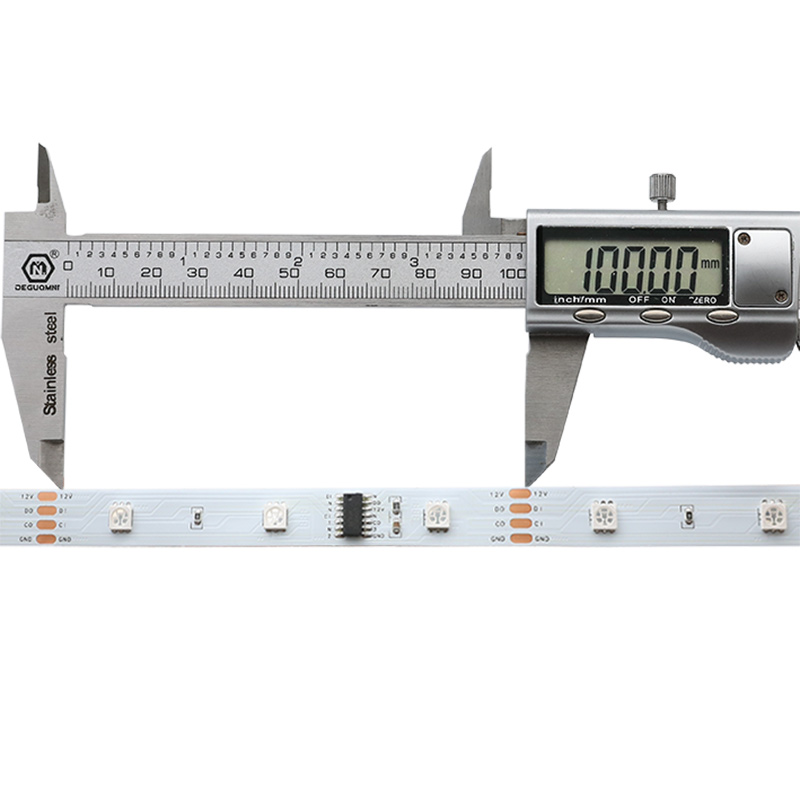

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
Warantty: 3 years

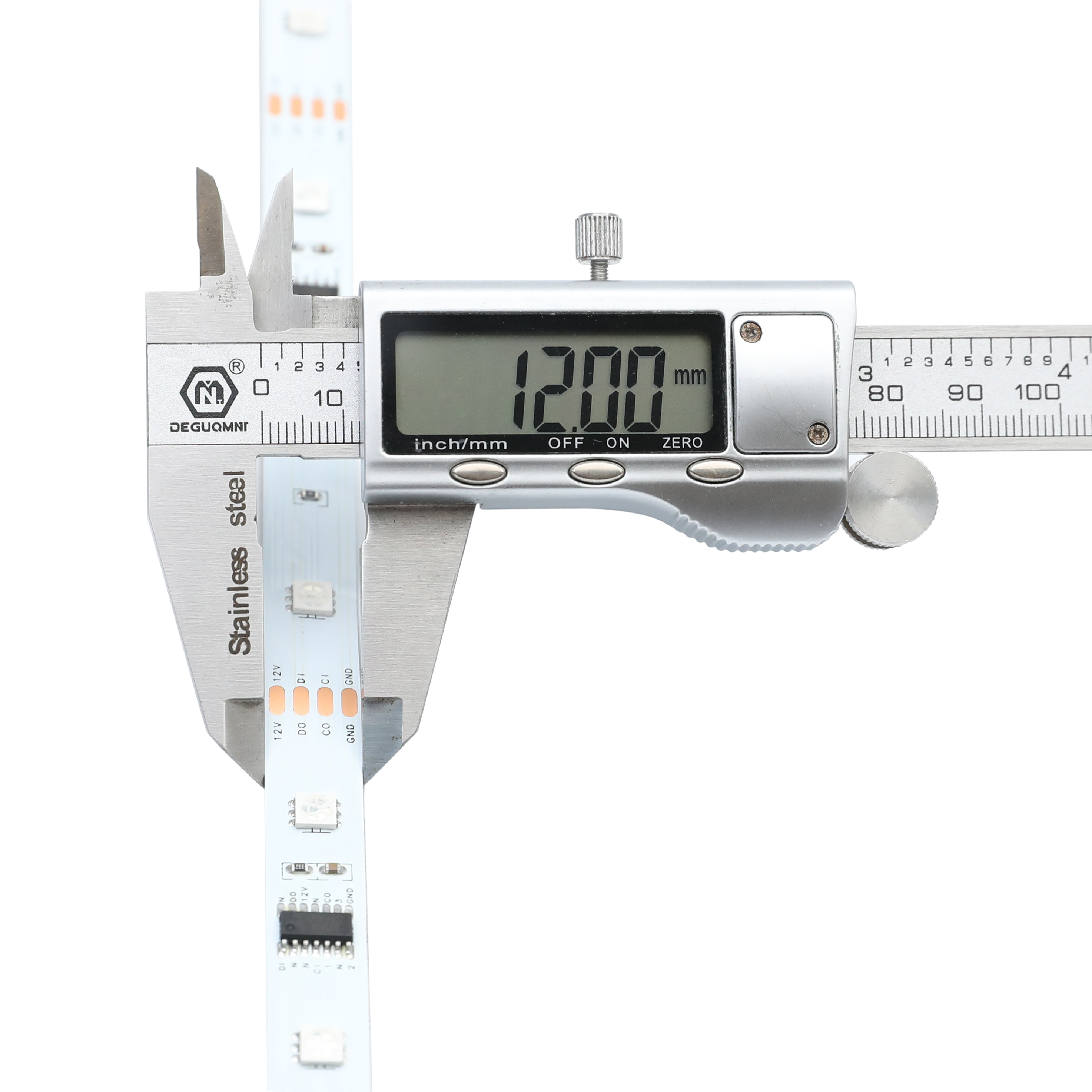

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 36W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Lm/16.4Ft MAX 201Lm/Ft 91.7Lm/Watt
PCB color: WHITE/BLANK Available
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Non-Waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration

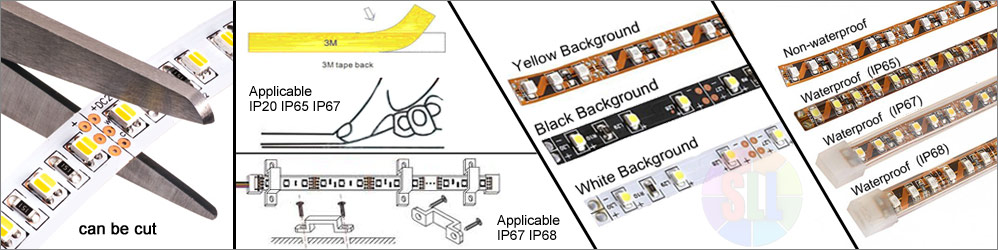

Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

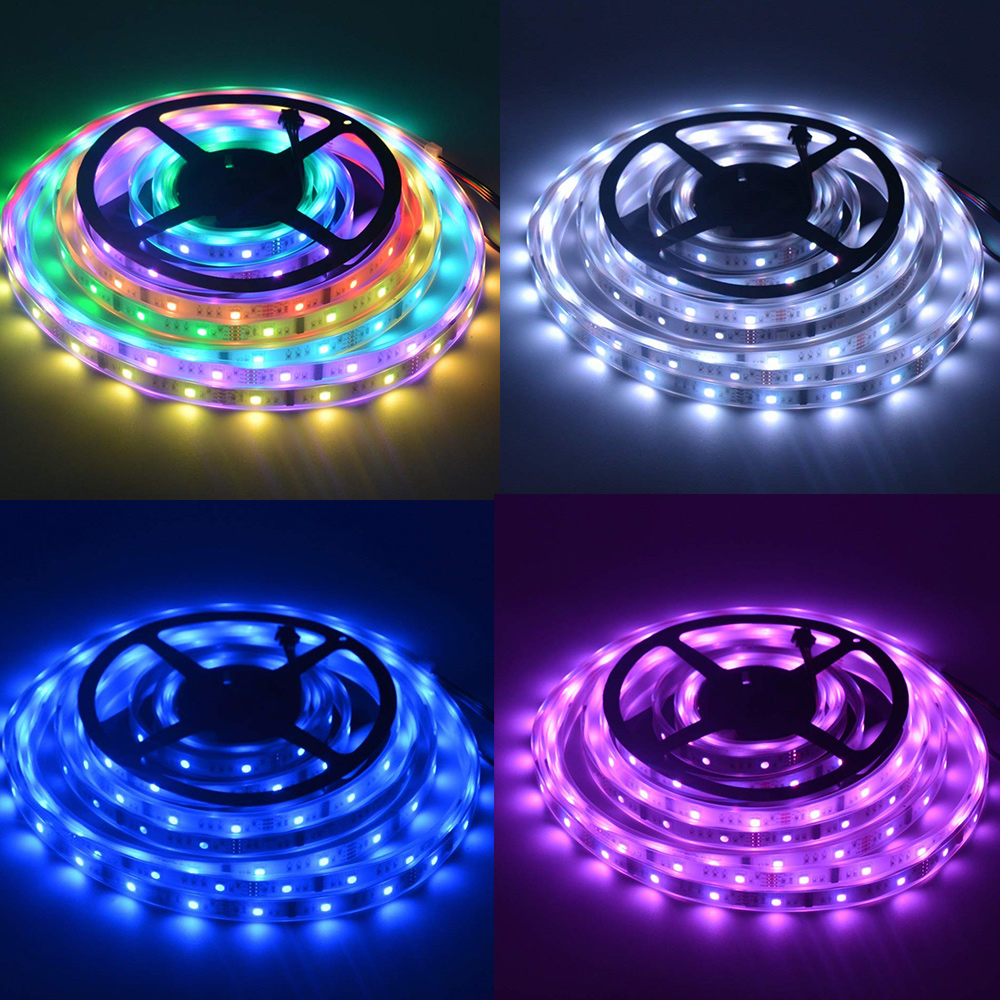

IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

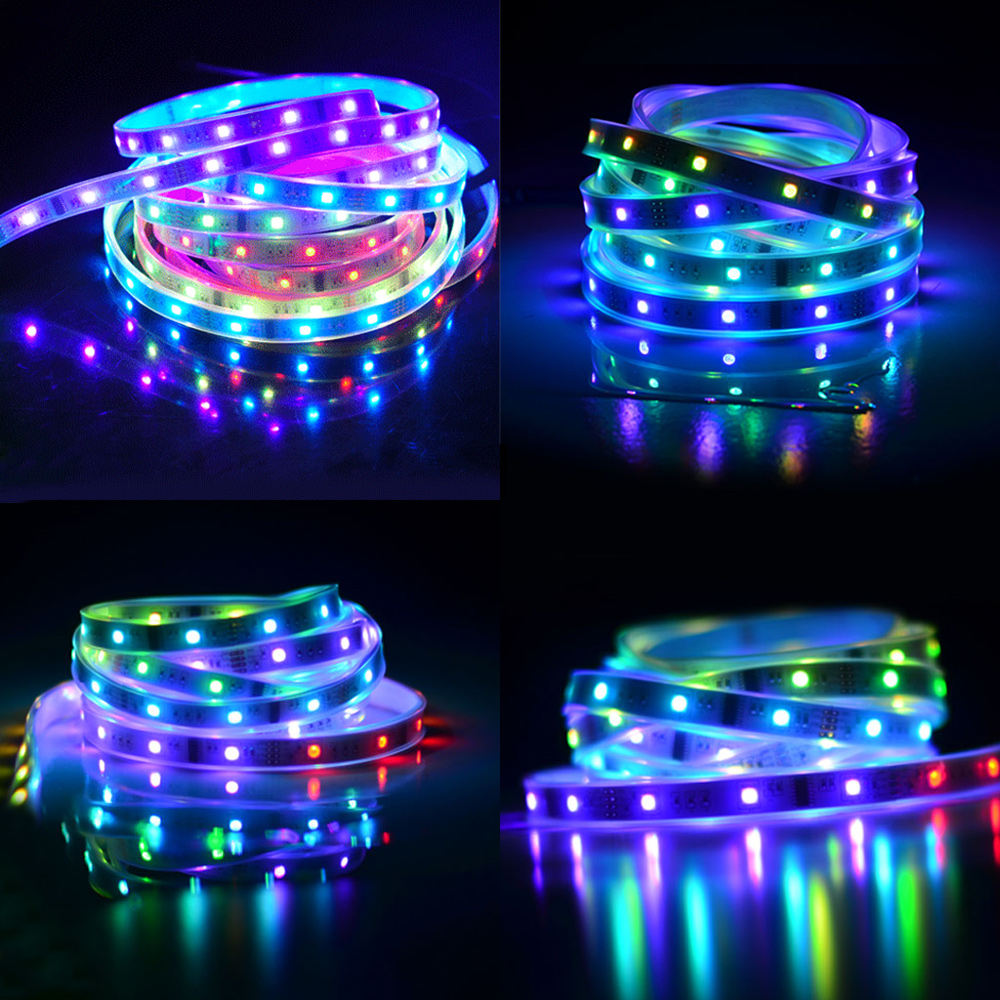

IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
Wi-fi dream color led controller connection diagram
