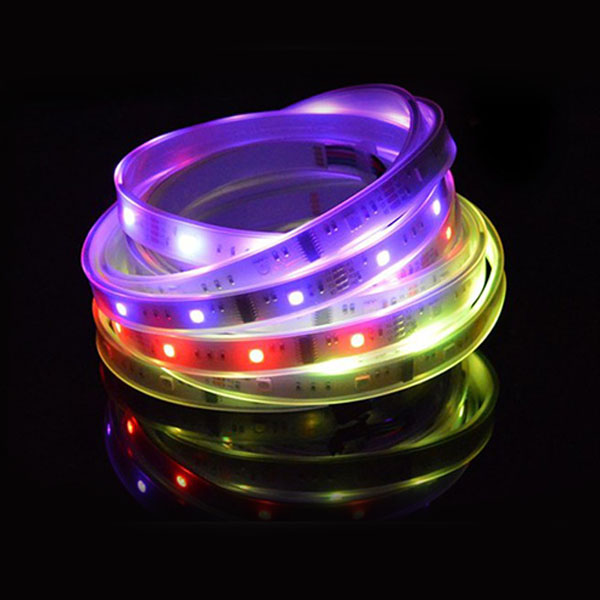

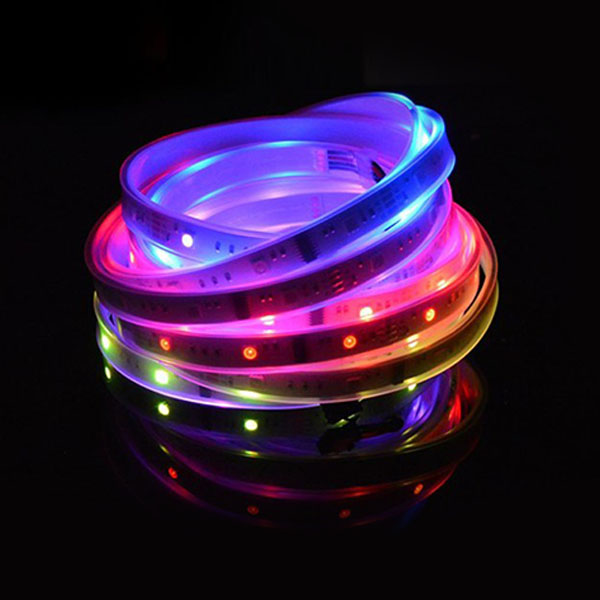

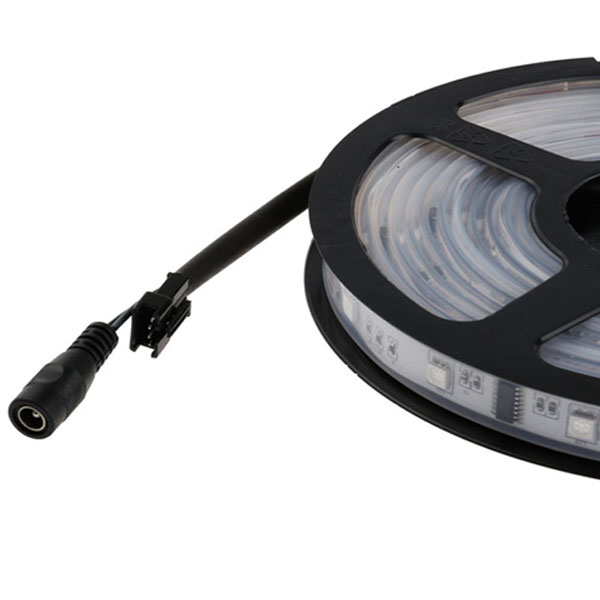

LPD6803 DC12V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Outdoor Waterproof IP67, 150LEDs 16.4ft Per Reel By Sale

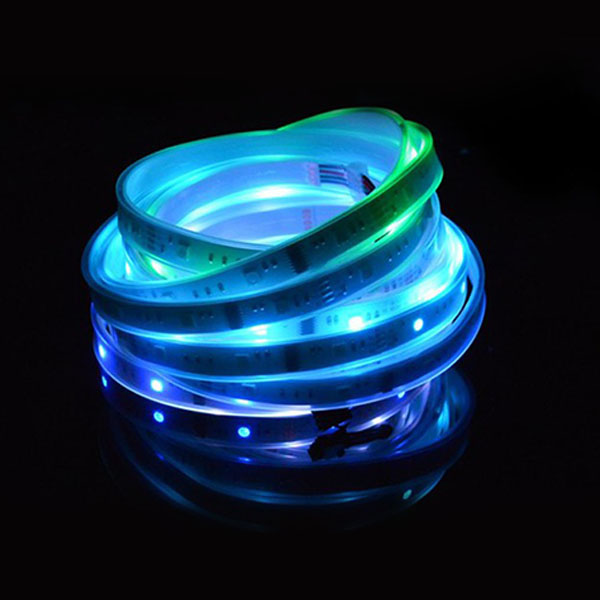

Universal LPD6803 150xIP67 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 150 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. 6803 IC chip control. 5meter(16.45ft) Per Reel By Sale.

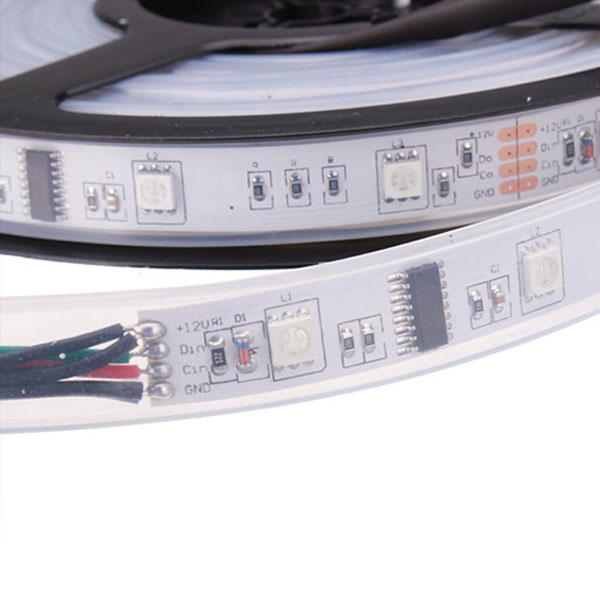

This programmable led strips is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission. You can get the required program and colors use with LED Edit2014 software together. - Connect led DMX Digital Display Controllers

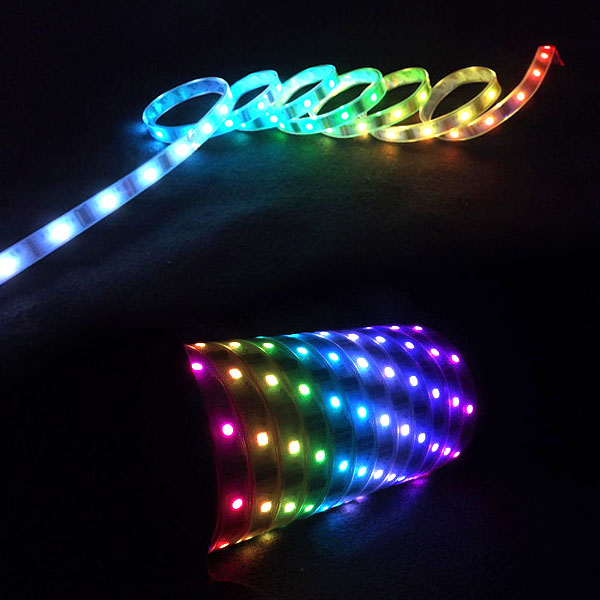

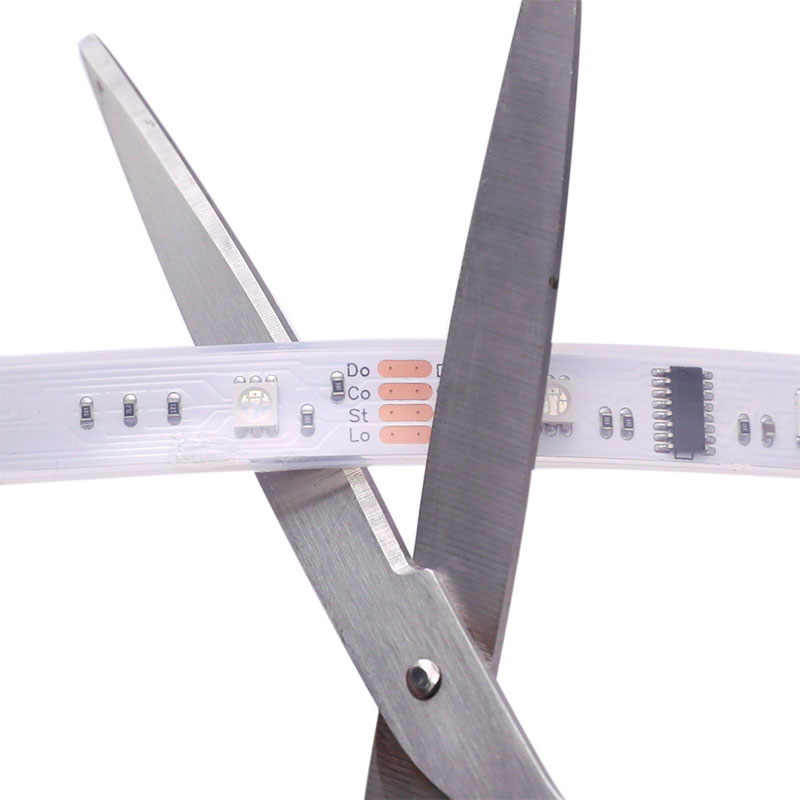

This strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP67 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation. 12VDC operation,Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers.
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: LPD6803 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

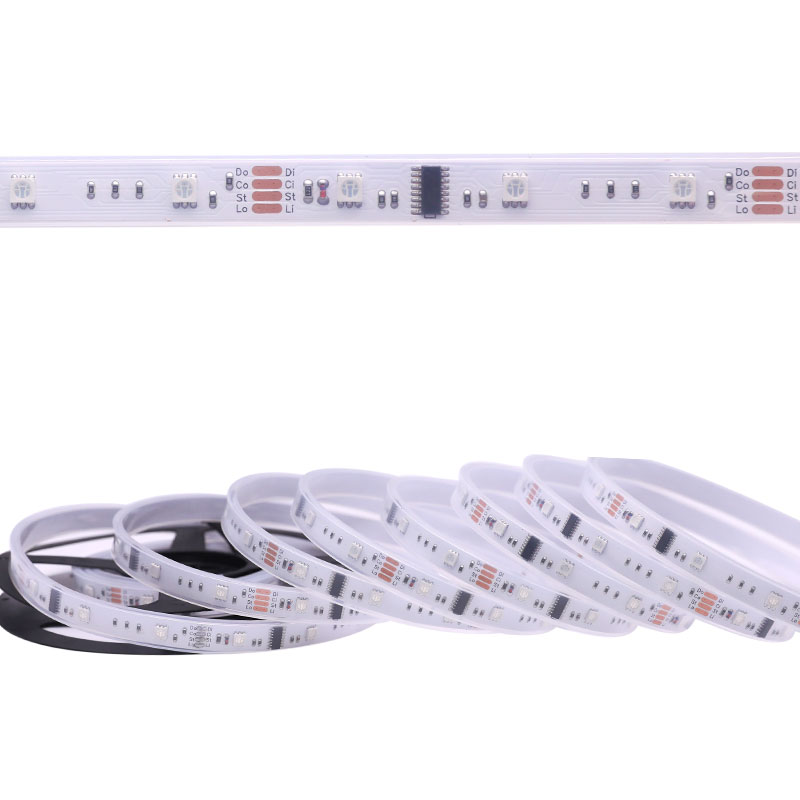

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
Warantty: 3 years

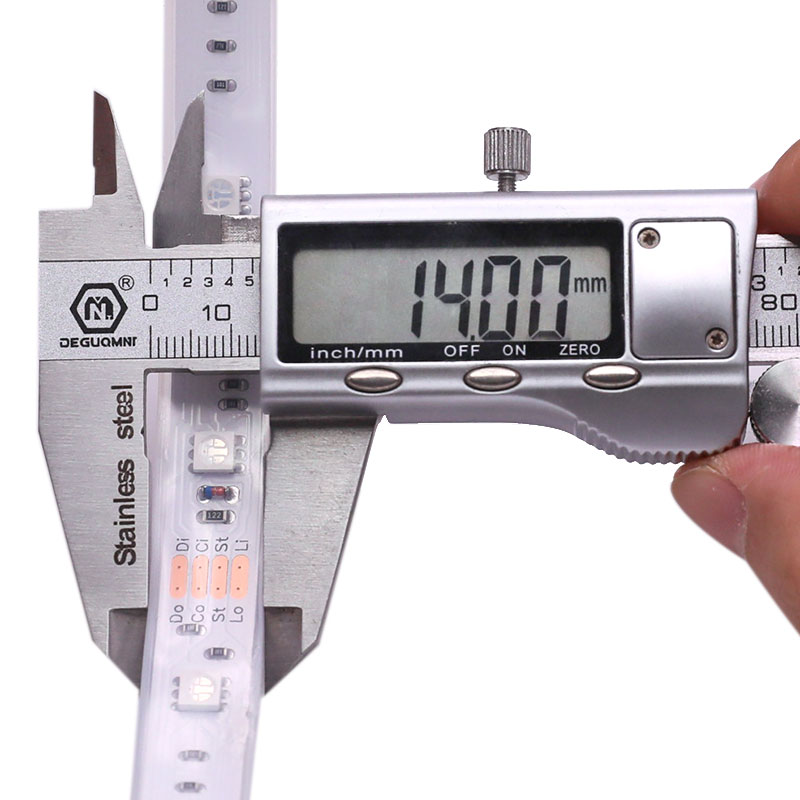

Dimensions: L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.30cm(0.12 in )
Input Voltage(V): 12VDC
Working Power: 36W/16.4ft Max
Lumen Per LED: 24~26Lumen 780lm Max /3.28ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

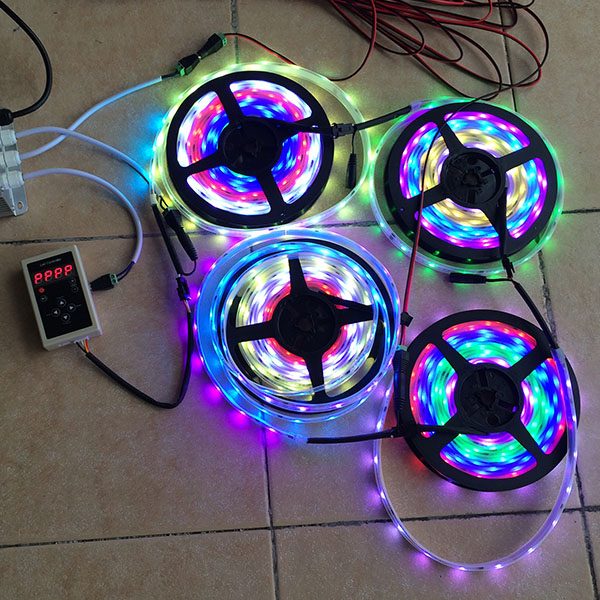

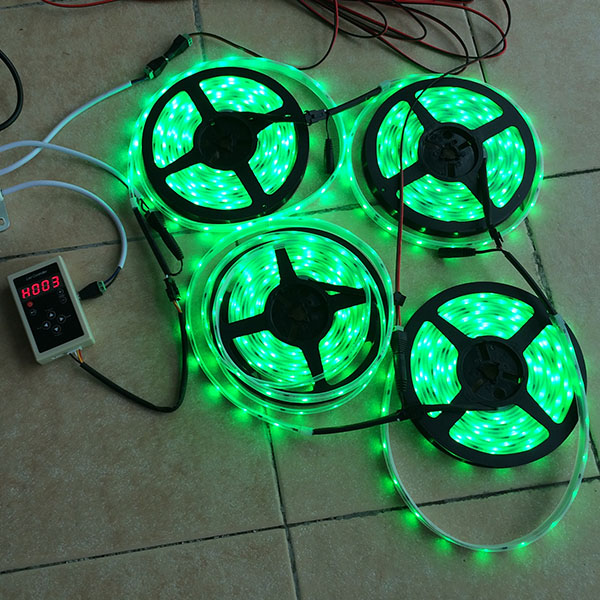

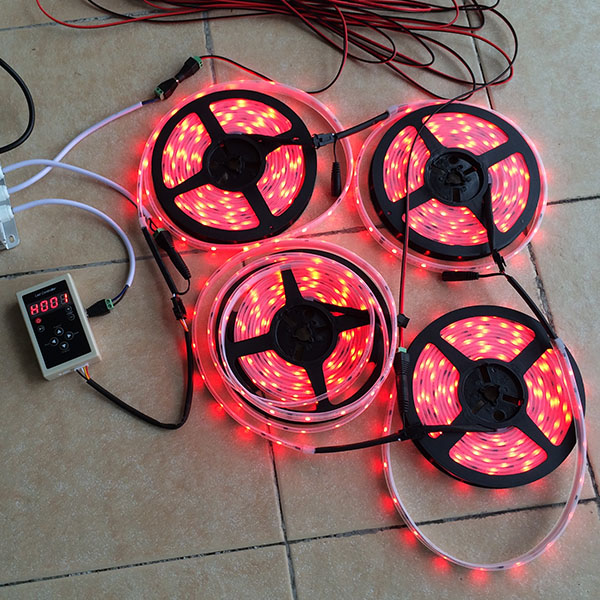

Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
Customers who bought this product Also Purchased...
Here you can learn anything about led strip lights, find the part you are intrested in to learn more knowledge. There are knowledge parts of led strip lights, power supply, controller, accessories, and how to connect led strip lights, etc. You can also watch our thousands of demo video .
Led strip lights
►Everything you need to know before you buying led strip lights
1. Where do I want to place the LED strip lights? Indoor or outdoor?
• What are waterproof led strip lights?
• How to cut and connect waterproof led strip lights?
2. How much LED brightness do I need?
3. The working voltage is available?
• 5V VS 12V VS 24V led strips
• AC VS DC
4. How long is the LED strip light suitable for my project?

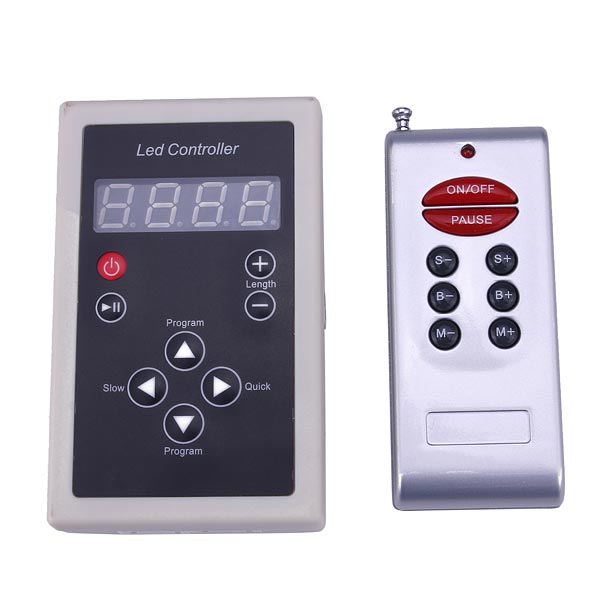

5. Do I need an LED light controller to adjust the LED color and brightness?
