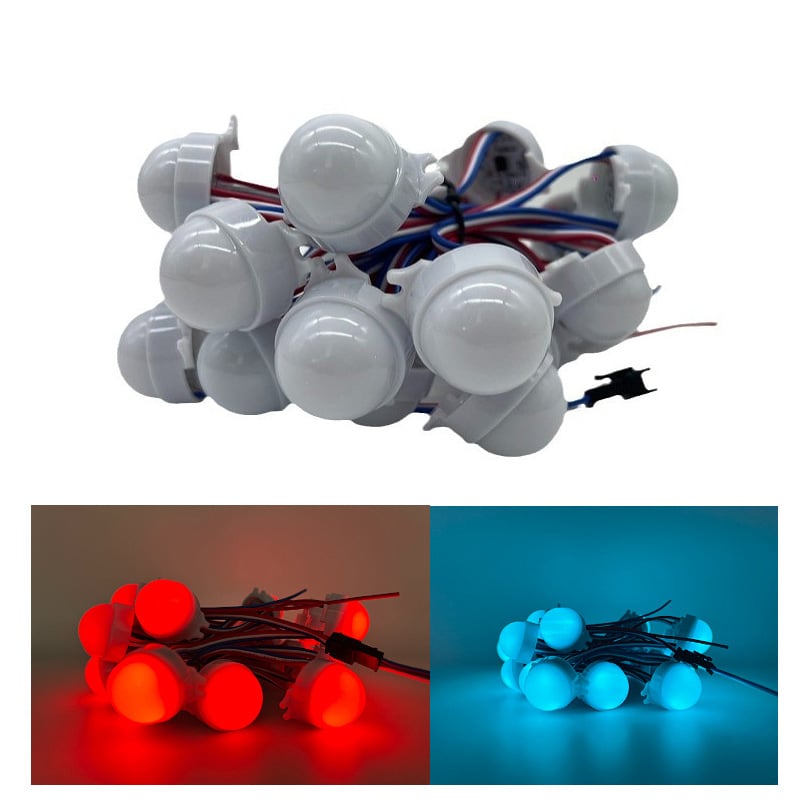

DC12V WS2811 Waterproof 5050 Super Bright Full Color Digital Programmable Individually Addressable Diffused Dot Matrix LED Colorful Pixel Modules String
This is Full color 12V Super Bright High Efficiency SMD5050 WS2811 IC LED Pixel Modules. 4LEDs per piece, 0.96W per piece, 20pcs per string.

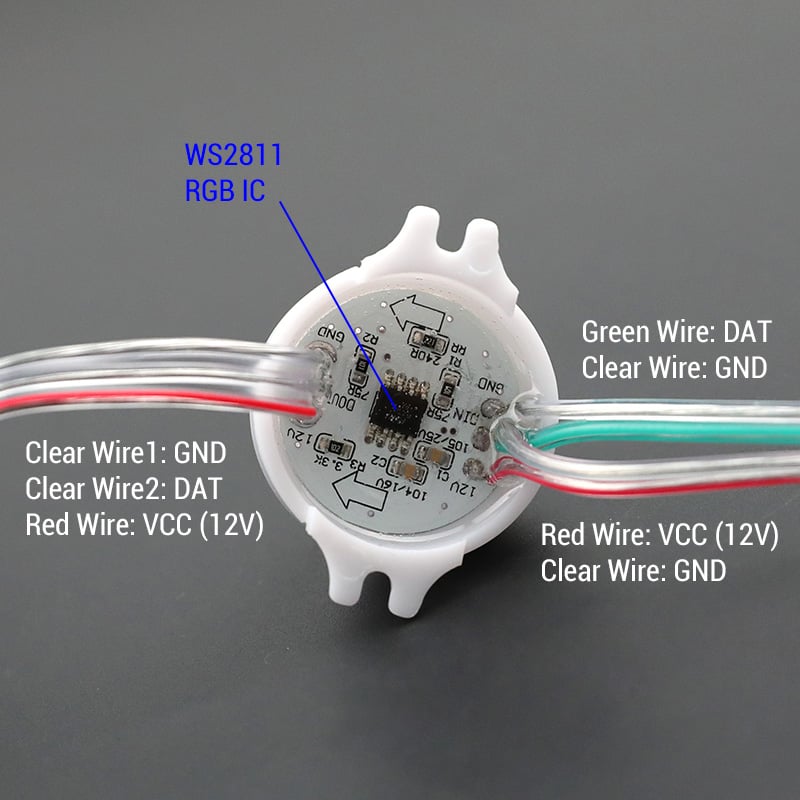

Our LED modules adopt TOP SMD5050 LED light source, these pixels use a WS2811 chip for full 24 bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double sided adhesive foam tape for quick installation. 20pcs per string, single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 12v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 12v Negative /-, over-current capability, lower attenuation. The shell is made of injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP65, Suitable for both indoor & outdoor decorative application. 12VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 20 modules maximum per strand.
The differences between WS2801 and WS2811 led modules
WS2811: 3 wires, (V+,DATA,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2811 IC, the controller do not need to supply power seperately.
WS2801: 4 wires, (V+,DATA,CLOCK,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2801 IC, the controller and modules need to supply power seperately.
On the whole, their appearance, material, weight, brightness, power, function ,waterproof rating are the same, Just IC and wire number are different.
WS2811 suitable for general lighting projects, such as luminous characters, signs lighting, high CPU occupancy, cheap price
WS2801 suitable for large-scale lighting projects, such as architectural lighting, led screen, Can cascade, low CPU occupancy, Expensive than WS2811
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Module
IC type: WS2811(high mode)
LED quantity: SMD5050 4pcs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

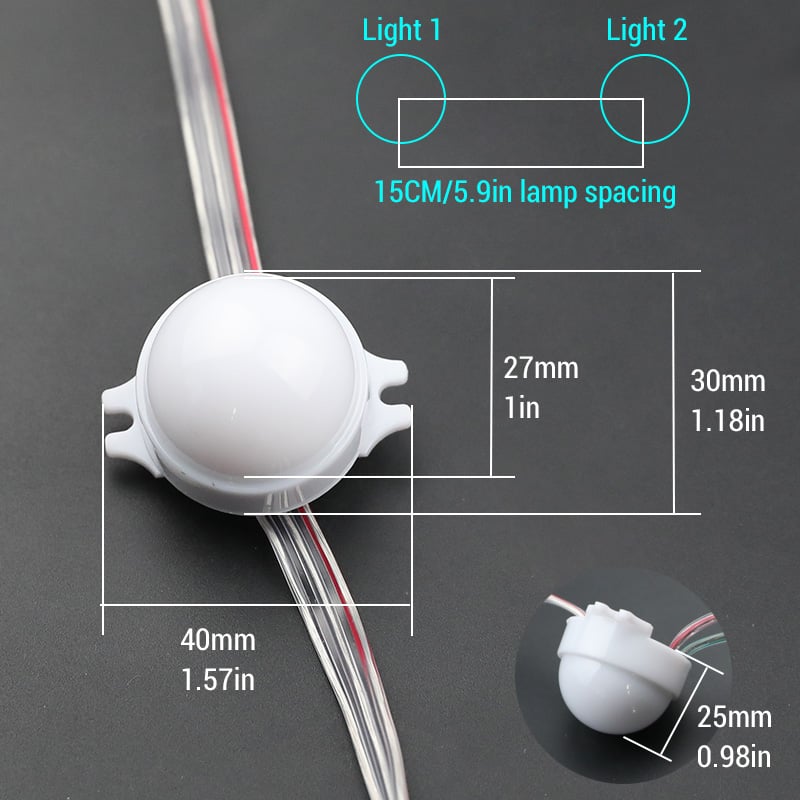

Lamp spacing: 15cm
Number of lights: 20pcs per string
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 12v Positive / +
Green Wiring colors: Data Signal
Yellow Wiring colors: Clk Signal
Black Wiring colors: 12v Negative /-
Wire Length: 75mm(2.95in)
Dimensions: L35mm(1.38") x W35mm(1.38") x H5mm(0.20")
Input Voltage(V): DC12V
Working Current: 80mA / piece
Output power: 0.72W / piece
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 7 Lumen
Warantty: 3 years
Beam Pattern: 160 degree
MCD Per Foot: 6500 mcd/ft
With Controller: Full Controller T-1000S/T-4000/T-8000
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
