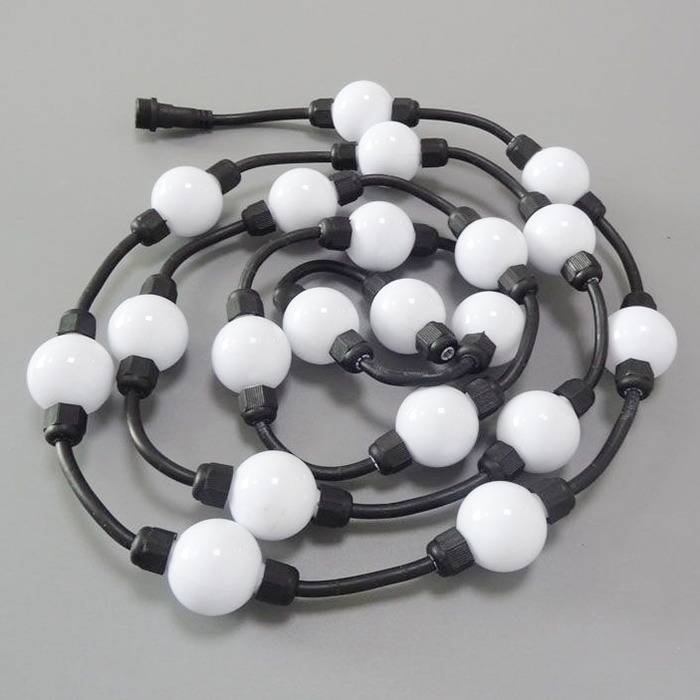

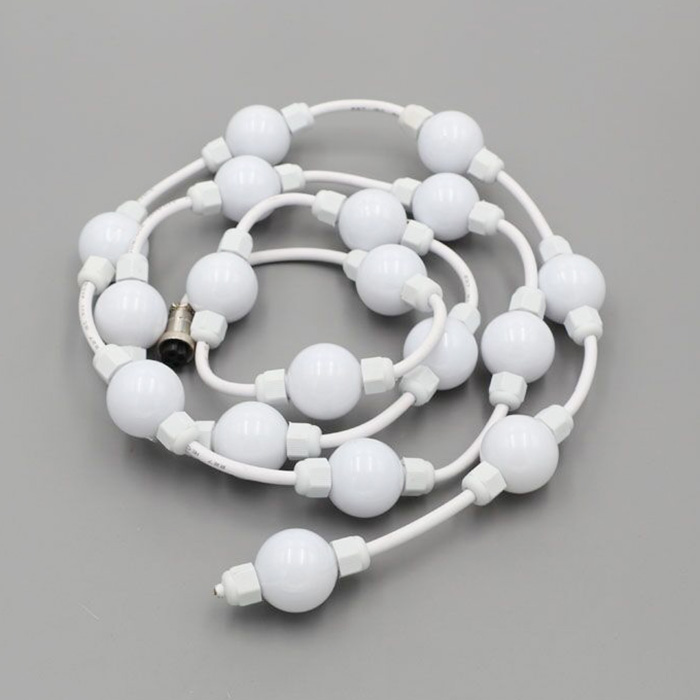

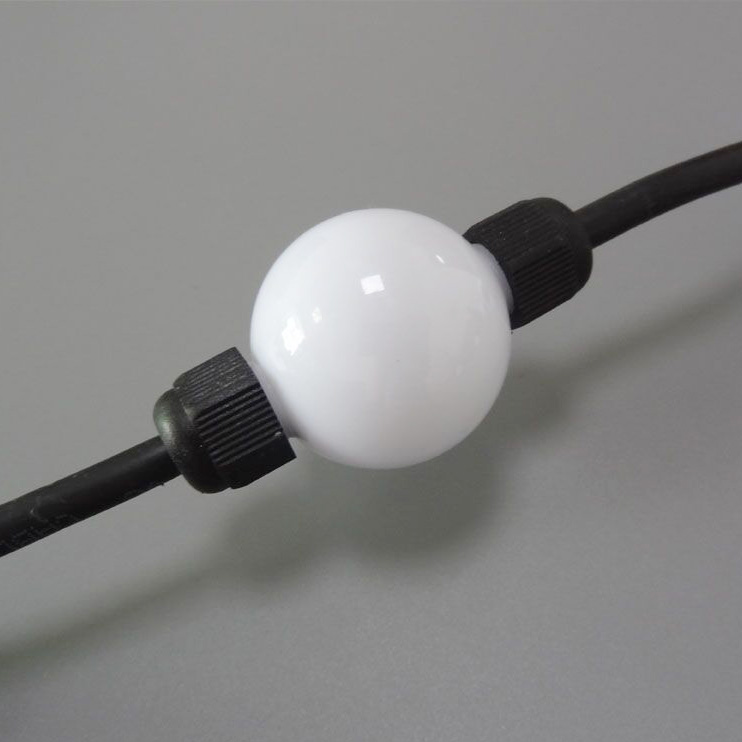

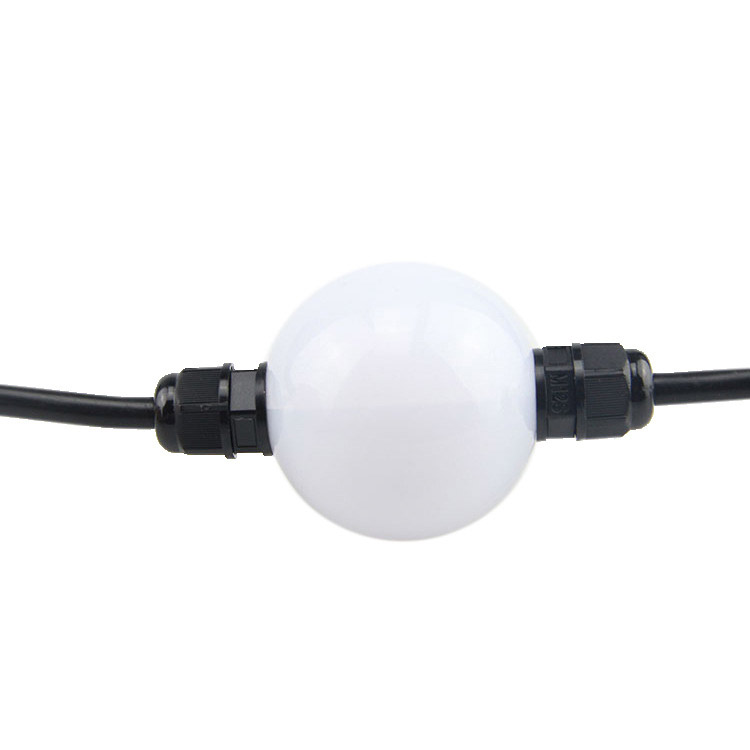

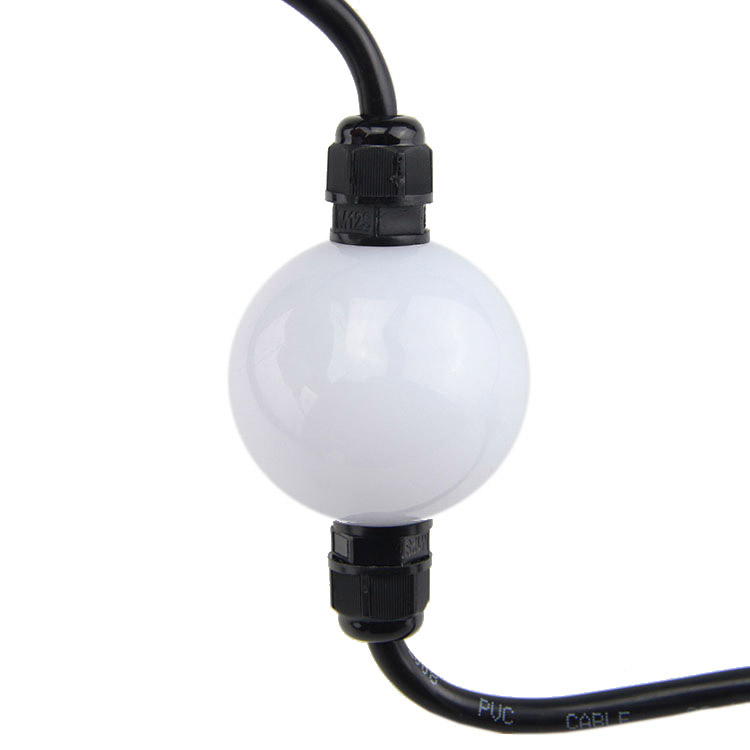

DC12V/24V 50mm 6leds 360degree 20balls/string 3D led pixel ball light source, 3D luminous ball, point light source, 3D Crystal Ball Pixel Light

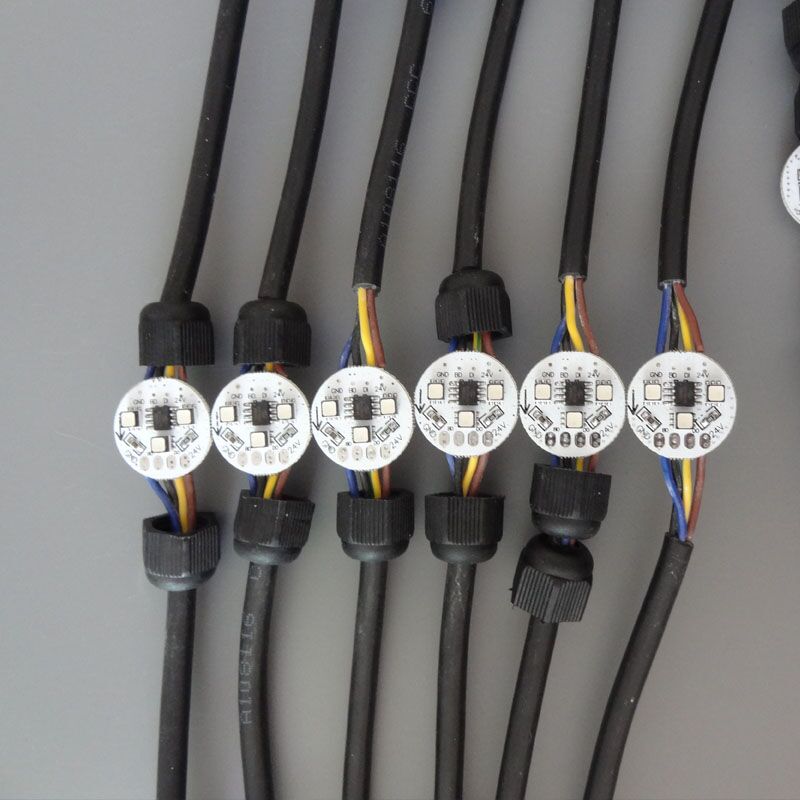

These products are made by SMD3535 RGB high brightness LED with big view angle
Use Taiwan Epistar chip，with high brightness，light color consistency，Good color saturation， Strong
Work at DC24V safety voltage，long lifespan，little luminous decay，Energy saving.
Use AB epoxy glue sealing, good compressive strength, high waterproof grade.
Cables and case are using anti-cold，flame retardant material，can be used for outdoor for a long Time
It is a new type energy conservation and environmental protection lights for decoration

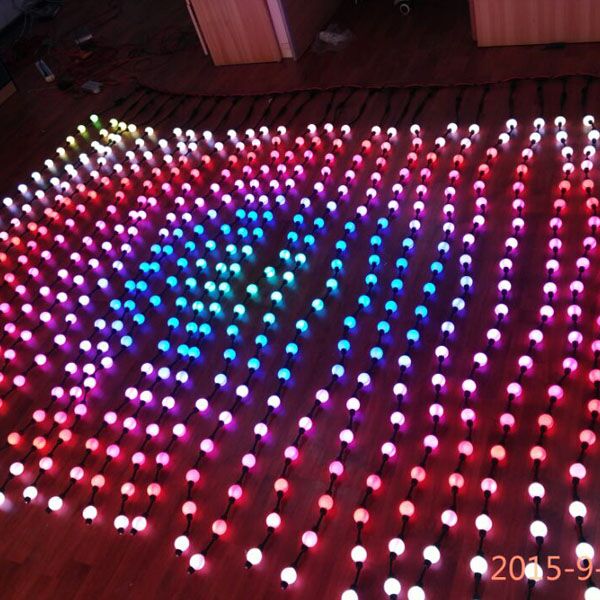

Application: bridges decoration, hotels decoration， KTV, bars and theme parks decoration etc.

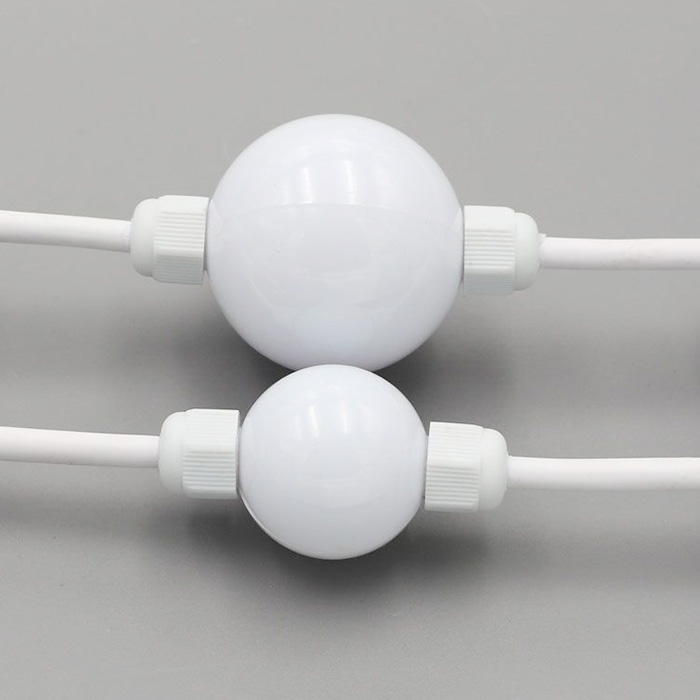

Product diameter: 35MM/50MM
Product voltage: DC24V
Product power: 1.44W / piece
Product lamp beads: 5050RGB*6
IC model number: WS2811/UCS1903 ( SPI ) , DMX512
Product light spacing: 10CM (edge to side)
Waterproof performance: IP65
Applicable temperature: -20 degrees----+60 degrees
Product line color: 0.5 square 6MM RVV line, brown yellow black blue

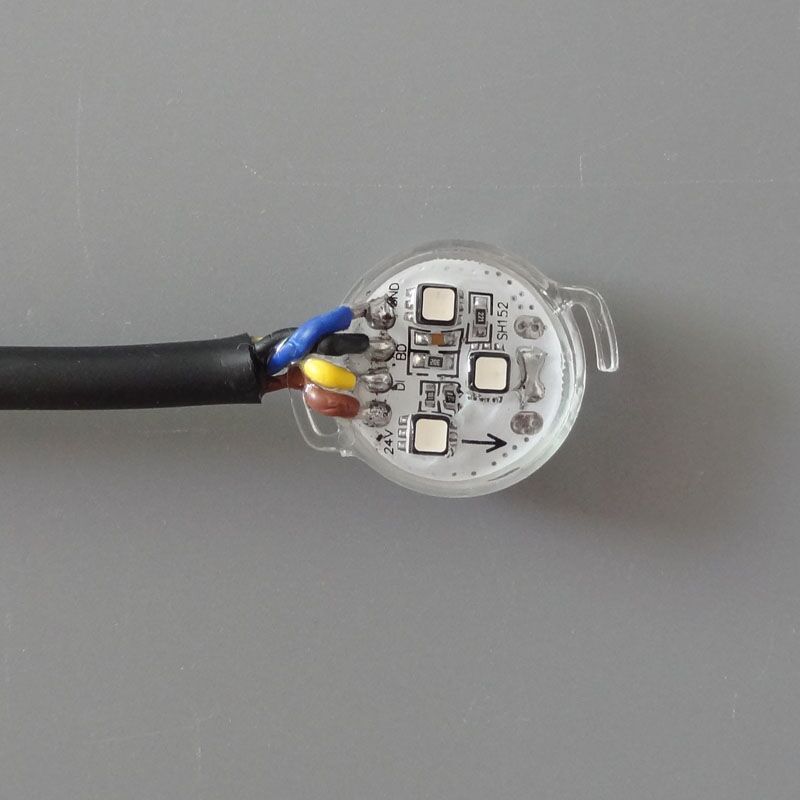

UCS1903 wiring: brown (12V+/24V+)

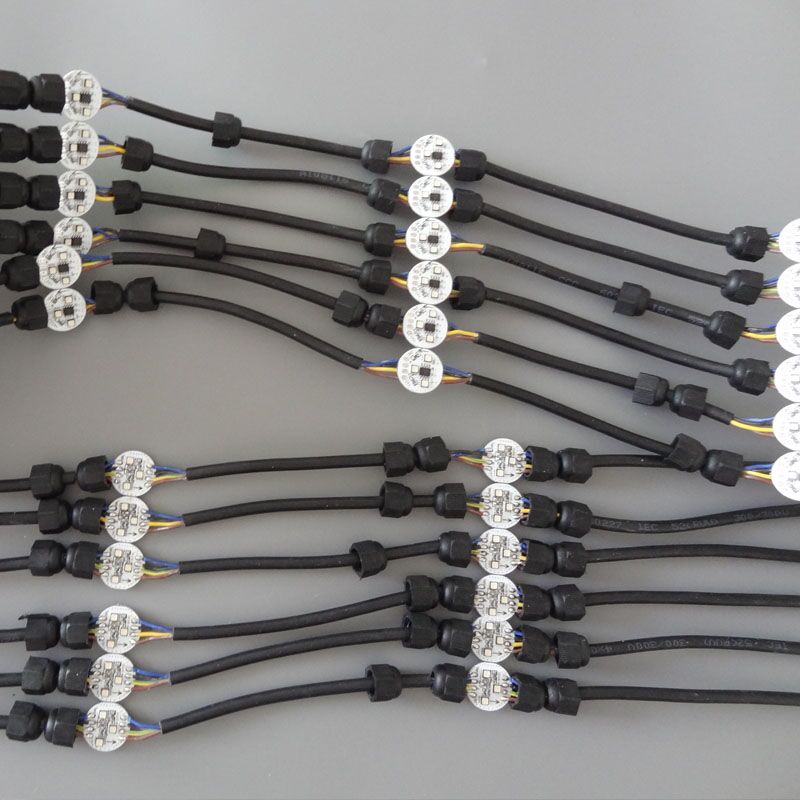

Please note that if the product requires a tee, use a 4-core cable, the output is not required. If the product does not require a tee, use a 3-core cable. The input and output require a waterproof connector.
DMX512 wiring: Red: 24V+
White: DMX Address
Standards and Certifications
1 The output voltage of the constant voltage power supply must not exceed the rated voltage, otherwise, it will
cause damage to the lamp.
2 It is necessary to use the LED power source with the product supporting, not the supporting power supply may
cause the lamp to be damaged.
3 Eye Protection Advice: Do not look directly into the light source when the LED is shining, especially for some
LEDs with higher luminous intensity. Please be careful.
