DC12/24V Diameter 3/4/5cm 5050SMD Single/Full color LED bulb light Pixel Module Outdoor Waterproof IP67 Point Light Led Pixel Light with Lampshade-40 lights for sale
1. Highlight 5050 chip: high brightness, low light decay, stable quality.
2. Environmental protection PC housing: UV resistant, anti-aging, pressure resistant, non-yellowing.
3. Full filling glue waterproof perfusion: waterproof and dustproof, high temperature resistant, safe and durable.
4. Luminous effect is divided into single color and full color, single color has Warm White/Daylight White/Yellow/Blue/Green/Red, full color is seven color gradual change, jump, full-color scanning, chasing, running water, stacking, horse lamp effect, can also use multiple point light source to form dazzle color screen, background screen, pattern, animation, and other effects.
Standards and Certifications
Item: 30/40/50mm Point Light LED bulb Light
Type: Pixel Module LED bulb Light
Size of chip: 5050SMD
Lampshade Quantity: 40pcs
Input voltage: DC12/24V(3mm/0.12in DC12V, 4mm/0.16in and 5mm/0.20in DC24V)
Rated power: 0.72 /1.72Watt /pcs
Light Color: Warm White/Daylight White/Yellow/Blue/Green/Red/UCS1903/DMX512
Pixels diameter: 30/40/50mm
Center distance: 14.5cm
Two lamp spacing: 10.5cm
Brightness: high brightness
Grey level: 256
Lighting angle: 120
Luminous flux: 18-20LM
Material: Environmental PC shell

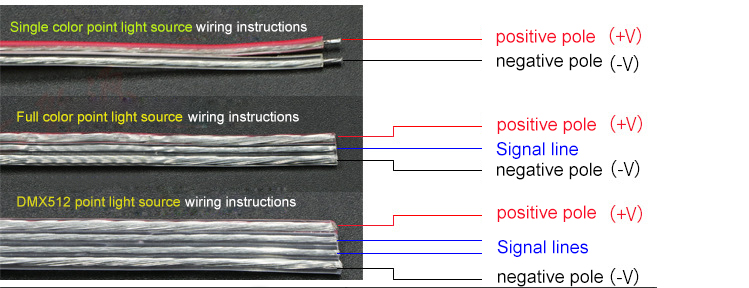

Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
