DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display

Model: DC-WS2812B-DP-20*15
DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display
  • DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display
  • DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display
  • DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display
  • DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display

Select Specifications:

Select Product Size:

Select IC Type:

Select Light Color :

Select Operating Voltage:

$78.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$78.98
10-49
$75.03
50-99
$71.08
100+
$63.18
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features:

    1. These 20*15 pixels WS2812B led digital addressable flexible LED display screen(ws2811 IC controlled), Size:20cm*15cm, DC5V input, working power 120watt.

    2. Work with the programmable SD controller(not included), it can make flexible LED screen

    3. Arduino IC Digital Addressable Dream Color RGB LED Screen

    4. Arduino compatible: You can control the strip by your programmable Arduino .

    5. Technology advantages: The WS2812B SMD5050 RGB LEDs,  every led built-in(embedded) a WS2811 IC, therefore every one led lighting effect can be controlled, every RGB LEDs is digital addressable.

    6. Easy installation: Good flexibility, easy installation, can be arbitrary bending.

    7. Dream color lighting: Match use controller can appear colorful Curtain-up/ Chasing/ Flow Water/Raindrop/Jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LEDEdit2016 software.

    8. Working with WS2812B Full-color SPI controller can download the programs in SD card, control Max 2048 Pixel, It has a single color running scene.  5VDC power supply Link.

    WS2812B Chips Specifications Download   PDF



    Standards and Certifications

    DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty


    Product Specification

    LED Module Type:   Full Color 5050 LED Pixel Screen

    IC type:   WS2812B

    LED quantity:   300 5050 SMDs

    Working Temperature:   -4°F (-20°C) ~ 149°F (65°C)

    Red Wiring colors:   5V Positive / +

    Green Wiring colors:   Data Signal

    Black Wiring colors:   5V GND /V-

    Dimensions:     L200mm(0.66') x W150mm(0.50') x H5mm(0.20")

    Input Voltage(V):   DC5V

    Working Current:   24Amps / piece

    Output power:   120Watt / piece,  0.4wat/LEDs

    Grey scale:   256 levels

    Bit:   8

    Wavelength:   R 470 nm/G 520 nm/B 620 nm

    Lumen:   7 Lumen

    Lifespan:   50,000+hours

    Standards and Certifications:    CE/FCC/ISA Approved/ROHS

    Warantty:   3 years

    Beam Pattern:   120 degree

    MCD Per Foot:   6500 mcd/ft

    With Controller:   Full Controller T-1000S/T-4000/T-8000 or SPI controller



    Application

    Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.

    digital rgb addressable led strip applications

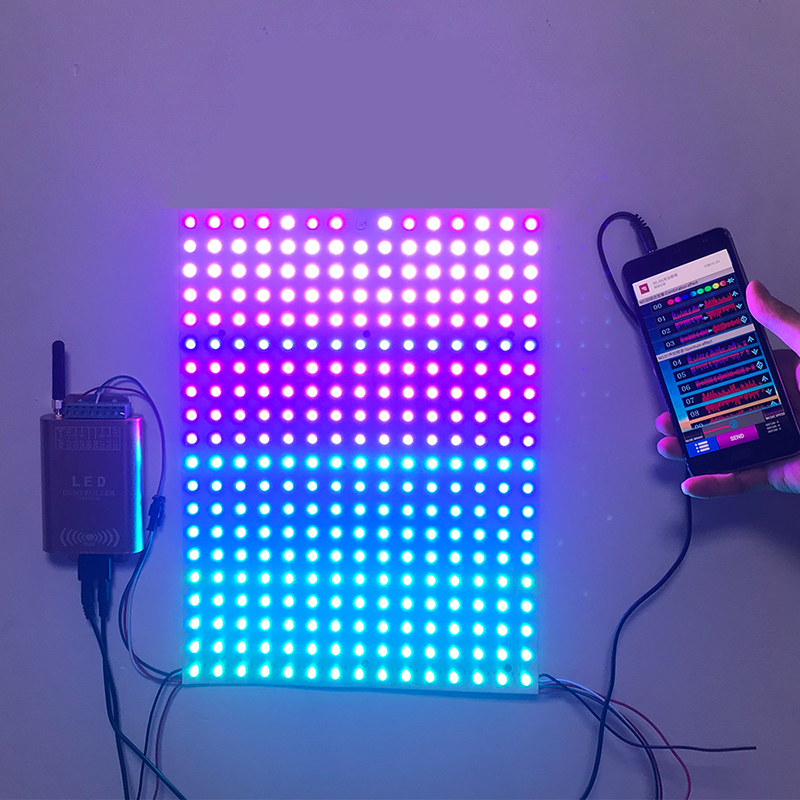

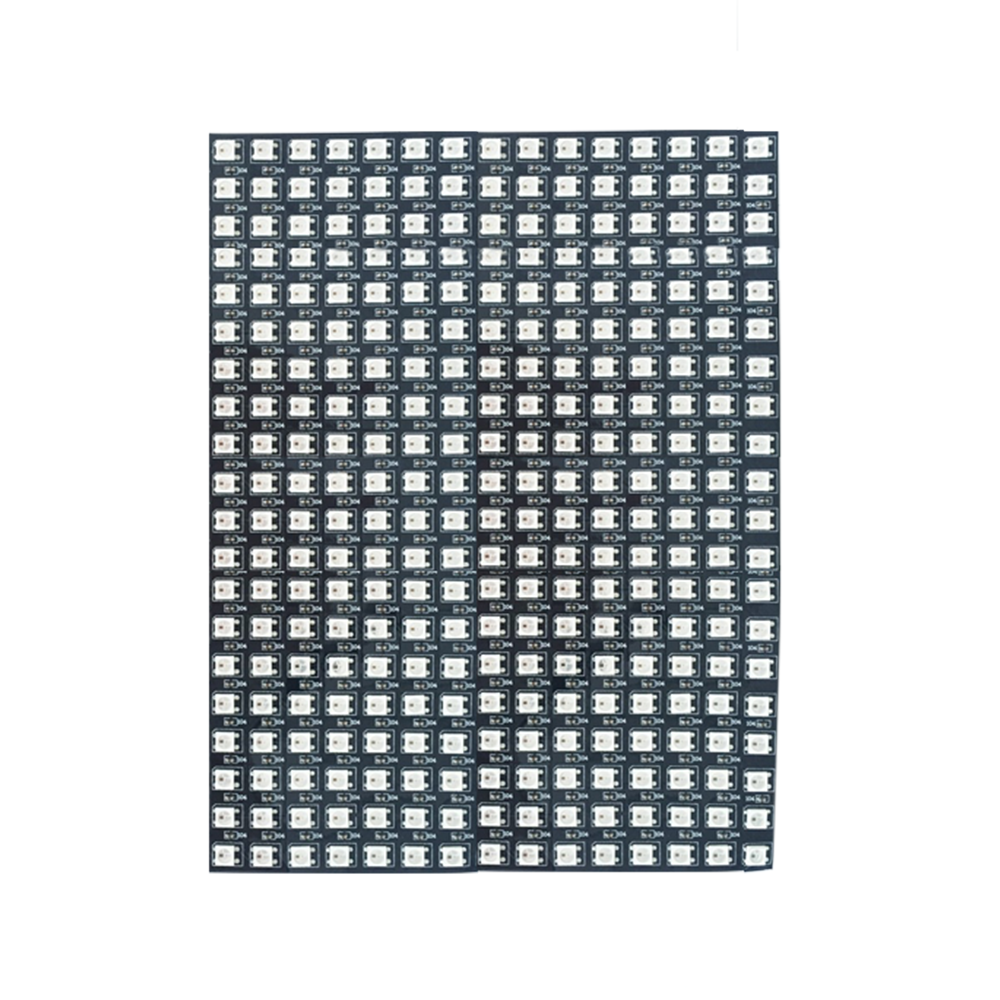

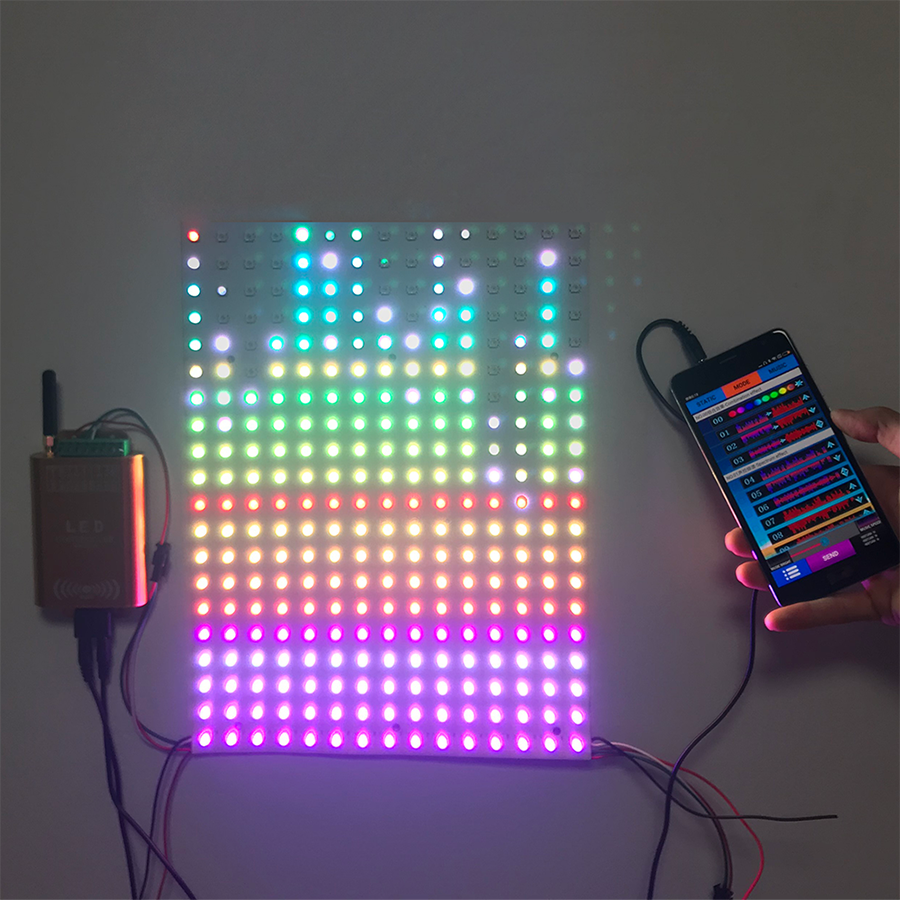

    DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix DisplayDC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix DisplayDC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix DisplayDC5V 0.66x0.5Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 300 Pixel Dot Matrix Display
