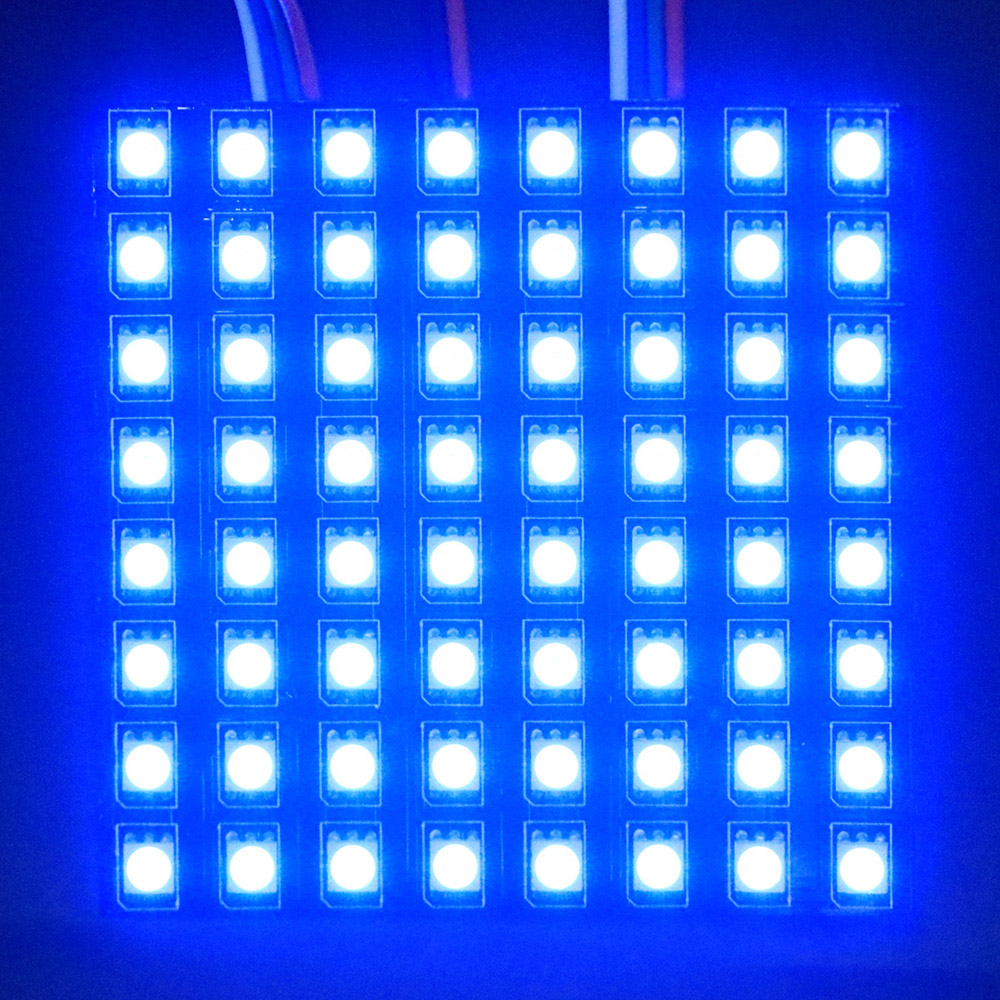

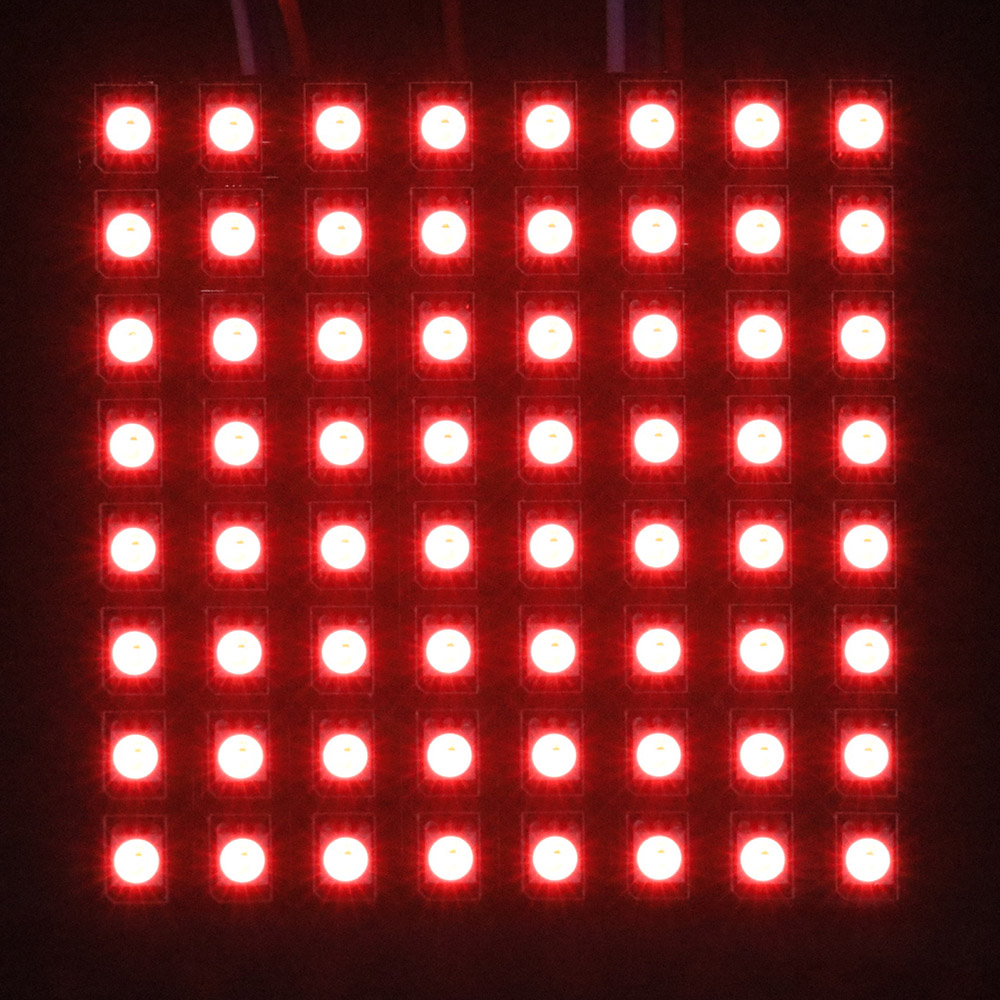

Flex 8x8 LED Matrix Display Panel WS2815 RGB Light For Signs

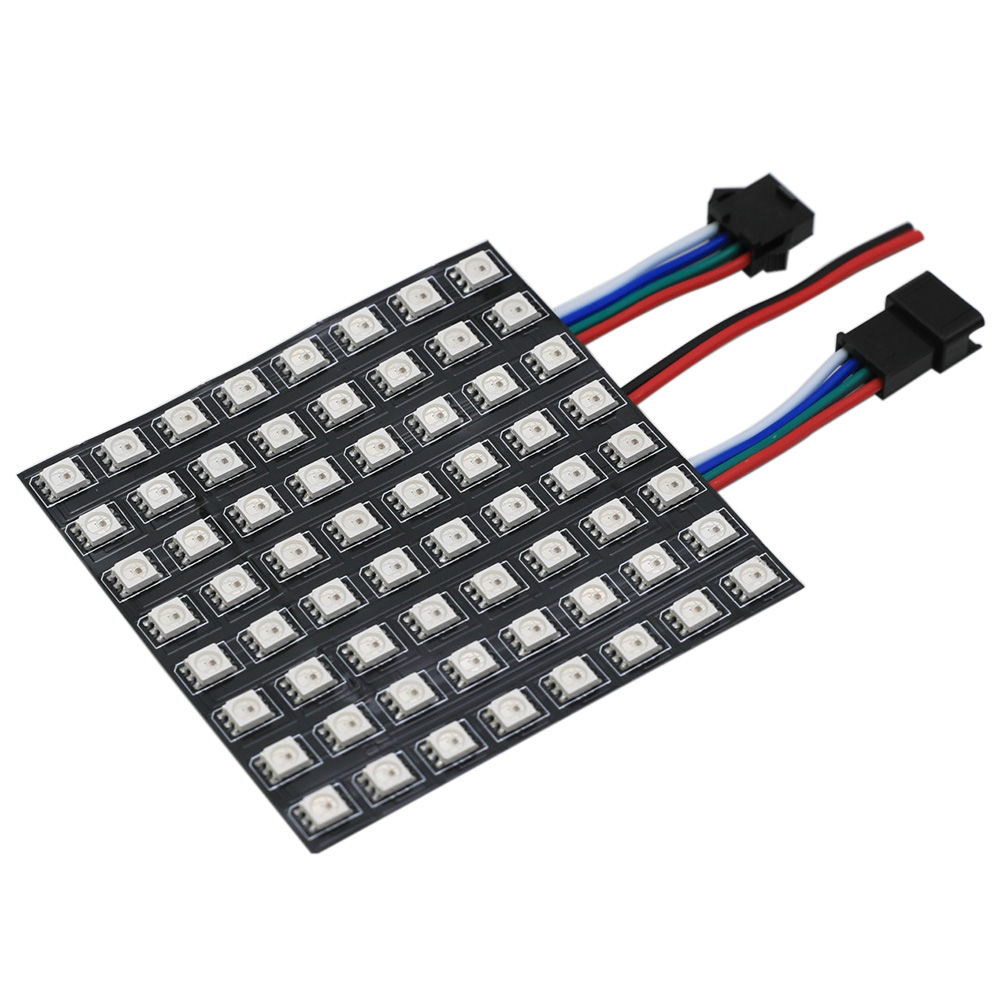

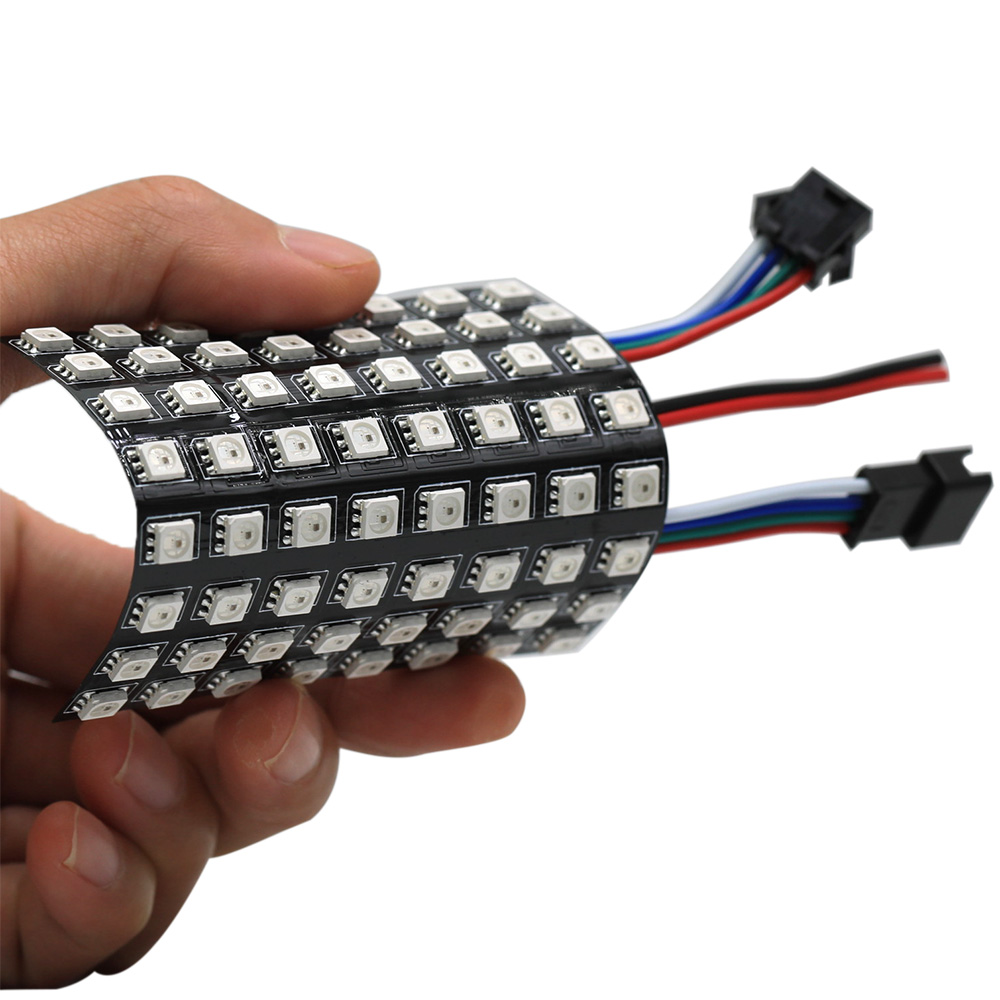

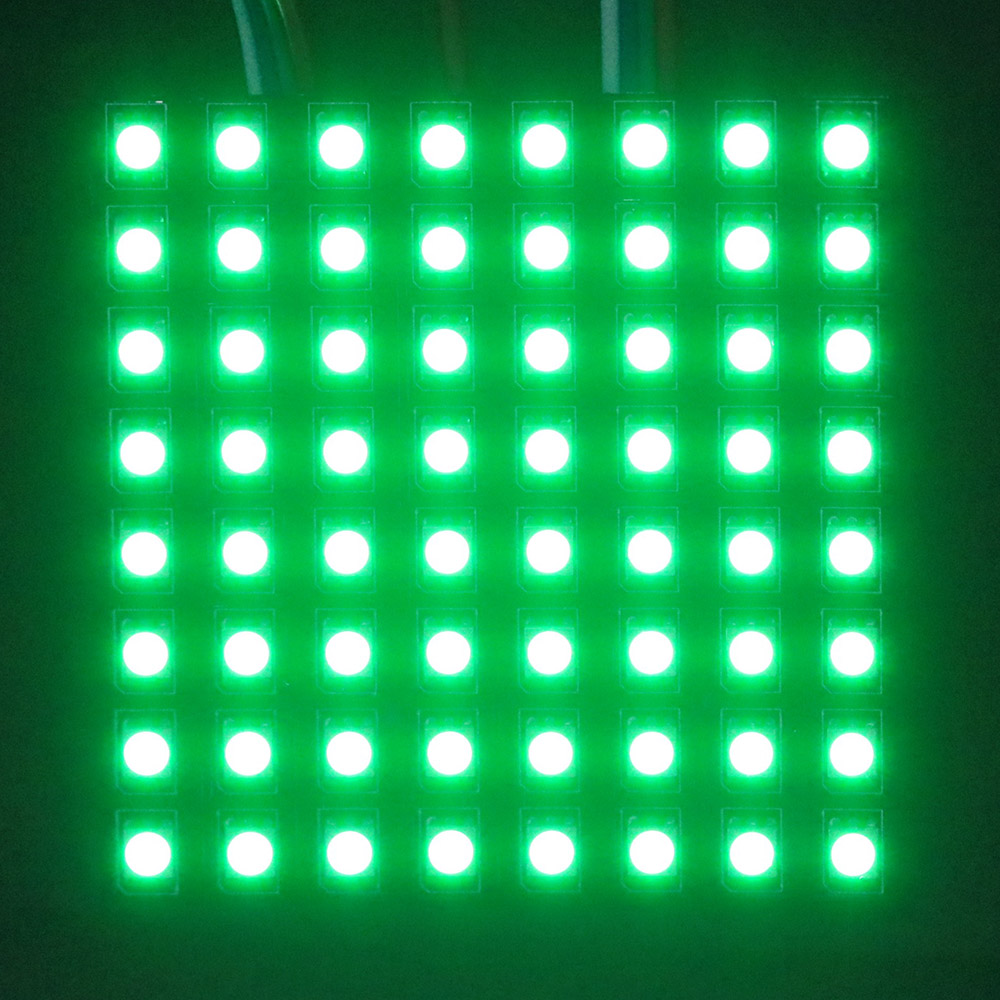

Check this flexible 8x8 mareix led panel screen with WS2815 12V addressable RGB color changing light, good color consistency. DC12V drive, effectively reduce the working current of the pixel LED, less voltage drop. Dual signal transmission, breakpoint resume, each LED of this led panel light is addressable, damage to a single LED will not affect other RGB LEDs. WS2815 IC is built in the SMD5050 LED with flexible PCB board, more durable and flexible application to uneven surfaces, easy installation. Comes with JST male and female connectors (one for input, and one for output) and power lines, pay attention to the direction of data flow when using the led matrix panel. Work with 12V LED power supply.

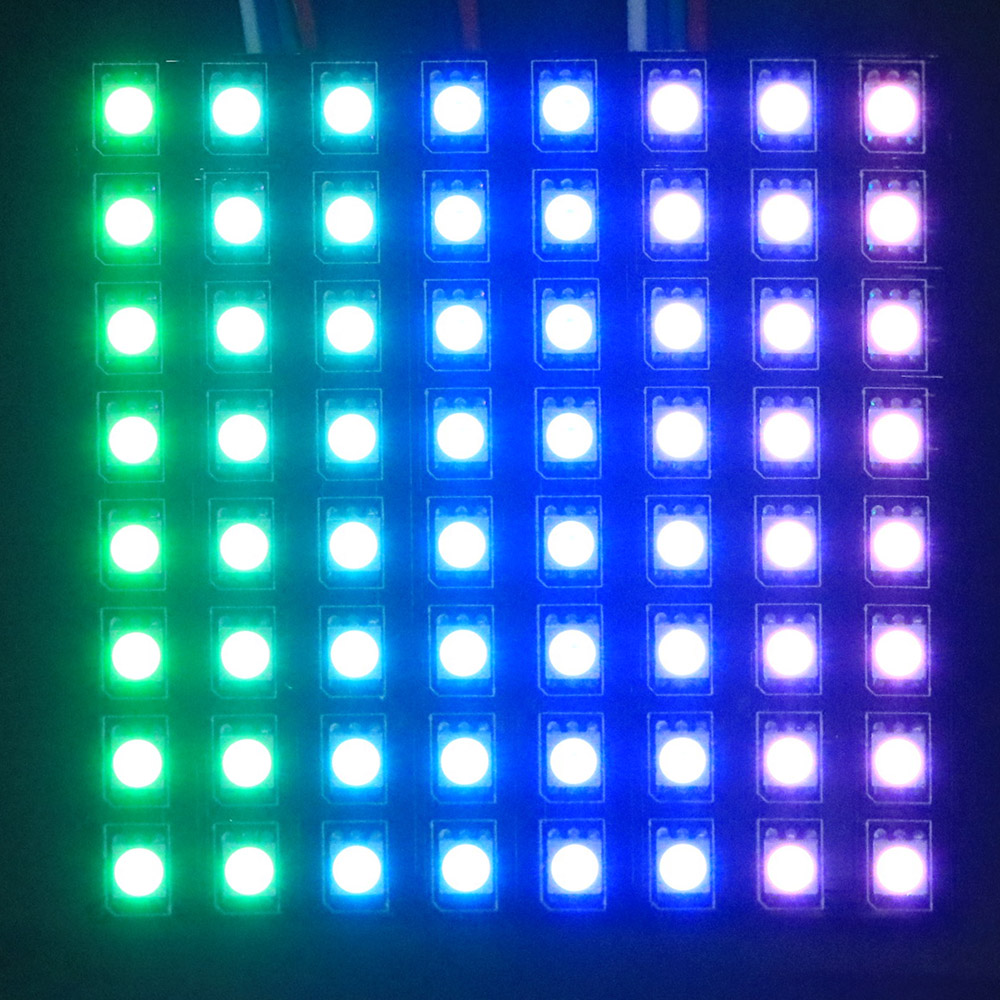

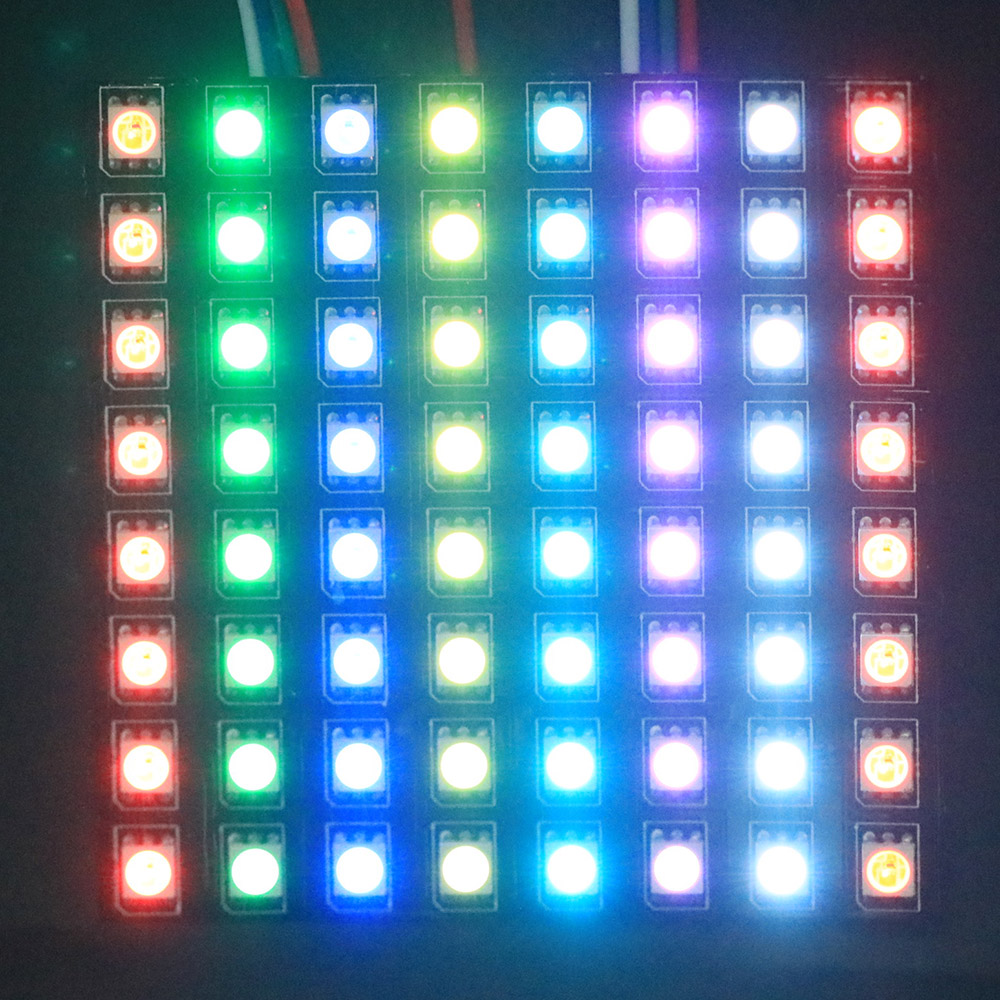

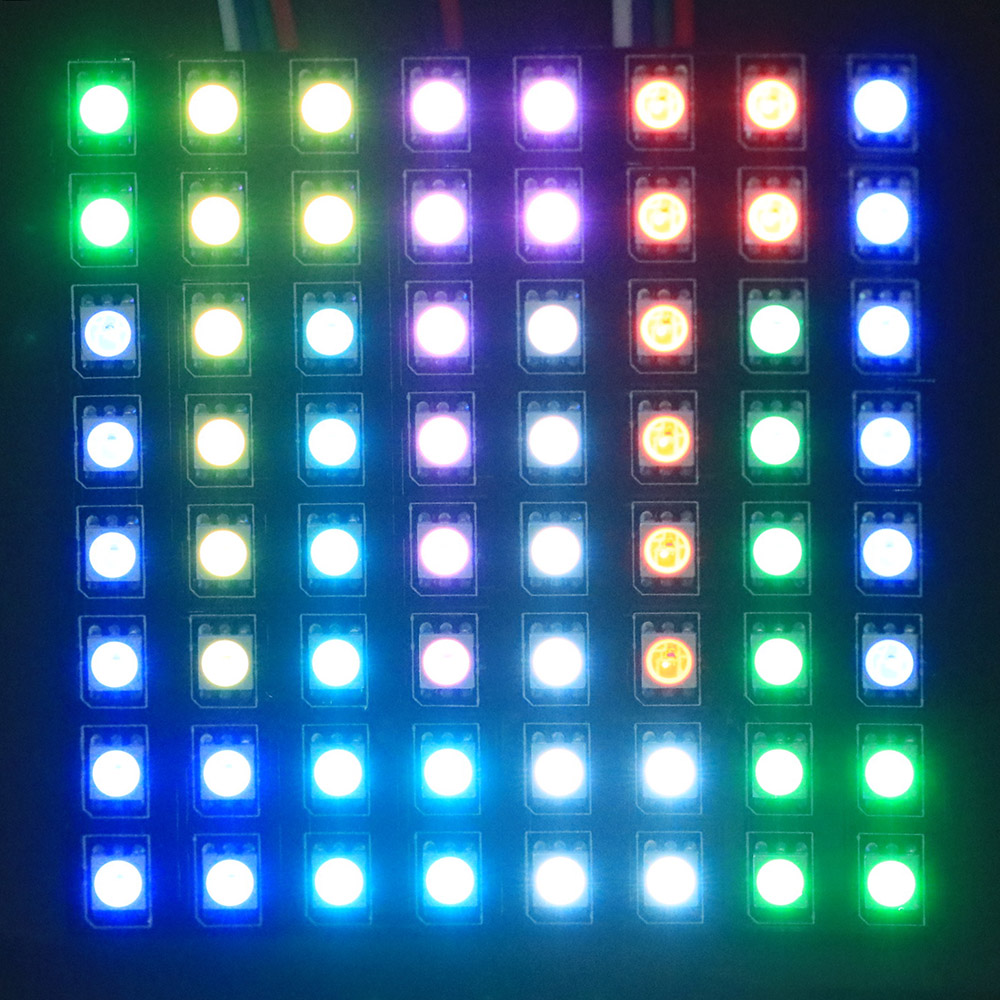

This WS2815 flex led matrix supports Arduino, Raspberry Pi, FastLED, Adafruit, T-1000S, K-1000C, and other WS2815 SPI controllers, can appear colorful Curtain-up/ Chasing/ Flow Water/Raindrop/Jump flash and so on hundreds of light effect, you can also edit animation effect by Coreldraw/Flash/LEDEdit2016 software.
Wide applications: making led screen, led wall light, advertising light. Apply to hotel, KTV, bars, advertisement decoration, city lighting project, entertainment and leisure lighting.
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Screen
IC type: WS2815
LED quantity: 64 5050 SMDs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

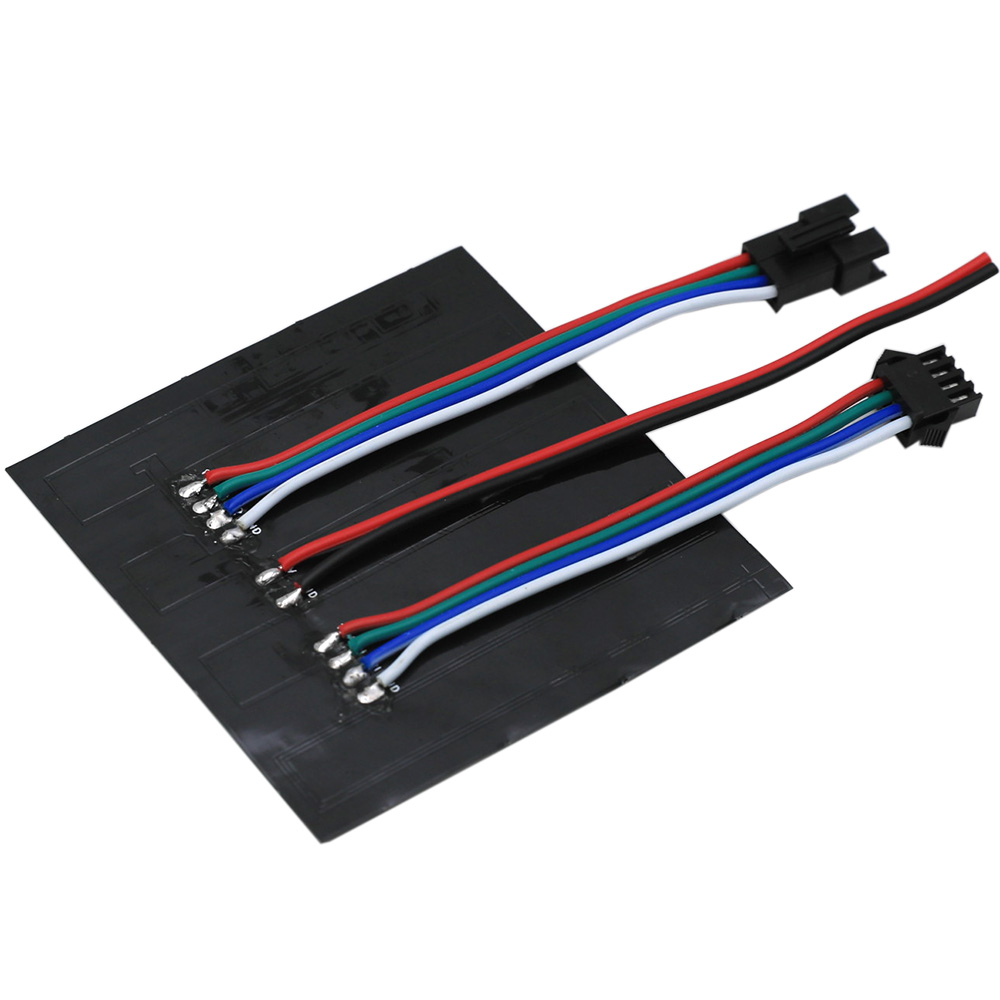

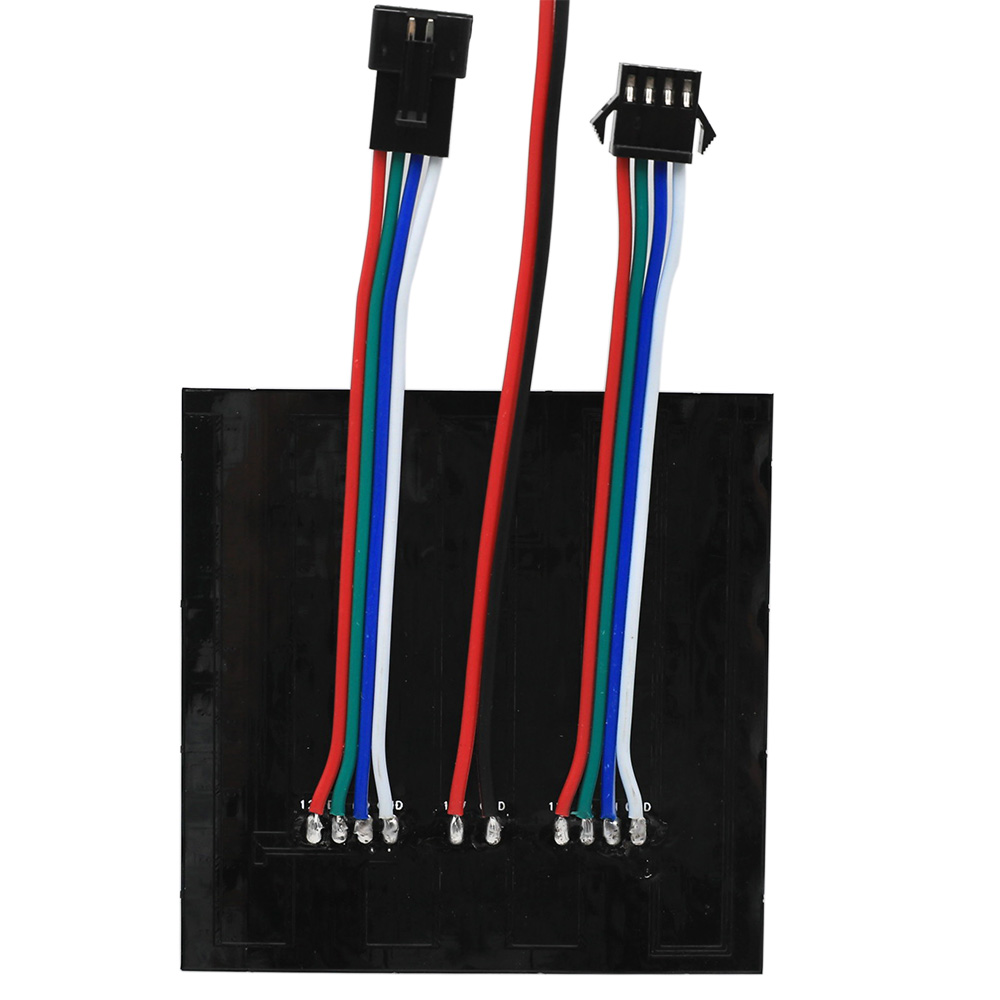

Red Wire: 12V Positive / V+
Black Wire: 12V GND / V-
White wire: GND V-
Green wire: Data
Blue wire: Backup
Dimensions: L80mm(0.26') x W80mm(0.26') x H5mm(0.20")
Input Voltage(V): DC12V
Working Current: 3.84Amps / piece
Output power: 48Watt / piece
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Beam Pattern: 120 degree
MCD Per Foot: 6500 mcd/ft
