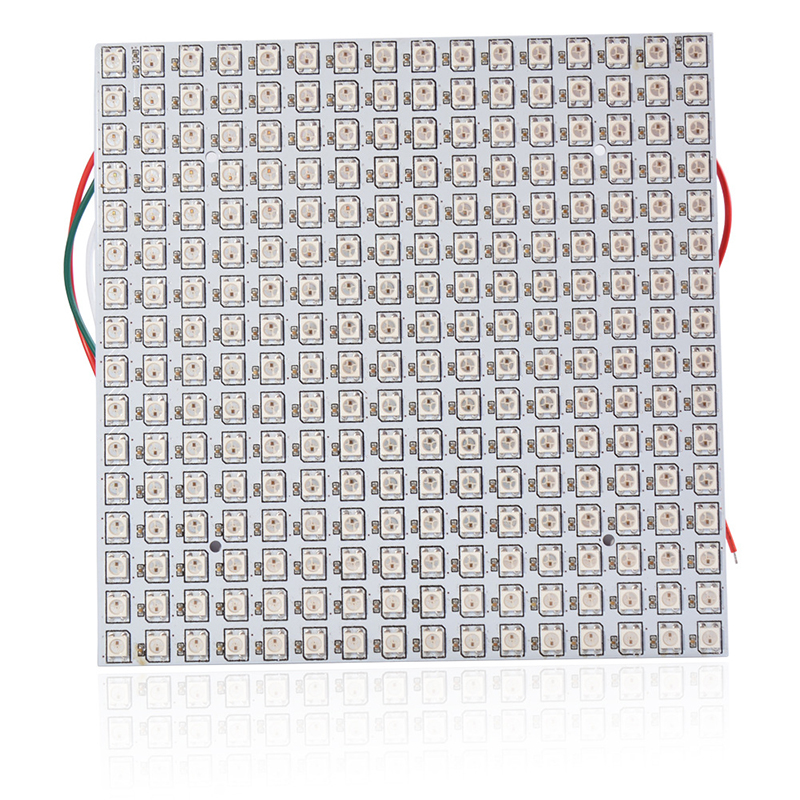

WS2812B 16x16 Programmable Neopixel Flexible Matrix, DC5V 5050 RGB Addressable LED Light
The built-in IC flexible pixel screen adopts the world's first built-in IC series lamp beads, a high-quality flexible pixel screen that drives and emits light, and is composed of an epitaxial copper circuit board. Simple, powerful, and perfect flexible screen, which can output characters, run animations, run effects, etc. Addressable RGB LED lamp beads are a very stable performance and very high brightness driver lamp beads. The driving current of each LED light is the same, so the color of each addressable LED light is highly consistent, even if the voltage changes, it will not affect the color of the lamp beads. The three primary colors of each pixel of Neopixel lightsaber can achieve 256 levels of brightness display, complete the full true color display of 16,777,216 colors, and the scanning frequency is not less than 400Hz/s. 16*16 soft board pixel screen, a kind of LED dot matrix display product specially designed for LED clothing and other fields, small size, light weight, arbitrary bending, easy to carry.
The control circuit of the Flexible 16x16 NeoPixel LED Matrix and the RGB chip are integrated in a 5050 packaged component to form a complete pixel, making each LED and so on become addressable. Built-in signal shaping circuit, any pixel point receives the signal after waveform shaping and then output, to ensure that the line waveform distortion will not accumulate.

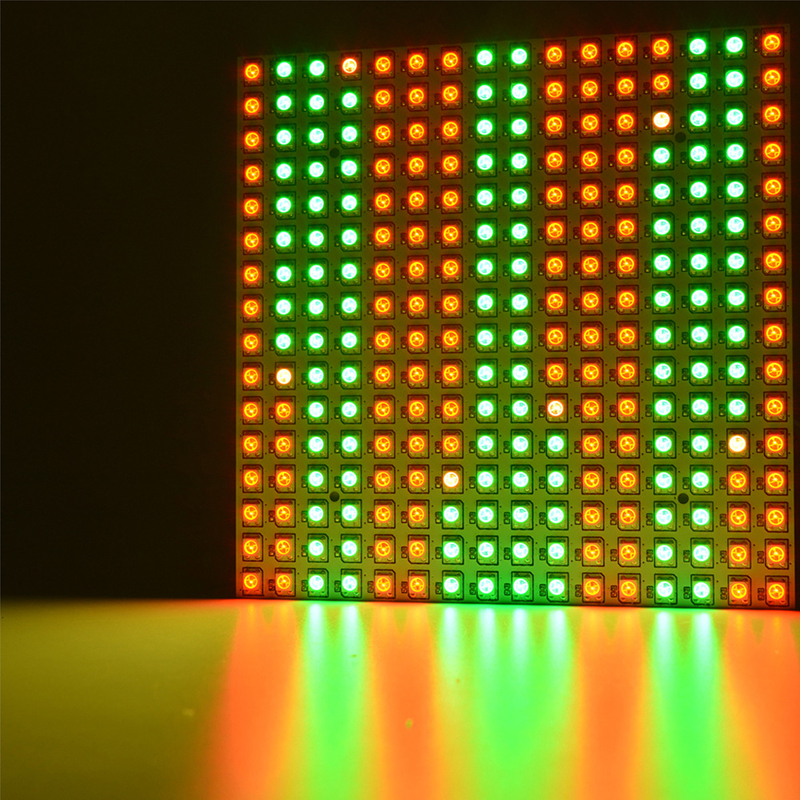

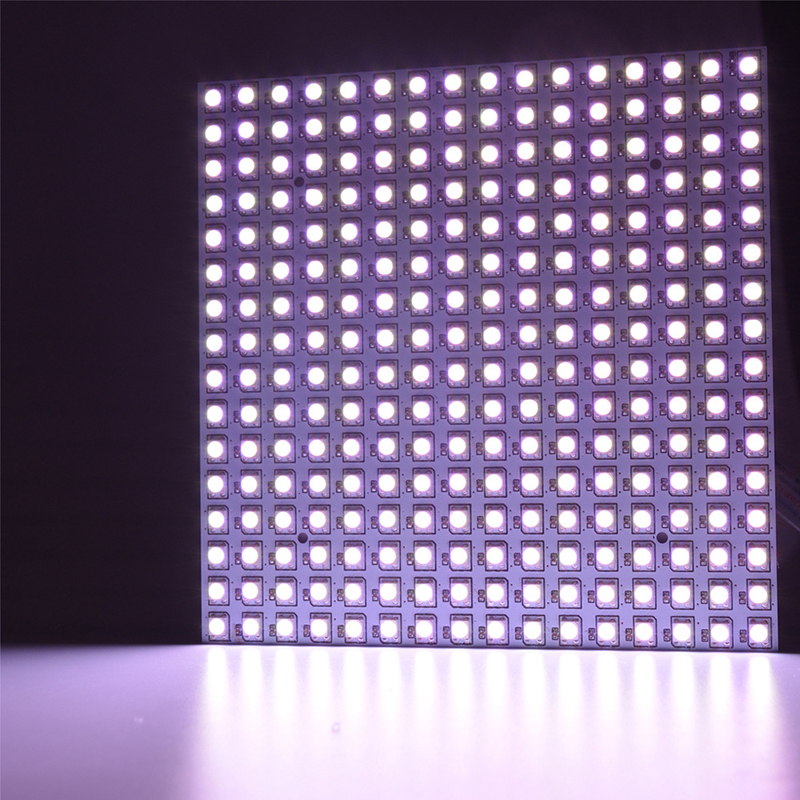

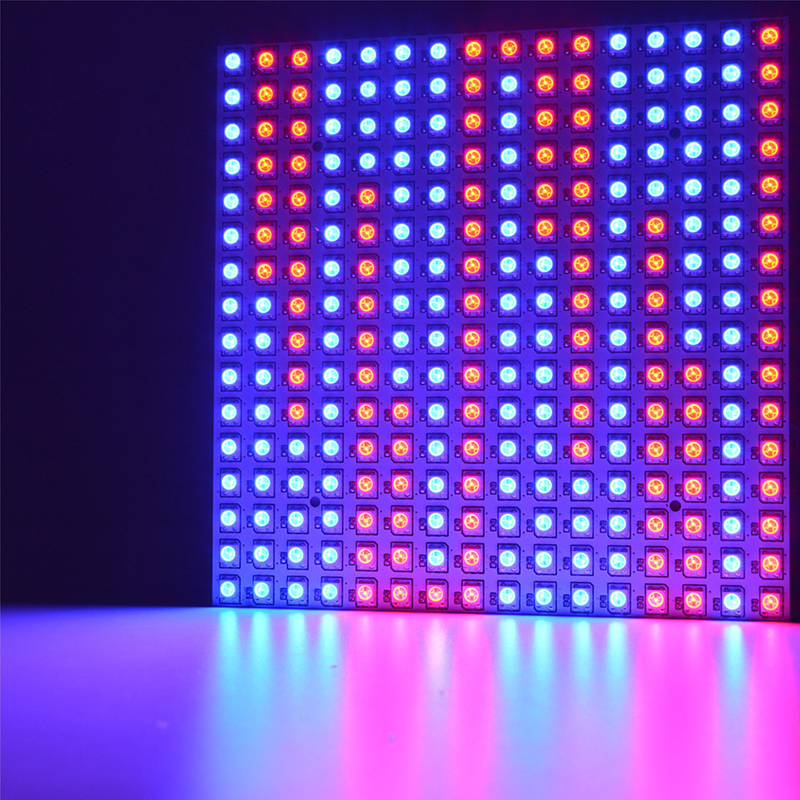

1. Powerful function, display any text, picture, animation, dance, cool, fireworks and other effects you want through the programming controller;

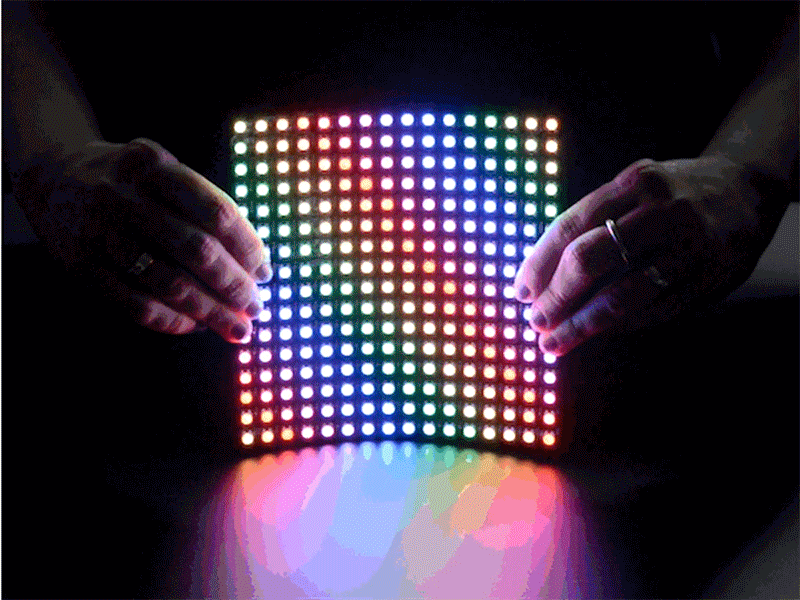

2. Easy to carry, small, slim, and flexible design, it does not take up space and can be used for education and product display;
3. All circuits of the pixel screen are introverted, no electric shock to avoid short circuit.
Note: Flexible PCB is not suitable for repeated bending!
Standards and Certifications
Light Source: SMD 5050 RGB;
Plate: soft copper plate, rolled copper
Driver IC Model: WS2812B IC
Gray Level: 256 levels
Beam Angle: 120°;
Luminous Color: full color;
Working Voltage: DC 5V;
Power: 0.3W ±0.01%;
Waterproof Rating: not waterproof
FPCB Board Size: 160mm x 160mm x 2mm / 6.3" x 6.3" x 0.08"
FPCB Color Shape: White, square
LED Quantity: 16*16=256leds
