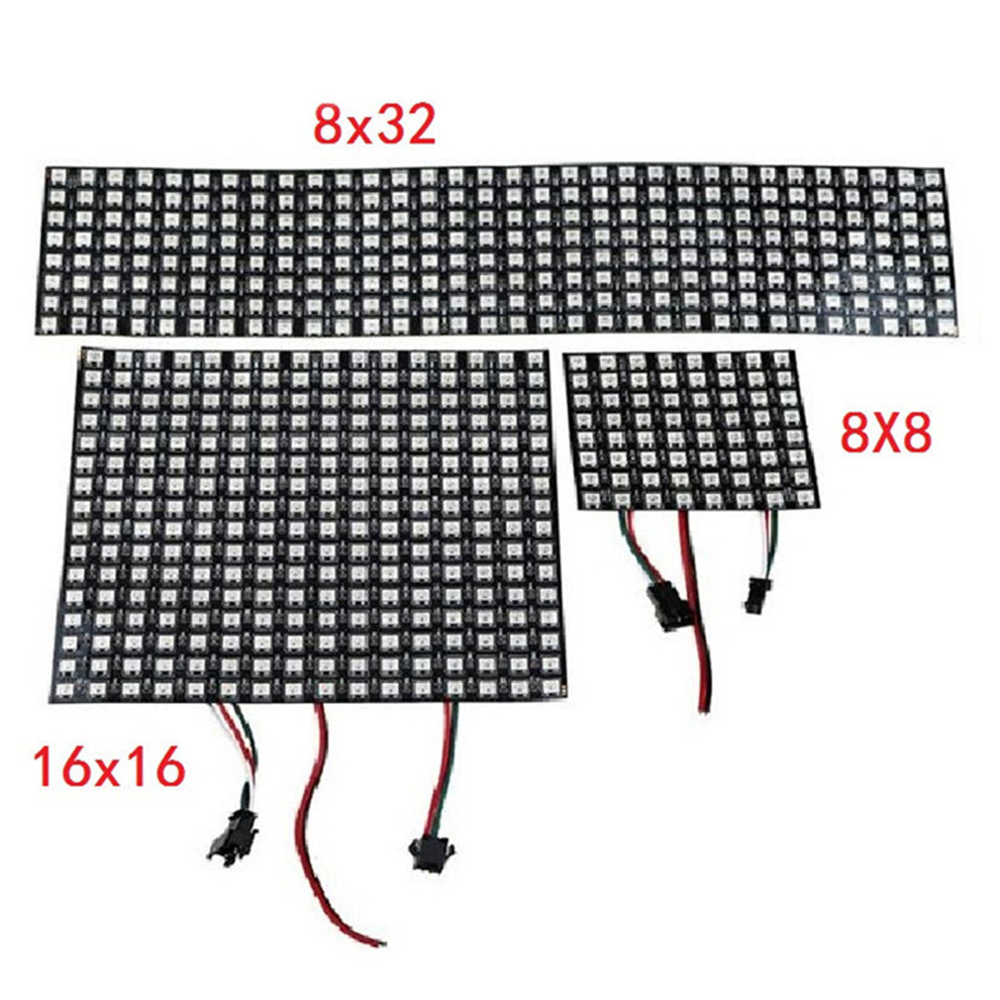

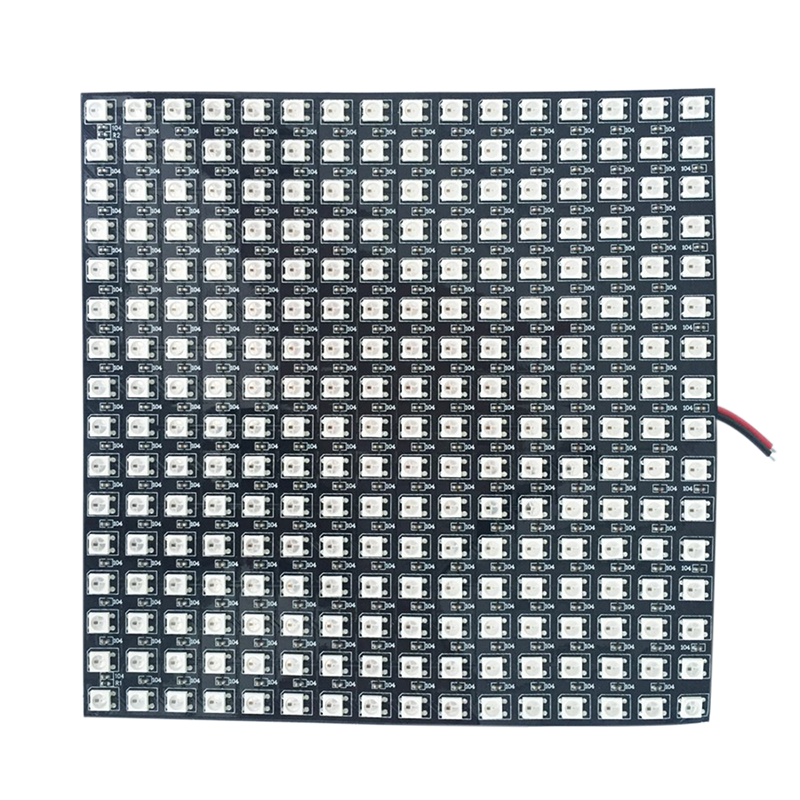

DC5V 0.52x0.52Ft WS2812B Full Color Digital Addressable Flexible LED Display Screen - Built in 256 Pixel Dot Matrix Display
1. These 16*16 pixels WS2812B led digital addressable flexible LED display screen(ws2811 IC controlled), Size:16cm*16cm, DC5V input, working power 76.8watt.
2. Work with the programmable SD controller(not included), it can make flexible LED screen
3. Arduino IC Digital Addressable Dream Color RGB LED Screen
4. Arduino compatible: You can control the strip by your programmable Arduino .
5. Technology advantages: The WS2812B SMD5050 RGB LEDs, every led built-in(embedded) a WS2811 IC, therefore every one led lighting effect can be controlled, every RGB LEDs is digital addressable.
6. Easy installation: Good flexibility, easy installation, can be arbitrary bending.

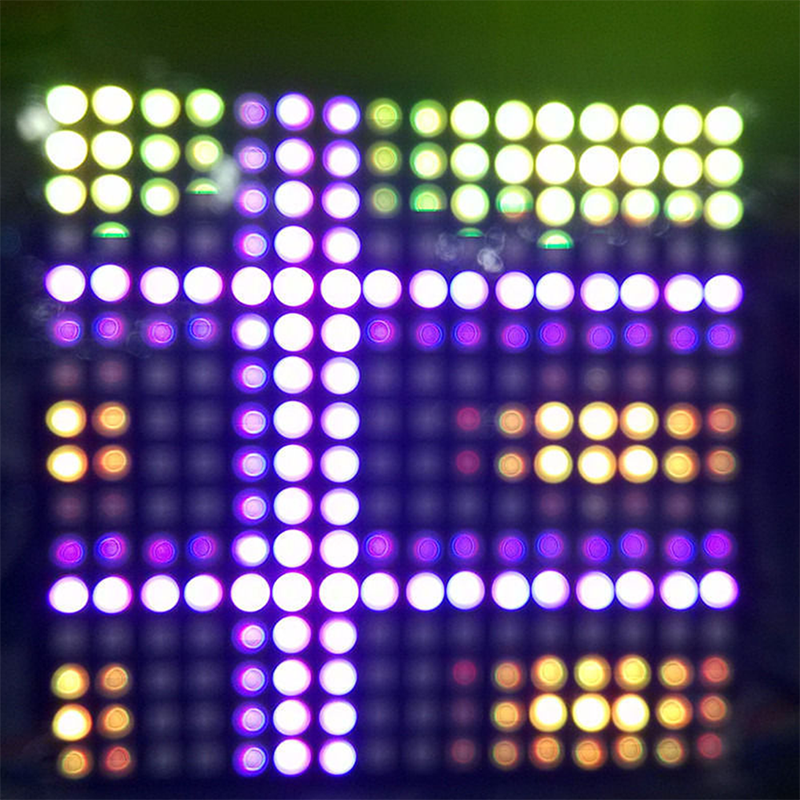

7. Dream color lighting: Match use controller can appear colorful Curtain-up/ Chasing/ Flow Water/Raindrop/Jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LEDEdit2016 software.
8. Working with WS2812B Full-color SPI controller can download the programs in SD card, control Max 2048 Pixel, It has a single color running scene. 5VDC power supply Link.
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Screen
IC type: WS2812B
LED quantity: 256 5050 SMDs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Red Wiring colors: 5V Positive / +
Green Wiring colors: Data Signal
Black Wiring colors: 5V GND /V-
Dimensions: L160mm(0.52') x W160mm(0.52') x H5mm(0.20")
Input Voltage(V): DC5V
Working Current: 15.36Amps / piece
Output power: 76.8Watt / piece, 0.3wat/LEDs
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 7 Lumen
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Warantty: 3 years
Beam Pattern: 120 degree
MCD Per Foot: 6500 mcd/ft

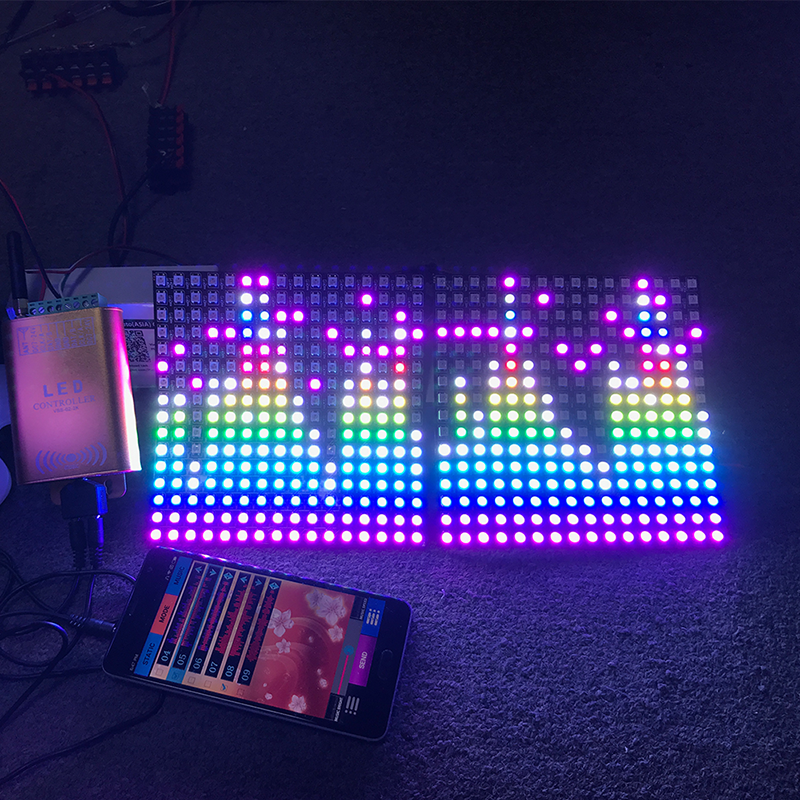

16x16 Digital Music Spectrum Wiring Diagram
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.
