Product Information

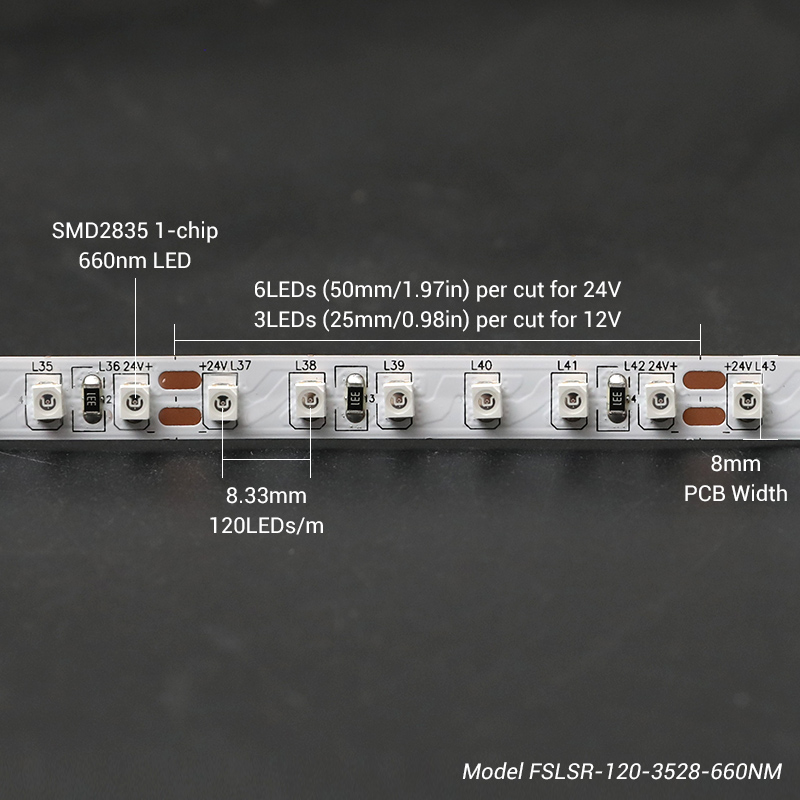

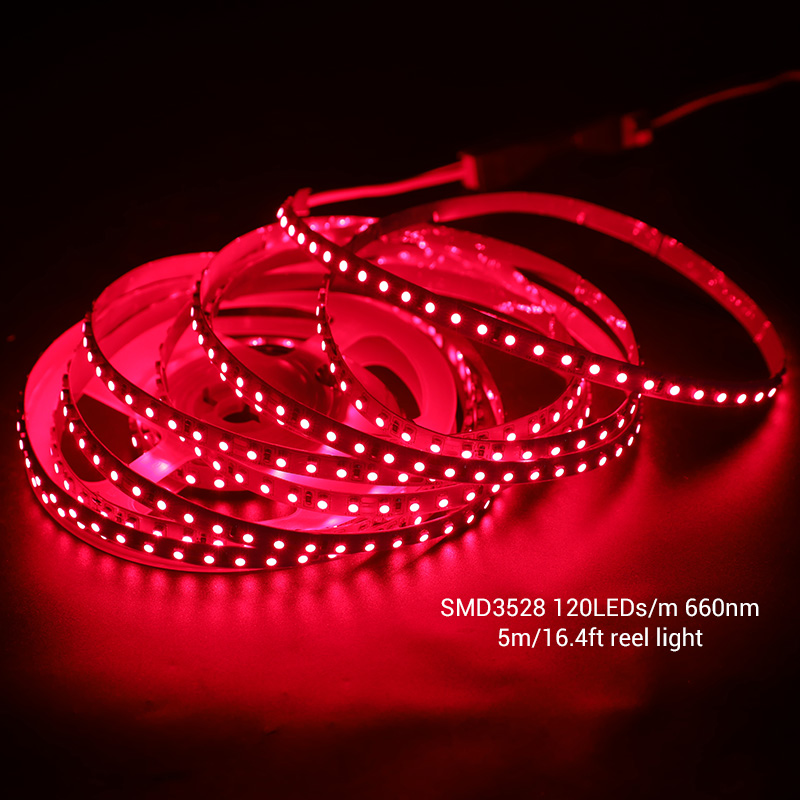

This deep red light 660nm strip adopts a high-density layout of 120 LEDs per meter, with very even lighting effect, and the spacing between every two 660nm LEDs is only 8.33mm. Using 3528 SMD LED chips as light emitting units, it produces deep red light with 660nm wavelength. This light wave has excellent penetrating ability and low energy level, which is especially suitable for promoting flowering and fruiting of plants, and also plays a key role in red light therapy to promote cell regeneration and rapid recovery of wounds.
The deep red light led strip's width is only 8mm, and thanks to its flexible circuit board construction, it can be flexibly bent to accommodate a wide variety of curved surfaces as well as complex installations. SMD3528 has a high concentration of light, suitable for smaller space lighting applications.
660nm vs 730nm vs 635nm: 660nm light appears deep red to the naked eye, 730nm light appears dark red to the naked eye, 635nm light appears vivid red with high saturation to the naked eye.
The 7-day economy models—660nm, 730nm, 635nm 3528 120 LEDs/meter red light strips—are currently out of stock. A minimum order of 4,000–5,000 LEDs is required, which equates to 7–9 rolls of 5 meters. Please contact us if you need these.
Product Features
• Supports 12V and 24V voltages for a wide range of power environments
• 3-LED 25mm, 6-LED 50mm cutting design, users can flexibly cut the length of the strip according to the actual needs, to meet the personalized lighting needs
• 2-core power wire with 10-15cm/4-6" out from both sides of the light strip, easy to connect to the power supply and realize quick wiring
• Provide IP20, IP65, IP67, IP68 waterproof grade options to meet the waterproofing needs of different environments
• Adhesive tape on the back for quick fixing and installation
• 12V 8A power adapter or 24V 4A power adapter in the kit
• Dimmable via external led controllers
LED 660nm Red Light Strip Spectrum Download
Product Specification
| LED Strip Type: |

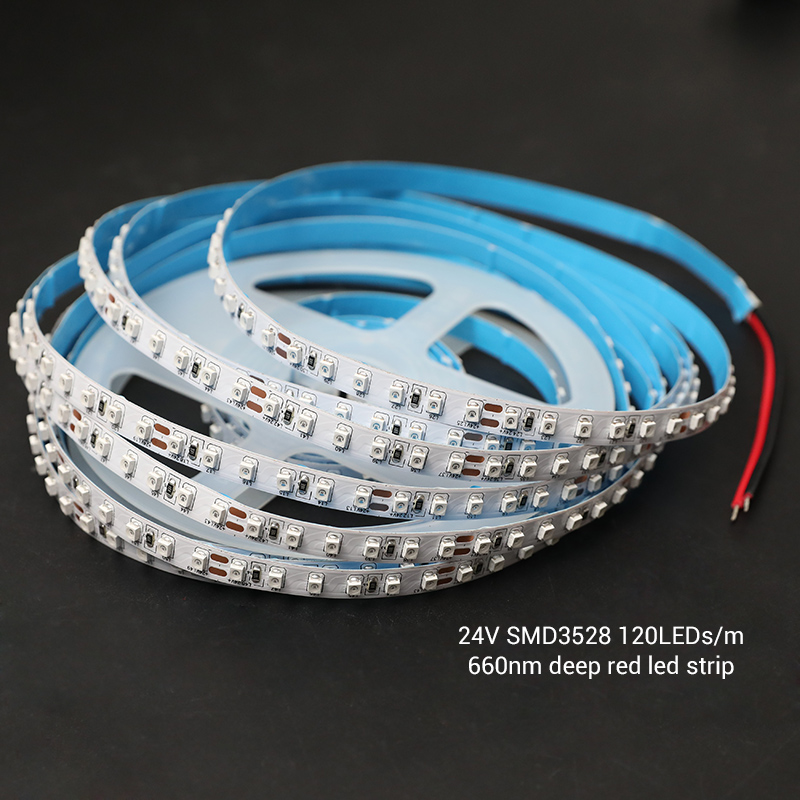

Uniform 600LEDs 8mm SMD3528 Deep Red LED Strip 660 NM
|
| LED Type: | SMD3528 |
| Input Voltage: | DC12V, DC24V |
| Power: | 65W/Roll, 13W/m, 4W/ft max |
| Light Wavelength: | 660nm |
| Dimensions: | L5-meter(16.4-ft) x W8mm(0.31in) x H3mm(0.12in) |
| LED Color: | Red |
| LED Quantity: | 120 LEDs/m, 600 LEDs/16.4ft |
| Cuttable: |
DC12V - 3 LEDs, 25mm/1" DC24V - 6 LEDs, 50mm/2" |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
| Beam Angle: | 120° |
| Lifespan: | 50,000 hours + |
| Lumen: | 3-4lm/LEDs |
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLSR-120-3528-660NMImages
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
