Mini Narrow LED Aluminum Channel Profile For 8mm Slim 3014 LED Light Strips

Model: QSG-1107 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $8.98
Qty Discounts Off Price
1-49
$8.98
50-99
$8.80
100-199
$8.62
200+
$8.44
* Discounts may vary based on options below
Select Specifications:
Select Channel Color:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The QSG-1107 is a compact surface-mount aluminum profile designed for discreet linear lighting installations. With an outer width of 12 mm (0.47 in) and an ultra-low height of 6.8 mm (0.27 in), it provides an unobtrusive physical housing for accent and task lighting. The interior clear width measures 9 mm (0.35 in), specifically dimensioned to hold flexible LED tape up to 8 mm wide. Finished in silver aluminum, the rigid extrusion acts as an effective passive heat sink to help dissipate thermal energy generated by strip lighting. The channel pairs with flat polycarbonate diffusers featuring inward snap legs, available exclusively in opal, clear, or semi-clear options. Surface installation is achieved by securing stainless-steel mounting clips with screws to flat surfaces, such as the underside of a shelf, and snapping the extrusion into place with the diffuser facing the room.

Key Features

Low-Profile Section

Measures 12 mm (0.47 in) wide by 6.8 mm (0.27 in) high, making it suitable for compact spaces and low-clearance joinery.

8 mm Tape Compatibility

Features an internal clear width of 9 mm (0.35 in) engineered specifically to seat LED strip lights up to 8 mm wide.

Inward Snap-Leg Diffuser

Equipped with a flat polycarbonate cover available in opal, clear, or semi-clear options with inward snap legs.

Mechanical Clip Mounting

Secures to mounting surfaces using screw-fixed stainless-steel mounting clips without relying on adhesive mounting.

Silver Aluminum Construction

Rigid silver aluminum body provides physical protection and passive heat dissipation for continuous linear tape.

Technical Highlights

  • External dimensions: 12 mm (0.47 in) overall width by 6.8 mm (0.27 in) overall height.
  • Internal dimensions: 9 mm (0.35 in) clear base width, accommodating tape widths up to 8 mm.
  • Diffuser mechanics: Flat polycarbonate (PC) cover with inward-facing retention legs for snap-in assembly.
  • Mounting system: Exposed surface installation via screw-anchored stainless-steel clips.
  • Diffuser finishes: Opal, clear, and semi-clear alternatives.
  • Available stock lengths: 0.2 m sample (7.87 in), 1 m (3.28 ft / 39.37 in), 2 m (6.56 ft / 78.74 in), and 2.44 m (8 ft / 96.06 in).

Product Specifications

ParameterDetails
ModelQSG-1107
Profile TypeSurface Mount Aluminum Channel
Overall Width12 mm (0.47 in)
Overall Height6.8 mm (0.27 in)
Internal Clear Width9 mm (0.35 in)
Maximum Compatible Tape Width8 mm
Profile MaterialAluminum
Profile ColorSilver Aluminum
Diffuser MaterialPolycarbonate (PC)
Diffuser StyleFlat with Inward Snap Legs
Diffuser OptionsOpal, Clear, Semi-Clear
Available Lengths0.2 m (7.87 in), 1 m (3.28 ft), 2 m (6.56 ft), 2.44 m (8 ft)
Mounting MethodExposed Surface Mount
Mounting HardwareScrew-Fixed Stainless-Steel Clips
Thermal FunctionPassive Heat Dissipation
Included ComponentsAluminum Channel, PC Diffuser, End Caps, Mounting Clips
Excluded ComponentsLED Tape and Power Supply Sold Separately

Application Scenarios

Under-Shelf Accent Lighting The 6.8 mm shallow height allows low-profile mounting beneath bookshelves and floating shelves. Screwing the clips underneath provides a clean look with the flat diffuser facing down.
Cabinet and Millwork Interiors Fits inside display cabinets and wardrobes where clearance is restricted. Accommodates 8 mm wide LED strips to deliver discrete forward-facing illumination onto merchandise or displays.
Retail Showcase Lighting The silver aluminum structure integrates into commercial fixtures and display vitrines, offering mechanical defense and passive heat management for installed LED tape.

How to Install This Aluminum Profile

  1. Measure the installation space and cut the QSG-1107 aluminum channel and flat PC cover to the required length using a fine-tooth saw.
  2. Smooth and deburr the cut edges of the aluminum extrusion to remove sharp burrs that could damage the LED strip or prevent proper end cap seating.
  3. Clean the 9 mm internal channel surface, peel the adhesive backing from your LED strip (up to 8 mm wide), and adhere it centered onto the base of the profile.
  4. Fix the stainless-steel mounting clips to the mounting surface (such as the underside of a shelf) using appropriate screws, aligning them in a straight line.
  5. Position the aluminum channel against the aligned clips with the open/flat face toward the room, and press firmly until the channel clicks securely into the clips.
  6. Route strip leads through the end cap wire hole, fit matching end caps onto each profile end, and snap the inward legs of the flat PC diffuser directly into the channel.
⚠ Precautions
  • Confirm that your LED strip width does not exceed 8 mm, as the internal clear width is 9 mm.
  • Always deburr cut edges thoroughly before inserting strip lights or installing end caps.
  • Ensure the profile is mounted on a flat surface to maintain effective structural contact and passive heat dissipation.
  • Fasten the profile using the screw-fixed stainless-steel mounting clips only; never mount or fasten the profile using adhesive tape or glue.

What's in the Box

  • ✓QSG-1107 Silver Aluminum Channel (Selected Length)
  • ✓Flat PC Diffuser (Opal, Clear, or Semi-Clear as selected)
  • ✓Matching End Caps
  • ✓Screw-Fixed Stainless-Steel Mounting Clips

Frequently Asked Questions

Q: What is the difference between the internal clear width and the strip compatibility?

A:The QSG-1107 profile has an internal clear width of 9 mm (0.35 in), which provides the necessary clearance to accommodate flexible LED strip lights up to 8 mm wide.

Q: Which diffuser cover options are offered with this model?

A:The profile is available exclusively with flat polycarbonate covers featuring inward snap legs in three options: opal, clear, or semi-clear.

Q: Does this channel produce a guaranteed dot-free line of light?

A:No. Due to its shallow 6.8 mm (0.27 in) height, dot-free output is not guaranteed; light appearance depends on your LED density and cover selection.

Q: Can I install the QSG-1107 profile using double-sided mounting tape?

A:No. The profile must be installed using the provided screw-fixed stainless-steel mounting clips; tape or glue fastening is not supported.

Q: What lengths are available for the QSG-1107?

A:This channel is offered in four specific lengths: 0.2 m (7.87 in) sample, 1 m (3.28 ft / 39.37 in), 2 m (6.56 ft / 78.74 in), and 2.44 m (8 ft / 96.06 in).

Q: Are the LED tape light and power supply included with the channel?

A:No. The LED strip light and power supply are sold separately; this product includes the aluminum profile, chosen PC diffuser, end caps, and mounting clips.

Q: How does the profile attach to the mounting clips?

A:Secure the stainless-steel clips to the surface with screws, align the channel with the flat face toward the room, and press it directly into the clips until seated.

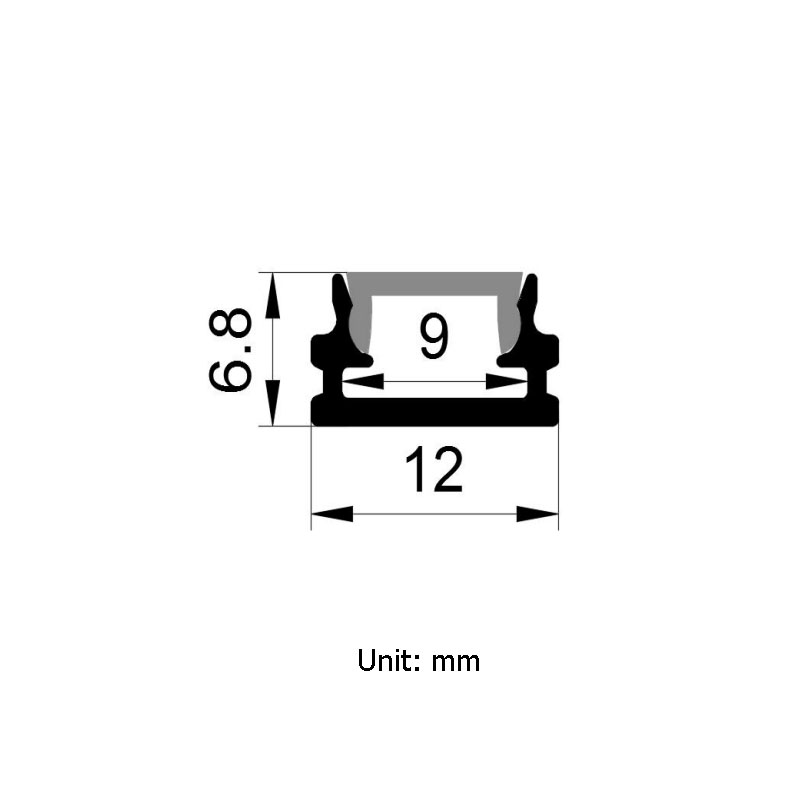

QSG-1107 flat cover cross section

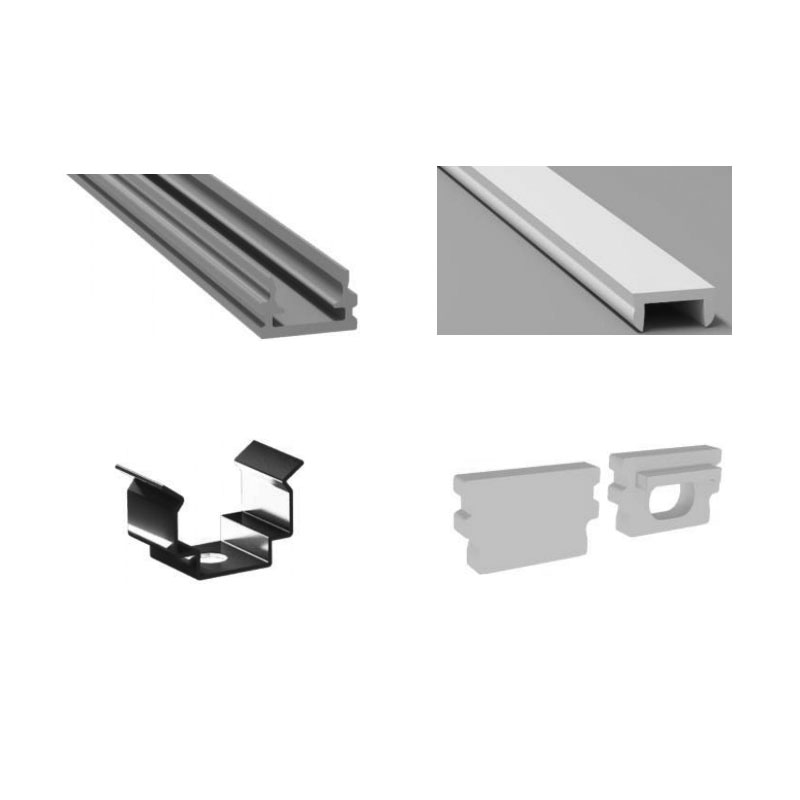

Flat diffuser, end caps and clip

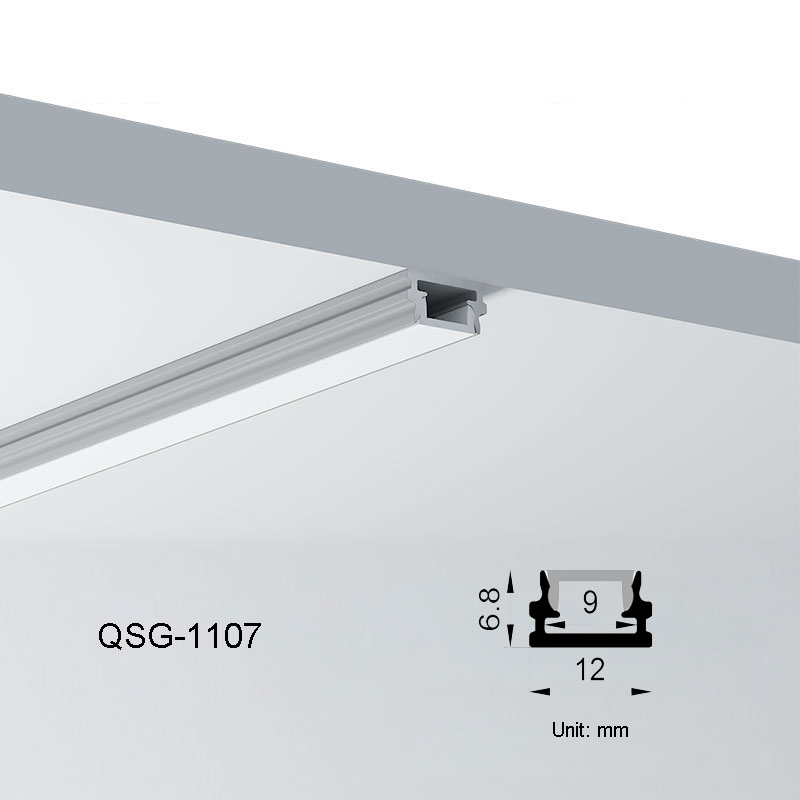

QSG-1107 surface mount position

Channel connectors are not included. For a longer run, align adjacent profile ends. Long lengths may incur additional freight charges.
