Product Information

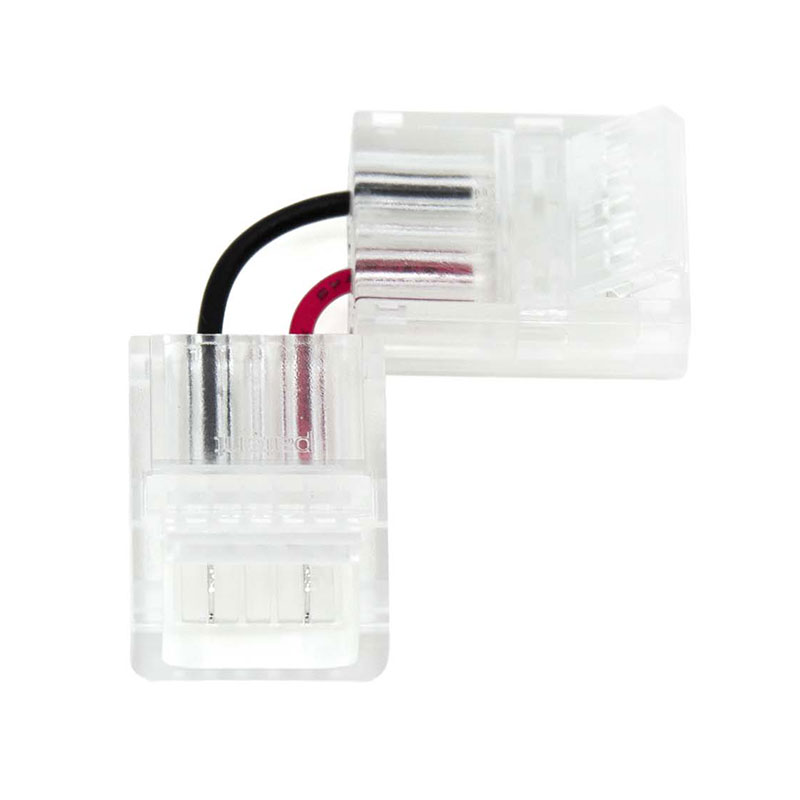

The SC-ACCESSORIE-2PIN-L L-shape 2 pin LED connector routes single color LED strip runs across sharp 90-degree surface bends without wire pinching, conductor fracturing, or tedious solder work. Engineered specifically for solderless corner turns, this rigid elbow adapter snaps directly over bare copper contact pads on standard DC 5V, DC 12V, or DC 24V tape lighting. Available in two dedicated board widths—8mm (0.31in) and 10mm (0.39in)—60% of buyers choose 8mm (0.31in) for pcb width (24 of 40) to service compact SMD2835 and SMD3528 boards, while the 10mm variant accommodates standard SMD5050 layouts. With dual locking clasps and solid copper contact prongs rated up to 4A, this adapter sustains continuous electrical current around perimeter baseboards, cabinet underside frames, and ceiling tray coves.
Core Functional Features
Rigid 90-Degree Corner Geometry
Forms a clean, flat right-angle joint that eliminates the need to fold or crease flexible LED strips around interior corners.
Dual PCB Width Options
Engineered in 8mm (0.31in) and 10mm (0.39in) sizes to ensure exact contact alignment over SMD3528, SMD2835, and SMD5050 strip light tracks.
Solderless Mechanical Clasp
Hinged clip housing snaps down over exposed solder pads to compress copper pins firmly against board traces without soldering iron heat.
Low-Voltage 4A Load Rating
Carries up to 4A continuous DC current, supporting up to 48W on 12V runs and 96W on 24V single color LED strip light configurations.
Clear Polarity Verification
Visible positive (+) and negative (-) markings on the internal bridging board prevent reverse DC polarity errors during assembly.
Design and Material Highlights
- Eliminates solder iron usage, burn hazards, and flux cleanup on site during cabinet and furniture installations.
- Internal fiberglass PCB sub-board ensures stable 90-degree conductivity without fragile copper trace fatigue.
- Spring-tempered copper contact blades bite cleanly through minor surface oxidation on LED tape pads.
- Flame-retardant PBT thermoplastic shell provides electrical isolation and structural rigidity inside metal tracks.
- Ultra-low 4.5mm profile fits inside most standard architectural aluminum channel profiles alongside tape lights.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | SC-ACCESSORIE-2PIN-L |
| Connector Type | L-Shape 90° Corner Connector |
| Pin Pitch / Count | 2 Pin (+, -) |
| Supported PCB Widths | 8mm (0.31in) or 10mm (0.39in) Selectable |
| Working Voltage | DC 5V, DC 12V, DC 24V |
| Maximum Current Load | 4A |
| Maximum 12V Power Capacity | 48W |
| Maximum 24V Power Capacity | 96W |
| Contact Conductor Material | Tin-Plated Phosphor Bronze |
| Housing Shell Material | Flame-Retardant PBT Plastic |
| Internal Substrate | Dual-Sided Rigid FR4 Board |
| Ingress Protection | IP20 (Non-Waterproof, Indoor Use) |
| Operating Temperature Range | -20℃ to +50℃ (-4℉ to +122℉) |
| Installation Style | Snap-Lock Solderless Clasp |
| Compatible Strip Format | 2-Wire Single Color SMD Flexible LED Strip |
| Overall Outer Thickness | 4.5mm (0.18in) |
| Weight per Unit | 1.8g (0.06oz) |
Practical Installation Applications
Installation and Connection Steps
- Cut your single color LED strip squarely along the designated scissor cut line with sharp shears to ensure even copper pad exposure.
- Peel back approximately 10mm of the 3M adhesive tape backing from the underside of the cut LED strip end.
- Gently pry open both transparent or white hinged clasp covers on the L-shape corner connector.
- Slide the cut end of the first LED strip beneath the metal contact prongs until the edge seats against the interior plastic stop.
- Confirm polarity alignment: ensure the positive (+) copper pad matches the positive line marked on the connector's internal corner board.
- Firmly press down the hinged clasp until both side tabs snap tightly into the locked position.
- Slide the adjoining LED strip into the perpendicular receiving clasp, verify matching (+) and (-) polarity, and clamp the second cover shut.
- Apply DC power to verify continuous illumination through the corner joint before securing the assembly permanently to the mounting surface.
- Verify PCB width before ordering: 8mm connectors fit 3528 and narrow 2835 tapes, whereas 10mm connectors fit 5050 single color boards.
- This accessory is rated IP20 for dry indoor areas; do not use inside wet or outdoor environments without secondary weatherproof sealing.
- If installing inside an aluminum profile, measure internal extrusion width to ensure clearance for the 4.5mm connector shell.
- Never connect or adjust strip clasps while the LED power supply is energized; turn off power prior to terminal clamping.
- Do not exceed the maximum current rating of 4A across the corner bridge.
What's in the Box
- ✓1 × L-Shape 2 Pin Solderless LED Connector (Selected 8mm or 10mm PCB Width)
Frequently Asked Questions
Q: how to connect led light strips with connectors
A:Cut the LED strip cleanly along the marked copper cut points, peel back 10mm of backing tape, insert the strip edge under the connector metal prongs, align positive and negative poles, and snap the plastic clasp shut.
Q: how to fix led light strip connector
A:If a joint flickers, unclip the housing, inspect whether the copper pads align directly beneath the contact pins, gently clean any surface dirt, and re-clamp the clasp firmly until it clicks into place.
Q: how to connect led strip light connectors
A:Open the connector clasp, slide the bare copper end of each cut LED strip under the spring contacts according to the positive (+) and negative (-) markings, and snap the cover shut to make an instant solderless circuit.
Q: are led strip light connectors universal
A:No, connectors vary by pin count (2-pin, 3-pin, 4-pin, 5-pin, or 6-pin) and PCB width (e.g., 8mm, 10mm, or 12mm); this unit is designed strictly for 2-pin single color LED strips with 8mm or 10mm circuit boards.
Q: can dmx control single color led strip
A:Yes, single color LED strips can be controlled by a DMX master when wired through a constant voltage DMX-to-PWM decoder that translates DMX512 data into 1-channel brightness dimming.
Q: What is the difference between this L-shape connector and model SC-ACCESSORIE-006?
A:This unit is a rigid 90-degree corner adapter with zero wire slack, whereas SC-ACCESSORIE-006 is a double-head flexible jumper wire connector used for bridging gaps or custom multi-angle bends.
