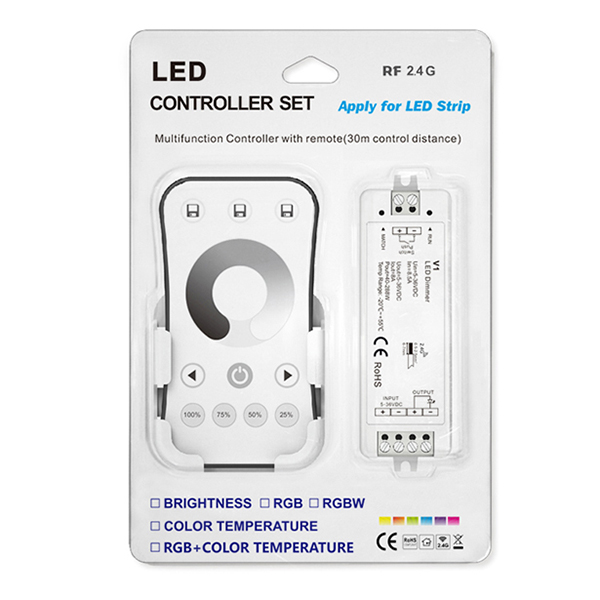

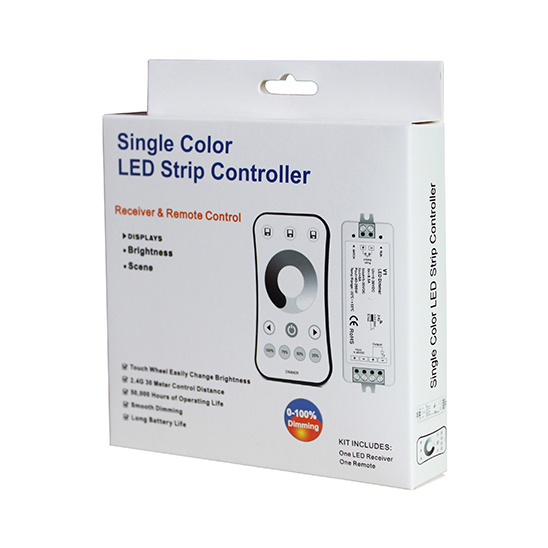

Single Color LED Controller Set V1 + R6-1 For single color LED Strip light
Mini-style RF dimmer, one channel constant voltage output.
RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.
Smooth dimming and switch without any flickering.
Adopt 2.4GHz wireless technology, remote distance up to 30m, one RF dimmer can accept up to 10 remote control.
Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

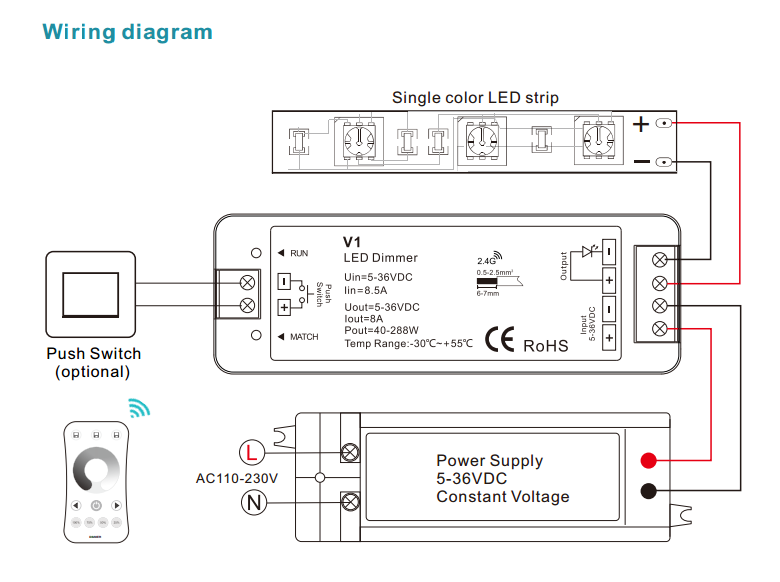

Can connect with external push switch to achieve on/off and dimming function.
Work with power repeater to expand output unlimitedly.
Standards and Certifications

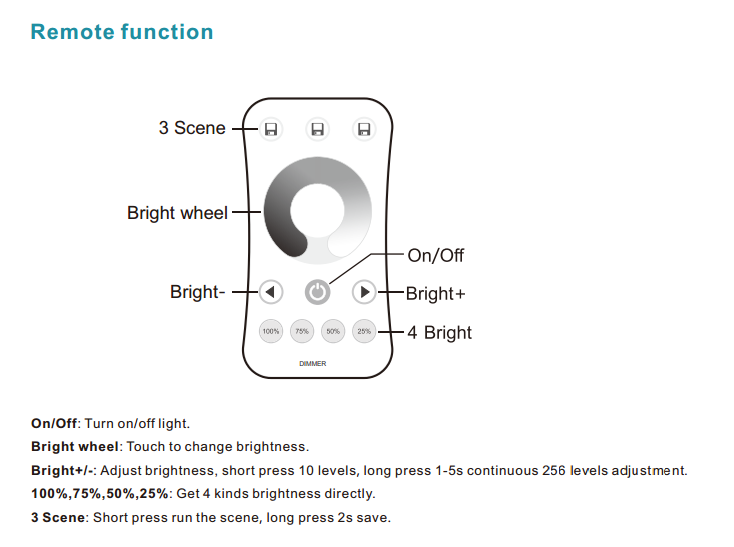

LED Remote LED Receiver
Input voltage: 5-36VDC
Output power: 5V, Max 40W 12V, Max 96W
24V, Max 192W 36V, Max 288W
Output current: 1CH, 8A/CH
Output signal: RF(2.4GHz)
Working voltage : 3VDC(CR2032)
Standby time: 12 months
Remote distance: 30m
