Product Information

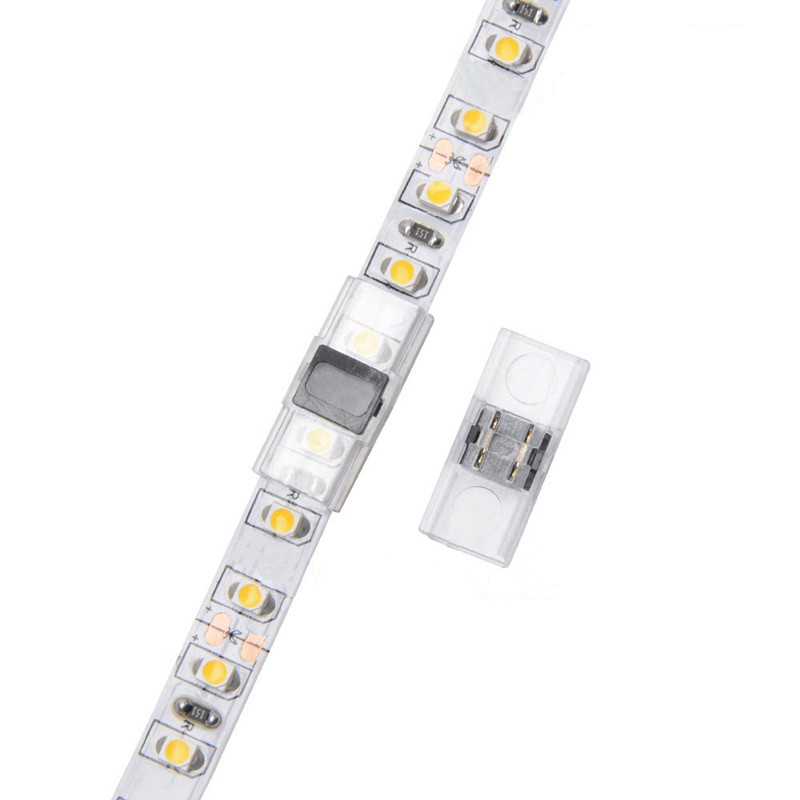

Eliminate the need to solder LED strip lights with the SC-ACCESSORIES-028G, a simple and reliable 8mm 2-pin solderless connector. Specifically designed for joining two sections of non-waterproof 3528 single color LED strip lights end-to-end, this butt buckle connector creates a secure, seamless connection in seconds. It's the perfect solution for extending runs, repairing sections, or creating custom-length lighting for under-cabinet, cove, and accent lighting projects. Forget the hassle and heat of soldering; just open the clasp, insert the strip, and snap it shut for a durable electrical connection. This essential component is a must-have in your collection of lighting accessories and parts for any custom LED installation.
Key Features
Completely Solder-Free
Create reliable connections in seconds with a simple snap-down clasp, eliminating the need for soldering irons and technical skill.
Precision Fit for 8mm Strips
Engineered specifically for 8mm wide, 2-conductor bare board (non-waterproof) single color LED strips, especially the 3528 SMD type.
Seamless Strip-to-Strip Joining
This 'butt' connector joins two strip segments end-to-end, creating longer, continuous runs with a minimal gap.
Secure Locking Design
The hinged buckle snaps firmly shut, piercing the strip's pads to ensure a strong mechanical and electrical connection that won't pull apart.
Low-Profile & Compact
Its small form factor allows it to be easily concealed and fit within most standard LED aluminum profiles for a clean, professional finish.
Technical Highlights
- Specifically designed for 8mm PCB width.
- 2-pin configuration for single color LED strips.
- High-grip copper contacts for optimal conductivity.
- Durable, flame-retardant plastic housing.
Product Specifications
| Parameter | Details |
|---|---|
| Model | SC-ACCESSORIES-028G |
| Product Type | Solderless Strip-to-Strip Connector |
| Connector Shape | Straight (Butt Connector) |
| Pin Quantity | 2-Pin |
| Compatible PCB Width | 8mm |
| Compatible LED Strip | Non-waterproof (IP20) 3528 SMD Single Color LED Strip Lights |
| Working Voltage | DC 3V - 24V |
| Max Current | 5A |
| Material | Flame Retardant PVC, Copper |
| Color | White |
Application Scenarios
How to Use This Solderless Connector
- Step 1: Ensure you are using a compatible 8mm wide, 2-pin, non-waterproof LED light strip.
- Step 2: Make a clean, straight cut along the designated copper solder pads on the strip.
- Step 3: Gently pry open the white clasp on the connector.
- Step 4: Slide the end of the LED strip into the connector, ensuring the copper pads on the strip are positioned directly underneath the two metal pins inside.
- Step 5: Verify that the '+' and '-' markings on the strip align with the corresponding polarity on the connector.
- Step 6: Press the clasp down firmly until it snaps shut, securing the strip in place.
- Step 7: Repeat the process for the second strip on the other side of the connector.
- Step 8: Give a gentle tug on both strips to confirm they are secure before connecting to power.
- This connector is only compatible with 8mm wide 2-pin strips. It will not work with 5mm, 10mm, or 12mm strips.
- Designed for non-waterproof (IP20) bare board strips. Not suitable for strips with silicone, epoxy, or other waterproof coatings.
- Always double-check polarity (+ to + and - to -). Incorrect alignment will result in the strip not lighting up.
- Do not exceed the 5A maximum current rating. For high-power strips, soldering is recommended for the most robust connection.
What's in the Box
- ✓1 x 3528 8mm 2-Pin Solder-Free Quick Connector
Frequently Asked Questions
Q: Do I need to solder with this connector?
A:No, this is a completely solder-free product. It uses a mechanical clasp to create a secure electrical connection, making it a perfect no solder LED strip solution.
Q: Will this work with 10mm 5050 LED strips or 4-pin RGB strips?
A:No. This led light connector 2 pin is specifically designed for 8mm wide, 2-pin single color strips like the 3528 model. It is not physically compatible with wider strips or multi-pin RGB strips.
Q: Can I use this connector on waterproof LED strips?
A:This connector is intended for use with non-waterproof (bare board) strips. To use it with a waterproof strip, you would need to carefully remove the silicone coating from the contact pads, which is not recommended.
Q: What does 'strip-to-strip' or 'butt' connector mean?
A:It means this connector is designed to join two separate pieces of an LED strip light directly together, end-to-end, to form a longer, continuous run.
Q: How do I ensure a good, reliable connection?
A:Ensure the strip is cut cleanly on the copper pads and is slid all the way under the metal pins inside the connector before closing the clasp. A firm snap indicates it is locked.
Q: Is this connector reusable?
A:Yes, you can carefully open the clasp with a small tool to release the strip, allowing you to reuse the connector for other projects or adjustments.
Q: Will this connector fit inside an aluminum channel?
A:Yes, its compact and low-profile design allows it to fit inside most standard LED aluminum profiles that are wide enough for an 8mm strip.
