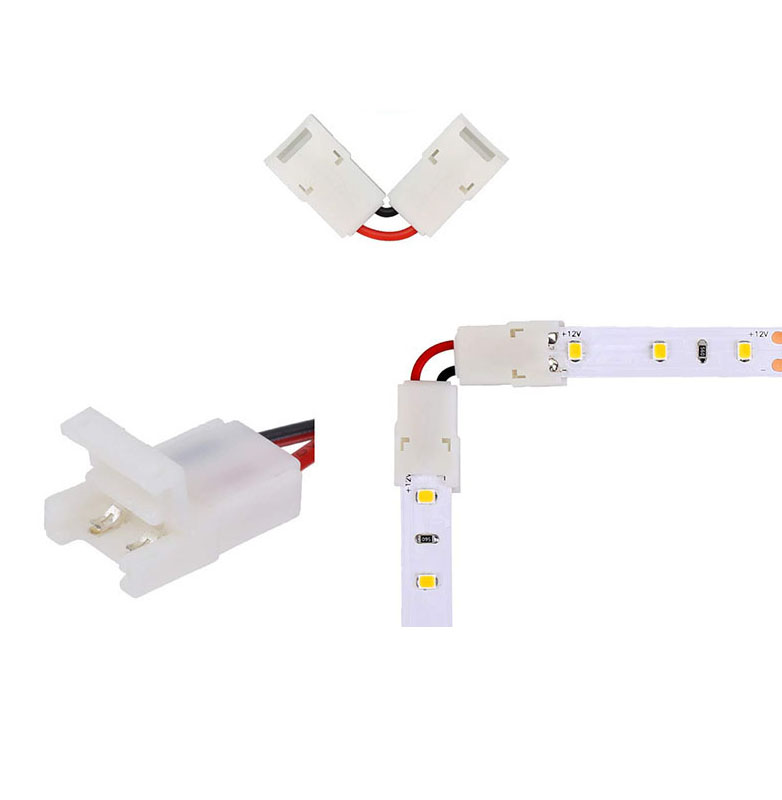

2 Pin L Shape Solderless LED Connector Clips, Max Amp 5A, 90° Connection of 10mm Width Single Color LED Strip Light
These NEW LED strip connectors from designed to be double-sided clamping strips design, copper pins non-piercing circuit board, and to make solderless, tight, secure connections between two sections of strips together with ease.
Maximum AMPS: 5A, handle higher amperage without failure at higher wattage of LED strips. Good to keep current straightly running without making the latter sections to lose the lumens they should have.

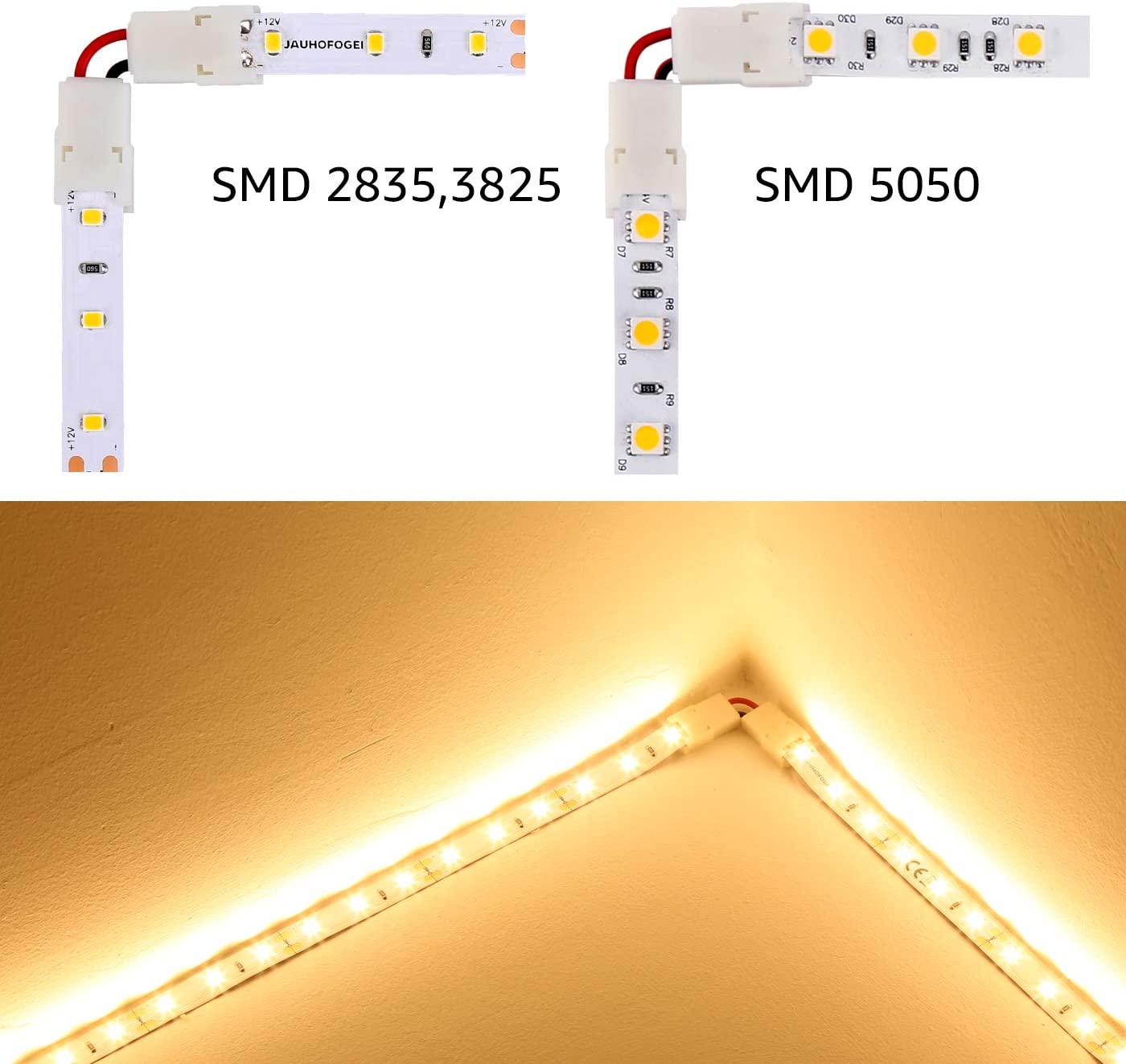

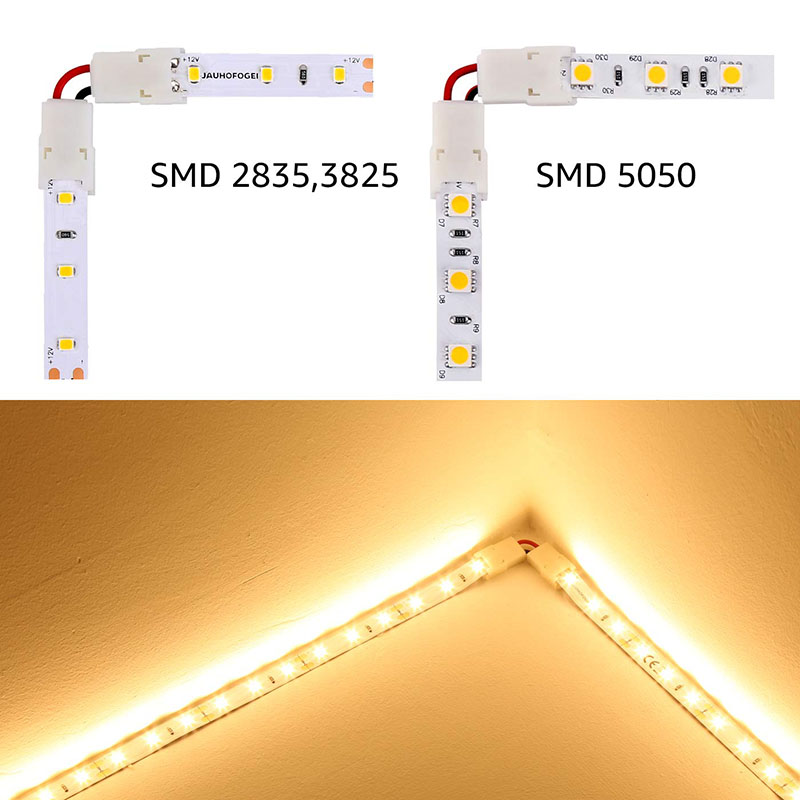

Mechanical locking design. It is with low insertion force when slipping a strip into the connector and high locking retention to prevent the strips from falling off, compatible with any type of 10mm wide LED strips, SMD 2835, 3825, 5050, and more.
Small body design prevents shadows from appearing in the LED lighting, and able to be flexibly used in narrow space, such as the linear aluminum profiles inside.
You can easily connect your strips using them as a link around a corner. CE Approved and RoHS compliant.
Rated Voltage : 12V-24V DC, 120V AC
Rated Current: 5A
Wire Type: 2468, 20AWG
PC Heat Resistance: 150°C
Operating Temperature: -20~ 80°C.
Pull-out Fource: >50N
Material: PA66 UL 94-0.

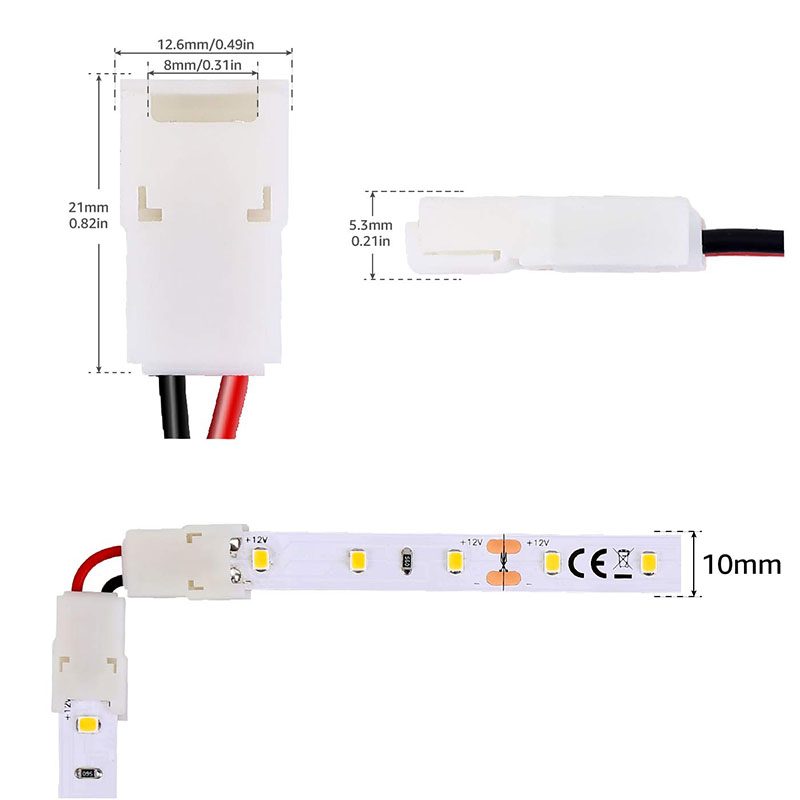

Product Dimensions: 2 x 0.5 x 0.2 inches
Item model number: 310-2X2PS
Assembled Height: 0.21 inches
Assembled Length: 1.97 inches
Assembled Width: 0.5 inches
Color: 10mm Wide L Shape Strip to Strip Connector
Shape: L Shape
Material: Copper, PC
Specific Uses: 10mm Wide L Shape Strip to Strip Connector

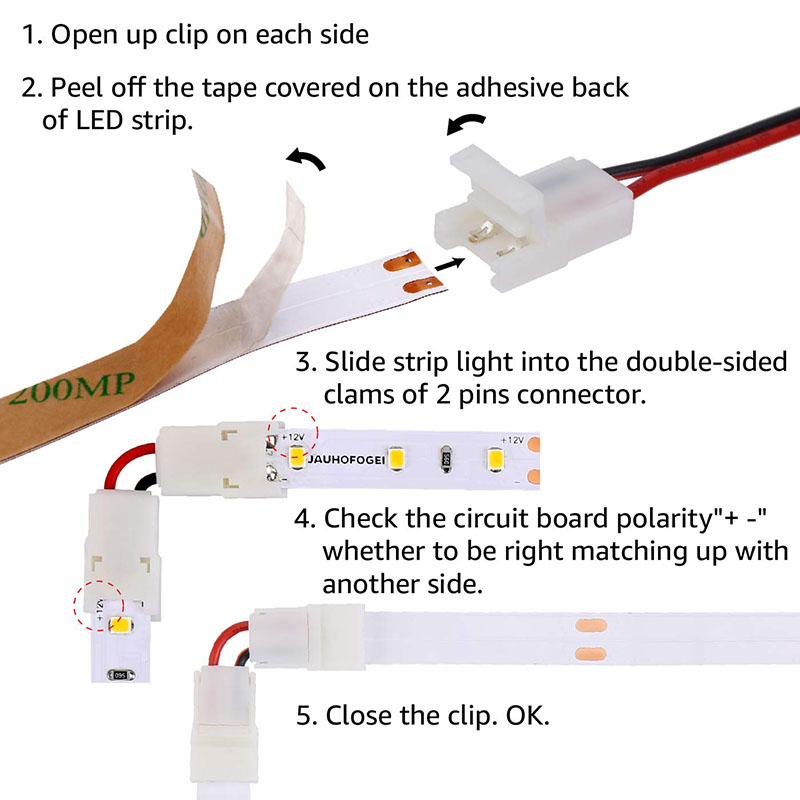

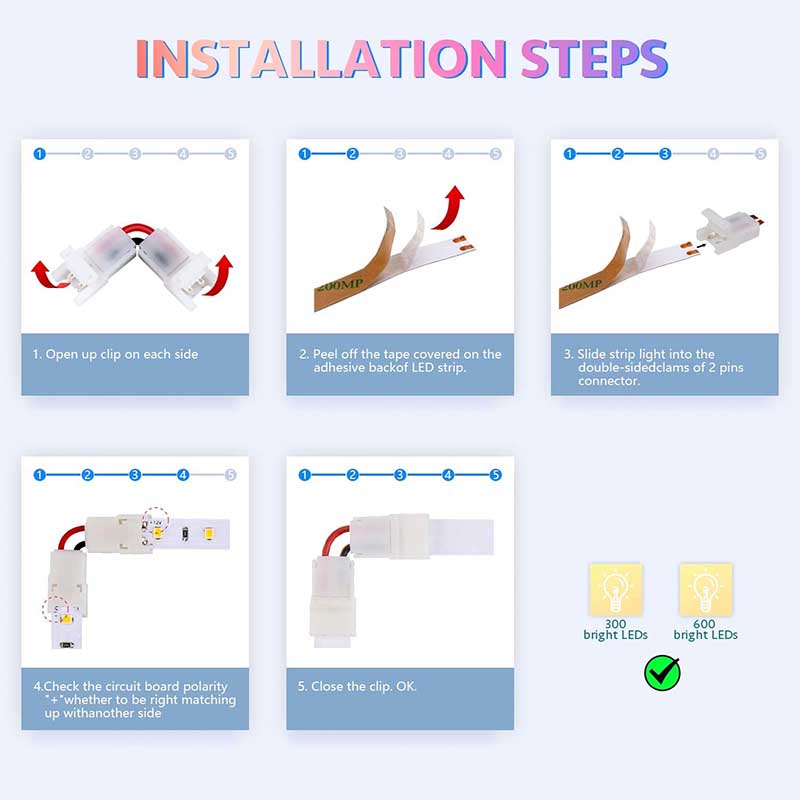

Open up clip on each side
Peel off the tape covered on the adhesive back of the LED strip

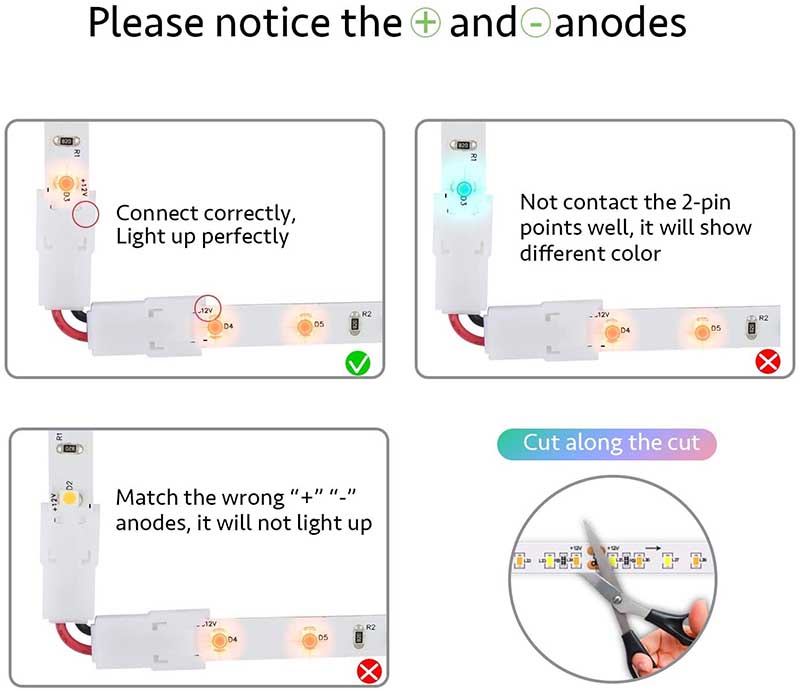

Slip strip light into the double-sided clams of 2 pins connector, check the circuit board polarity"+ -" whether to be right matching up with another side.
Close the clip
