Product Information

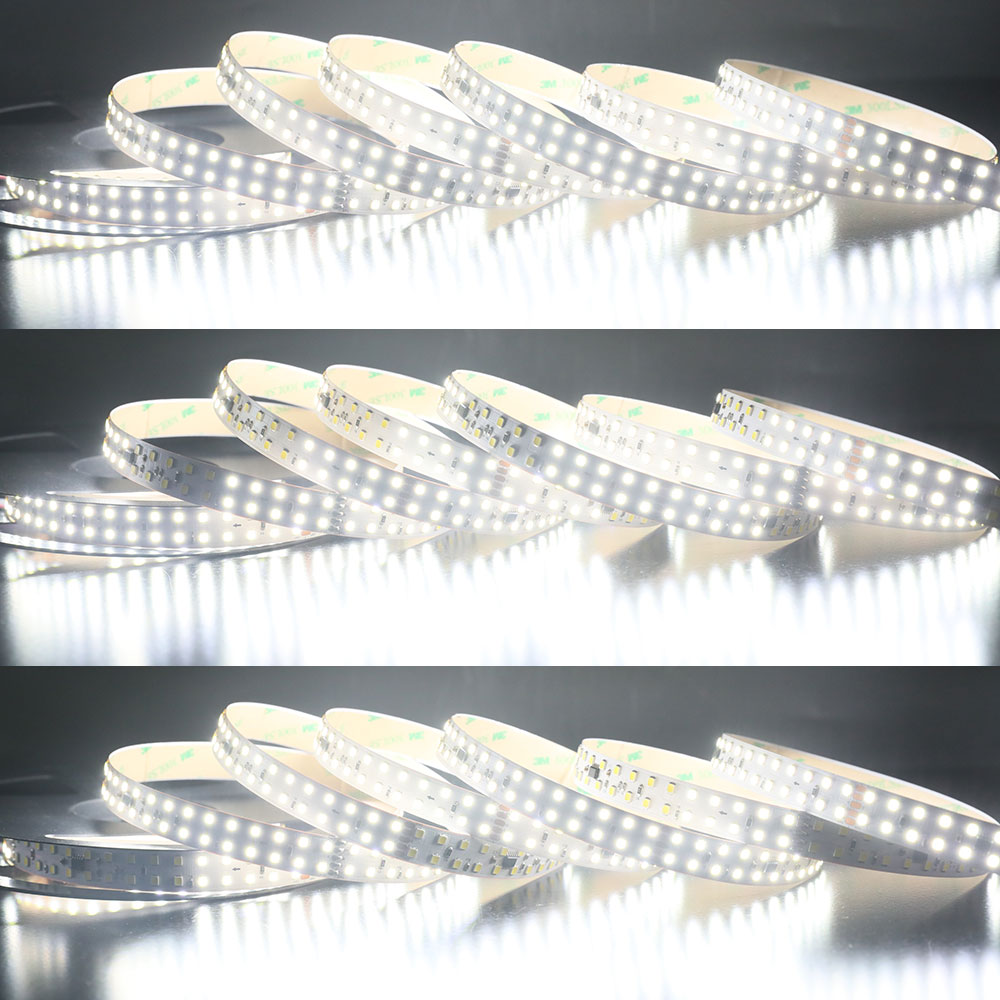

The white light color temperature 3000K / 4000K / 6500K addressable programmable dmx led strip adapts small size 2835SMD LEDs as light sources, high light brightness, and low energy consumption. High density 240 LEDs/m, a total of 1200 LEDs per 16.4ft. It only consumes 17W per meter, and 85W per roll. You just need a power supply that has a capacity of at least 102W to run this dmx light strip. Low-voltage 24V DC input, safe and secure.
This dmx led tape has 8 ICs per meter, and 40 ICs per roll. One DMX512 IC controls 30 white LED lights. It can use Artnet dmx controller, programmable dmx controller, Madrix console, or GPS signal control to realize the design of light shows, stage lighting, and building lighting. It's also good for home decorative lighting.

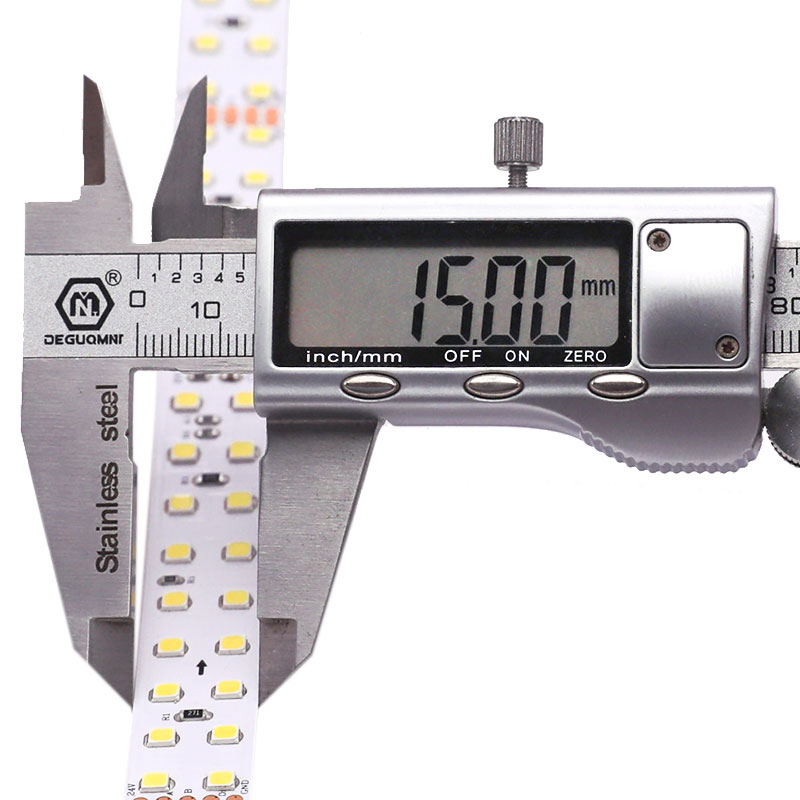

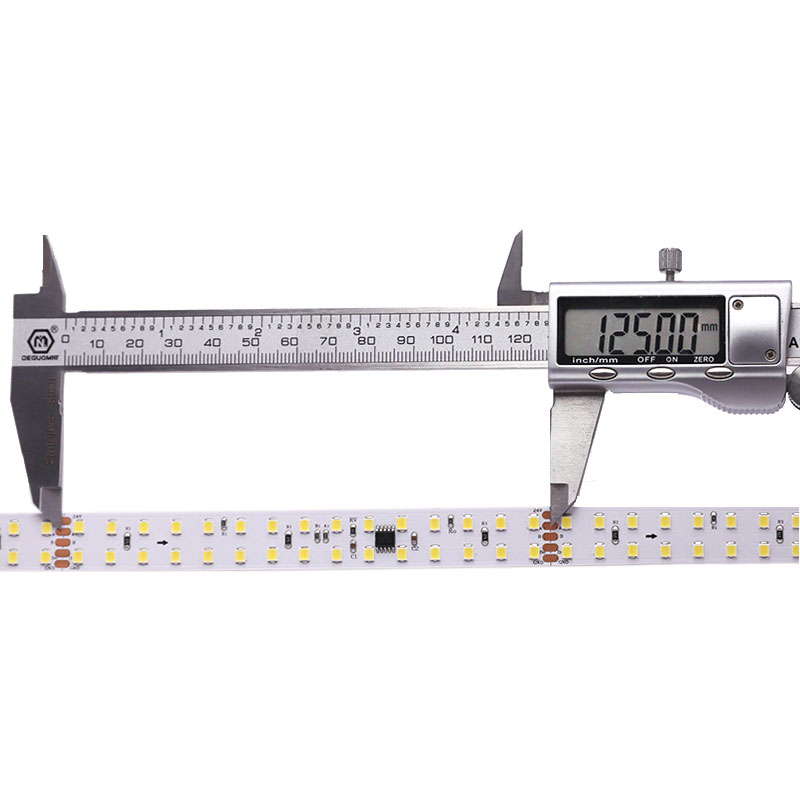

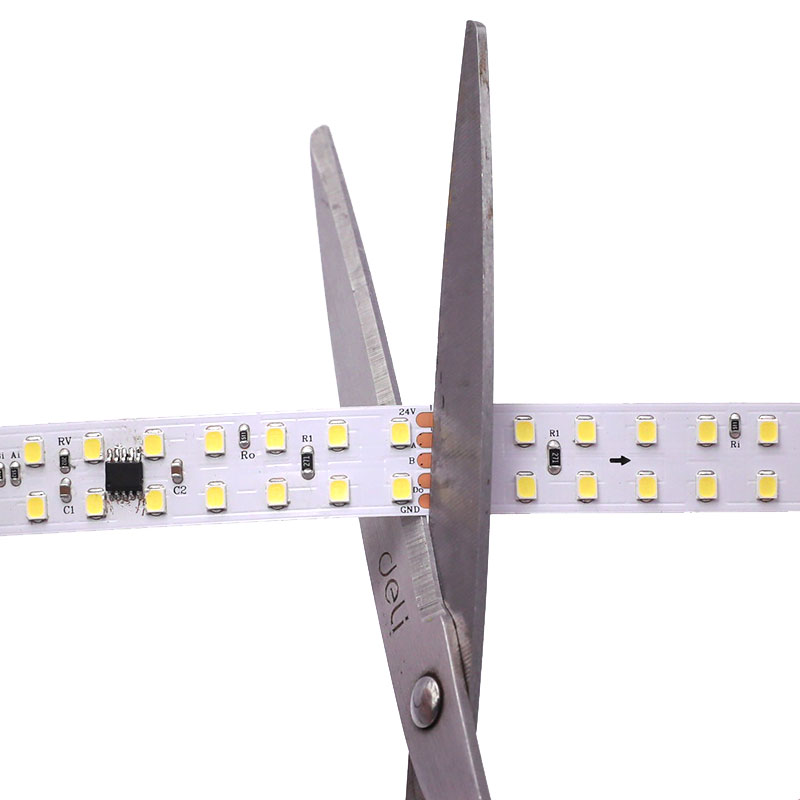

With 15mm PCB wide, the dmx512 led strip uses FPC as the base, which has good flexibility and can be bent into any shape. 30 white lights as a loop (125mm cut length), easy to cut and connect!
If you choose the kit: 1*non-waterproof IP20 5m dmx white led strip, 1*DMX tuya controller, 1*24V 100W 4.2A Meanwell switching power supply with an AC plug.
DMX512 IC UCS512H5L Datasheet
Standards and Certifications
Product Specification
| LED Strip Type: | Double Row DMX512 White Light Addressable LED Strip |
| LED Chip: | SMD2835 + 10-Pin UCS512H5L IC |
| Input Voltage: | DC24V |
| Power: | 17W/m, 85W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | 2800K~3200K WarmWhite, 4000K~4500K Natural White, 6000K~6500K Daylight |
| PCB Width: | 15mm |
| LED Quantity: | 240 LEDs/m, 1200 LEDs per roll |
| IC Quantity: | 8 ICs/m, 40 ICs per roll |
| Cut Unit: | 125mm / 30 LEDs can be cut |
| Waterproof Rating: | Non-waterproof IP20 |
| Strip Length: | 5m/16.4ft |
| CRI: | 85+ |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Lumen: | 23lm/LED |

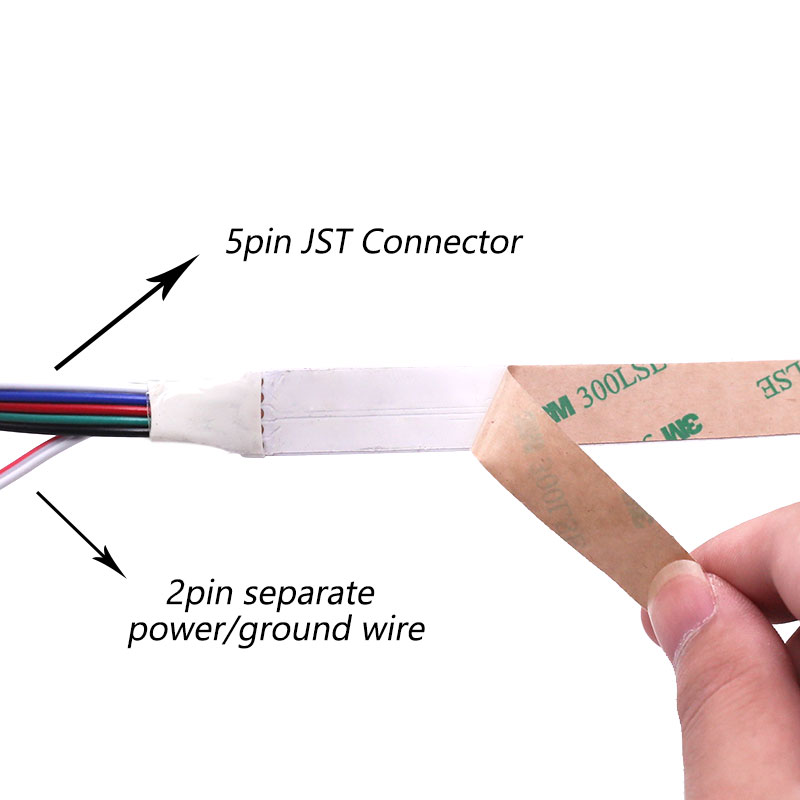

How To Wire DMX White LED Strip Lights?
Available LED Strip Light Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
LED aluminum profile also has multiple types to create your linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the strip lighting and protect the strip lights.
