K-1000C (T-1000S Updated) DC5-24V Addressable Programmable Controller with SD Card - WS2812B APA102C SK6812 WS2811 LED Strip 2048 Pixels 4 Channels Controller
It supports all the smart IC on the market. Including WS2812B,WS2811,WS2813,SK9822,SK6812RGBW,APA102C,WS2801,etc . All the dual data LED chip, data and clock led chip, single data LED chip. It is suitable for engineering projects or customers’ DIY projects. Support SD card 128MB-32GB. Install LEDEDIT software on the window computer.
【Great for DIY Project】It supports LED strip/ LED matrix panel/Special-shaped/different data directions project. Various special lighting effects. like effects-firework ,chasing,rainbow,scrolling text,single color,full color,running etc . There is a lighting effect library in the LEDEdit software. You also can use some videos/pictures as your own lighting effect library.
【Cascade Synchronization】There is one port on it, it can support 2048 pixels(DMX LED 512 pixels). Cascade Synchronization is for large pixels projects. We can cascade many controllers. There are K4000C controller max control 4000 pixels, K8000C controller max control 8000 pixels if you need please contact us.
【Refresh Rate】 512 pixels 30 frames/second, 1024 point pixels 25 frames/second and 2048 pixels 15 frames/second. Max control WS2812B 2048 pixels. Usually, we recommend 600 pixels. More pixels will decrease the speed of data transmission.
【Providing technical assistance.】 One year warranty. We can help you to program a test file if you don’t know how to use it. NOTE: If you don’t know how to use, please please please contact us.
Model Number: K-1000C
Item Type: Dream color Magic Controler
Warranty: 3 years
Voltage: 5-24V double channel
Working temperature: -30°C ~ +85°C
Working voltage: DC5V -24V
Working power: 3W
Signal port: 3pin connect port
Memory card type: SD card suggest using high-speed SD card
Memory card Capacity: 128MB—16GB
Memory card Format: FAT
Memory card Store file: *.led
K1000c Programmable Controller | 5-24V SD Card Controller:
1. Level 32-65536 grayscale control, software gamma correction processing.
2. Support various pixel, line and surface light sources, support various rules, and special-shaped processing.
3. The single-port output of the controller, with a maximum of 512/2048 pixels (DMX lamps maximum 512 pixels).
4. The playback content is stored in the SD card. The SD card can store up to 32 effect files, and the SD card capacity supports 128MB-32GB.
5. The controller can be used in multiple cascades. The cascade adopts a photoelectric isolation method: anti-interference and better stability. The cascade distance between the two units can reach 150 meters, and 0.5 square copper power cords are required.
6. The on-chip chip of the controller can lock the on-chip IC in the software or not. The on-chip IC can be selected by adjusting the chip button of the controller. This solution is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, it can be set with one-key address writing function in conjunction with our 2016 LedEdit-K V3.26 or later software.
8. Support on-load lamps for 4-channel (RGBW) pixels, or split into single-channel pixels. (SK6812/TM1814/SM16704 RGBW chips)
9. Enhanced TTL and 485 differential (DMX) signal output.
10. The controller comes with 22 kinds of test effects.
Compatible with wide range of addressable LED chipsets:
1. When K-1000C controller control less than 512 lamps the frame rate can reach 30fps. When K-1000C control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
2. K-1000C must use the new software LedEdit software.
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

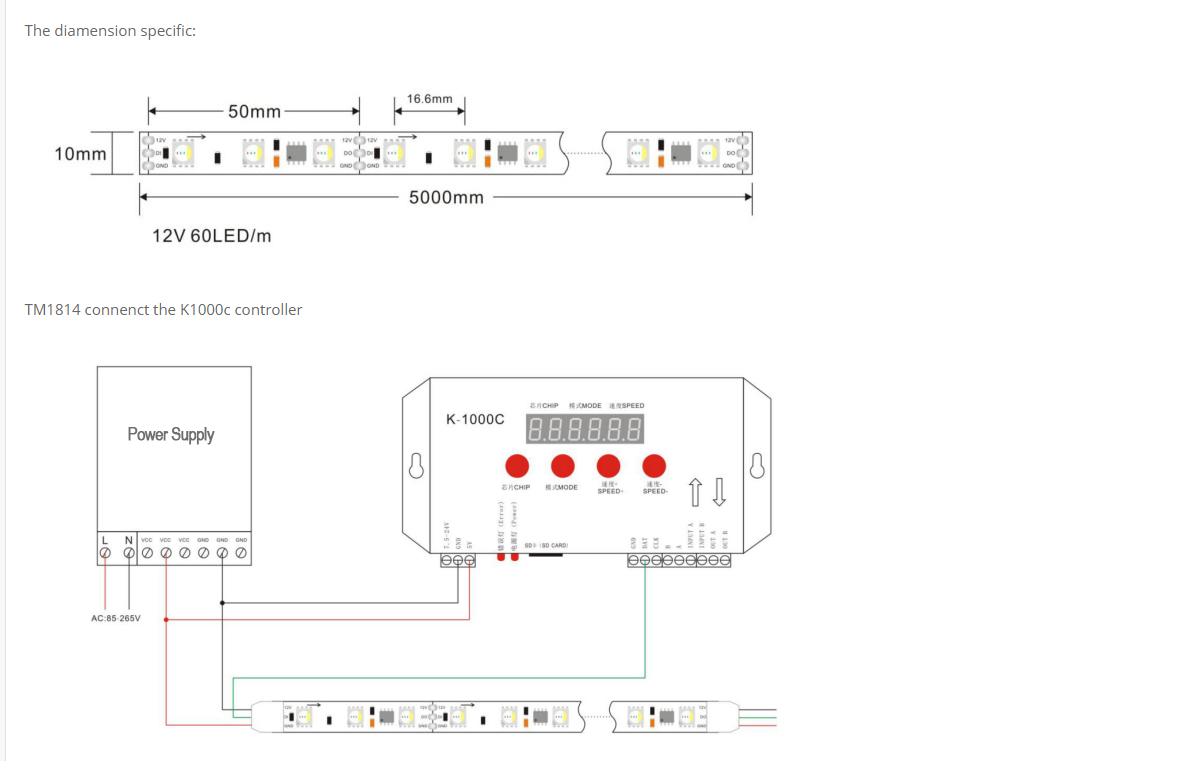

Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1x K-1000C controller
1x SD Card
