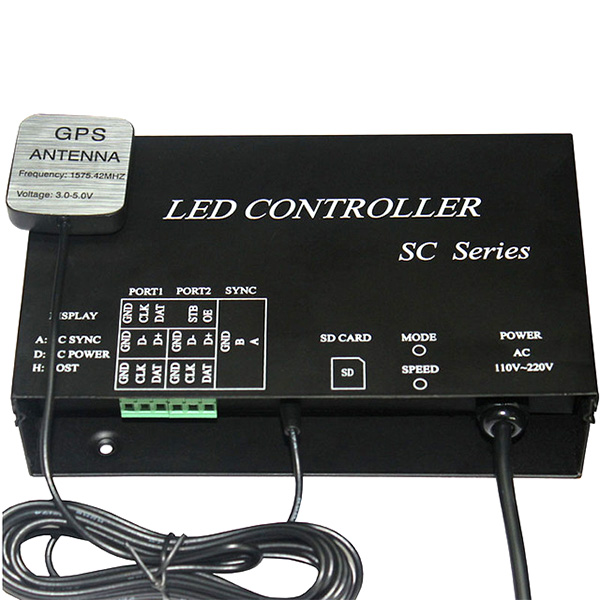

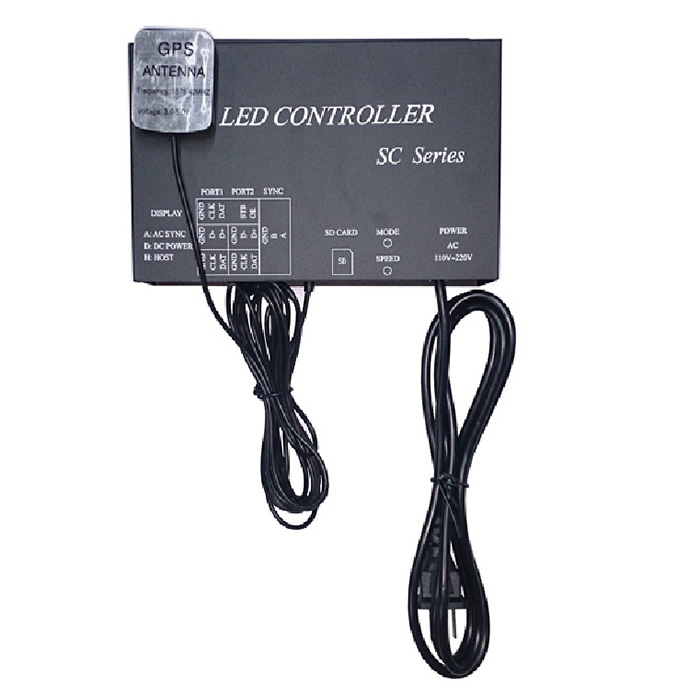

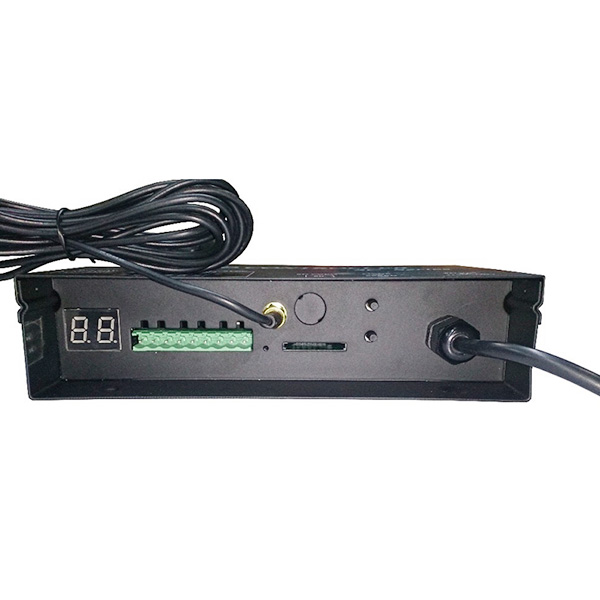

LED Wireless Synchrony, Timing GPS Programmable SD Controller, Double 4096 Pixels Output Ports, Support Addressable Digital LED Lights
This programmable SD card offline controller is a global synchronization and timing LED controller, synchronized with the geostationary satellites. A plurality of controllers can be distributed in the same city or different countries; can be electrified separately in two hours or several months. The area where the satellite signal covers can be synchronized.
The controller supports most of the ICs in the lighting market, as follows
WS2812, TM1812, TM1809, TM1804, TM1803, TM1829, TM1913, TM1914, TM1926, LX1003, LX2003, LX2006, DMX512, HDMX, APA102, P9813, DZ2809, INK1003, TLS3001, TLS3002, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6021, MBI6023, MBI6024,etc.
PC programming Software and tutorial video download
LED Build Tutorial Video:

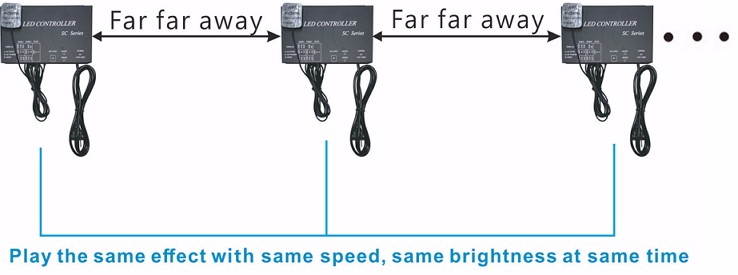

(1). Global synchronization. Not limited by distance and power-on time.
(2). Drive 4096 pixels with two ports and it can reach to hundreds of thousands pixels to millions of pixels when multiple controllers control synchronously.

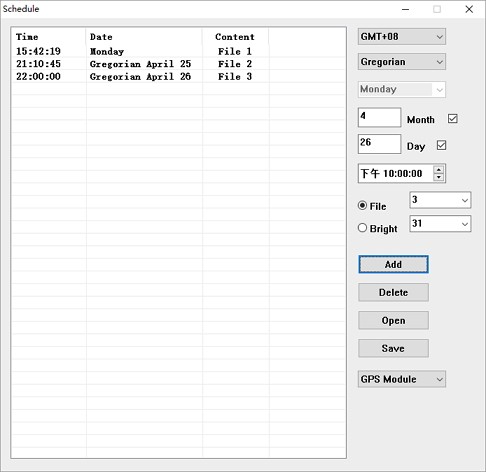

(3). Play specified file at specified time with timetable.
(4). Support playing single file by week, by date and schedule synchronously.
(5). Support encryption on number of power-on time.
Model Number: CONFULL-GPS-H806SC
Item Type: Digital programmable Controler
Apply LED Strip: Digital IC
Brand Name: RITA
Color: 256 Gray
Drive Pixels Number: 4096
Working temperature: -30°C ~ +85°C
Working power: 1W
Product Size: L180 x W126 x H46

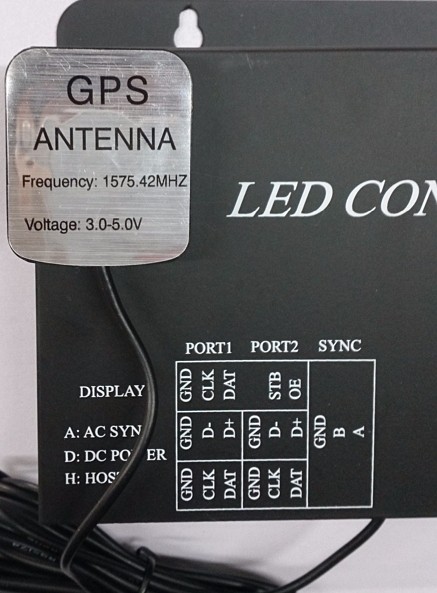

Signal port: 3pin connect port
Memory card type: SD card suggest using high-speed SD card
Memory card Capacity: 128MB—16GB
Memory card Format: FAT
Memory card Store file: *.led
Place of Origin: China (Mainland)
Warranty: 2 years

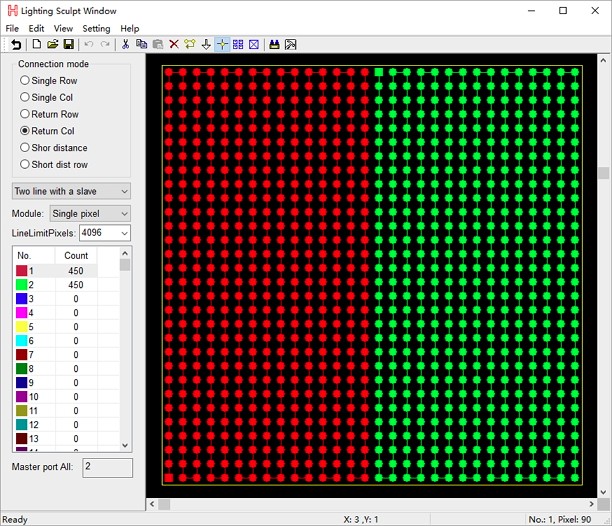

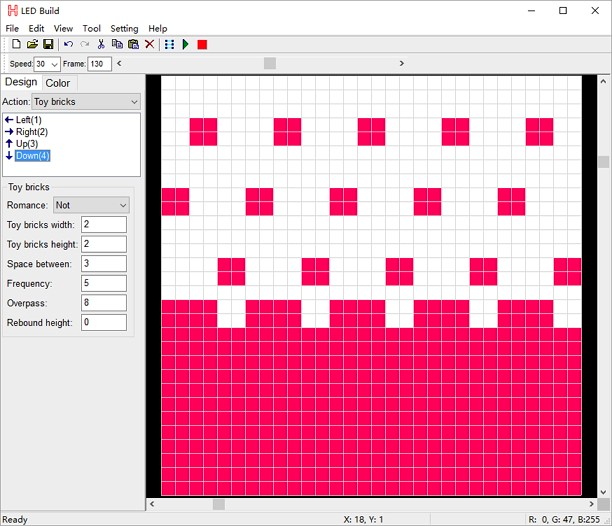

Basic Working Procedure using LED Build
Supply voltage of this product is 110/220 Volts AC, do not exceed.
Shorting output wires my cause damage to controller.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your led system.
1x SD Card
