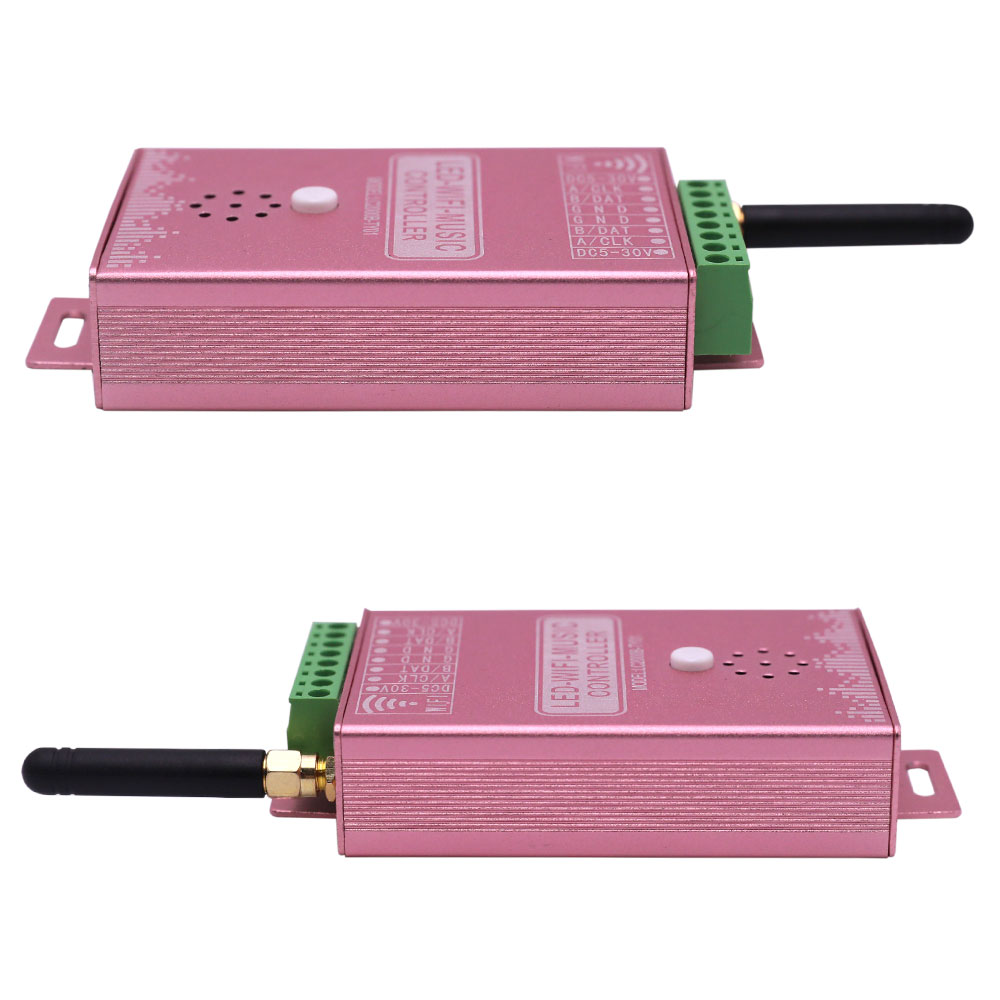

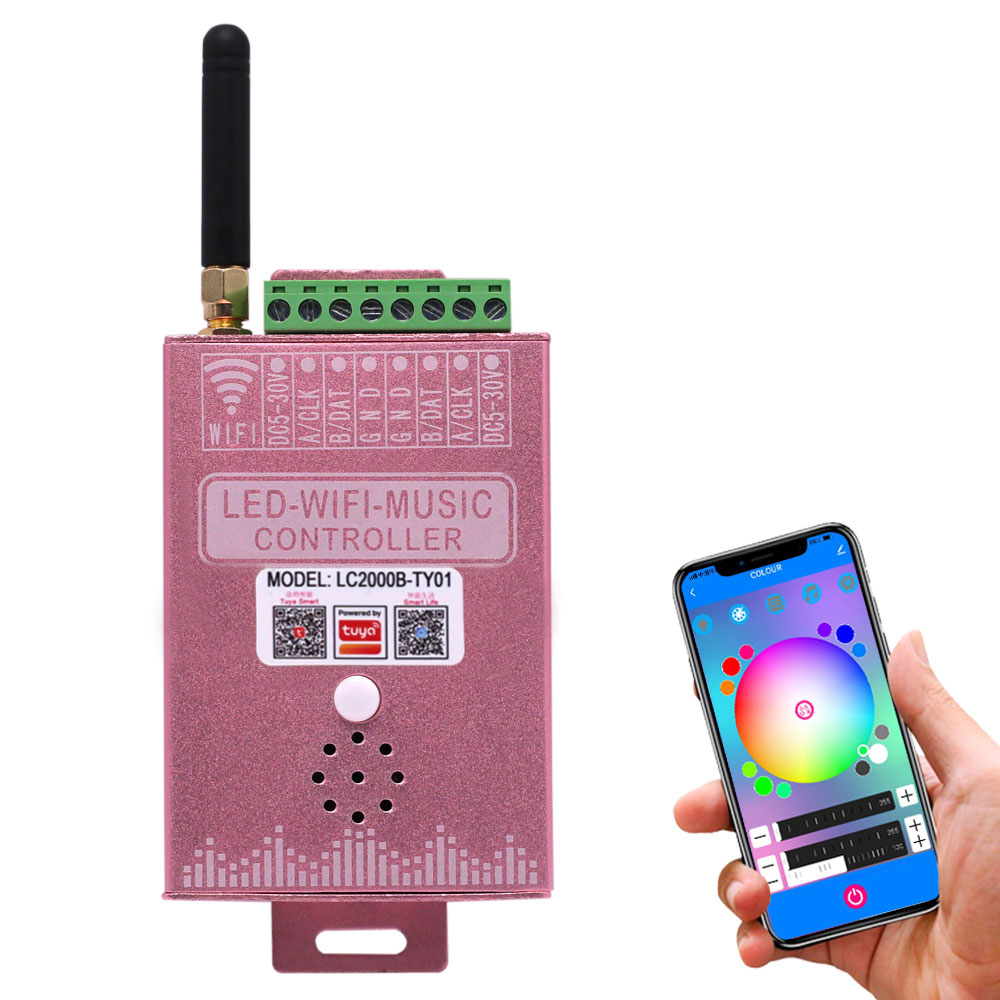

DC5-30V Tuya Wifi Music LED SPI Controller For Addressable RGB&RGBW LED Strips LC2000B-TY01
This is a 5in1 WiFi music led controller for pixel led strip lights. You can use it to control your addressable white led strip, addressable WWA/CCT led strip, addressable RGB led strip, addressable RGBW led strip, addressable RGBCCT led strip, and DMX 512 led strip.
It is an upgraded version of LC-2000B SPI controller. Several functions are added on its basis:
1. WiFi app control, supporting IOS and Android devices.
2. Support Tuya and Smartlife app, Google assistant and Alexa voice control.
3. Support Aux and Mic dual music input, with built-in dynamic effects of 10 kinds of music frequencies.
Long press the controller button for about 10 seconds, the light will be white light breathing, this time can match the network; short press is to turn on and select the color modes, long press about 3 seconds to turn off the lights.
Other functions include:

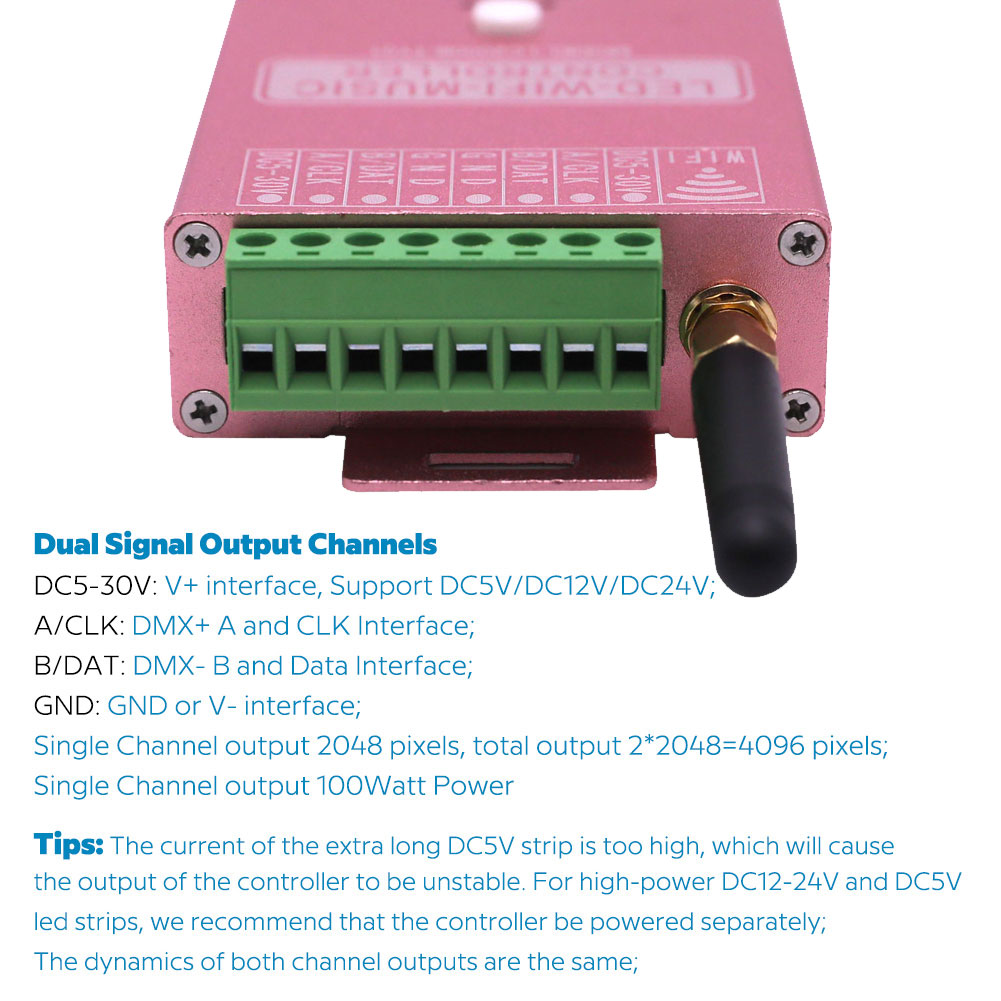

4. Dual channel output, maximum control 2048 pixels *2, total output 4096 pixels.
5. The color line sequence can be changed.
6. Support RGB and RGBW (SK6812, TM1814, WS2814) IC chips.

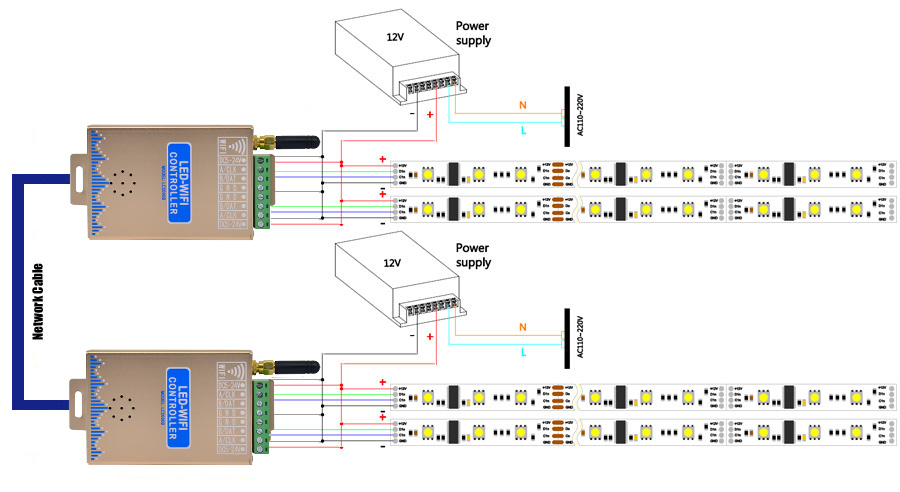

7. Multiple music controllers can be connected in parallel through RJ45 network cable interface to control large LED lighting projects synchronously.
8. This WiFi music SPI controller supports various addressable IC chips, suitable for controlling addressable RGB led strip lights, addressable RGBW led strip lights, led pixel panels, flex led noen lights, etc.
The chip supported as below: (DC5V/12V/24V)
Standards and Certifications
Item Type: Dream color LED-WIFI Music Controller
Input Voltage: DC5~30V
Control mode: WiFi APP
Support diveces: IOS and Android
Can Be Control: DC5V/12V/24V Addressable LED Strip Lights / LED Pixel Panels
Max pixels: 2048*2 pixel
Speed Control: 32 adjustable
Effect: Multiple music spectrum + input content + more than 250 dynamic effect
Memory: Automatic memory function
LED sequence: RGB Arbitrarily set
Synchronous mode: wire cascade synchronization
Music Control: MIC or Line input
Play mode: Single play + custom list loop + favorite list loop
Sync type: 485 cascade control
How to use Amazon Alexa to Control Wi-Fi Music Controller:
How to connect amplifier:
Signal amplifier (repeater) receives one-way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream-color striplight changes in effect; and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifier.
How to connect 3,000 foot+ WS2812B 5V LED Strips:

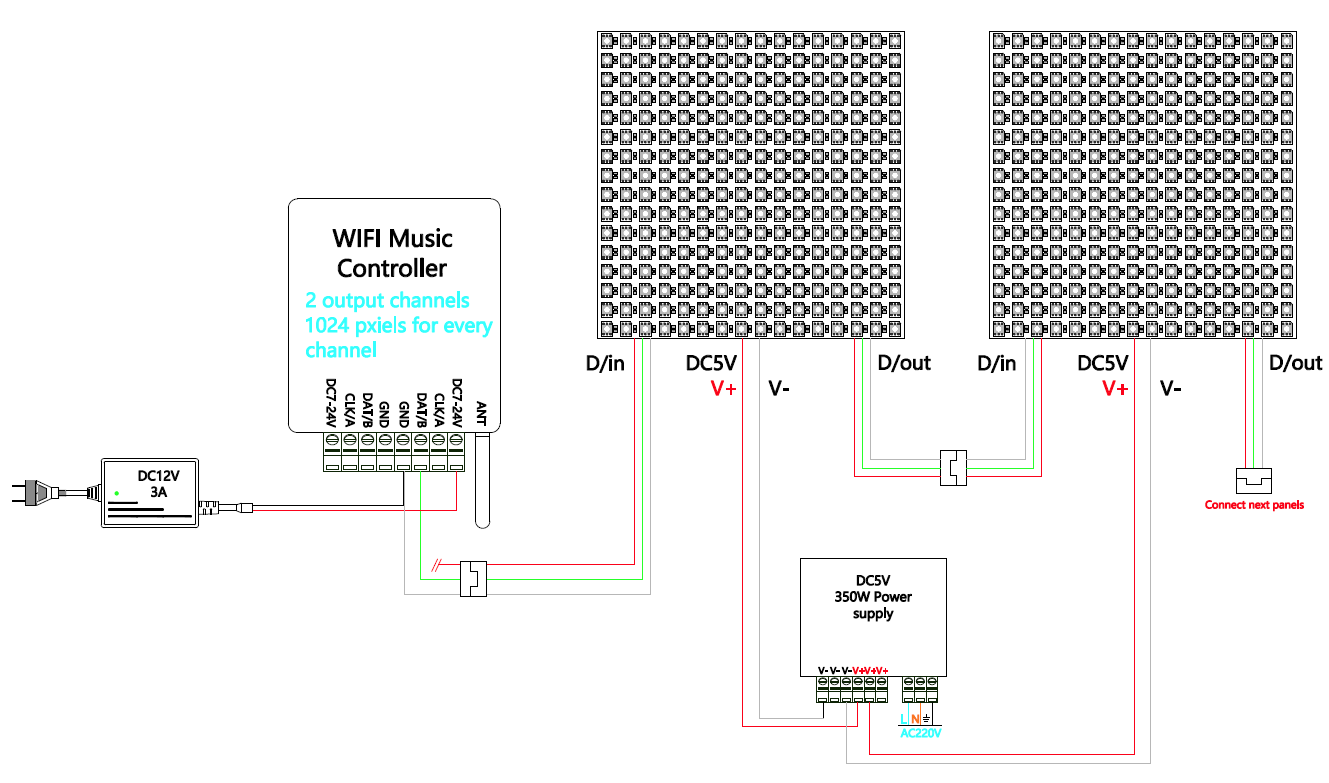

16x16 Digital Music Spectrum Wiring Diagram:
|By : Hunter Cordell Date Added: 01/24/2023|
|By the way, if you can’t match the controller or don’t know how to use it, you can contact the after-sales service for technical support. Mike’s service is very good. The email is: firstname.lastname@example.org|
|By : Hunter Cordell Date Added: 01/24/2023|
|The set-up was fairly simple. I think where most go wrong is they don’t long press the on button to pair up to the app. Has a lot of cool color themes and the sync to music is awesome.|
|By : Jon Whiteley Date Added: 01/21/2023|
|It is better than the old version. It supports iOS, Amazon, and Google voice devices. Many people reported that they would not use it because they did not understand the matching process of the tuya system and looked for devices in the phone settings list like the old version, it is fatal, compatible with tuya and smart life APP, matching is easy, support the latest TM184 TM1906 chip,|
