S Shape 0.24in Wide 300LEDs 16.4Ft TM1809 3838SMD DC12V Addressable RGB LED Strips
1. Adopts addressable built-in TM1809 intelligent IC, combined with New 3838SMD high quality LED chips, providing you with flexible S shape LED strip lights.
2. DC12V version, safe voltage, no flash, lower power consumption, higher brightness, longer lifespan.

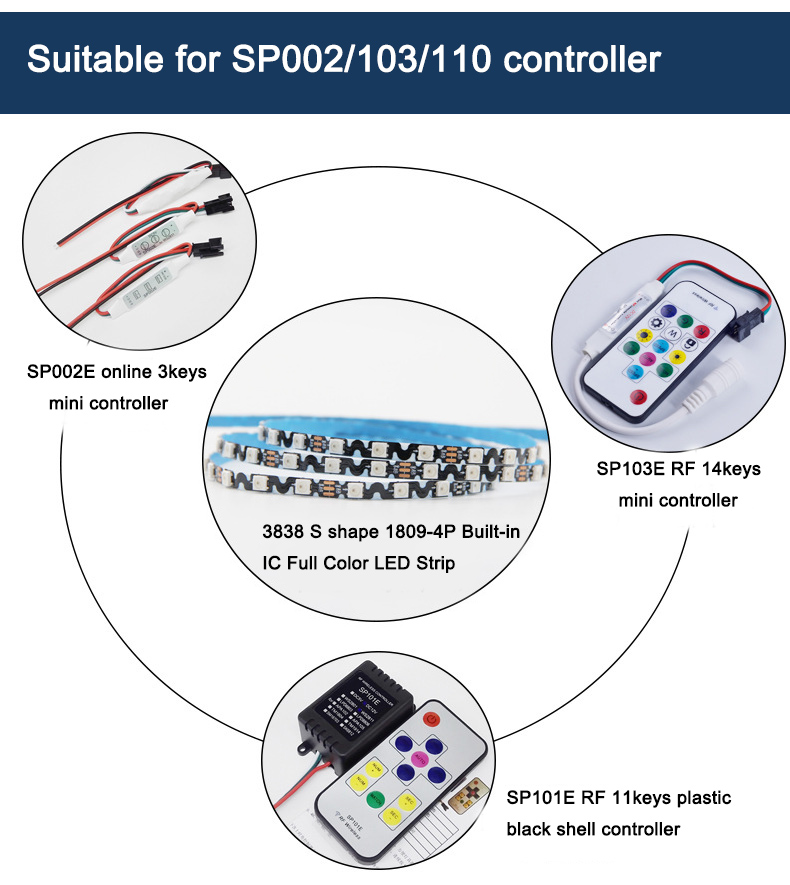

3. Showing static or dynamic dream color effects via using the addressable SPI controllers, more choices for lighting.
4. Waterproof rating optional, non-waterproof IP20 and waterproof IP65 version used for indoor lighting, such as cabinet lighting, living room lighting. Waterproof IP67 light for outdoor lighting, such as deck lighting, fence lighting.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
LED Strip Type: SMD 3838 Dream RGB 300LEDs/16.4ft
LED Chip: Epistar super brights Chip
LED Resource: 3838 SMD RGB
IC Type: TM1809 IC
Beam Angle: 120 degrees
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Color Rendering Index: 80
Power: 12W/m, 60W//Roll
Input Voltage: DC12V
PCB Width: 6mm/0.24in
LED Quantity: 60LED/m, 300LEDs/Roll
IC Quantity: 60IC/m, 300IC/Roll (individual addressable)
Waterproof Rating: IP20(non-waterproof)
Wavelength NM(RGBY): 2000-2500mcd
Color Temperature: RGB
Circuit Board: double-sided FPC electrolytic copper circuit board
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.6cm(0.24 in ) x H0.25cm(0.10 in )
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
1*5M SMD 3838 Dream RGB 300LEDs/Roll LED strip light
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Double-sided FPCB: Use an S-shaped PCB, which can be bent arbitrarily, not easily broken, and illuminates irregular spaces.
Using high-quality chip, built-in IC single luminous intensity reaches 2500-3000mcd.
High brightness, no flicker, long lifespan, high color rendering index.
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
