3 Pin Connector Board to Board Type For 10mm CCT LED Strip
3 Pin Connector Board to... $0.99
DC24V 5630SMD 300LEDs... $27.98
3 Pin Connector Board to...
DC24V 5630SMD 300LEDs...

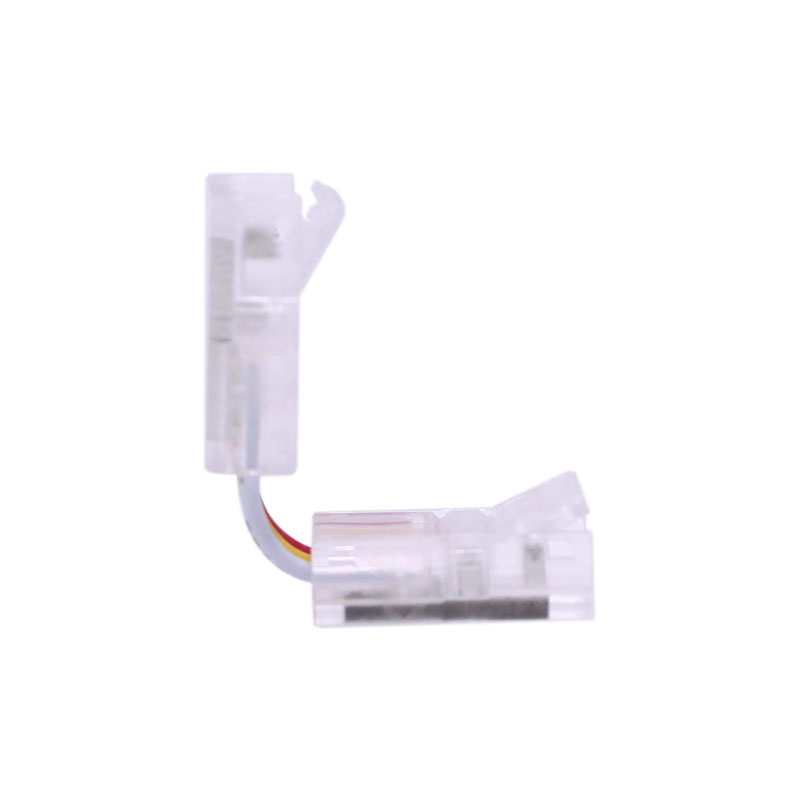

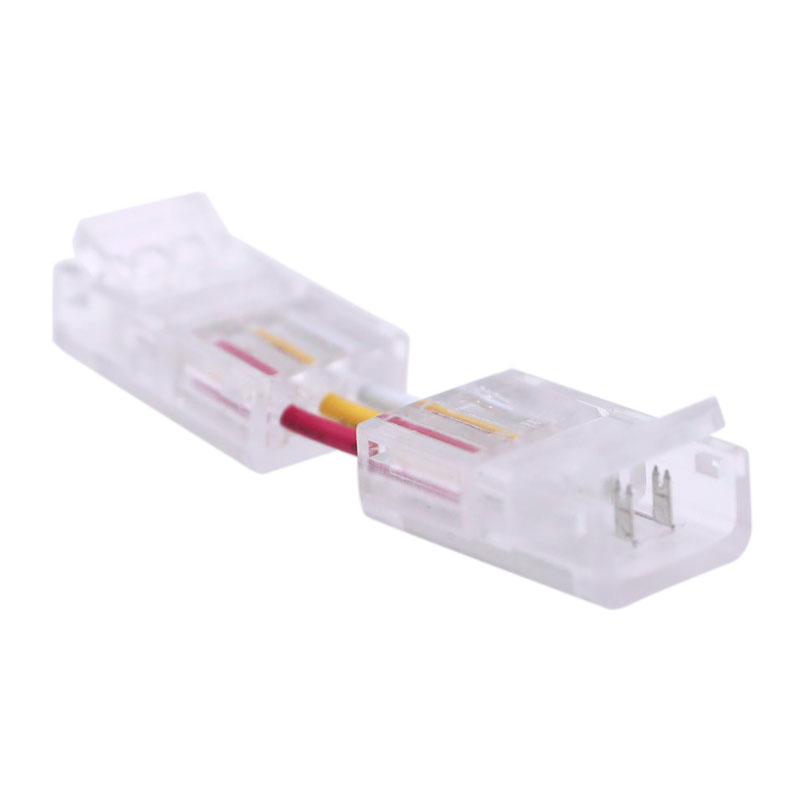

This is a 3-pin LED connector for 10mm wide CCT adjustable color temperature LED strip lights, used to connect two sections of light strips. It's 2 inches in length, and 0.58 inches wide. It can be stright connected or L-shape connected.

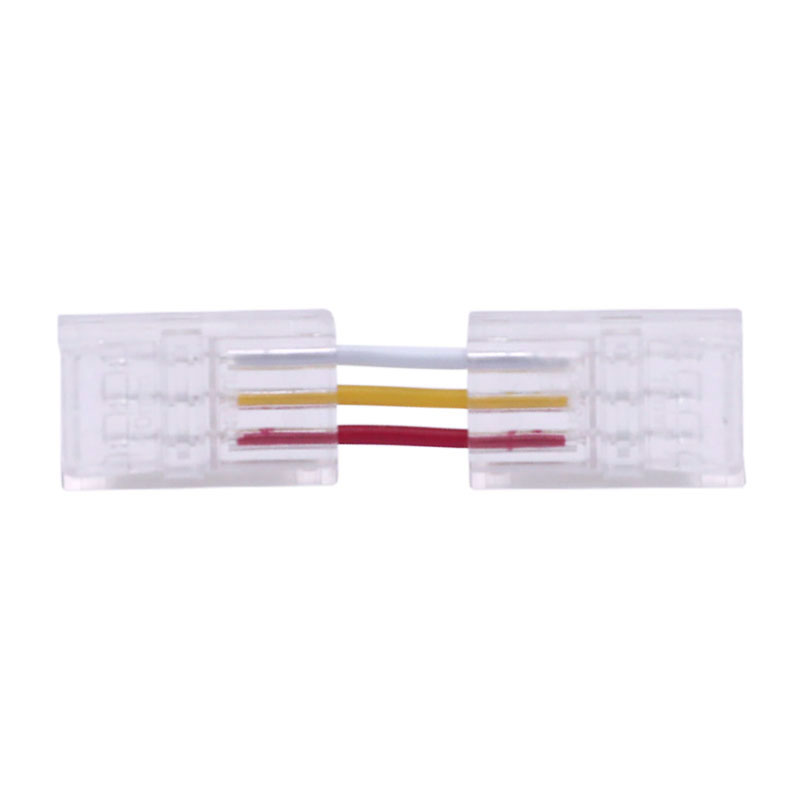

White wire: "W" / "CW" white channel
Yellow wire: "WW" warm white channel
Red wire: positive
