Product Information

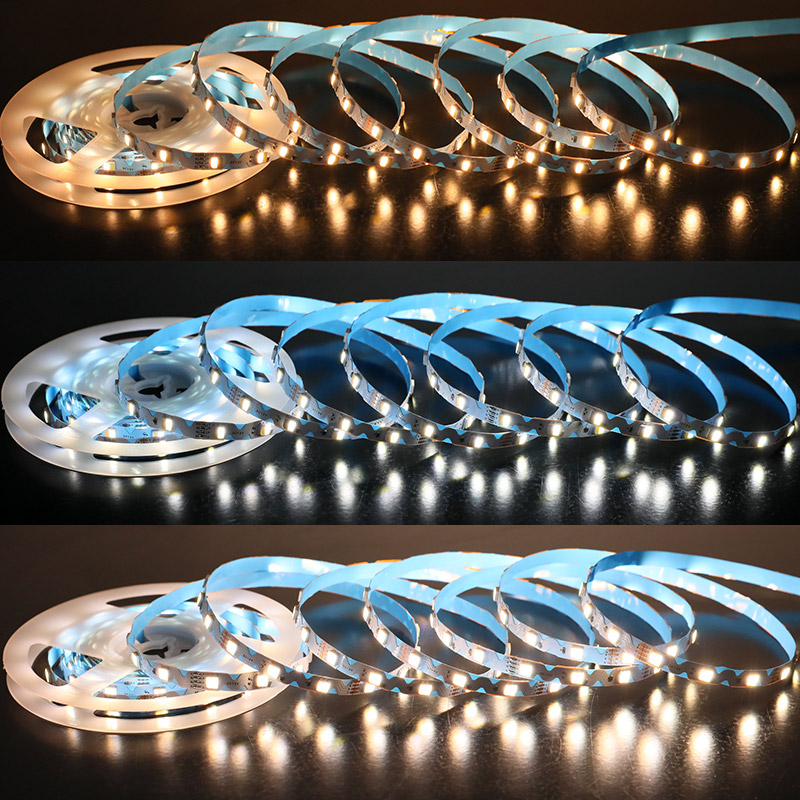

S Shape LED Color Temperature Adjustable Strip for Channel Letter Signage Lighting, allows your advertising signage to display light ranging from warm white 2700K to true white 6500K to simulate color temperature changes throughout the day. Let your channel letter sign advertising follow the circadian rhythm with this S CCT led strip. The color temperature light is changed by a CCT controller.
Featuring an S-shaped serpentine PCB circuit board design, this letter signage light strip can be bent to fit different channel shapes, providing more flexible installation. Utilizes DC 12V input to ensure safe use. The strip width is 8mm, making it a slimmer design for narrow LED illuminated channel letter signage.

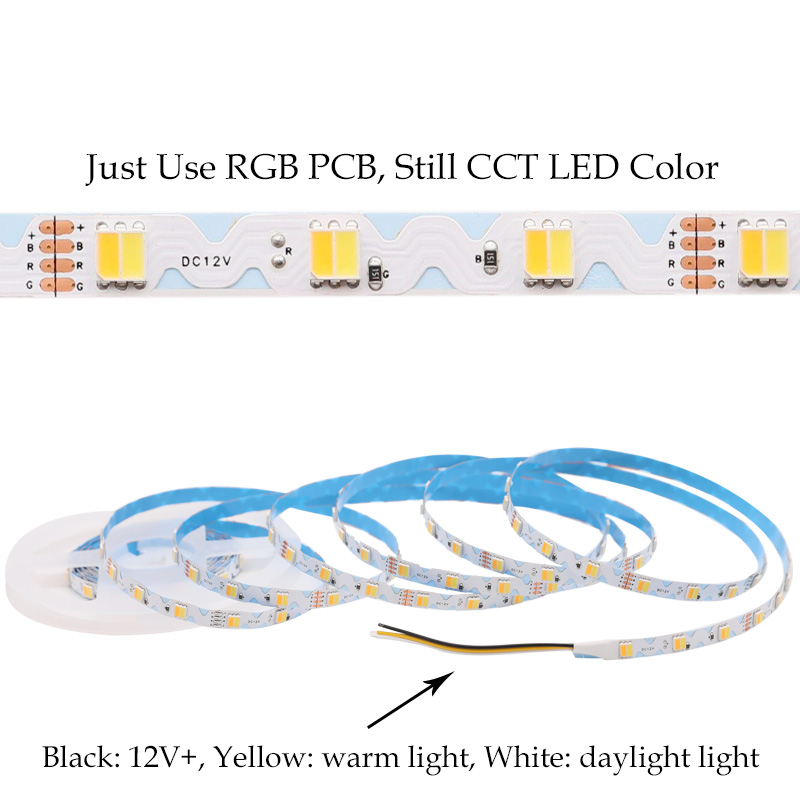

Note: Since this CCT snake led strip uses a RGB PCB board, it has RGB solder joints. But the light color it shows are color temperature and the LEDs are also color temperature beads, with normal CCT light type three wires (12V+, WW, W).
Product Specifications
| LED Strip Type: | CCT Color Temperature Adjustable S LED Channel Signage Strip |
| LED Chip: | SMD5050 |
| Input Voltage: | 12V DC |

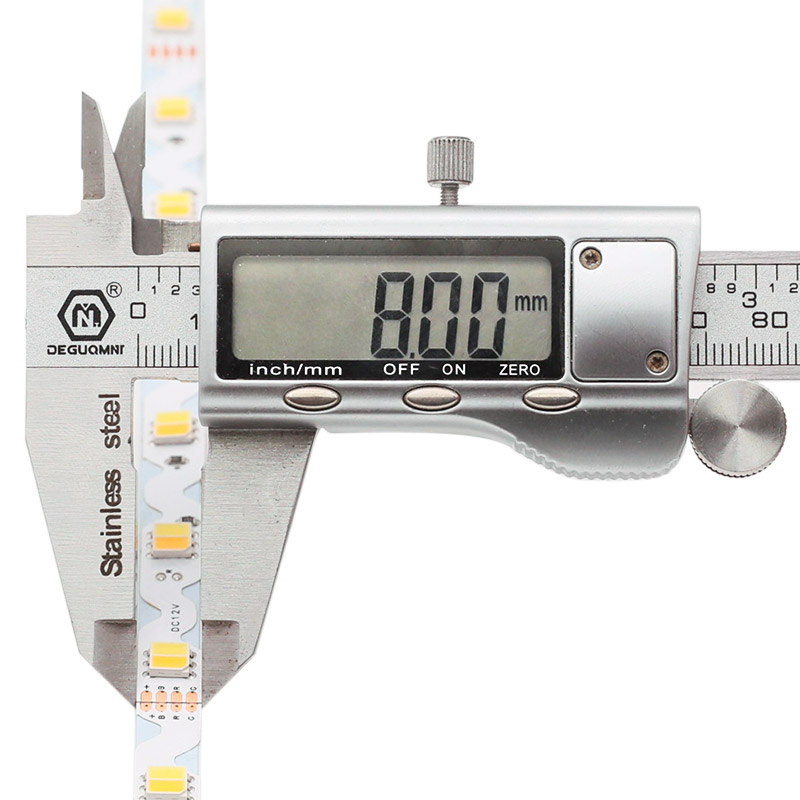

| PCB Width: | 8mm / 0.3" |
| Light Color: | CCT, 2700K-6500K (Ra80+) |
| Dimension: | 16.4ft/roll |
| LED Quantity: | 48 LEDs per meter, 14/ft |
| Working Power: | 12W/m, 3.65W/ft, 60W/roll |

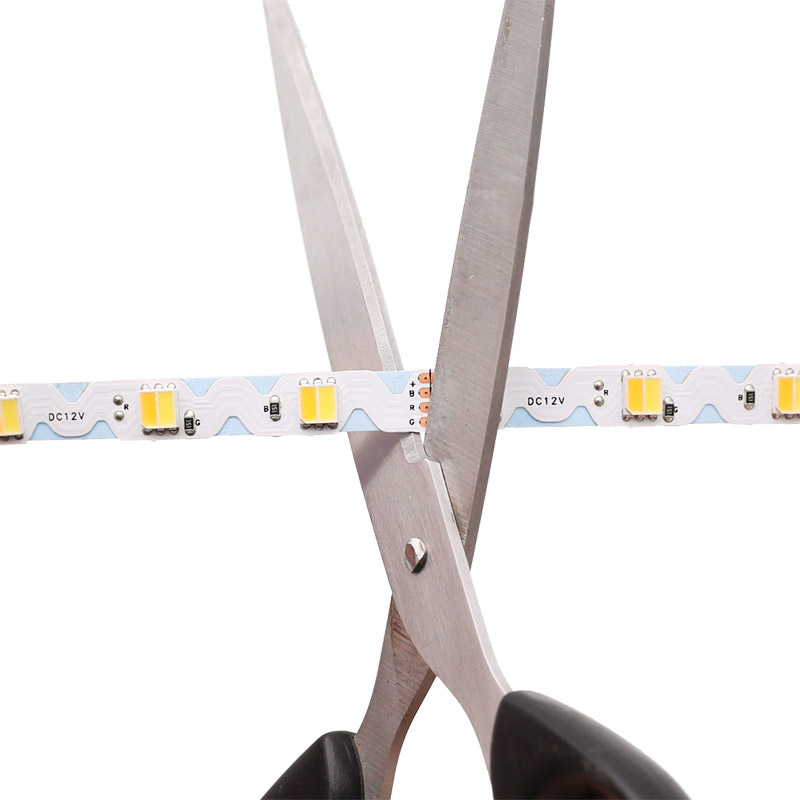

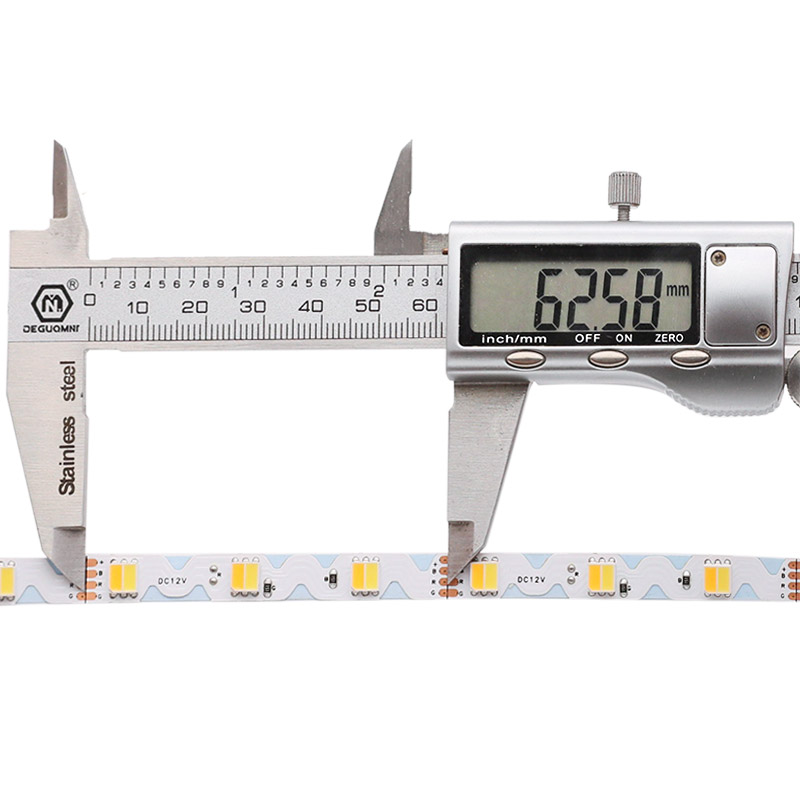

| Cut Unit: | 3 LEDs, 62.5mm/2.5" |
| Lifespan: | 50,000+hours |
| Beam Pattern: | 120 degrees |
| Waterproof: | Nonwaterproof IP20 |
How to power this S Type CCT LED Channel Letter Signage Strip Light (just for referrence):
If you choose the KIT, we will send you a Bluetooth Music Mini CCT Controller SP632E and Meanwell Power Supply LRS-75-12 or PSPS-12V-72W power adapter.
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLCCTS-12V-5050X240Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
