LED 3 Pin Connector For CCT High Density LED Strip

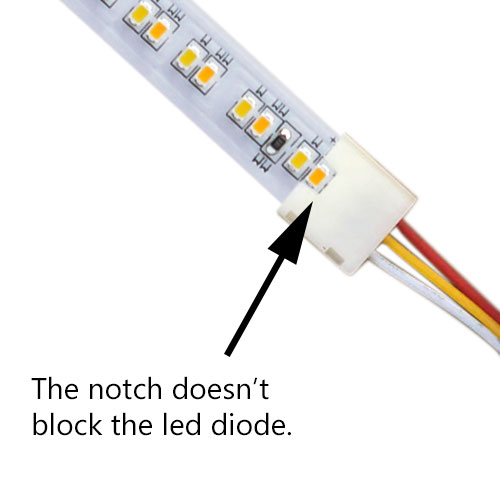

3 pin led connector for CCT adjustable color temperature led strip lights. The led strip connector comes with a notch, which not can block the led diodes.
It's designed for single row high density led strips with 8mm or 10mm PCB width.
White wire: "W" / "CW" white channel
Yellow wire: "WW" warm white channel
Red wire: positive
