DC24V 3Pin Digital COB White Running Water Flowing LED Strip

Name: DC24V 3Pin Digital COB White Running Water Flowing LED Strip
Brand: SuperLightingLED
SKU: FSLCOB-360-W10-1903
Price: 17.98 USD
Availability: InStock

Model: FSLCOB-360-W10-1903 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $28.98 $17.9838% off

Qty Discounts Off Price
1-19 $17.98	20-49 $17.62	50-99 $17.26	100+ $16.90
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Light Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

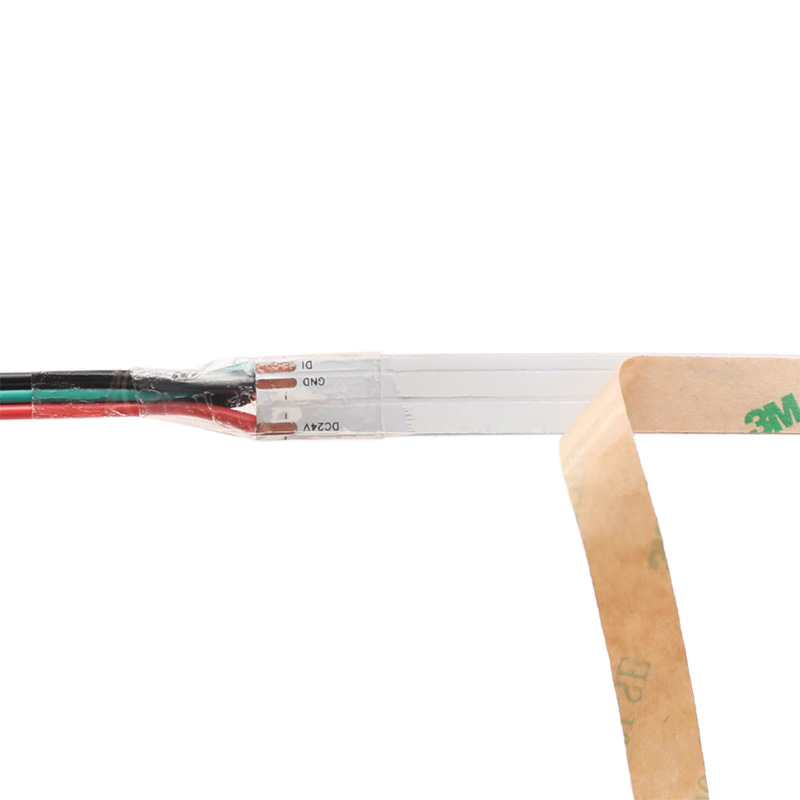

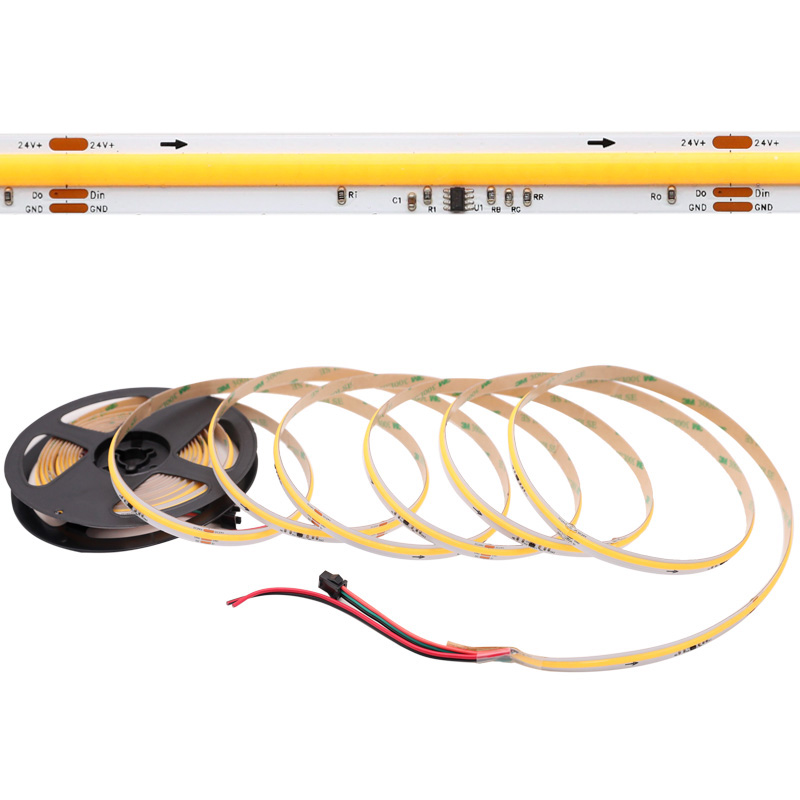

DC 24V 3 pin (24V+, DAT, GND) addressable warm white/natural white/daylight running water flowing COB led strip for sale, with dotless continuous light, 10mm PCB width and 360 chips per meter, 5m/16.4ft per roll.

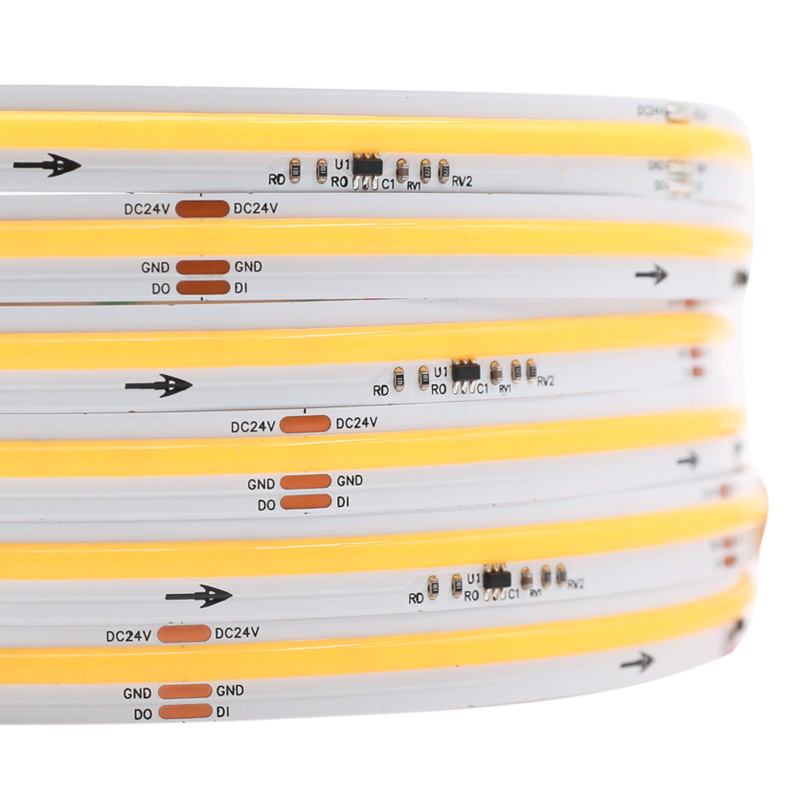

This running water COB led strip light adapts UCS1903 IC chips, each 83.33mm/3.3in is a individual segment, 12 pixels per meter. Under 24V 4A power adapter (in the kit), with an external controller like SP636E in the kit, it can display various water-like flow effects, attract human eyes in decorative lighting.

We also offer 4pin dual-signal version for the running white cob led strip.

Product Specification

LED Strip Type:	3Pin Digital Running Water Flowing White COB LED Strip
LED Chip:	UCS1903 IC
Input Voltage:	DC24V
Power:	15W/m
LED Color Temperature:	Daylight White / Natural White / Warm White

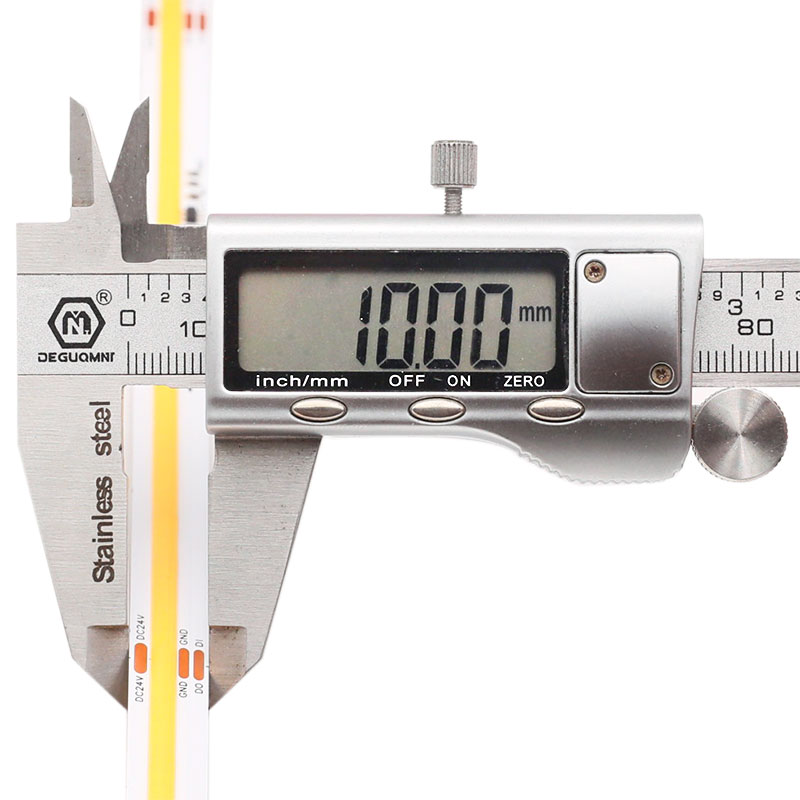

PCB Width:	10mm/0.4in
LED Quantity:	360 Chips/m
Waterproof Rating:	Non-waterproof IP20 / Outdoor Waterproof IP67

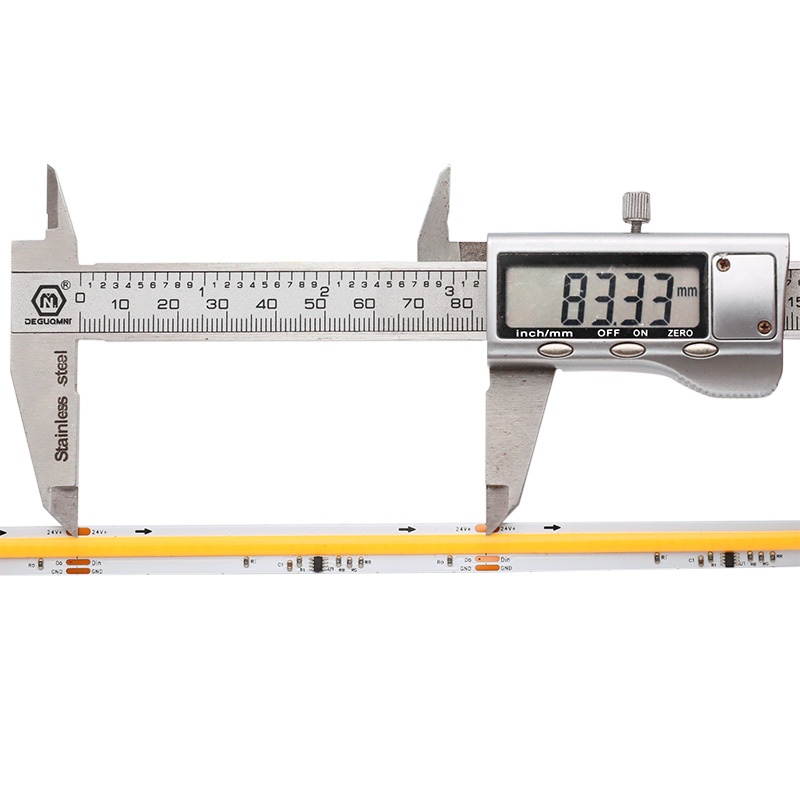

Cut Length:	83.33mm/3.3in, 12 pixels per meter
Lumen:	900 lm/m
Color Rendering Index:	Ra>90
Beam Angle:	180°
Strip Length:	5m/16.4ft

3-Pin Running Water COB LED Strip Wiring Diagram:

addressable led strip wiring diagram

DC24V 3Pin Digital COB White Running Water Flowing LED Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCOB-360-W10-1903

PDFFSLCOB-360-W10-1903 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

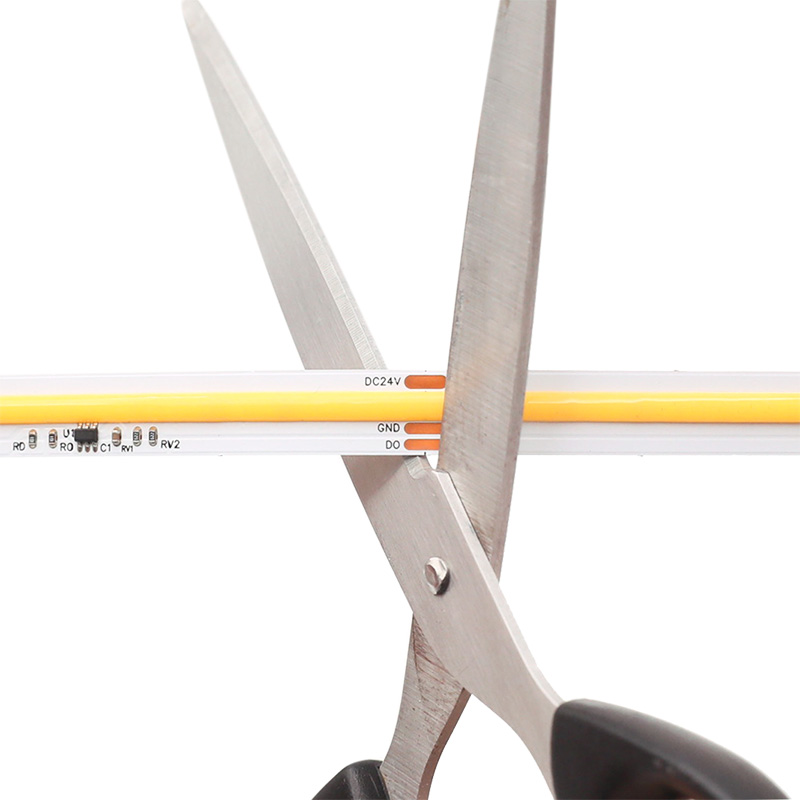

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

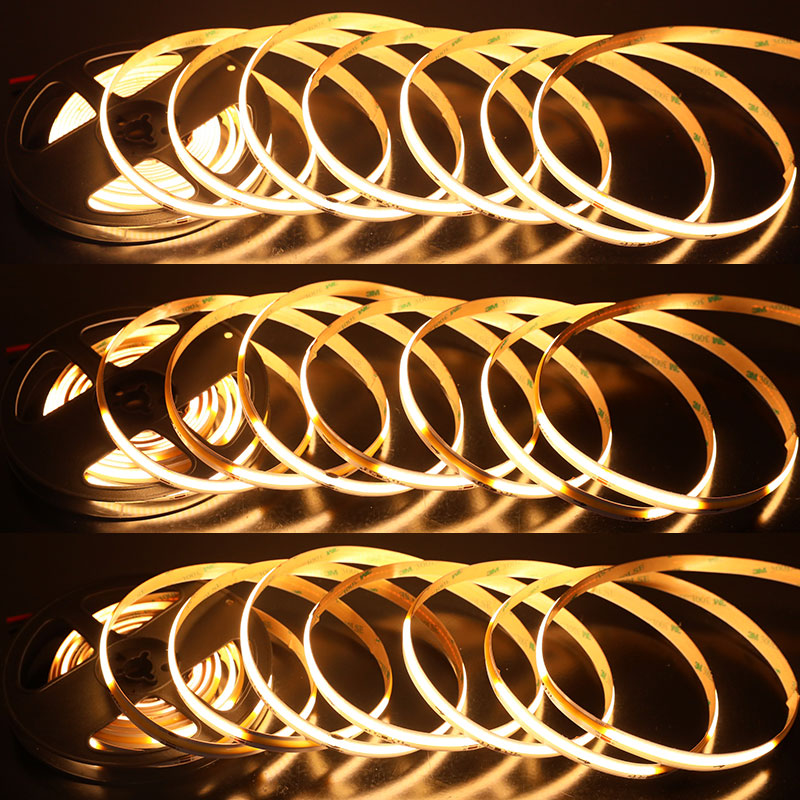

This model comes in Natural White(4000K) · Daylight White(6000K) · Warm White(2700K-3000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
