Product Information

This 5 meter long Near IR 810nm LED Strip features 300 SMD 5050 LED light chips, and the strip's FPCB (Flexible Printed Circuit Board) is only 10mm wide, making it a compact design for easy installation in a variety of spaces. Each LED chip emits infrared light at 810nm wavelength, which is widely used in medical, beauty care, sauna red light phototherapy, industrial heating and plant growth. The back of the 810nm red light strip comes with a strong adhesive backing for both temporary and permanent installations.

More 810 nm wavelength LED solutions.

Near IR 810nm LED Strip SMD5050 (FSLSR-60-5050-810NM)

Product Features

• 810nm wavelength red light

• 5050 smd led chips

• High efficiency and low power consumption to save energy

• Uniform light distribution for consistent illumination

• Can be easily bent and cut to fit different application needs and space layouts

• 10mm strip width (IP67 and IP68 wider by 2-3mm)

• Dimmable

• Multiple protection levels

• 72W power adapter in the kit

810 Nanometer LED Spectrum Download

Standards and Certifications

DC12/24V

Product Specification

LED System:	Special Wavelength Lighting Systems
Brand:	SuperLightingLED
LED Strip Type:	Near IR 810nm LED Strip Light
LED Type:	SMD5050
Input Voltage:	DC12V, DC24V
Power:	72W/Roll max, 14.4W/m, 4.4W/ft
Light Wavelength:	810nm
LED Color:	Red glow
Application Focus:	Biotherapy, Therapy & wellness devices, Machine vision & sensing
Dimensions:	L5m/16.4ft x W10mm x H2mm
Beam Angle:	120°
LED Quantity:	60 LEDs/m, 300 LEDs/16.4ft

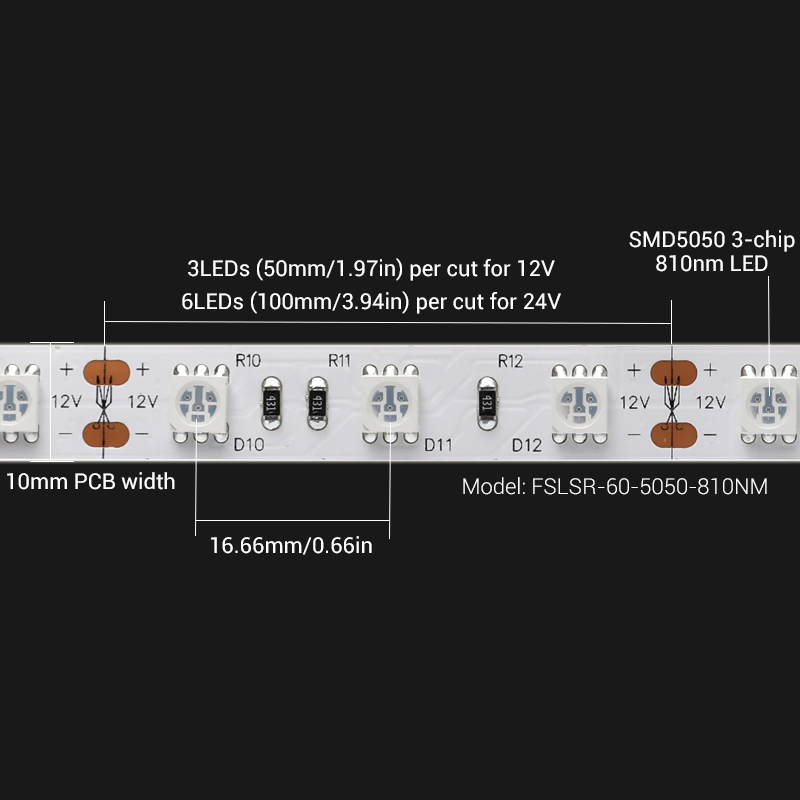

Cuttable:	DC12V - 3 LEDs, 50mm/2" DC24V - 6 LEDs, 100mm/4"
Waterproof Rating:	Non-waterproof IP20 / Waterproof IP65 IP67 IP68
Heat generation:	Yes (best used with aluminum profiles)
Installation:	Red adhesive backing (7 days version) / Blue adhesive backing (1-3 days version)

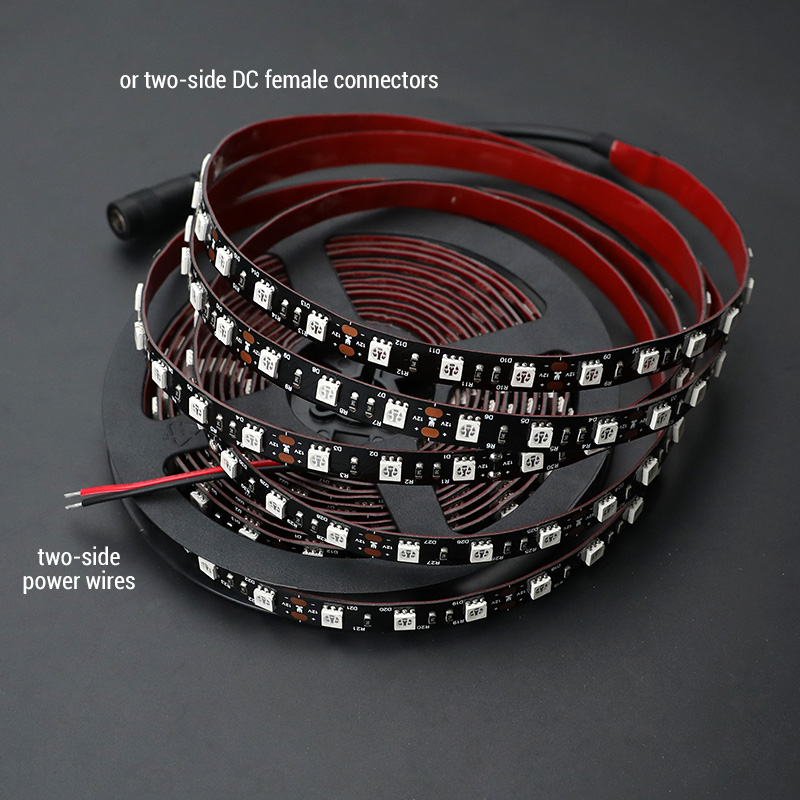

Outlet Cable:	2-pin power wires / DC female connectors

300LEDs SMD 5050 Near IR 810nm LED Strip Light

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Dmytro Topolskyi Verified Customer

01/20/2026

Perfect for DIY Red Light Therapy - True 810nm wavelength

I bought this 810nm strip to build a custom infrared therapy panel for muscle recovery. Since 810nm is invisible to the human eye, I tested it with my phone’s camera to confirm the diodes were active, and the intensity is impressive. The build quality on the 5050 SMD chips is excellent, and the heat dissipation is quite stable even after 20 minutes of continuous use. It’s hard to find reliable Near-IR strips that actually hit the specified wavelength, but this one seems to be the real deal for biohacking projects. If you're looking for deep tissue penetration wavelengths for a health setup, this is exactly what you need.

Downloads

Files for FSLSR-60-5050-810NM

PDFFSLSR-60-5050-810NM product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 24VDC · 12VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Waterproof IP67 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: DC Female Connector (Black) · 2-Pin (V+, GND). Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
