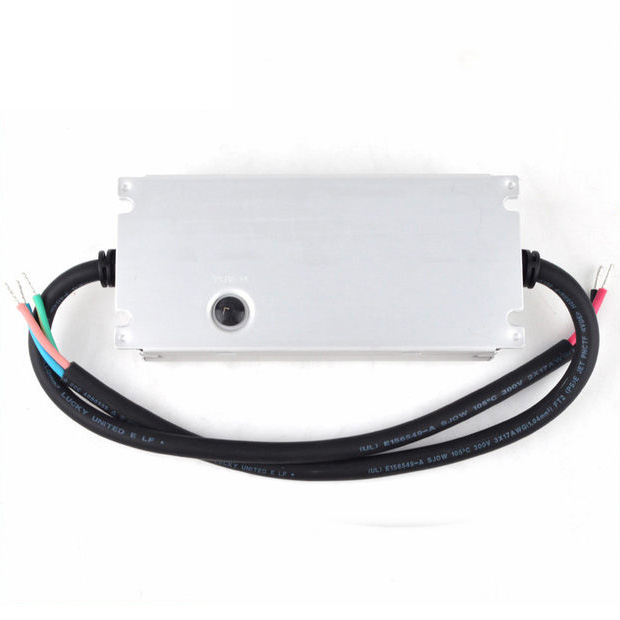

XLG-100-12-A 96Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Having received wide anticipation from the market after the launch of the XLG-25/50 series (25/50W), the XLG-75/100 series (75/100W) is now officially unveiled. With the constant power mode design and other advantages, it is believed the launch of the XLG-75/100 series not only meets customers’ demand for medium wattage but further facilitates the various LED light sources design and current adjustment.

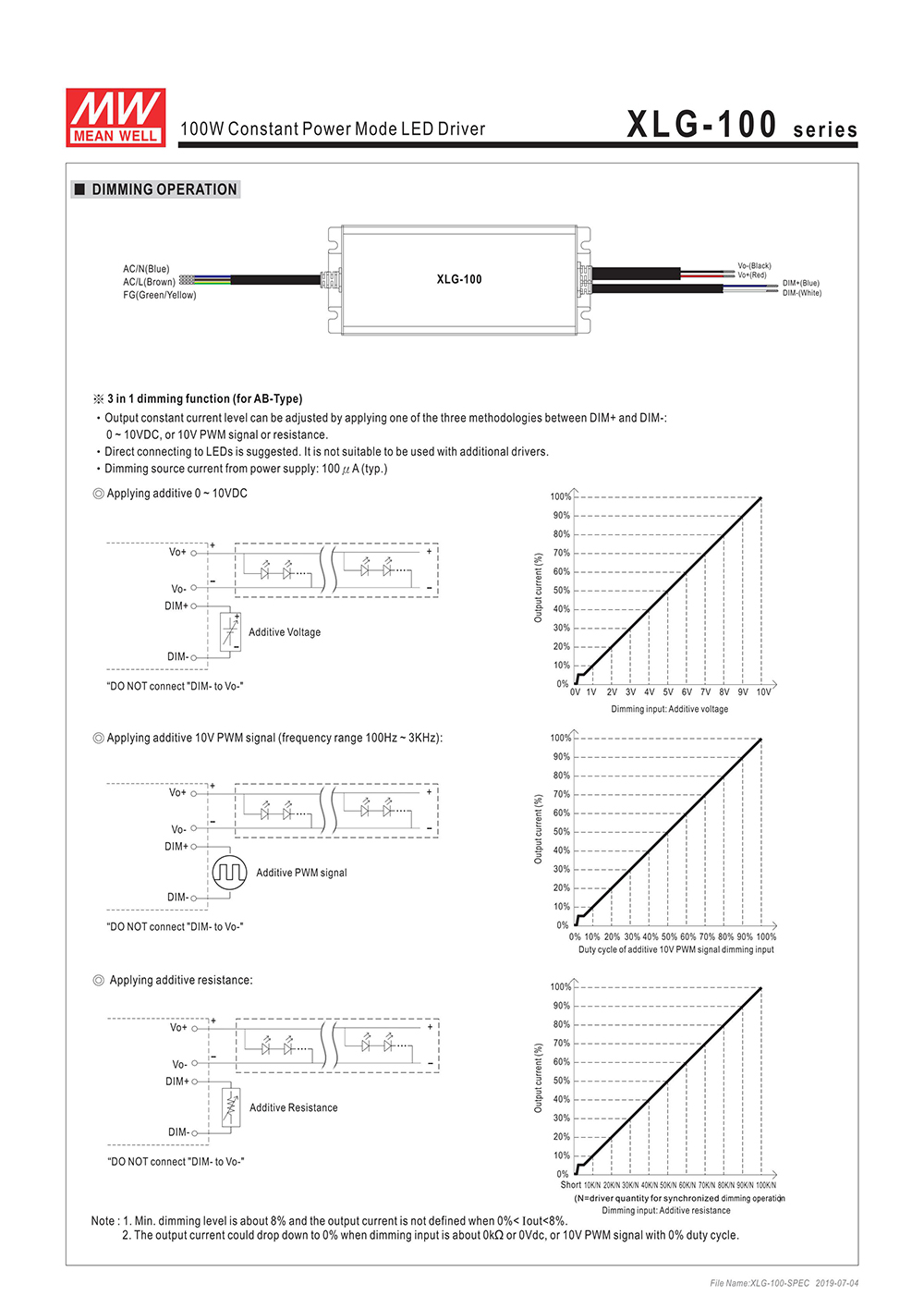

In response to the miniaturization trend of the lighting fixture design, the MEAN WELL R&D team expertly designed the XLG Series, successfully reducing by 20~30% of the dimension. In terms of safety certification, niche market safety regulations such as RCM (Australia), BIS (India), PSE (Japan), and KC (Korea) are included in the standard version of the product, hoping to help customer increase selling areas without worrying about the safety regulation barriers. For dimming function, the XLG series also provides three-in-one dimming and meets the latest IEC61347/UL8750 and GB7000.1 design requirements. Isolation between output and dimming cables is added to ensure the safety of usage. Other key features include: high efficiency up to94.5%,surge protection( 10KV/6KV),wide range of working ring temperature (-40 ~ +60 ° C).
For LED luminaires application, MEAN WELL officially releases the new generation waterproof LED driver series—XLG series. The whole XLG series, which has been highly expected by the market, covers from 25W to 240W. It can be used for LED Bay light/Streetlight/Horticulture lighting and floodlight applications. XLG series applies the constant current and constant power design, which remarkably enhances the convenience of integrating model selection. The design of the XLG Series brings the benefits of reducing the confusion of model selection and stock pressure aspects.

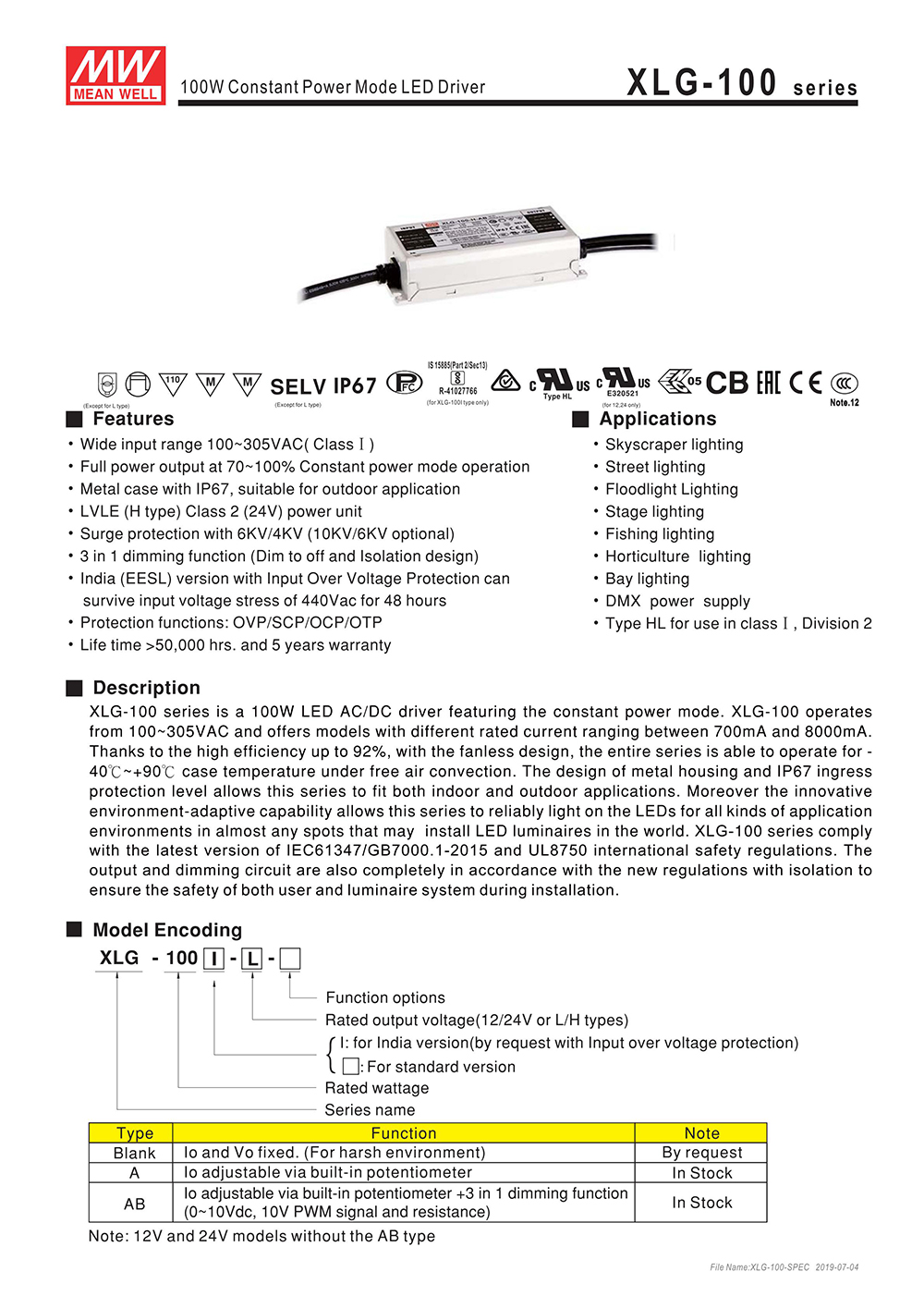

XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode. XLG-100 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40C ~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-100 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Note: When you choose LED strip light to use with the power supply, we recommend that you choose the waterproof LED strip light.
Wide input range 100~305VAC( Class I )
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
LVLE (H type) Class 2 (24V) power unit
Surge protection with 6KV/4KV (10KV/6KV optional)
India (EESL) version with Input Over Voltage Protection can
survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP

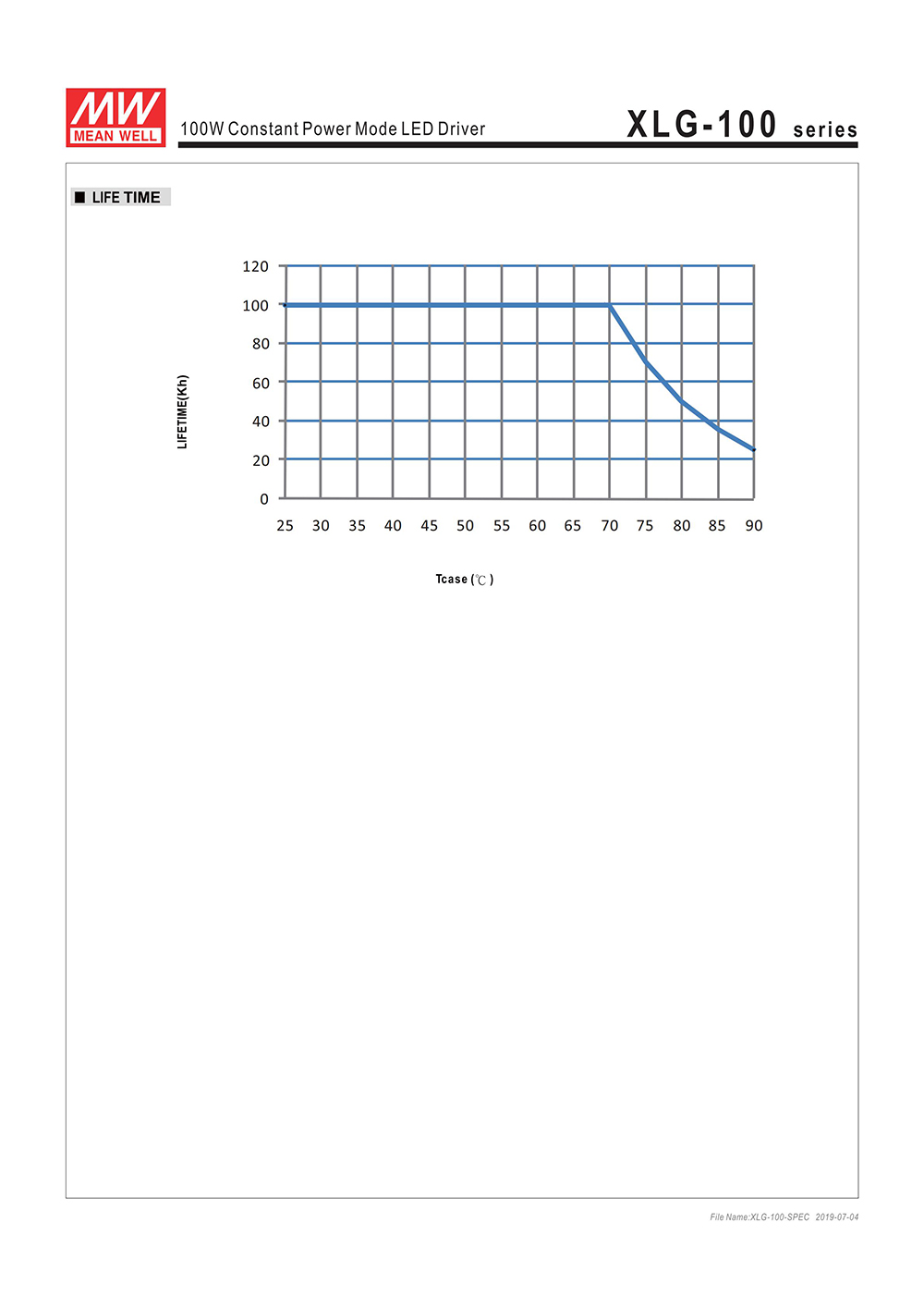

Life time >50,000 hrs. and 5 years warranty

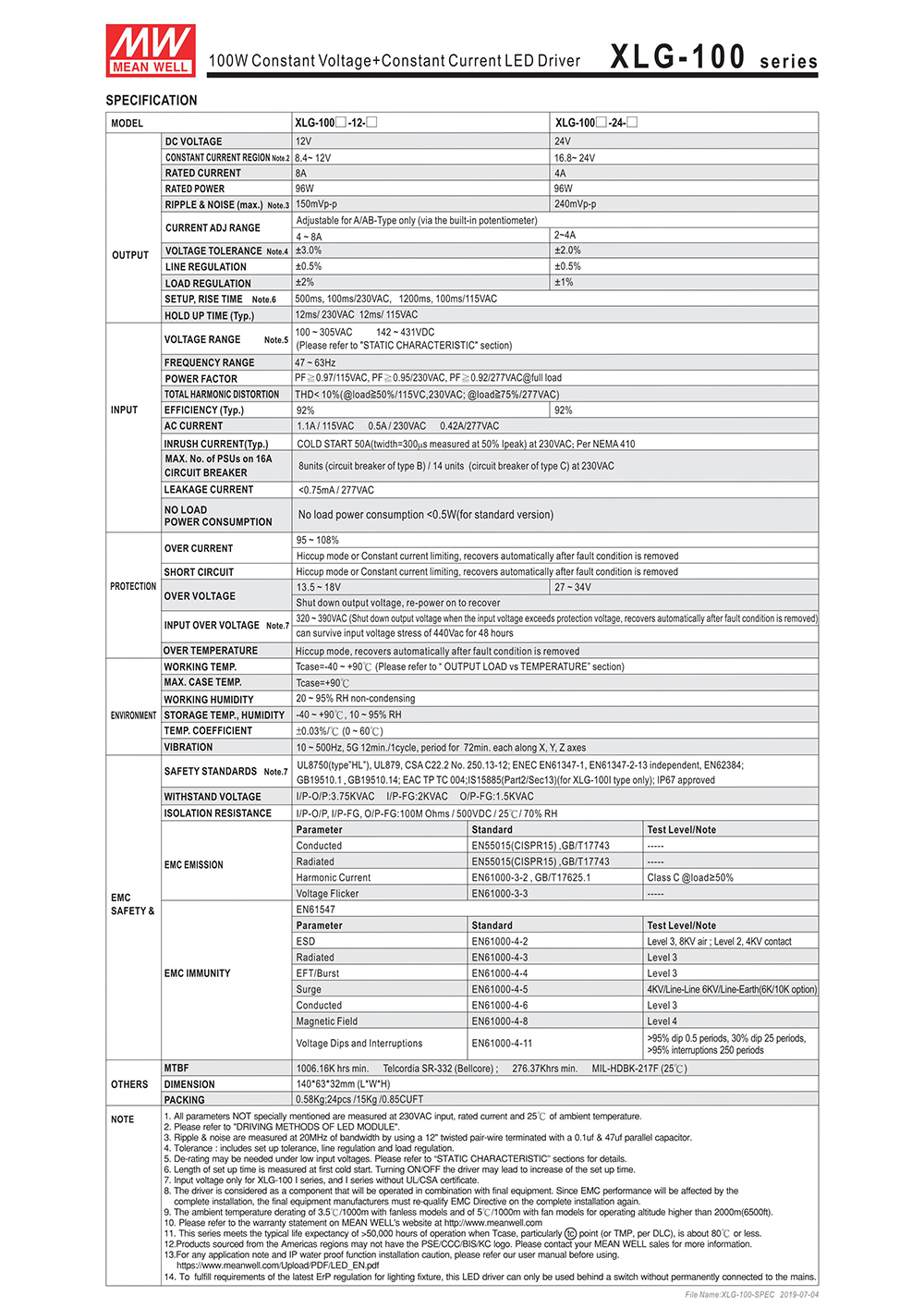

Rated Current: 8A
Output Voltage: 8.4V-12V
Current Range: 0-8A
Rated Power: 96W
Output Voltage Accuracy: ±5%
Load Regulation: ±2%
Input Voltage: 100～305VAC/142-431VDC
Input Surge Current Cold Start,1.1A/115VAC, 0.5A/230VAC, 0.42A/VAC
Leakage Current: <0.75mA / 277VAC
1 * XLG-100-12-A
