Best DC Infrared 850nm LED Strip for Your Needs at SuperLightingLED
When selecting the best infrared 850nm LED strip, prioritize features that align with your near-infrared (NIR) lighting requirements, such as LED density (number of 850nm IR LEDs per meter), waterproof rating (IP65 or higher for outdoor use), DC voltage compatibility (12V or 24V), power consumption, and overall flexibility.

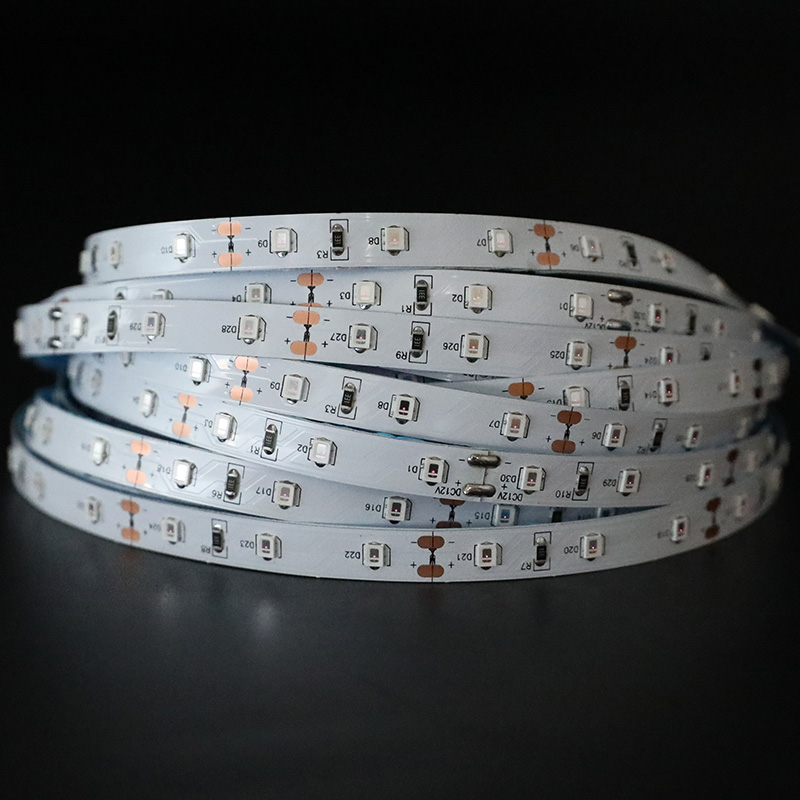

Our economical SMD infrared 850nm LED strip uses high-efficiency 2835 chips as the light-emitting carriers for 850nm lumen output. With a standard density of 60 LEDs per meter on an 8mm flexible PCB, it ensures even illumination and is easy to install in curved or tight spaces. 850nm, 830nm, 810nm, 780nm LEDs appear red dot, 940nm LEDs are completely invisible, 730nm, 660nm, 635nm LEDs emit visible red light.
This 850nm illuminated led strip is fully compatible with 12V and 24V DC power supplies, drawing low power for energy-efficient operation—ideal for home perimeter night vision systems (pairing seamlessly with IR-sensitive cameras for discreet, 24/7 surveillance) and 850nm infrared light therapy applications (delivering targeted NIR wavelengths for potential benefits like improved circulation or skin rejuvenation, when used with appropriate devices). It's non-waterproof by default but can be upgraded with silicone gluing or sleeving for IP65, IP67, IP68 protection in damp environments.
2835 vs. 3528 850nm Chips: How to Choose
The main differences come down to package height, emitting area, and performance trade-offs.
• SMD2835 850nm LED: flatter, broader emitting area (rectangle), higher lumen efficiency
• SMD3528 850nm LED: taller, smaller emitting area (round), focused beam
Product Specification
| LED Strip Type: | Economical SMD Infrared 850nm LED Strip |
| LED Type: | 1-core SMD2835 |
| Input Voltage: | DC12V, DC24V |
| Power: | 6W/m, 30W/reel max |
| Light Wavelength: | 850 nanometers |
| LED Color: | Red dot glow |
| PCB Width: | 8mm |
| LED Quantity: | 60 LEDs/m |
| Cuttable: |

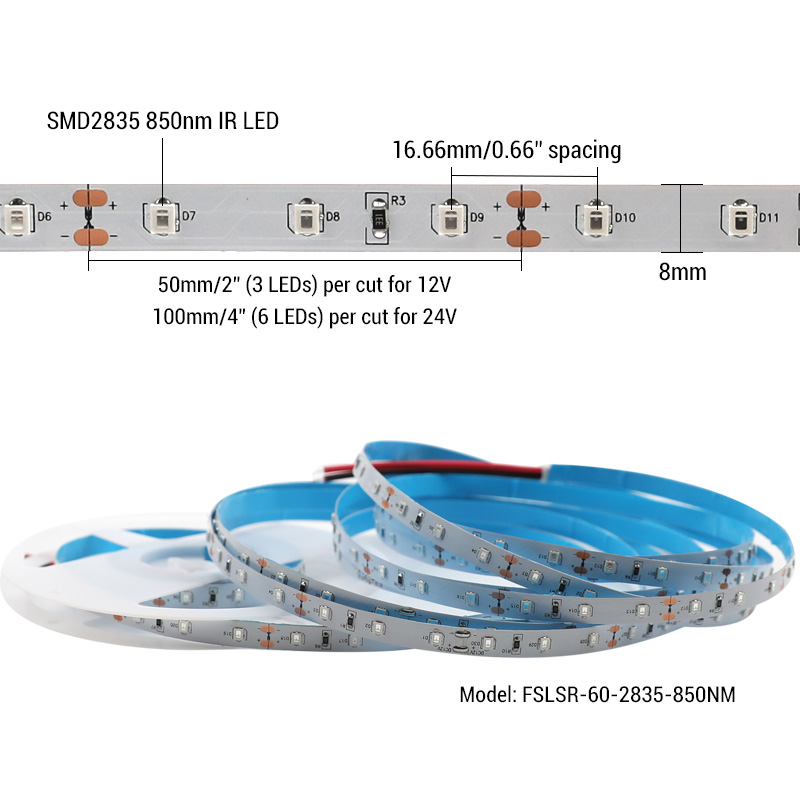

12V - 3 LEDs, 50mm/2"
24V - 6 LEDs, 100mm/4"
|
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
| Beam Angle: | 120° |
| Length: | 16.4ft (5 meters) |
| Wire Outlet: | 2-pin red and black wires / DC female black connector |
Package List
1* 16.4ft SMD2835 illuminated 850nm led strip with wire or DC connector (12V or 24V, 8mm, 60 LEDs/m, IP20 or IP65 or IP67 or IP68)
1* Wall plug (optional, black color)
