Product Information
SuperLightingLED Near Infrared 810 nm Led Strip Series
Highly efficient solution for 810 nm infrared led applications, the densest of SuperLightingLED's single-row 810nm LED strips, with 240 pieces SMD LED diodes per meter, 73 per foot, and two adjacent SMD2835 beads spaced only 4.17 mm apart, delivering a very continuous and uniform 810 nm light radiation. A reel of 5 meters, 16.4 feet long supports cutting the 810nm strip at the cut line, and the LED intervals containing 6 LEDs per 25 mm can be cut.
810nm red light is invisible as near infrared light. Since the 810-nanometer LED spectrum contains some wavelengths of far-red visible light, you can clearly see that the 810nm 2835 diode has a red light spot, and the 810nm red light glow will be more visible in dark environments.
The low voltage 12 volt or 24 volt power input design makes this 810 nanometers NIR led strip suitable for a variety of red light therapy, sauna therapy, photobiomodulation, and other near infrared wavelength lighting applications in both home and commercial settings. We offer normal 0.2W LED type and more stable 0.5W LED type, the total power consumption is about the same.

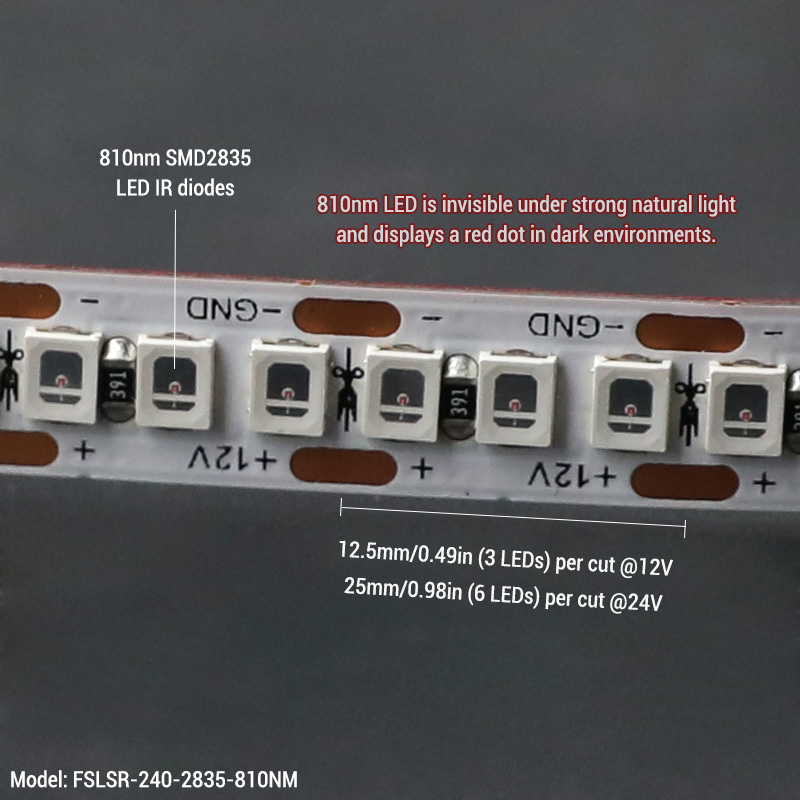

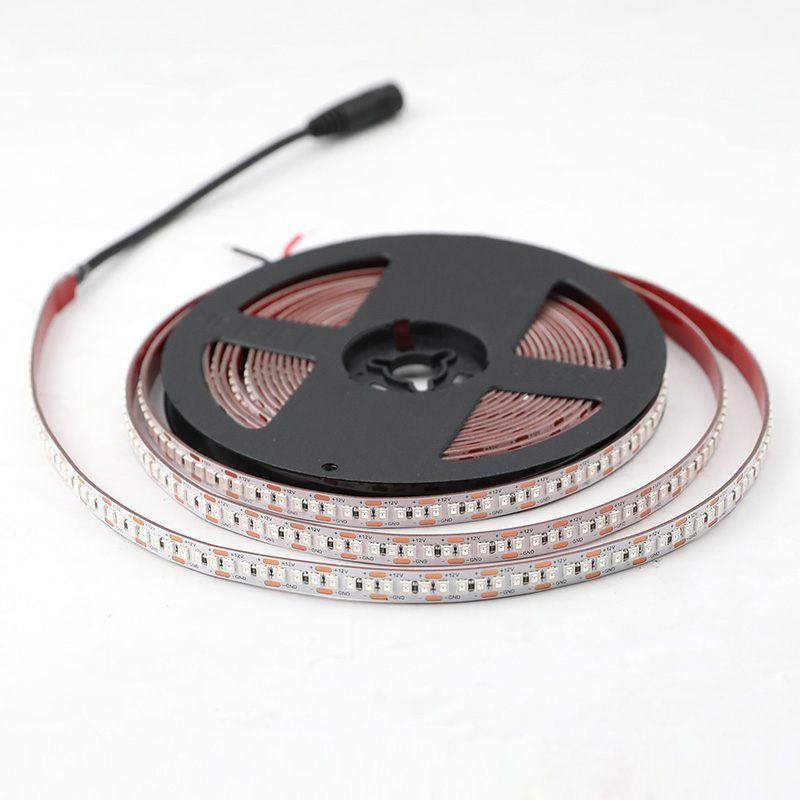

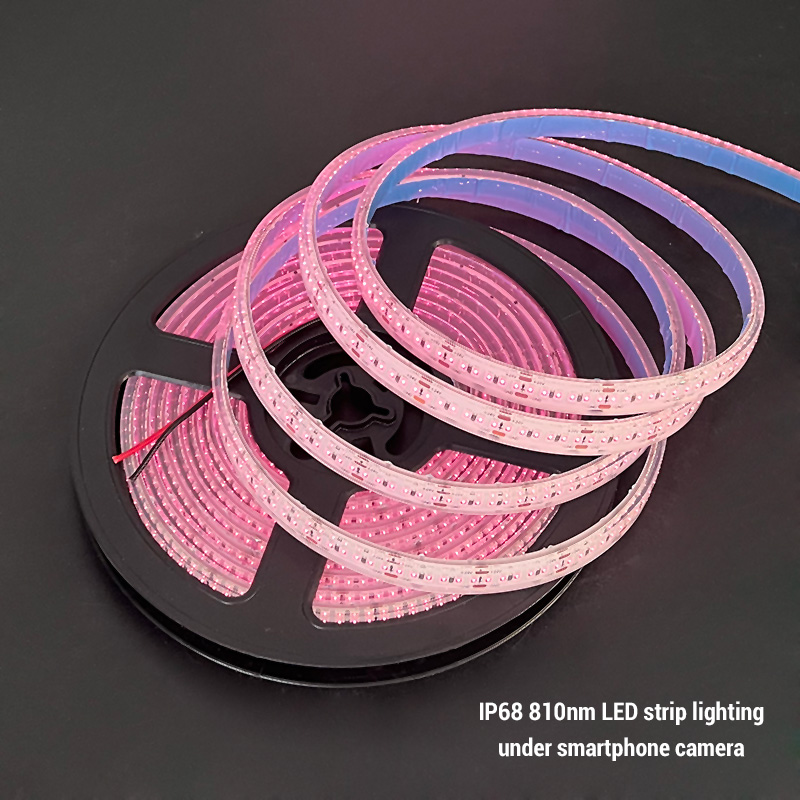

The images show what the highest-density 2835 LED 810nm strip (8mm version) looks like.
Explore our full range of 810 nm wavelength LED products.
• Ultra bright light 810nm, 830nm, 850nm, 940nm, 780nm (infrared), 660nm, 635nm (red) with high efficiency SMD 2835 1-core LED chips
• Near infrared light, dimmable and support external smart control
• 8/10mm flexible PCB width with adhesive backing (7 days version is 10mm)
• Waterproof IP ratings for indoor and outdoor use are available
• Kit: 5m-reel 810 nanometer led strip + LRS-100 meanwell power supply LRS-100-12 or LES-100-24
Near Infrared NIR 810nm LED Light Spectrum Download
Product Specification
| LED System: | Special Wavelength Lighting Systems |
| Brand: | SuperLightingLED |
| LED Strip Type: | Near Infrared LED Strip Light |
| LED Type: | SMD2835 |
| Input Voltage: | DC12V, DC24V |
| Power: | 80W/reel, 16W/m, 4.9W/ft max. |
| Light Wavelength: | 810 nanometer |
| Width: |
8mm/0.31" or 10mm/0.4" for IP20 and IP65, 10mm/0.4" or 12mm/0.47" for IP67 and IP68 |
| Length: | 5m, 16.4-ft |
| Height: | 1.4mm (IP20). 2mm (IP65), 6mm (IP67/68) |
| LED Color: | Red |
| LED Quantity: | 240 LEDs/m, 1200 LEDs/reel |
| Cuttable: |
DC12V - 3 LEDs, 12.5mm/0.5" DC24V - 6 LEDs, 25mm/1" |
| Connector: | 2-pin power cord at both sides |
| Connector Length: | 15cm (4"-6") |
| Waterproof Rating: | Non-waterproof IP20, Waterproof IP65 IP67 IP68 |
| Beam Angle: | 120° |
| Application Focus: | Biotherapy, Wellness devices, Machine vision & sensing |
