Dual Row Infrared 850/940nm DC12V 5050SMD 144W LED Light Strips - 600LEDs IR LED Rope Light
Related Products
Dual Row Infrared...
$99.98 $35.9864% off
Mean Well LRS-200-12...
$45.00 $37.9816% off
Mean Well UHP-200-24...
$64.98 $50.9822% offMean Well UHP-200-12...
$64.98 $56.9812% off
Mean Well LRS-200-24 ...
$39.00 $36.985% off
200W16.7A DC12V Constant...
$49.98
200W8.33A DC24V Constant...
$49.98 $38.9822% off- Special Price: $99.98 $35.9864% off

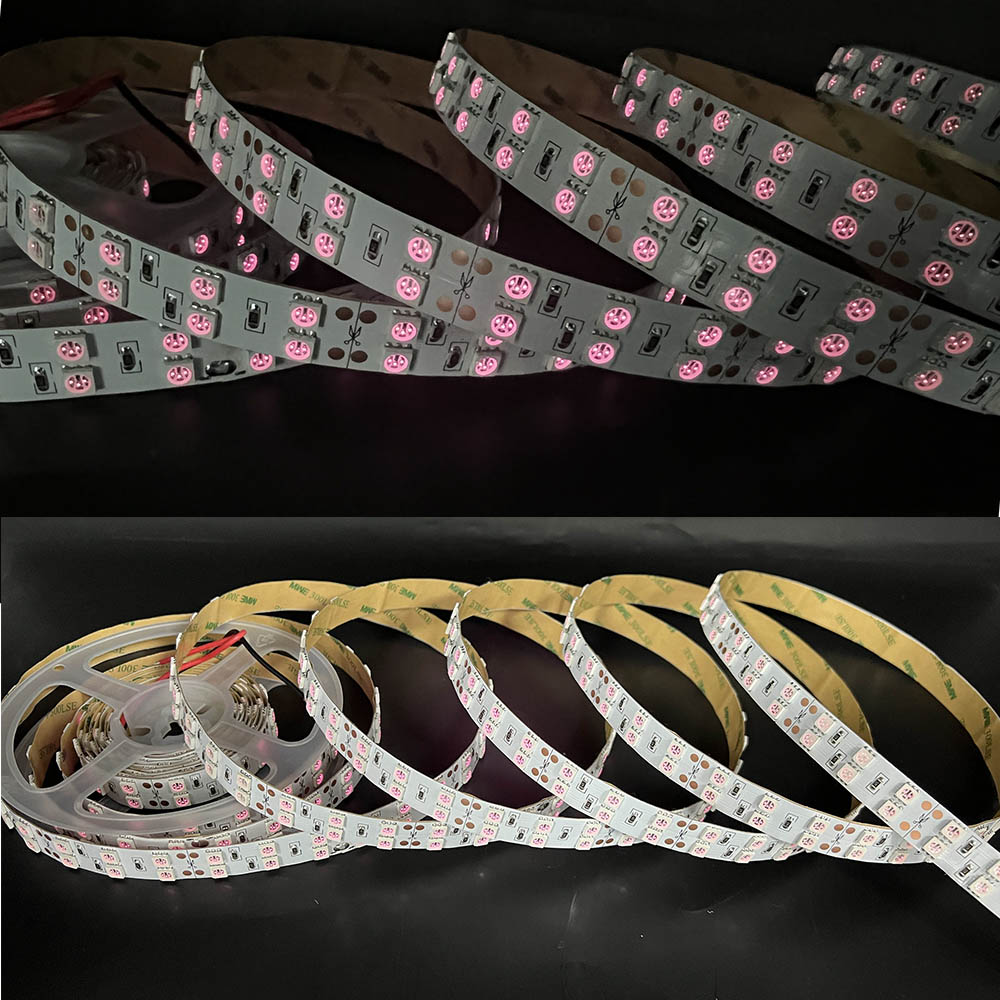

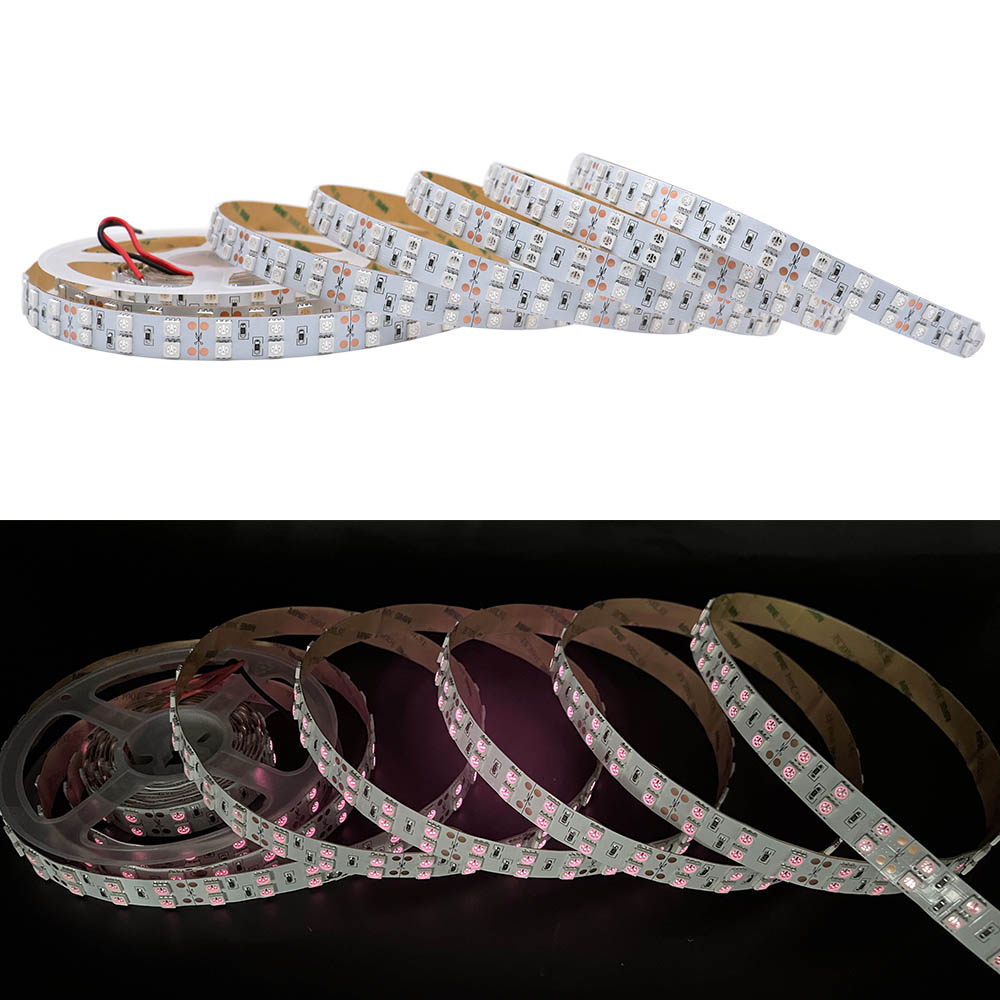

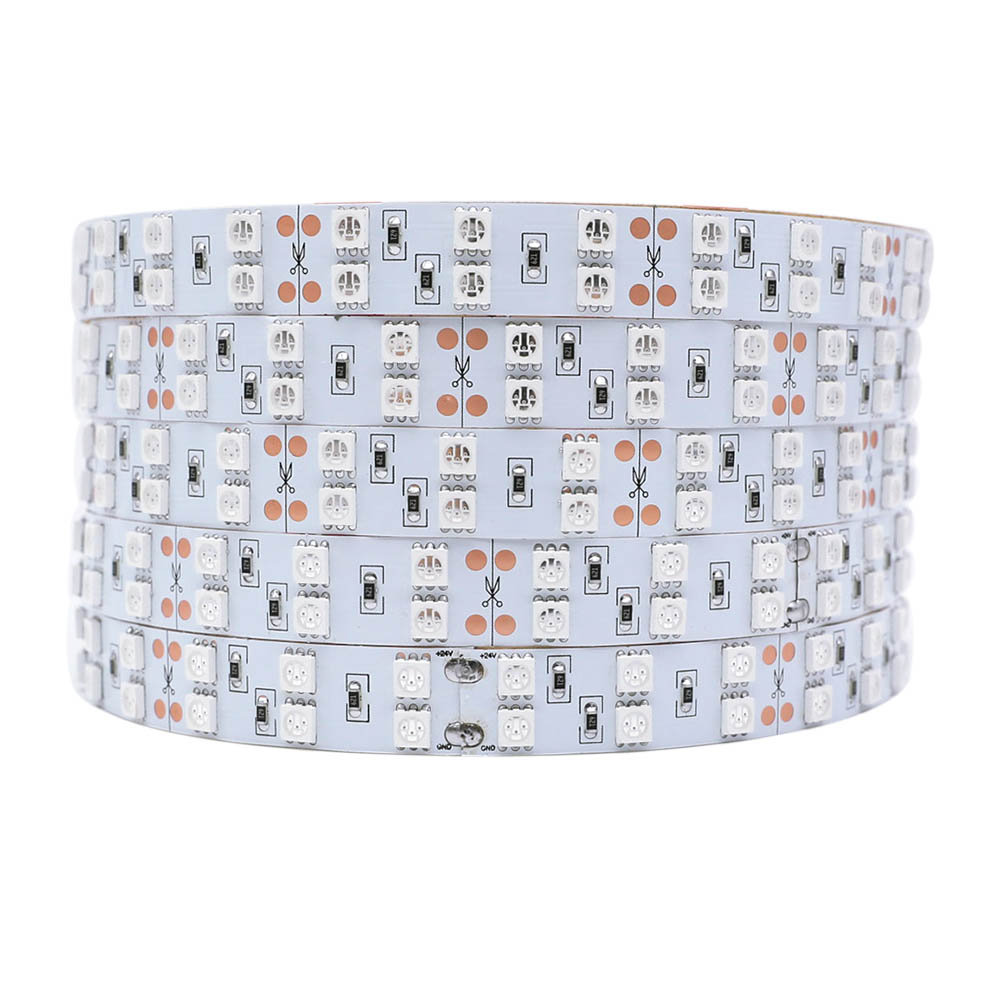

Dual Row 940nm, 850nm infrared LED strip light with 600 pcs high bright 5050SMD LED chips, 15mm wide PCB board, suitable for High bright IR LED lighting project.
The 940nm, 850nm IR LED strips emit the light that is virtually invisible to the naked eye, these IR LED lights can be dimmed the brightness via using the LED dimmer controller.

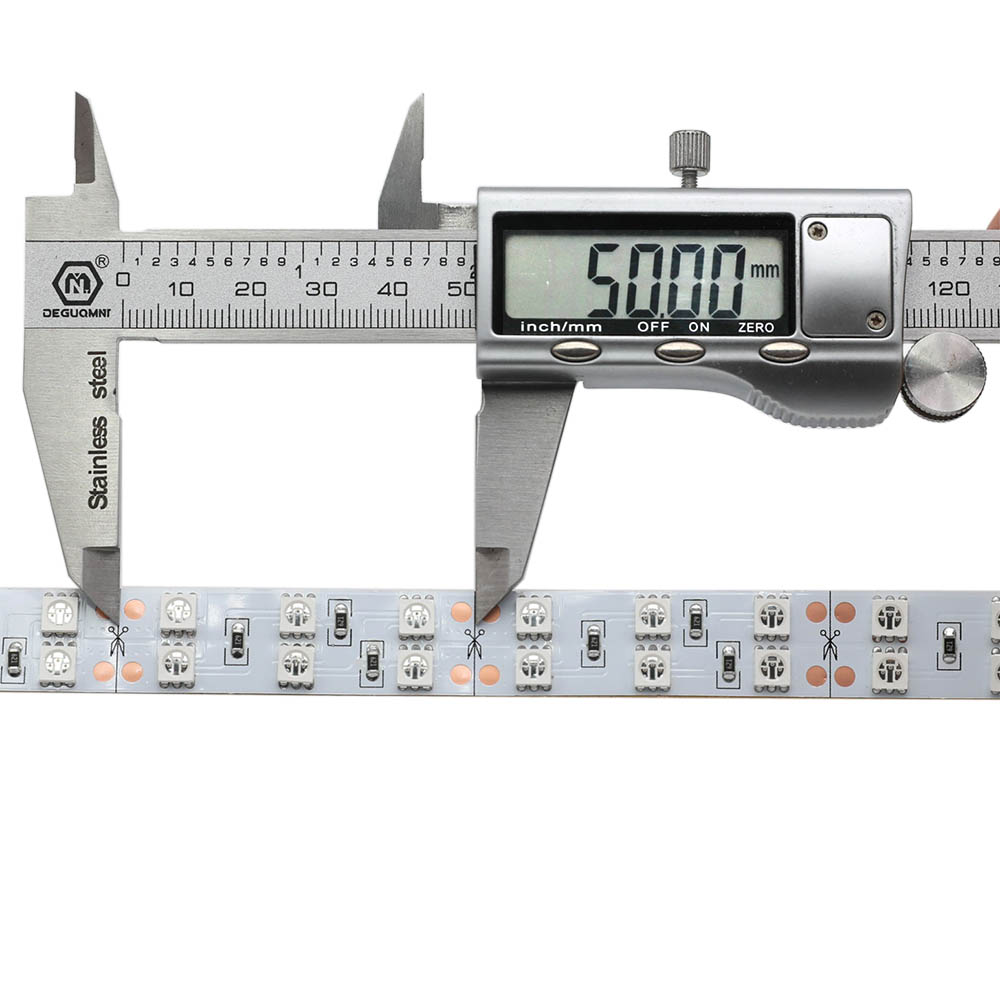

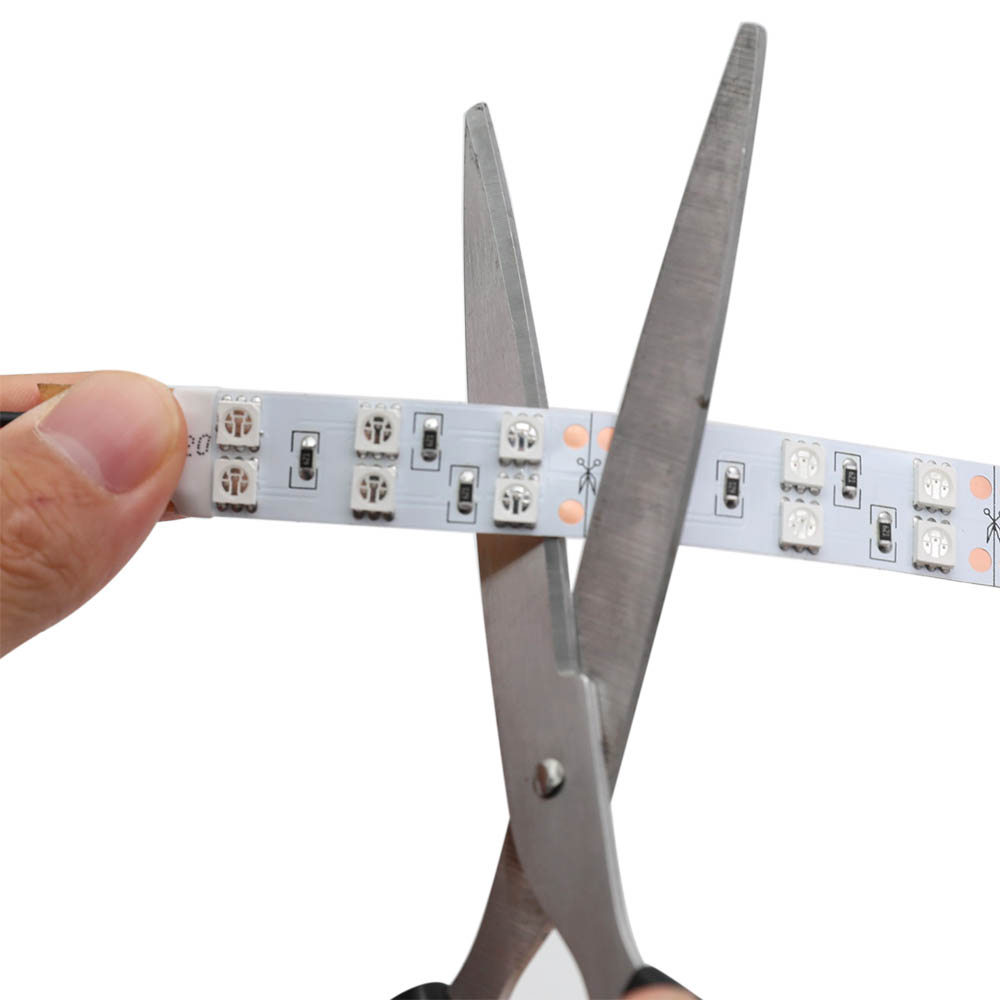

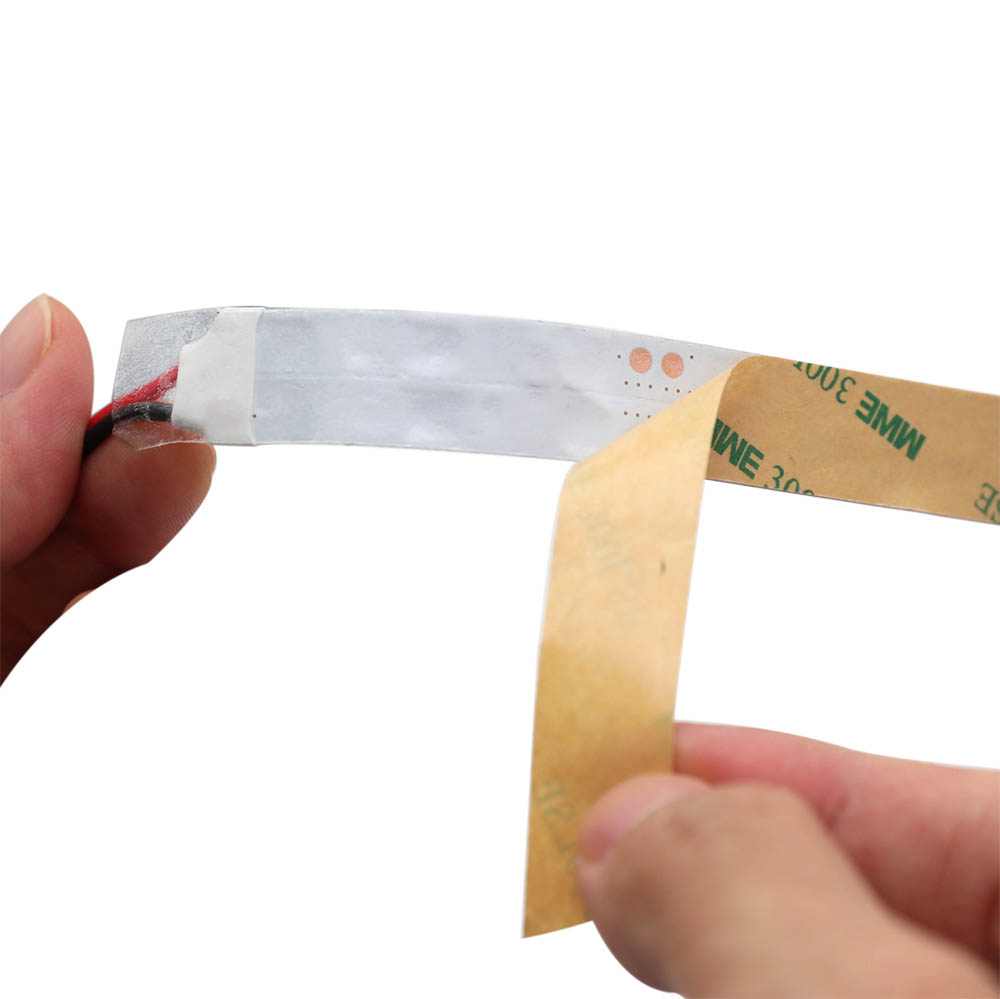

DC12V input, every 6 LEDs can be cut (50mm/2"); DC24V input, every 12 LEDs can be cut (100mm/4"), easy to cut and won't damage the LED strip light. With 3M adhesive backing tape, you can install the lights anywhere you need.
Widely used for many commercial applications, such as IR night vision, infrared photography surveillance lighting, and infrared automatic inspection and detection light.
We offer LRS-200-12 or LRS-200-24 power supply in the kit for sample testing (come with AC plug).
If you wish to learn more about a specific wavelength, please click the links below for details:
FSLDR-120-5050-660NM (660 nm deep red LEDs)
FSLDR-120-5050-730NM (730 nm hyper red LEDs)
FSLDR-120-5050-810NM (810 nm near-infrared LEDs)
850nm Near Infrared LED Spectrum Download
940nm Infrared LED Spectrum Download
Product Specification
LED Strip Type: SuperLightingLED Bright Infrared LED Strips
LED Chip: SMD 5050
Light Color: Invisible
Dimension: every 6/12 PCS LED can be cut, 50mm/100mm cut length
LED Quantity: 120 LEDs per meter (36/ft)

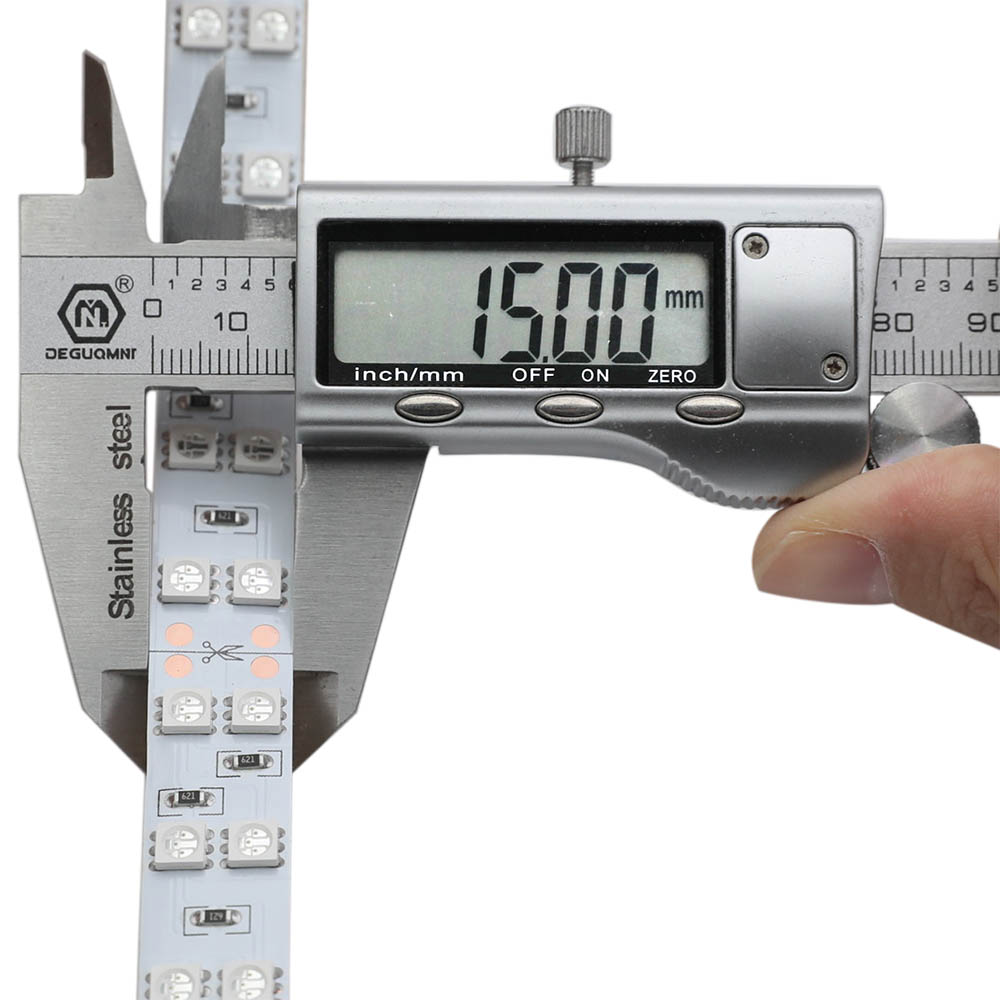

Dimensions: L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC, 24VDC
Working Power: 144W Max
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67, IP68
Application
*For surveillance or security
*For Night Version Light
*For Red Light Therapy
*For the multitouch display
*For infrared automatic inspection and detection light.
Do LEDs Emit IR: Guide to Know Infrared Lights
Key Differences Between NIR LED Near Infrared Light Wavelengths
850nm Near Infrared Light:
660nm Deep Red Light:
730nm Far Red Light:
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Industrial-grade IR output - Perfect for long-range night vision
DATA SHEET
Click the link above to view the full product details, technical specifications, and wholesale pricing in a printable format.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
