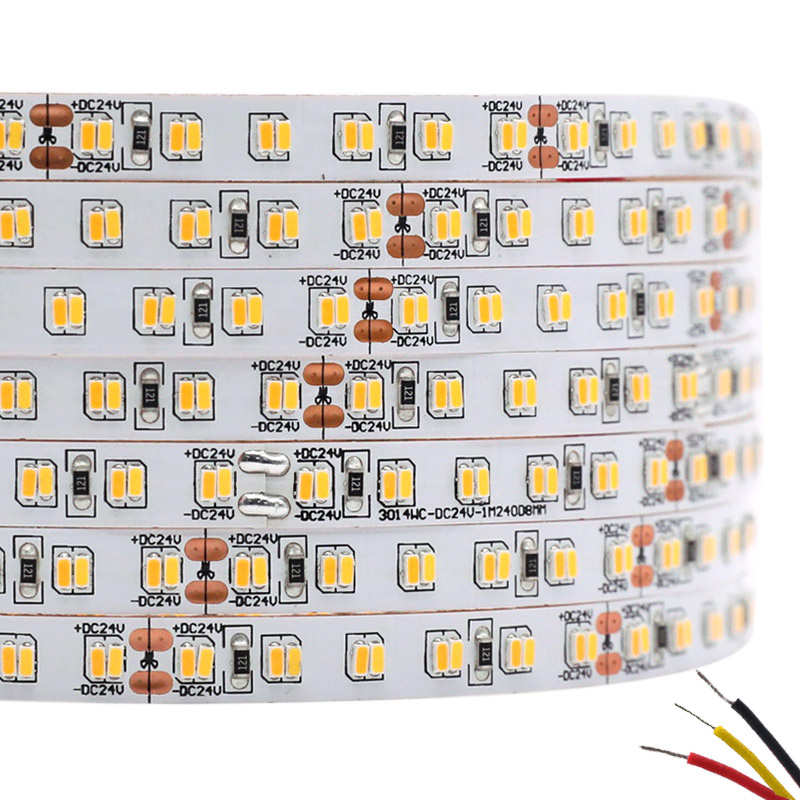

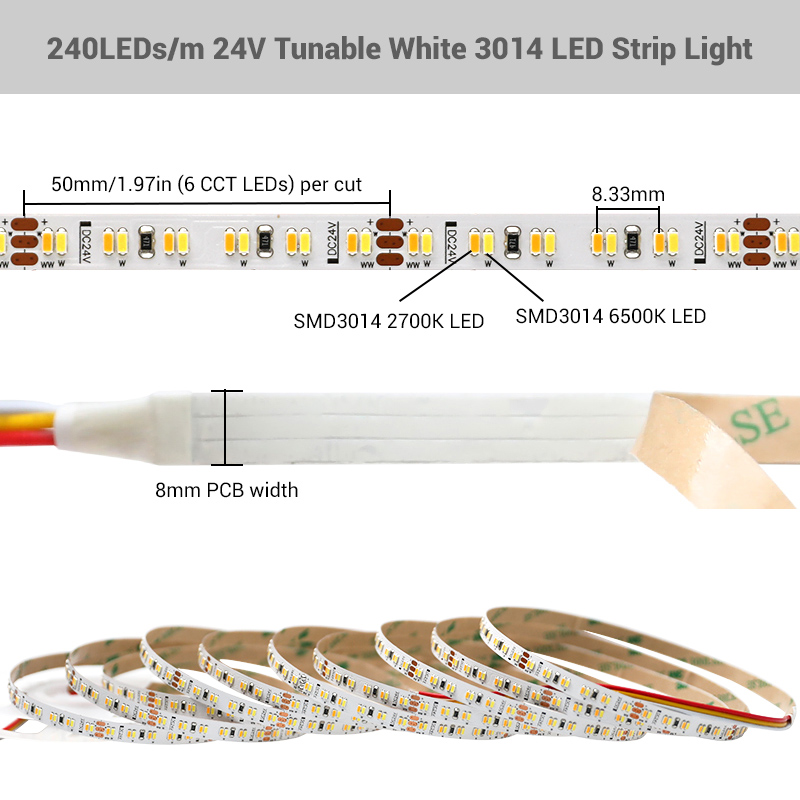

3014 240LEDs/m Tunable White LED Strip Light 24V 8mm
Special 2-wire CCT type. A high density 240LEDs/m (120 warm white LEDs and 120 natural white LEDs) 8mm wide DC24V 3014 tunable white LED strip. The high LED density configuration of this CCT LED strip provides a bright and uniform lighting effect.

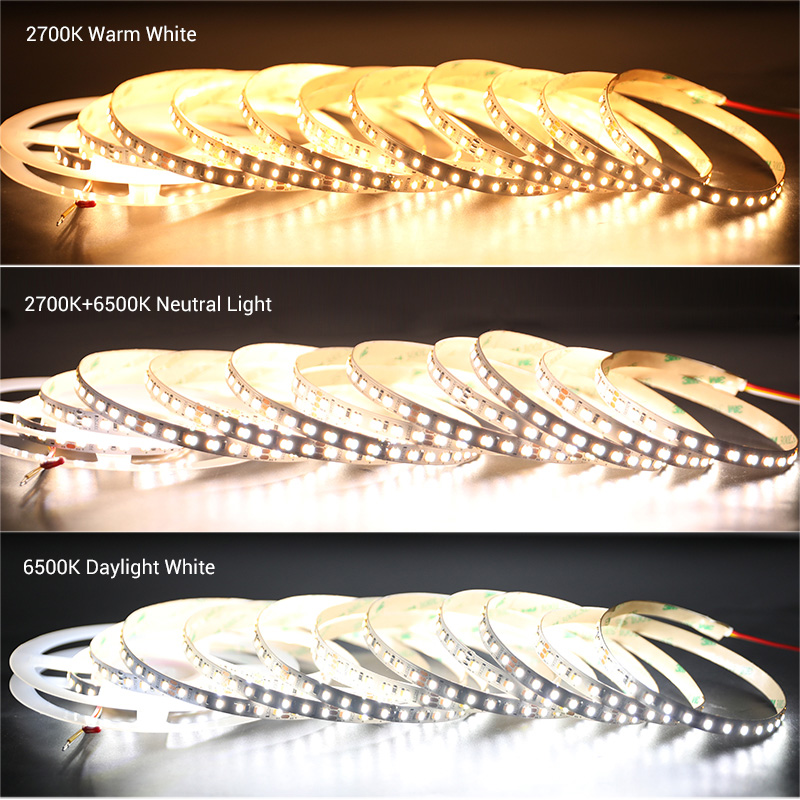

By switching or mixing the warm white light and natural white light, you can achieve different scenarios of color temperature demand with this CCT tunable light strip. For example, you can choose warm white light for creating a warm and cozy atmosphere, while natural white is suitable for where require brighter and clearer illumination.
Note: The 2700K-4000K white light color temperature adjustable ability must be achieved with a 2-wire tunable white LED controller like V2-S (controller in the kit), V2-S(WZ), LC2-RF, LC2-ZR.
|LED Strip Type:||2-Wire Tunable White LED Strip Light|
|LED Color:||CCT Tunable, 2700K-4000K color temp|
|LED Quantity:||240LEDs/m, 1200LEDs/16.4ft|
|Waterproof Rating:||Non-waterproof IP20 / Waterproof IP67|
|Lifespan:||50,000 hours +|

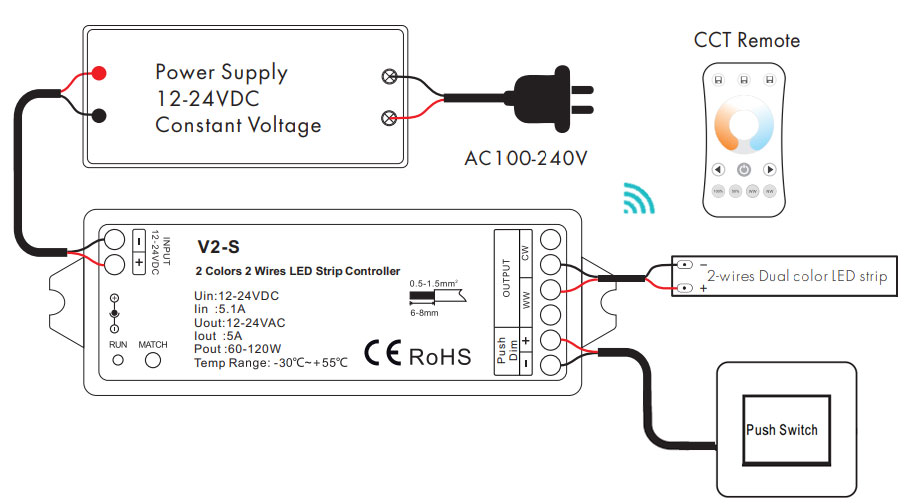

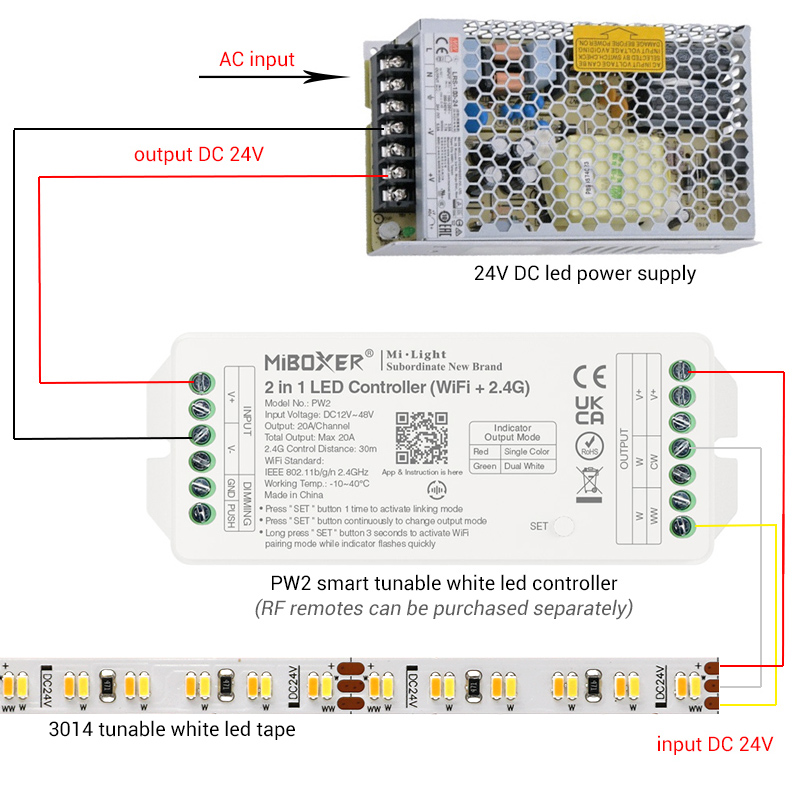

2-Wire Tunable White LED Strip Wiring Diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
