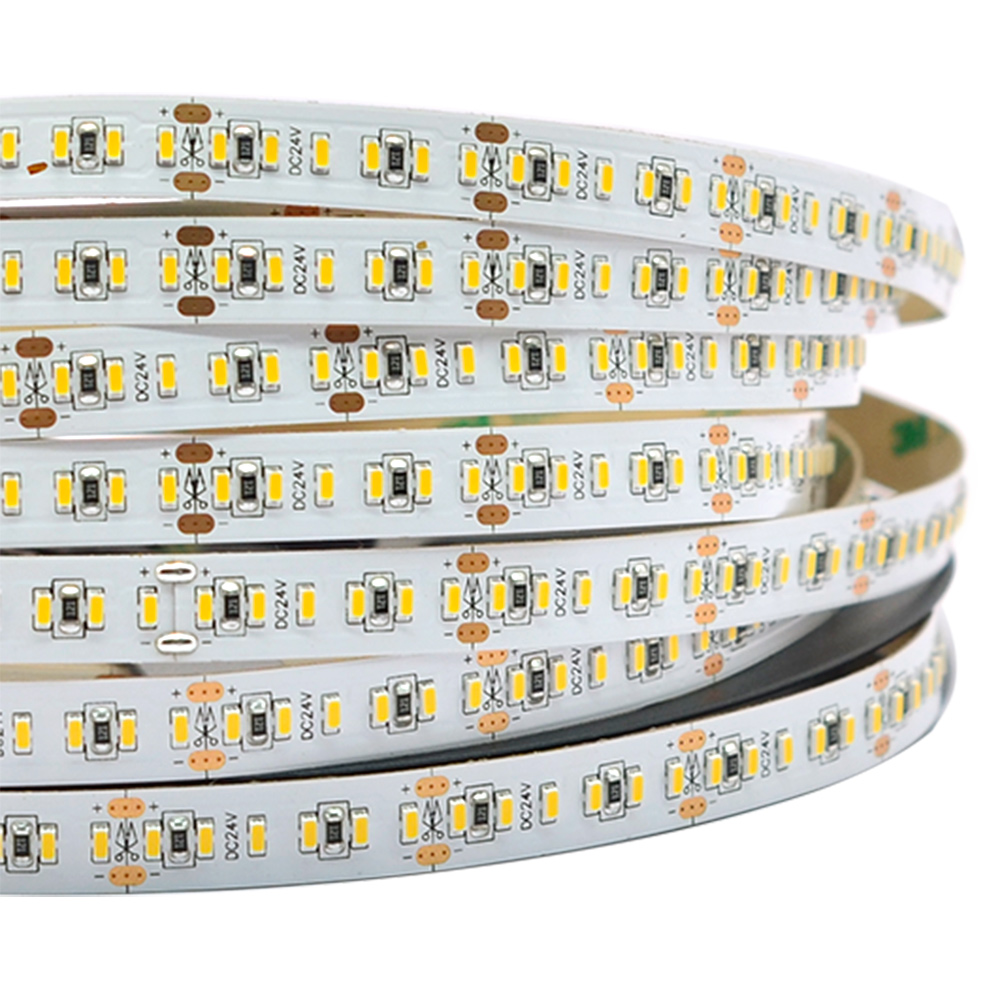

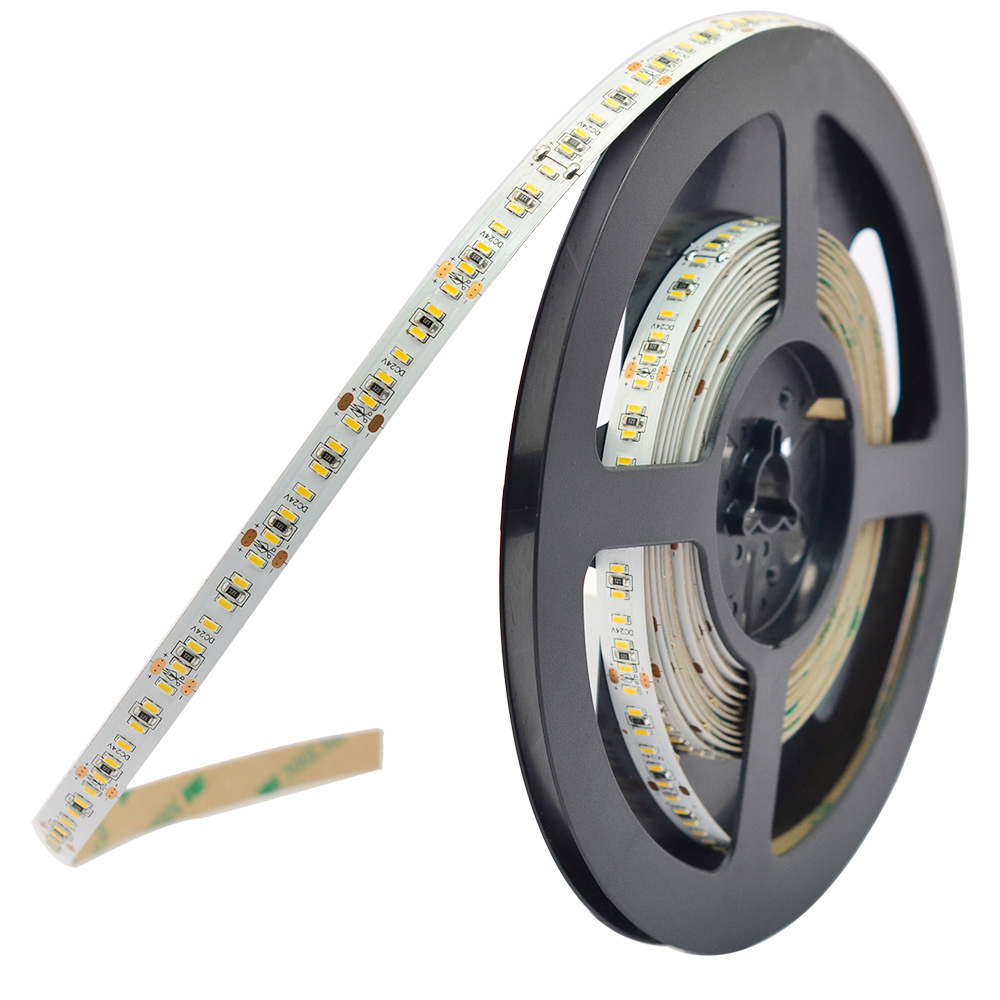

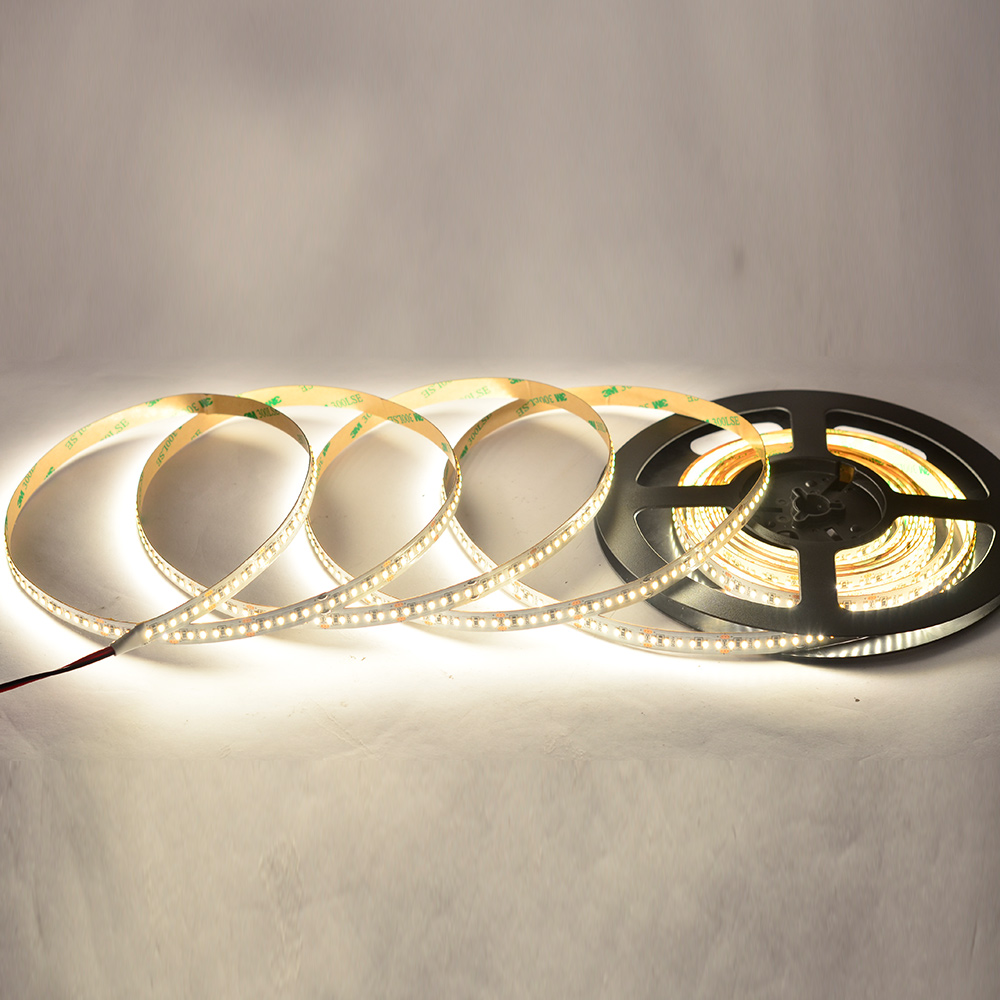

DC12/24V 3014SMD 1020LEDs Flexible LED Strip Lights - 16.4ft Per Reel
Super slim super narrow single color super bright 3014 SMD(SMD:Surface Mounted Devices) Non-Waterproof Flexible LED Tape strips, Epistar chip, 1020LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.
Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere. The light strips of 12V DC can be cut into 3-LED segments, the light strips of 24V DC can be cut into 6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12/24V DC operation. Dimmable - See compatible LED dimmers.
Standards and Certifications
LED Strip Type: SMD 3014 1020PCS/16.4ft
LED Chip: Super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

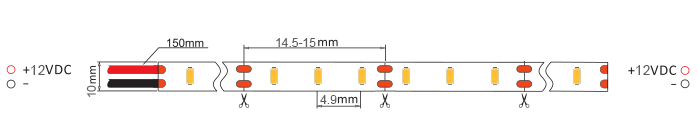

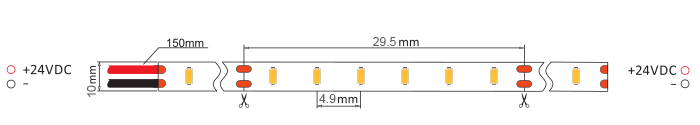

Dimension: 16.4ft/roll, every 3 PCS LED can be cut ( 12DC ) / every 6 PCS LED can be cut ( 24DC )
LED Quantity: 204 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12/24VDC
Working Power: 4.25A 102W /16.4ft Max
Lamp Luminous Flux(lm): 9~10lm/LEDs 8360lm/16.4ft 509.8lm/feet 81.96lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-9000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof ,Waterproof IP65/IP67/IP68
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

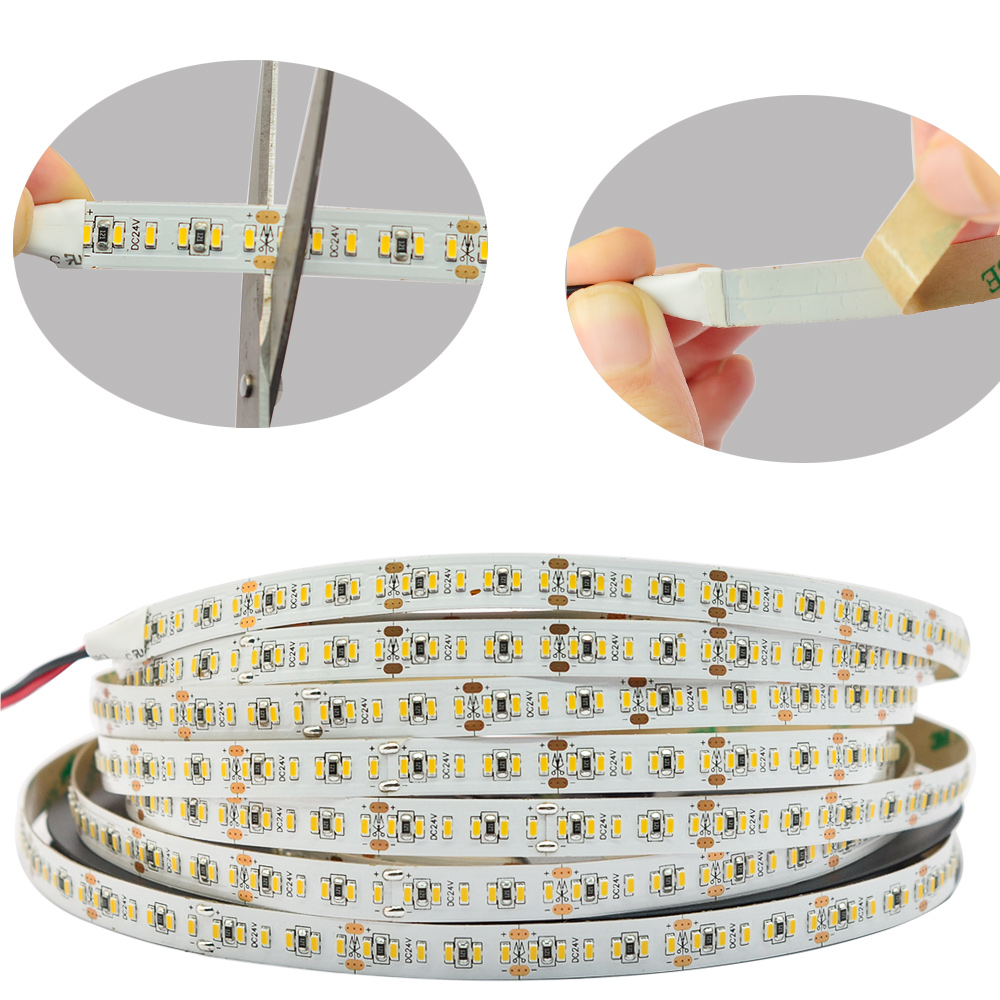

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
We sell led strips in spools of 32.8 Ft (10 meters). If you want to use with more than 32.8 Ft length, we recommend the following instruction:

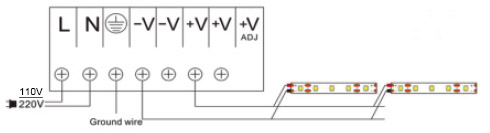

1. LED Strips with a direct connecting diagram

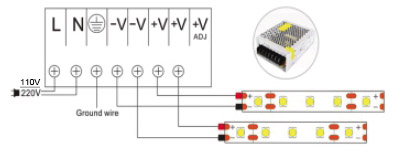

2. Multiple Strips connecting diagram

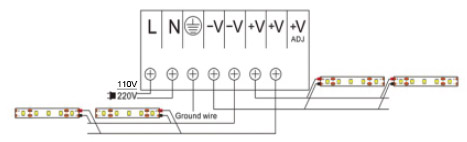

3. Strips with a two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 150Watt power supply) /(use a DC12V 150Watt power supply)，and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: firstname.lastname@example.org
Trademark lighting Logo lighting
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
What is the SMD2216 LED strip lights?
The SMD 2216 is the latest new members of the SMD LEDs family. It is the tiniest sized version but being with stable gold wire package. People could pitch more LEDs on PCB since it’s a small size (2.2 millimeters in length and 1.6 millimeters in width). High density led quantities on flexible PCB board means brighter but without light shadow nor dark areas. It’s always used for the light source of led fixture and profiles. SMD 2216 can be in different white color temperature led strips:2700k incandescent, 3000k warm white, 3500k soft white,4000k,5000k, 6000k cool white
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
