High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V

Model: FSLSR-IP20-3014X1200
High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
  • High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
  • High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
  • High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
  • High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
  • High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V

Select Specifications:

Select PCB Width:

Starting at: $49.98 $44.9810% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$44.98
5-9
$44.08
10-14
$42.73
15+
$40.93
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Super slim single row high-density single color super bright 3014 SMD(SMD:Surface Mounted Devices) Waterproof optional Flexible LED Tape strips, Epistar chip, 1200LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

    Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof optional flexible light strips with adhesive backing and can be stuck just about anywhere(IP67 IP68 type which will come with mounting brackets).The light strips of 12V DC can be cut into 3-LED segments, the light strips of 24V DC can be cut into 6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12/24V DC operation. Dimmable - See compatible LED dimmers



    Standards and Certifications

    DC12/24V CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof


    Product Specification

    LED Strip Type:   SMD 3014  1200PCS/16.4ft

    LED Chip:   Super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

    Dimension:   16.4ft/roll,  every 3 PCS LED can be cut ( 12DC ) / every 6 PCS LED can be cut ( 24DC )

    LED Quantity:   240 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

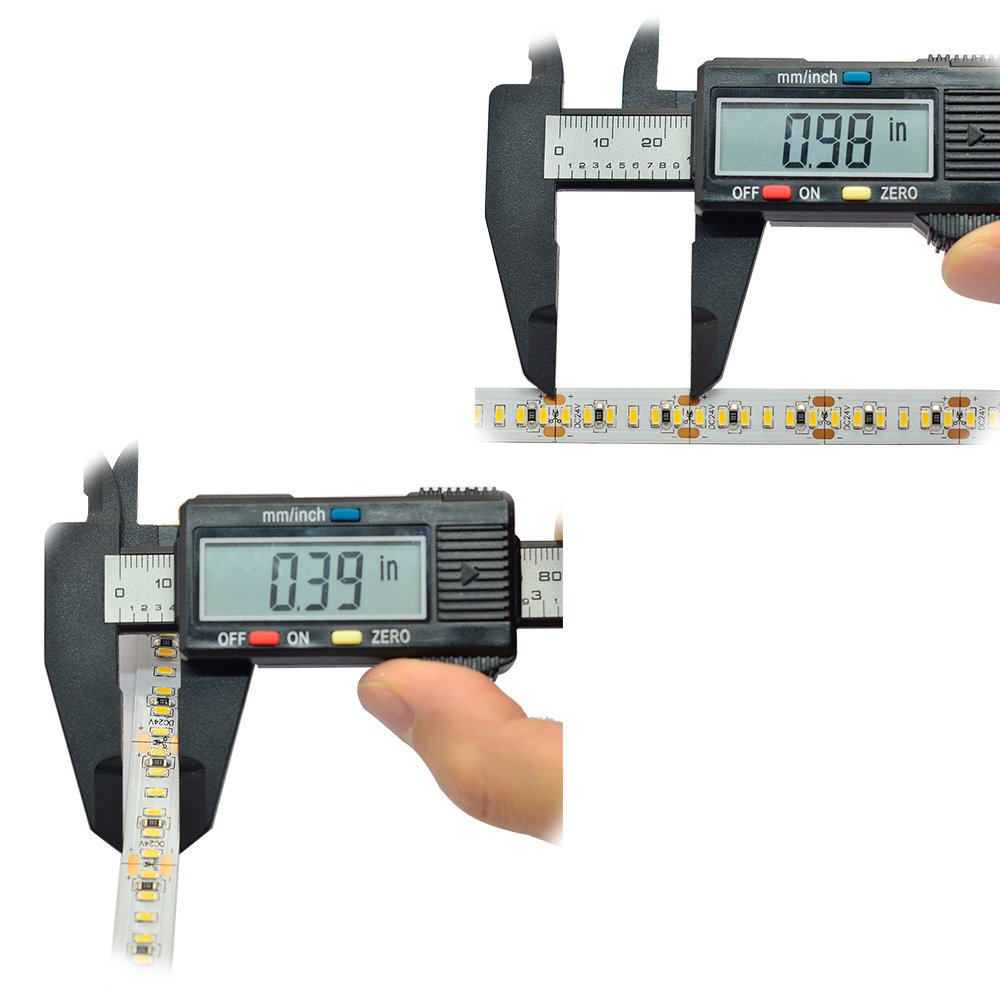

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   12/24VDC

    Working Power:   5A 120/16.4ft  Max

    Lamp Luminous Flux(lm):   8~10lm/LEDs   9840lm/16.4ft  600lm/feet   85lm/w

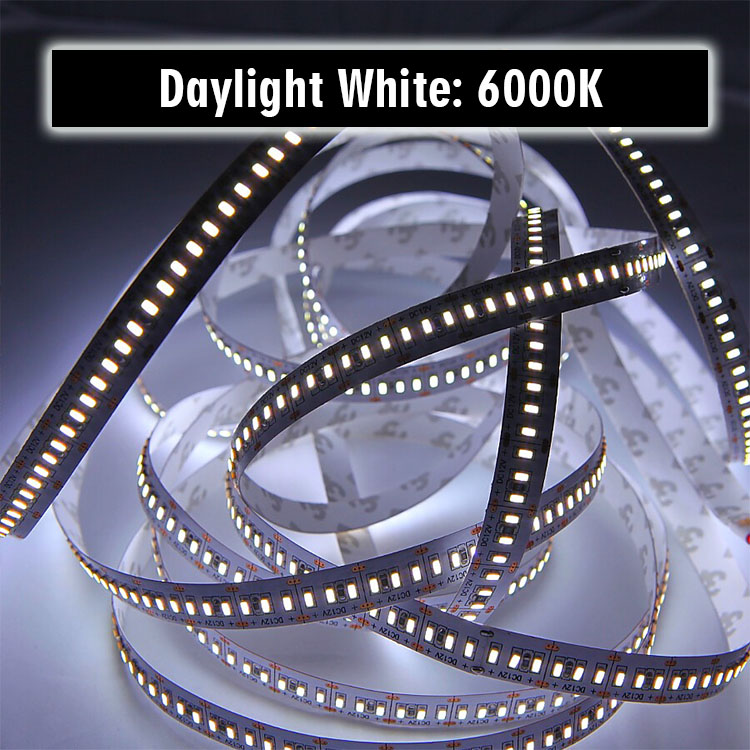

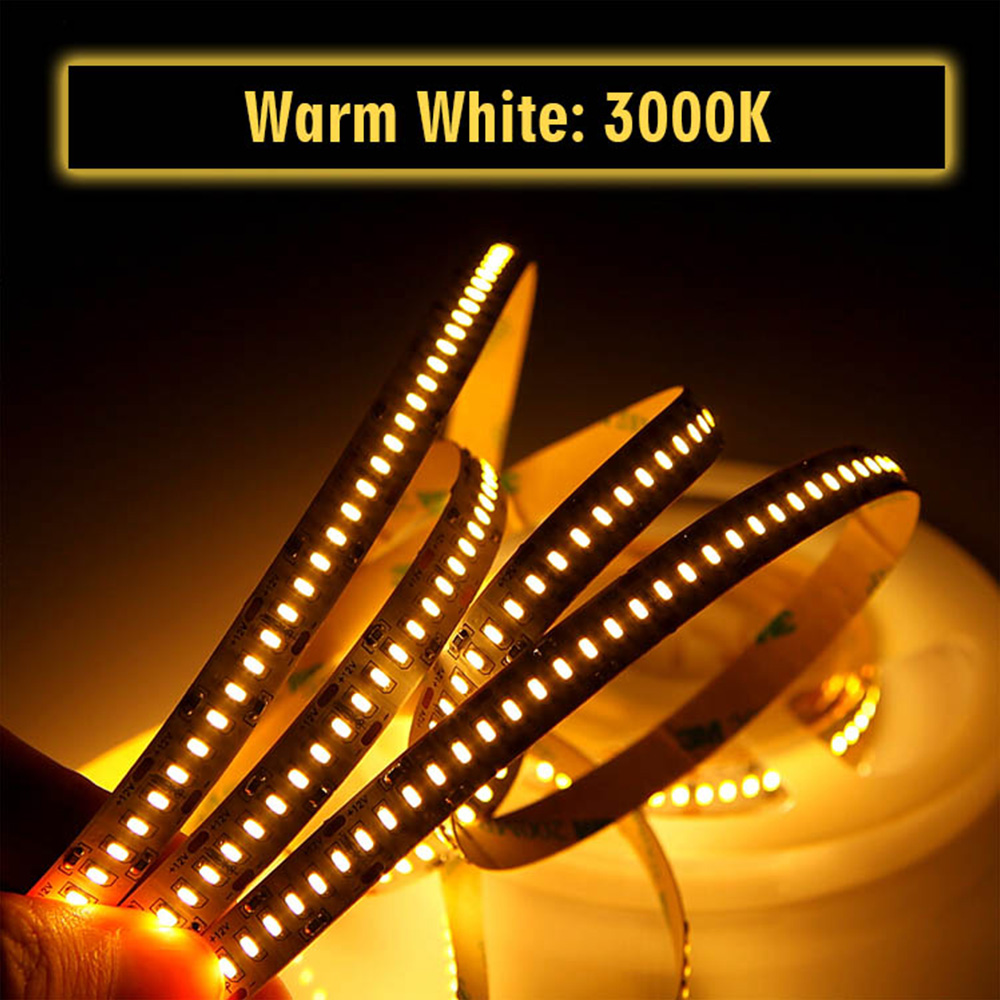

    Color Temperature CCT(White):  Warm White(2800-3500k), Daylight White(5200-7300k), Cool White(8000-10000k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 optional

    CRI (Ra>):  95

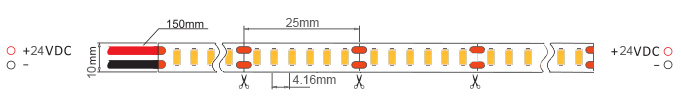

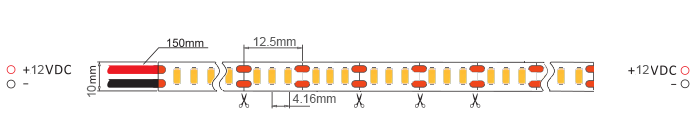

    Product Size:





    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?

    LED strip color temperature



    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

    CRI led strip



    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

    led strip waterproof level





    Installation Instruction

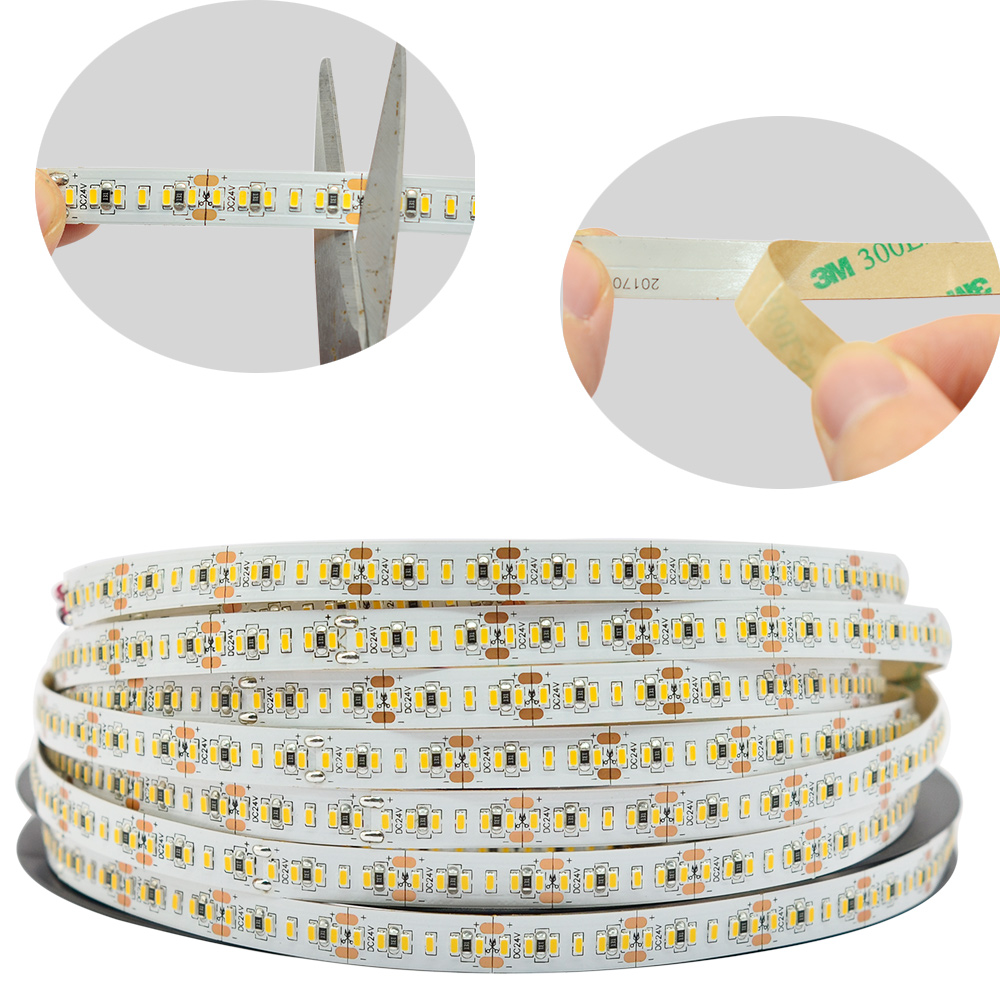

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements                 to many different surfaces.



    We sell led strips in spools of 32.8 Ft (10 meters). If you want to use with more than 32.8 Ft length, we recommend the following instruction:

    arrow Direct connecting

    arrow Multiple connecting

    arrow Two-way connecting



    1. LED Strips with a direct connecting diagram

    how to connect single color led strips

    2. Multiple Strips connecting diagram

    how to connect single color led strips

    3. Strips with a two-way connecting diagram

    how to connect single color led strips

    4.  You can also use our wireless controller,  Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring

    single color led strip light wiring diagram



    5. How does it work

    choose your led light stripsled power supplyled connectorled strip light dimmers

    The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 150Watt power supply),/(use a DC12V 150Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know:  sales@superlightingled.com



    Application

    arrow Trademark lighting                             arrow Logo lighting

    arrow Channel letters lighting                      arrow Lightboxes lighting

    arrow Landscape layout lighting                   arrow Stage decoration lighting

    arrow Sign cabinets                                      arrow Channel lights

    arrow Cove LED lighting                               arrow Edge lit signs

    arrow Canopy illumination                           arrow Off-grid lighting



    How to choose led strip lights

    Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.

    Different projects require different types of LED strips. When place order, please clear the following answers :

    arrow What is the SMD2216 LED strip lights?

    The SMD 2216 is the latest new members of the SMD LEDs family. It is the tiniest sized version but being with stable gold wire package. People could pitch more LEDs on PCB since it’s a small size (2.2 millimeters in length and 1.6 millimeters in width). High density led quantities on flexible PCB board means brighter but without light shadow nor dark areas. It’s always used for the light source of led fixture and profiles. SMD 2216 can be in different white color temperature led strips:2700k incandescent, 3000k warm white, 3500k soft white,4000k,5000k, 6000k cool white


    arrow What will you be lighting?

    This tape light can replace normal T8 tube or blub.

    arrow Where will it be installed (Indoor or outdoor)?

    Indoor or outdoor? This may be related to waterproof grade choose.

    arrow Do you want to dim your lights or control them with a remote or wall switch?

    If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.

    arrow What overall look do you want to achieve?

    This lightings that you going to buy can be daily use or decoration use.

    arrow What color do I need?

    This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.

    arrow What materials am I looking?

    The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of  CE, RoHS, ETL, and TUV.

    arrow Are there other lights in the area and if so, what color are they?

    In our company, we have a single colorcolor changing RGB RGBW led strips, high voltage led stripsprogrammable full color led strip lighting, please choose the lighting you like.




    High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    High Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24VHigh Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24VHigh Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24VHigh Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24VHigh Density 3014SMD 1200LEDs Flexible Single Color LED Light Strips - DC12/24V
