DC12V 3014SMD 600LEDs LED Lights - Super Narrow 5mm Width Flexible Lighting

Model: FSLSR-IP20-3014X600W4 Review stars 0.0 (0 Reviews) Various options in stock
Price$29.99 $7.9873% off
Qty Discounts Off Price
1-49
$7.98
50-99
$7.82
100-499
$7.58
500+
$7.26
* Discounts may vary based on options below
Select Specifications:
Select Length:
Select Waterproof Rating:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

The DC12V 3014 SMD 600 LEDs LED strip light delivers continuous linear illumination across a compact 5mm-5.2mm circuit board width. Engineered specifically for tight millwork slots, cabinet reveals, and miniature aluminum channels, this flexible LED strip features 120 SMD 3014 diodes per meter to maintain tight diode spacing and minimize hotspot reflection.

Each 16.4ft (5m) roll operates at 12VDC, draws 9.6W per meter (48W total), and includes pre-soldered red and black lead wires on both ends for fast installation. Available in Warm White (3000K) and Natural White (4000K) with Ra > 85, this LED tape light pairs directly with slim silicone neon diffusers to create completely uniform, dotless architectural accent lines.

Key Features

Ultra-Narrow 5mm PCB

Engineered with a slim 5mm width circuit board that slides into compact cabinet grooves and narrow lighting channels where standard 8mm or 10mm LED strips cannot fit.

High-Density 120 LEDs/m

Packed with 600 SMD 3014 LEDs per 5-meter reel, delivering smooth, continuous light lines with reduced optical scalloping.

Dual-End Pre-Soldered Leads

Factory-soldered red and black connection wires at both ends allow quick daisy-chaining or power injection without immediate soldering on-site.

Precise 25mm Cut Pitch

Cuttable every 3 LEDs (25mm / 0.98in) along dedicated copper cut marks to fit exact architectural dimensions.

Dotless Neon Tube Pairing

Fits inside miniature 5mm silicone neon diffusers to produce smooth, seamless neon-style glow for signage and accent displays.

Dual Color Selection

Available in 2 selectable color temperatures: cozy Warm White (3000K) or crisp Natural White (4000K) with color rendering index Ra > 85.

Technical Highlights

  • Slimline 5mm to 5.2mm flexible double-sided copper PCB facilitates efficient heat transfer and tight corner routing.
  • Operating voltage of 12VDC provides safe low-voltage handling for residential display cases and retail shelving.
  • Equipped with self-adhesive backing tape for secure, direct attachment onto smooth, clean substrates.
  • Full PWM dimming support when paired with a compatible single color dimmer or low-voltage control module.
  • Compatible with 12V power supply units to ensure stable lumen output without thermal overloading.

Product Specifications

ParameterDetails
Model NumberFSLSR-IP20-3014X600W4
LED Chip TypeSMD 3014
LED Density120 LEDs/m (36.6 LEDs/ft)
Total LED Count600 LEDs per 5-meter reel
Operating VoltageDC 12V
Power Consumption per Meter9.6W/m (2.93W/ft)
Total Power Consumption48W per 16.4ft (5m) roll
PCB Width5mm - 5.2mm (0.20in)
Strip Length16.4ft (5 meters)
Cutting IncrementEvery 3 LEDs (25mm / 0.98in)
Light Color ChoicesWarm White (3000K), Natural White (4000K)
Color Rendering IndexRa > 85
Beam Angle120 degrees
Waterproof RatingNon-Waterproof IP20
Mounting MethodAdhesive backing tape
Lead WiresPre-soldered 2-wire (red/black) on both ends
Working Temperature-20℃ to +45℃
DimmableYes, compatible with 12V PWM dimmers

Application Scenarios

Under Cabinet and Millwork Reveals With an ultra-thin 5mm profile, this LED strip conceals neatly within shallow routed cabinet channels and under-shelf reveals. It casts an even, flicker-free wash over work surfaces without exposing bulky fixtures.
Display Cases and Retail Vitrines Compact jewelry boxes, watch displays, and museum showcases require narrow lighting that stays hidden from viewing angles. The SMD 3014 chips deliver crisp 3000K or 4000K illumination with Ra > 85 to highlight product textures accurately.
Slim Silicone Neon Tubing Integration Feed this 5mm LED strip into micro silicone neon diffuser channels to achieve continuous, dot-free neon glow. It produces uniform curved script and geometric backlighting for architectural signage and decorative wall accents.
Cove and Baseboard Accent Lighting The dense 120 LEDs/m layout eliminates noticeable spotting along baseboard reveals, recessed drywall coves, and trim details. Both warm and natural white color options provide comfortable secondary ambient illumination.

How to Install & Use This LED Strip

  1. Peel back the adhesive backing tape incrementally and press the LED strip firmly along the dry, level surface.
  2. Connect the pre-soldered red wire to the positive (+12V) terminal and the black wire to the negative (-V) terminal of your 12V power supply or single color dimmer.
  3. Inspect electrical polarity before powering on. Connect to a regulated 12VDC constant voltage driver rated at 60W or higher for a full 5m run.
⚠ Precautions
  • Do not connect this 12VDC LED strip directly to 110V or 220V AC mains; a matching 12V DC power converter is required.
  • This product is rated IP20 Non-Waterproof and must only be installed in dry indoor locations free from water spray or condensation.

What's in the Box

  • ✓1 x 16.4ft (5 meters) DC12V 3014 SMD 600 LEDs Flexible LED Strip Light

Frequently Asked Questions

Q: Can I cut this 5mm LED strip to fit my exact installation length?

A:Yes, this 12V LED strip can be cut every 3 LEDs at 25mm (0.98in) intervals along the designated copper cut lines using clean wire shears.

Q: What power supply wattage is recommended for a full 5-meter reel?

A:A full 5-meter roll consumes 48W (9.6W/m). We recommend pairing it with a 12V power supply rated at 60W or higher to account for the standard 20% safety margin.

Q: Can this LED strip be used inside silicone neon tubing?

A:Yes, its super narrow 5mm PCB width is designed specifically to slide into 5mm silicone neon diffusers to create dot-free, uniform neon-effect lighting.

Q: Can I adjust the brightness of this single-color LED strip?

A:Yes, this strip is fully dimmable from 0% to 100% when connected between the 12V power source and a compatible PWM single color dimmer.



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLSR-IP20-3014X600W4
Need CAD drawings, IES files or a signed test report? Contact our engineers and quote the model number.

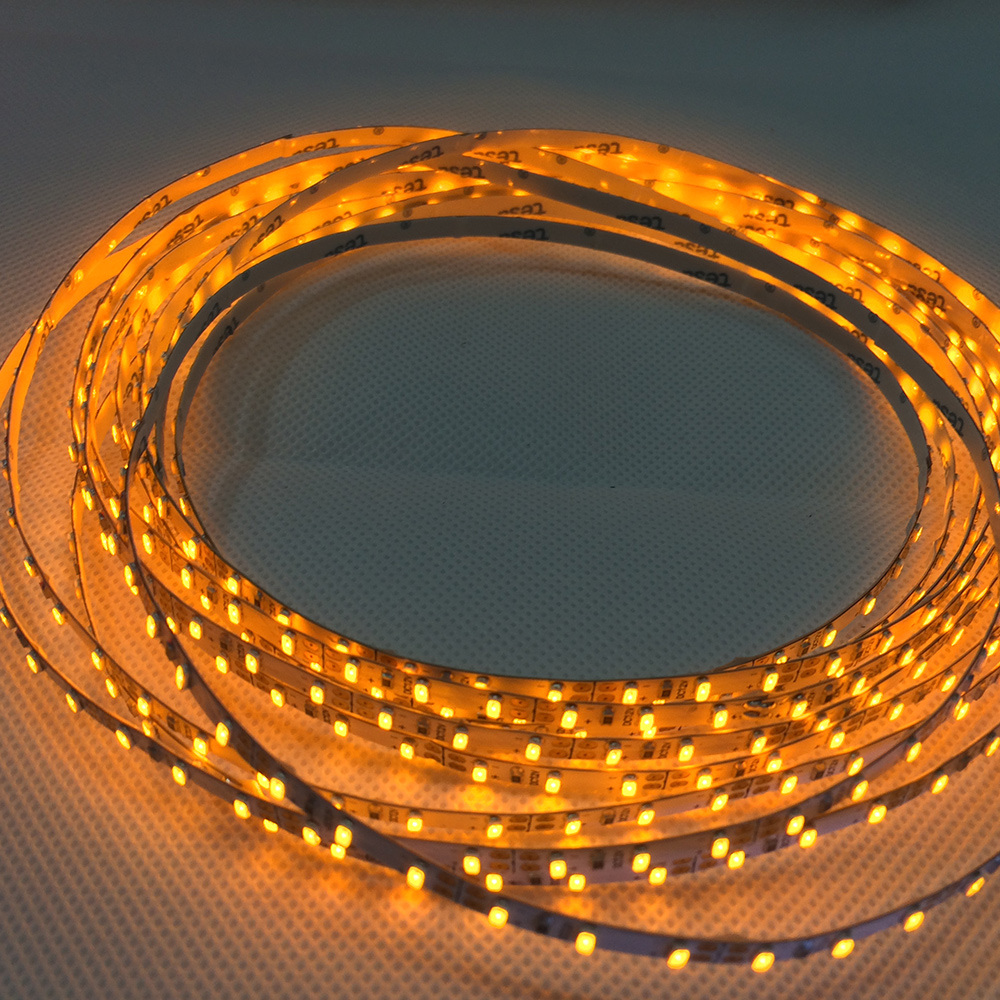

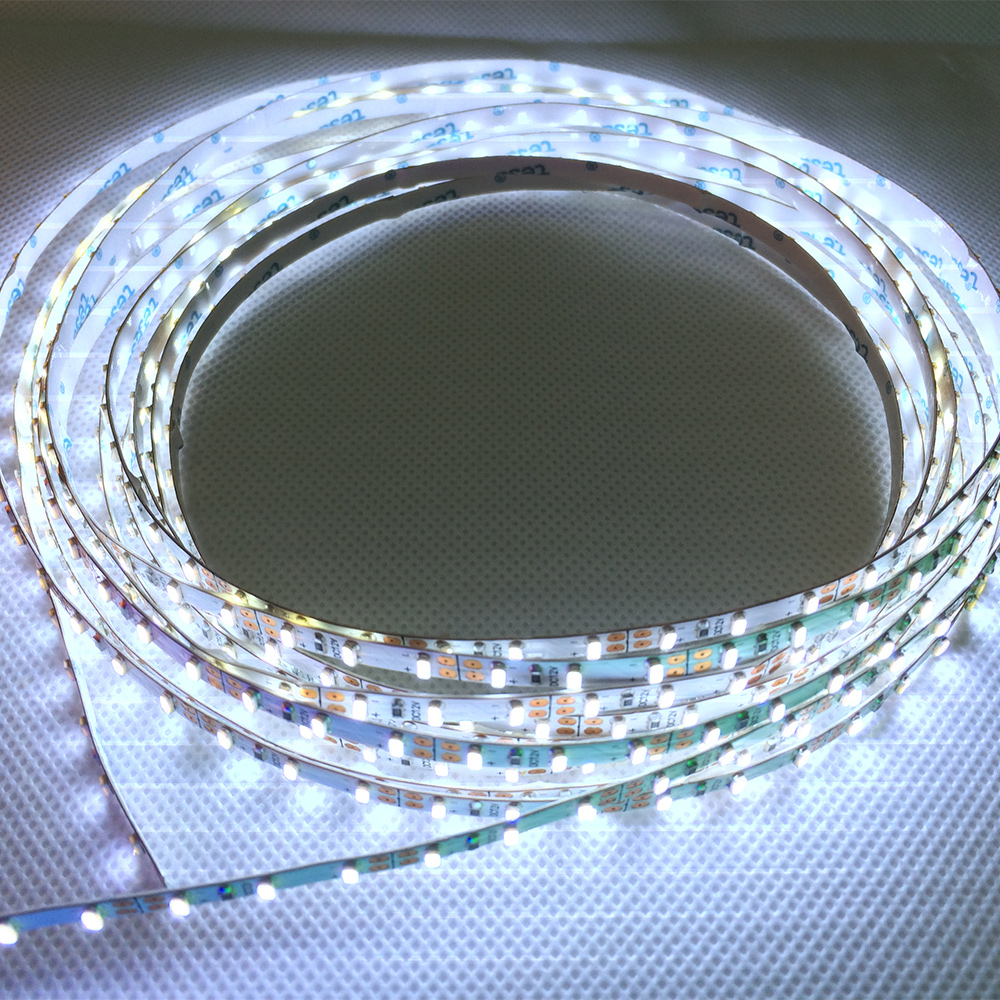

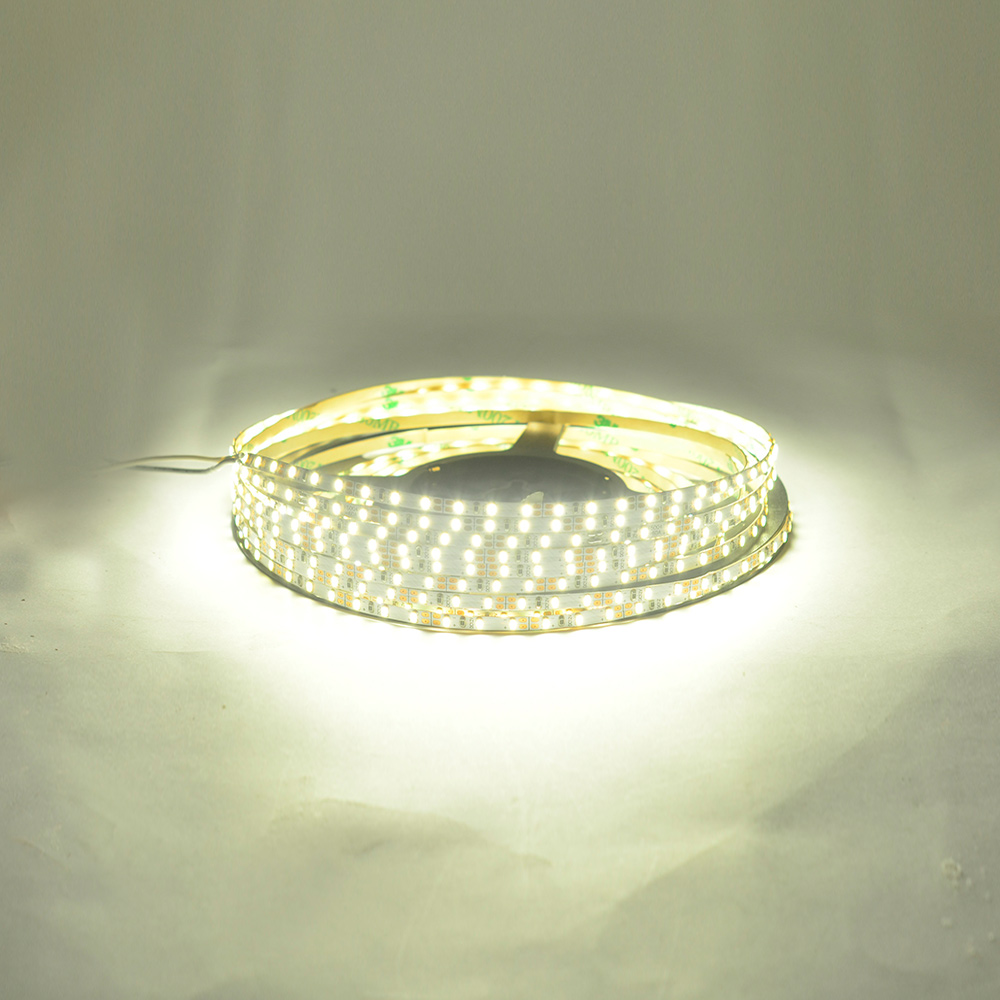

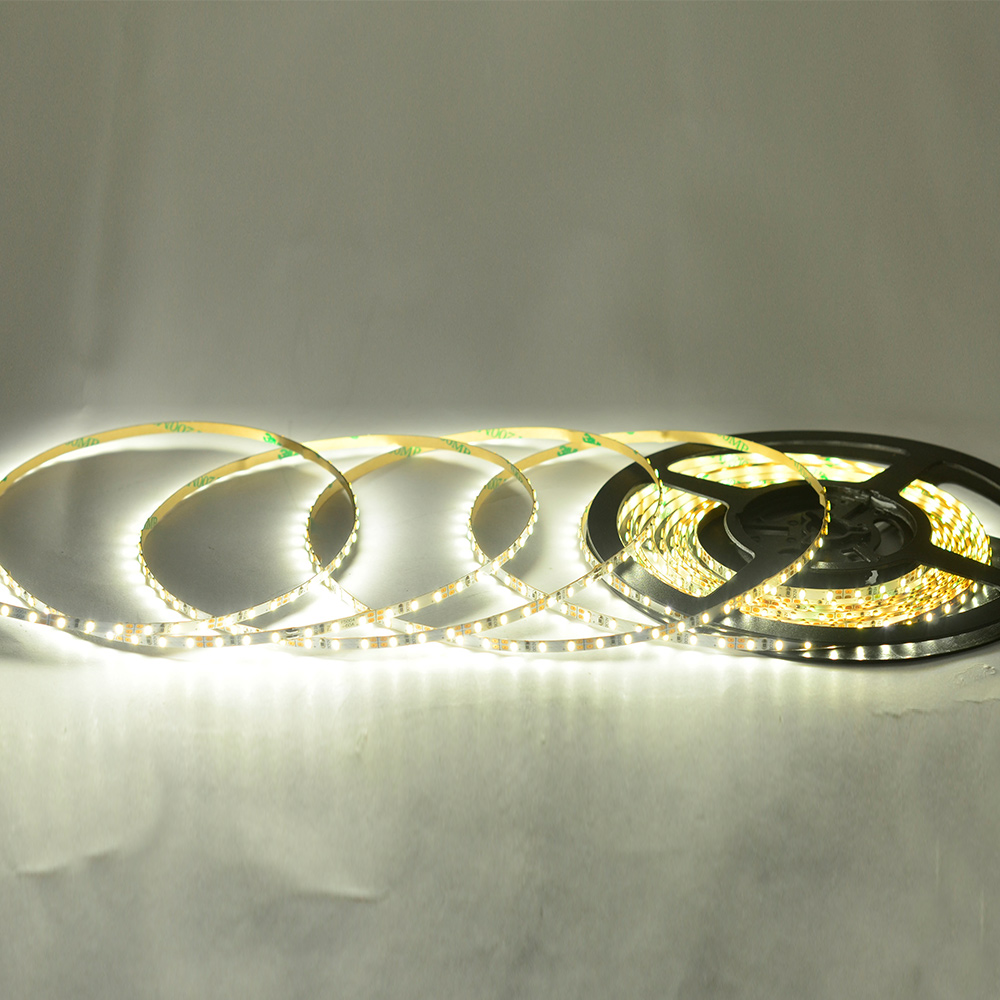

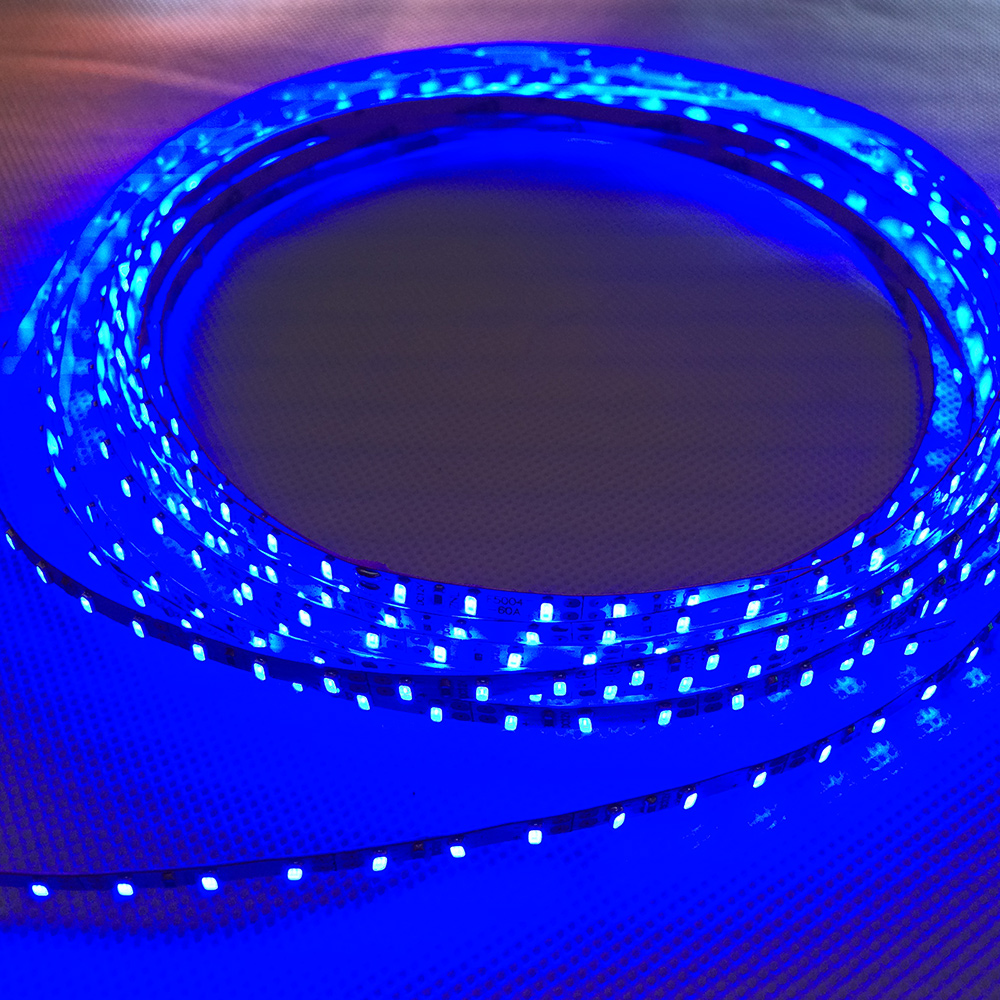

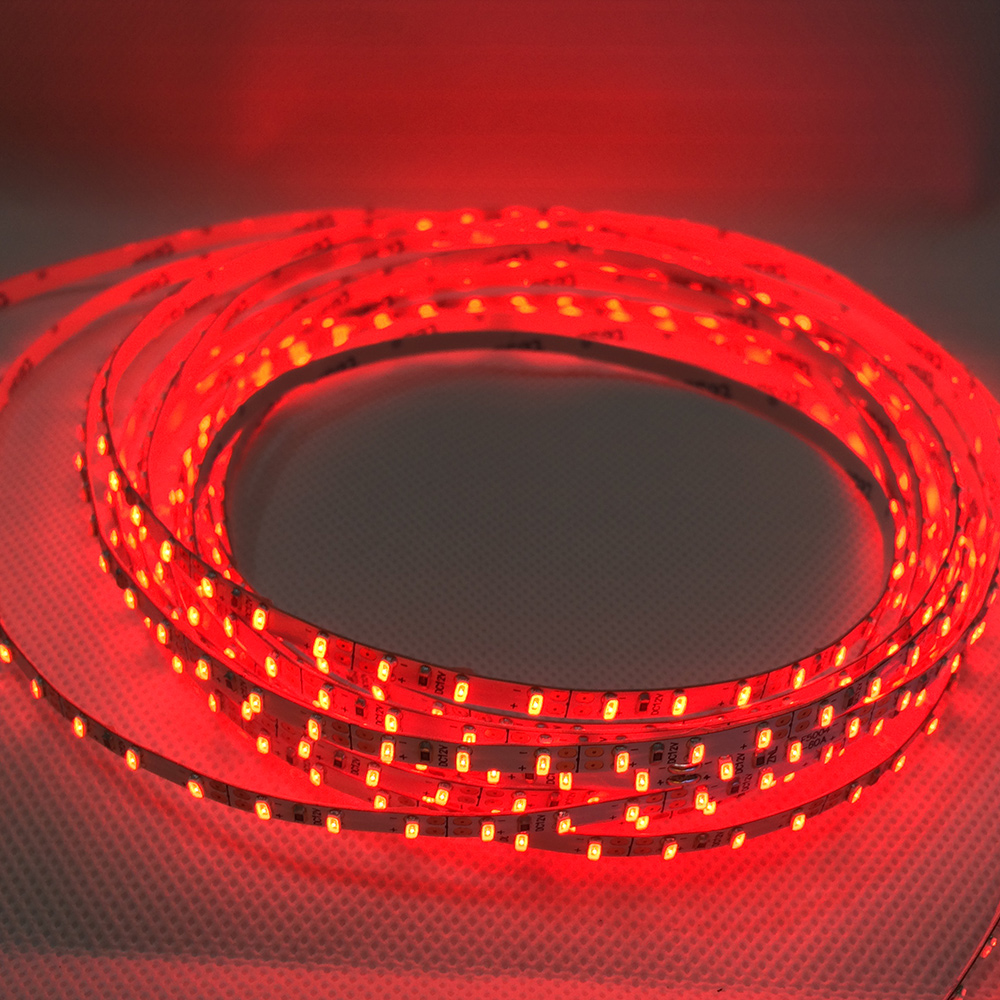

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

 DC12V 3014SMD 600LEDs LED Lights - Super Narrow 5mm Width Flexible Lighting DC12V 3014SMD 600LEDs LED Lights - Super Narrow 5mm Width Flexible Lighting DC12V 3014SMD 600LEDs LED Lights - Super Narrow 5mm Width Flexible Lighting DC12V 3014SMD 600LEDs LED Lights - Super Narrow 5mm Width Flexible Lighting

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which waterproof rating should I choose?
Available on this model: Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Which colour is right?
This model comes in Natural White(4000K) · Warm White(3000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
