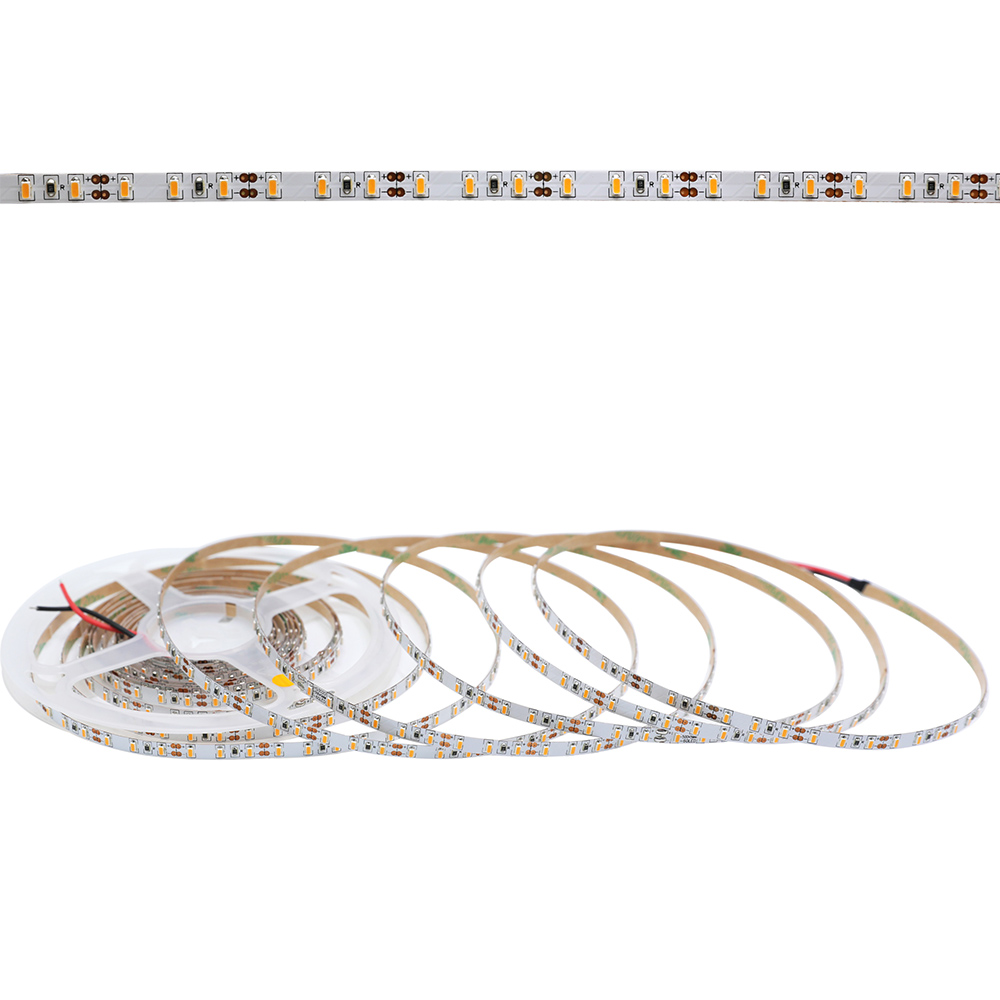

DC12/24V 3014SMD 600LEDs Flexible LED Tape Light - Width 5mm 16.4ft Per Roll
Ultra narrow single color super bright 3014 SMD Flexible LED Tape strips, Epistar chip, 600LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale. Sopport multi led light colors: 3000K soft white, 4000K natural white, 6000K daylight white, 7000K cool white, red, green, blue, and yellow.
12/24V DC operation. The narrow 12V DC led light strips can be cut into 3-LED segments, the slim 24V DC led strips can be cut into 6-LED segments, so you could cut a different length for your led lighting project and request.

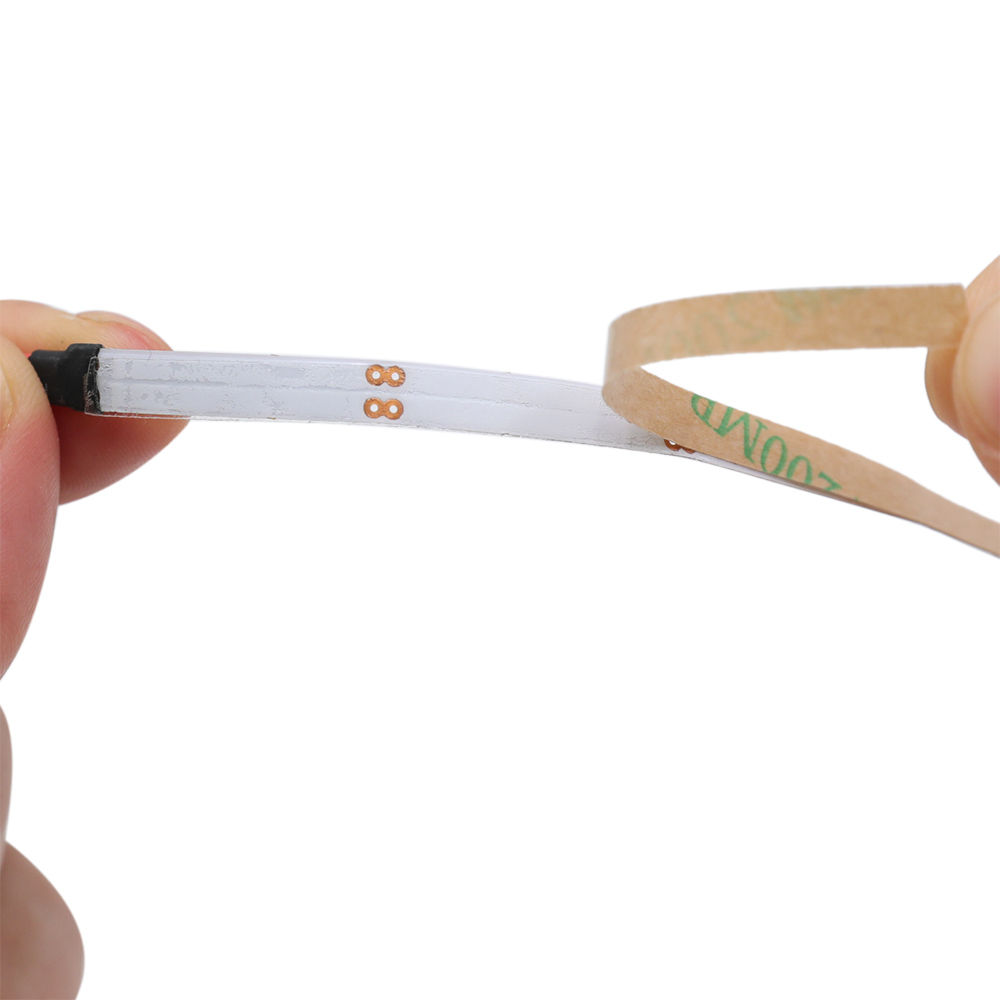

Our brightest flexible single color ultra narrow LED light strips are soft and easy bent for installation. Available in 5 meter (197 in) IP67 outdoor waterproof flexible led strips with adhesive backing and can be stuck just about anywhere. The thin LED strips are suitable for the average home lighting as well as lighting professionals.
Standards and Certifications
LED Strip Type: SMD 3014 600PCS/16.4ft
LED Chip: Super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Yellow (optional)
Dimension: 16.4ft/roll, ,every 3 PCS LED can be cut ( 12DC ) / every 6 PCS LED can be cut ( 24DC )
LED Quantity: 120 LEDs per 1meter (3.28 ft)
Warantty: 3 years

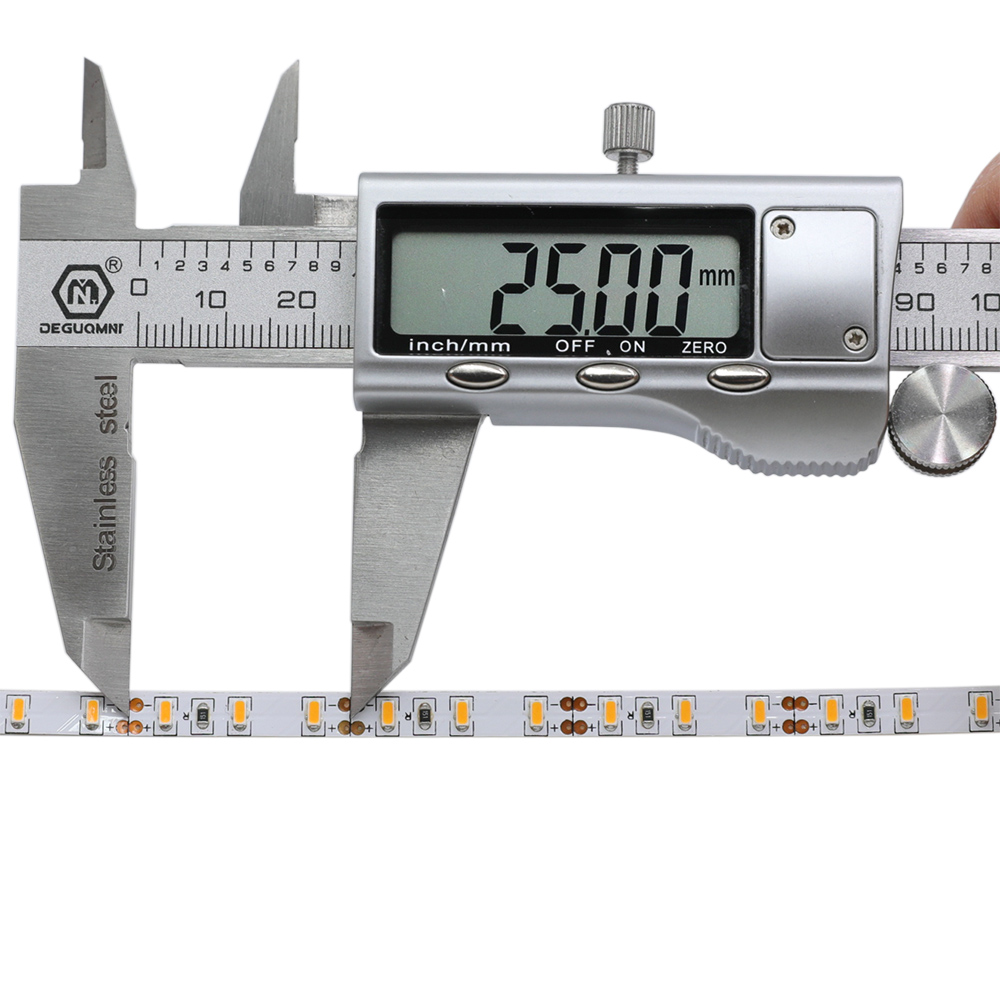

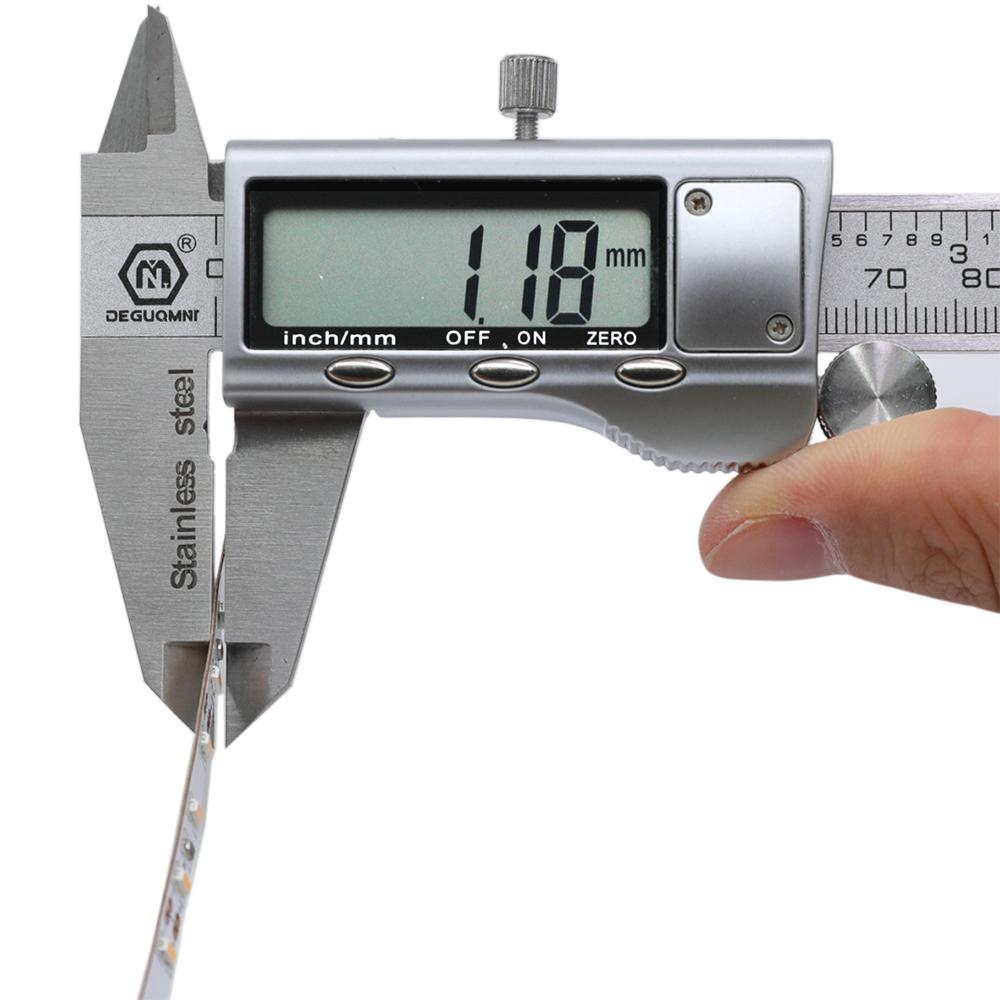

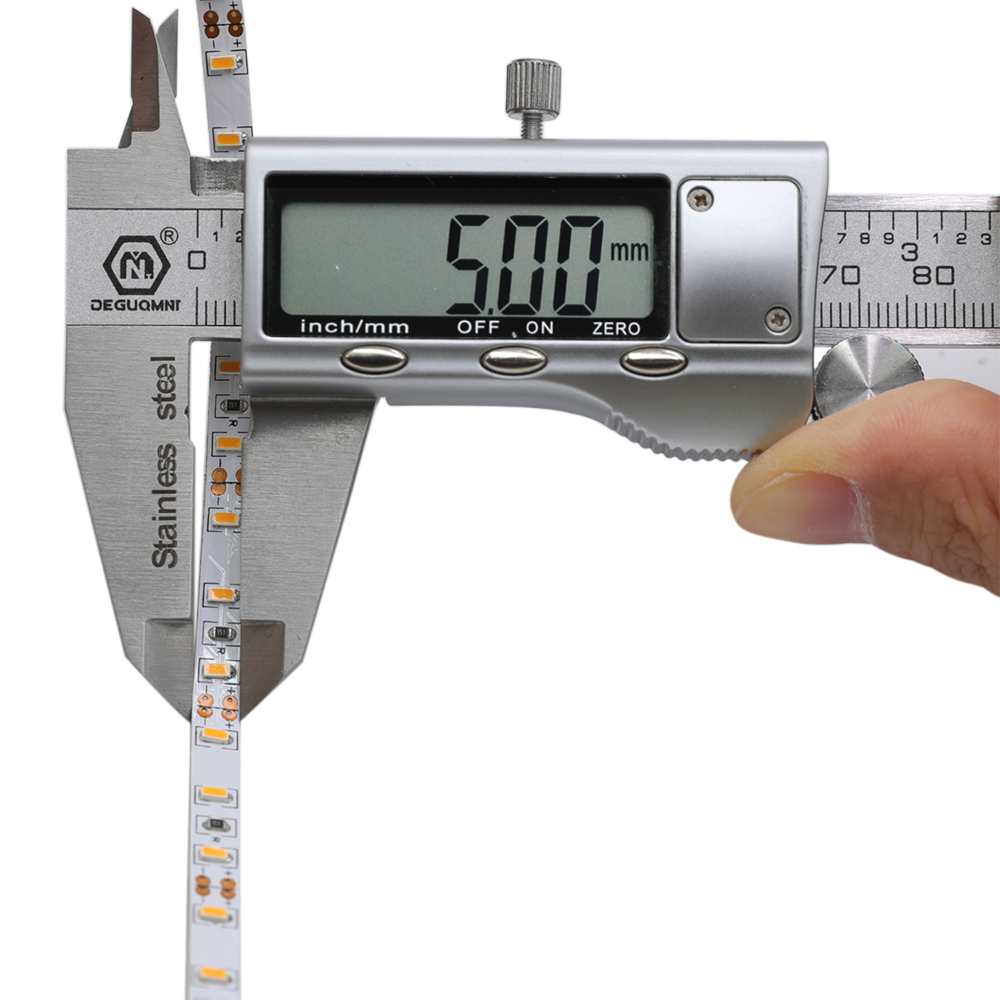

Dimensions: L500cm(196.8 in ) x W0.5cm(0.20 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12/24V DC
Working Power: 2.5A 60W /16.4ft Max
Lamp Luminous Flux(lm): 9~10lm/LEDs 4920lm/16.4ft 300lm/ft 82lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-9000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof ,Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP67 waterproof led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You will need a led strip light, a power supply(Please use a DC24V 75Watt power supply),/(use a DC12V 75Watt power supply) and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►White led strip wiring diagram:
