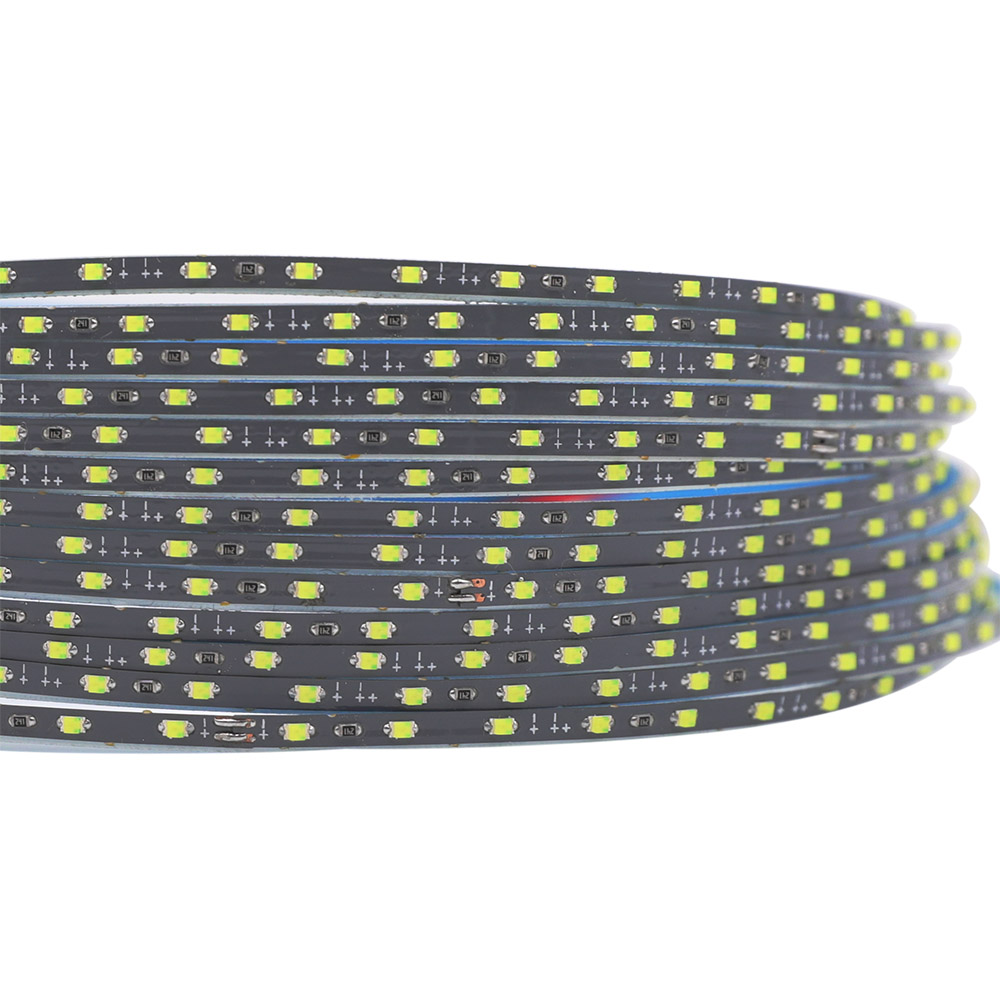

0603SMD 600LEDs Single Colors LED Strip Light - Super Narrow 0.12in Width 3mm - DC12V

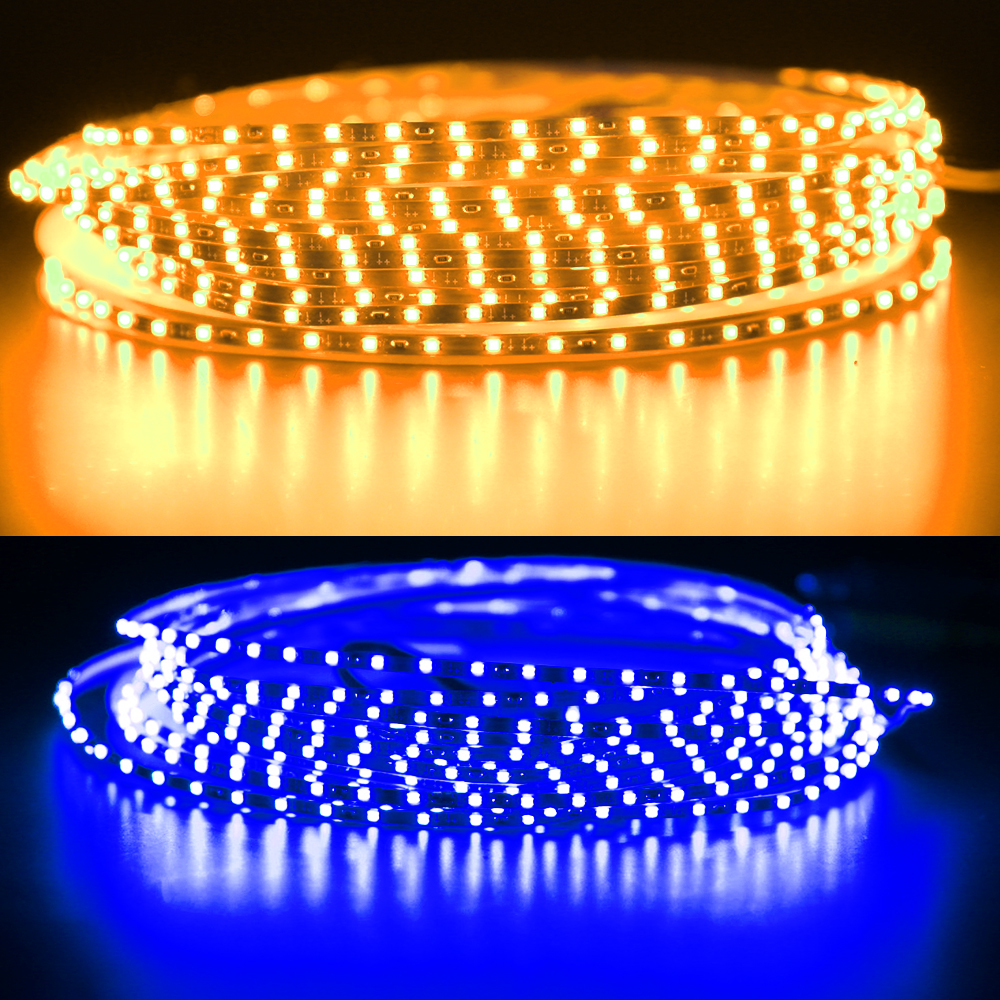

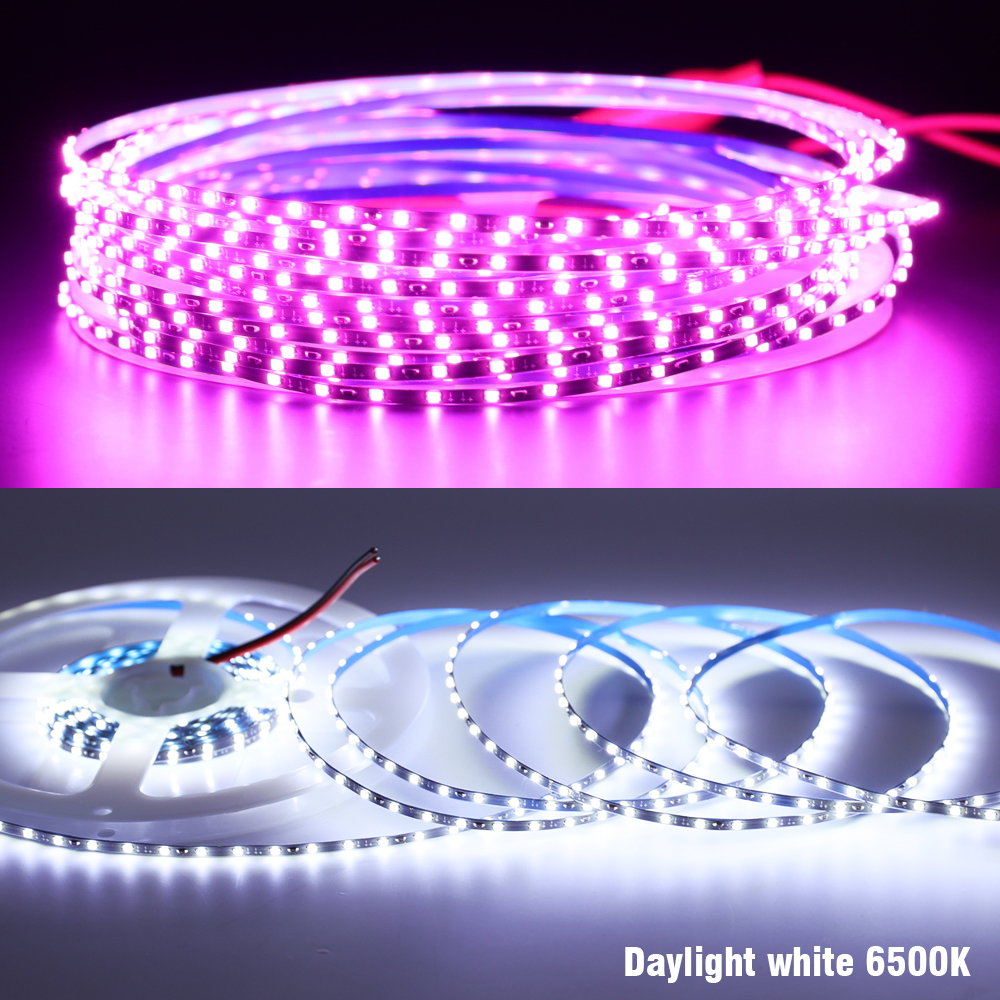

►0603SMD LED 3mm single color ultra thin led strip, supports multi led light color: 3000K warm white, 6000K daylight white, 7000K cool white, red, blue, yellow, blue, pink, and purple light. To choose the right white light color temperature: 3000K warm white vs 6000K pure white vs 7000K cool white.
►This narrow led strip provides different strip length, 5m, 3m, 2m, and 1m, meeting your led lighting project needs. Waterproof rating optional - IP20 vs IP67, the ultra narrow led light strip can be used indoor and outdoor waterproof environment.

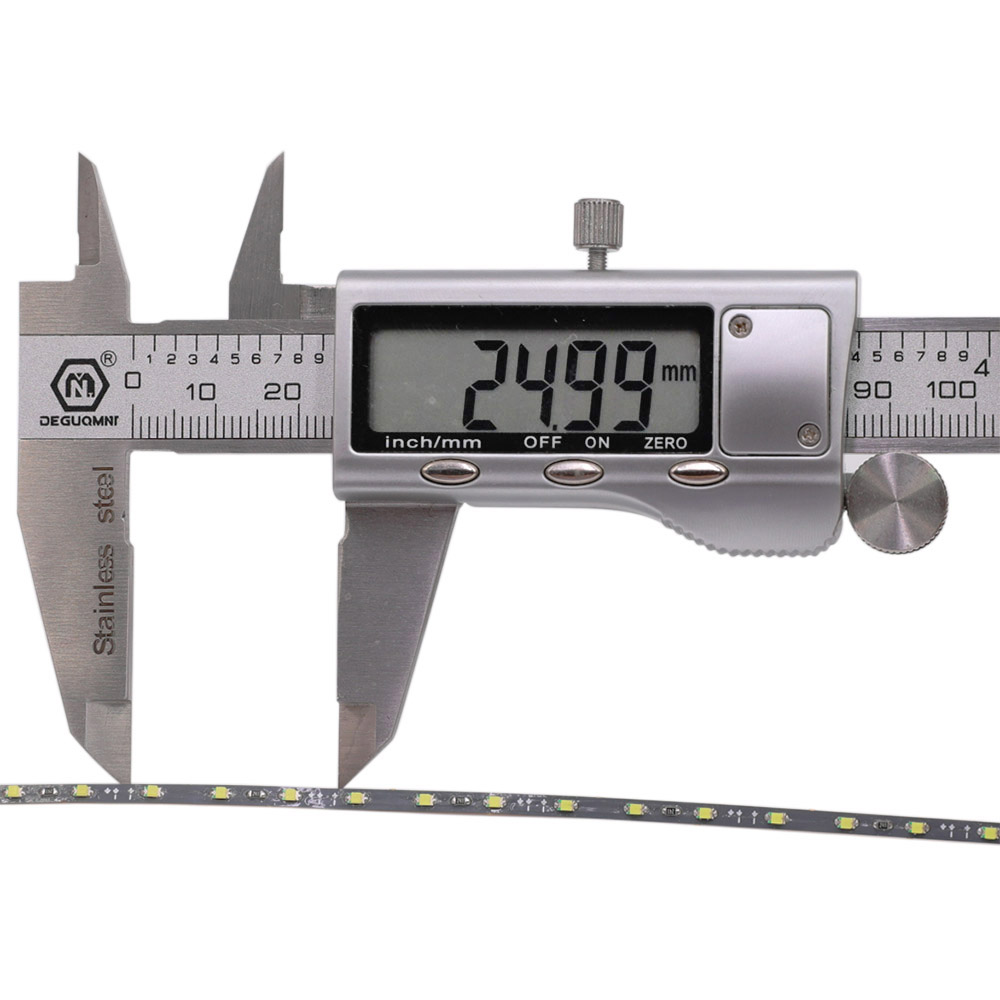

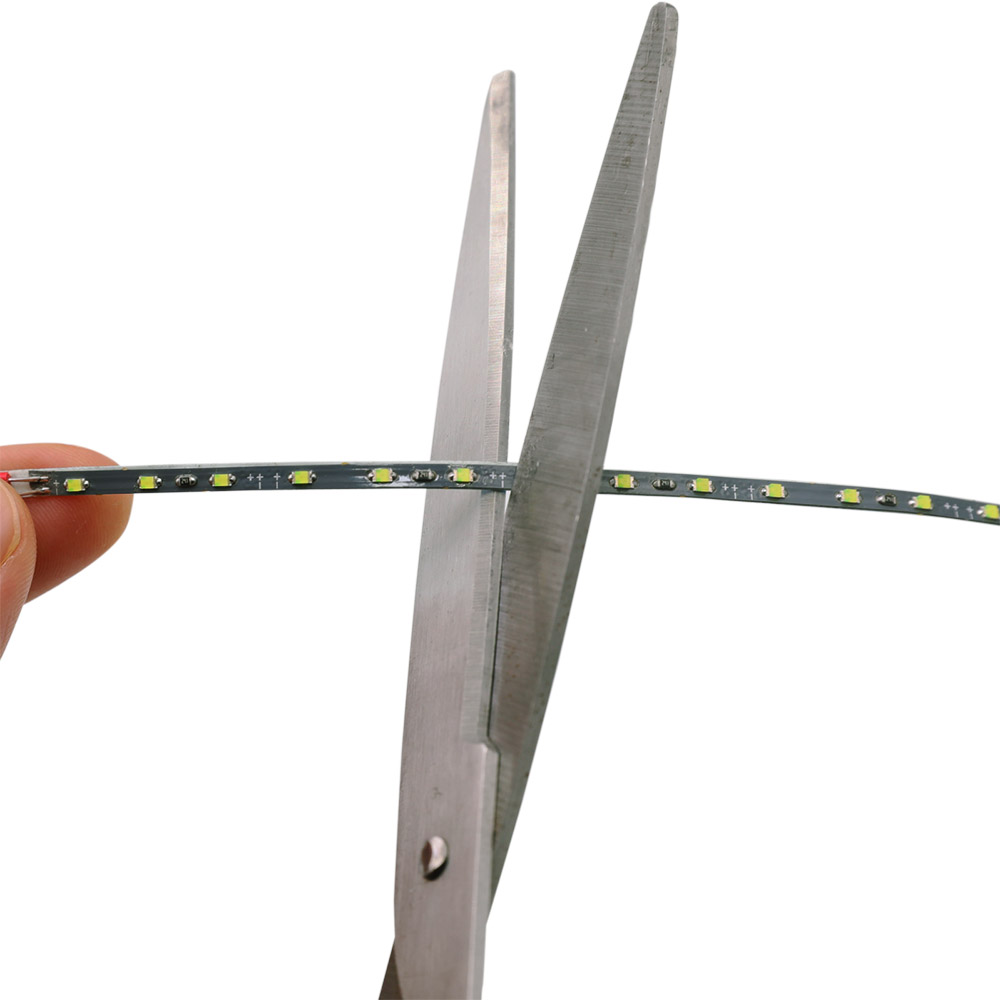

►12V DC operation. This super thin led strip can be cut into 3-LED segments, so you could cut a different length for your led lighting project and request. Our bright flexible LED strip lights are soft and easy bent for installation. Available in 5 meters (197 in) flexible rope lights with adhesive backing and can be stuck just about anywhere.
Notice: 0603 smd will be very very hot when it is working, please do not let the LED srip be in touch with anything including the LED Reel!
Standards and Certifications
|LED Strip Type:||SMD 0603 600LEDs/16.4ft|
|LED Chip:||Super brights Chip|
|Length:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|LED Color:||Warm White, Daylight White,Cool White, Red, Green, Blue, Yellow, Purple (optional)|

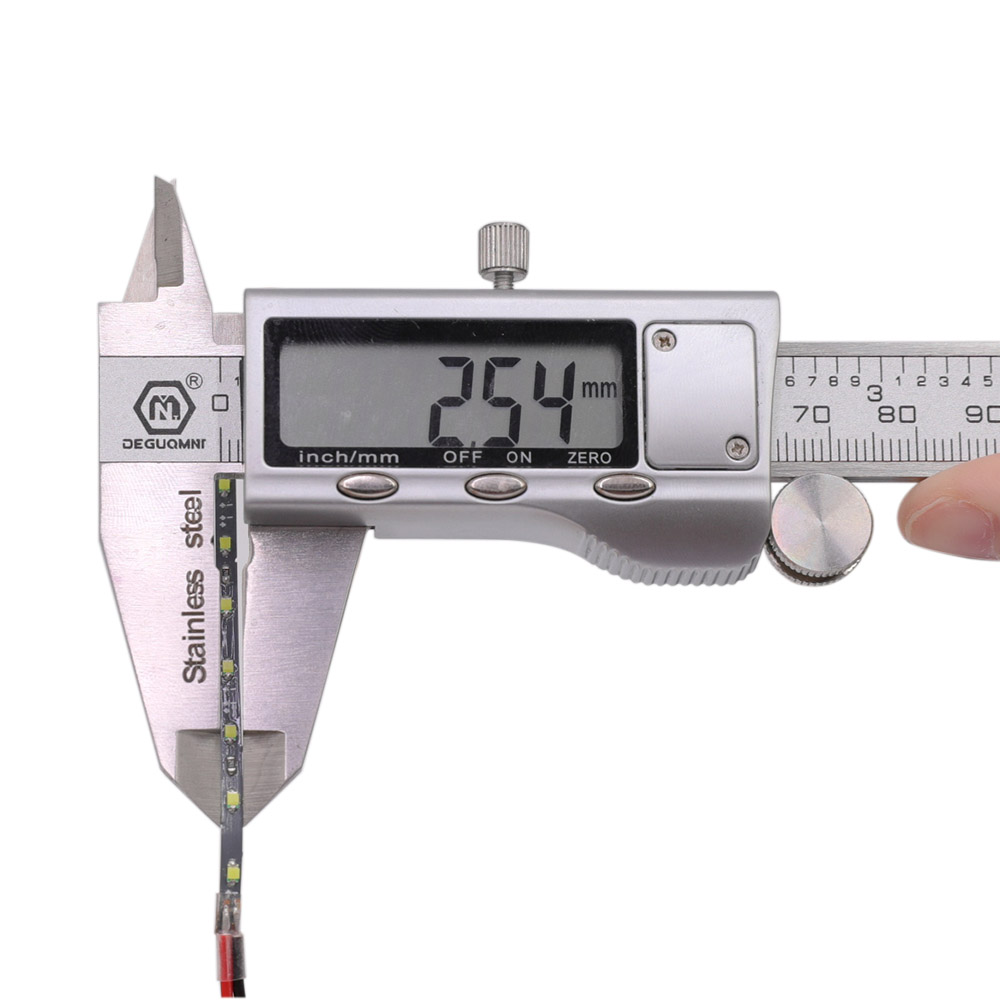

|Dimensions:||L500cm(196.8 in ) x W0.3cm(0.11 in ) x H0.10cm(0.04 in )|
|Lamp Luminous Flux(lm):||1.1-1.2lm/LEDs 720lm/16.4ft 250-300mcd|
|Working Power:||1.5A 17W /16.4ft Max|
|Beam Pattern:||120 degrees|
|Waterproof Rating:||Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

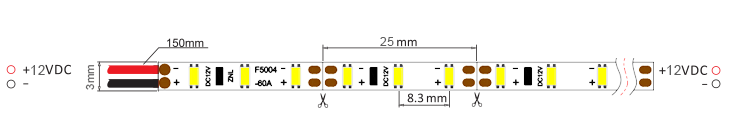

►Single color led strip wiring diagram:
*Click the wiring diagram picture to know more wiring detail.
►Choose a suitable LED strip power supply and a dimmer controller:
